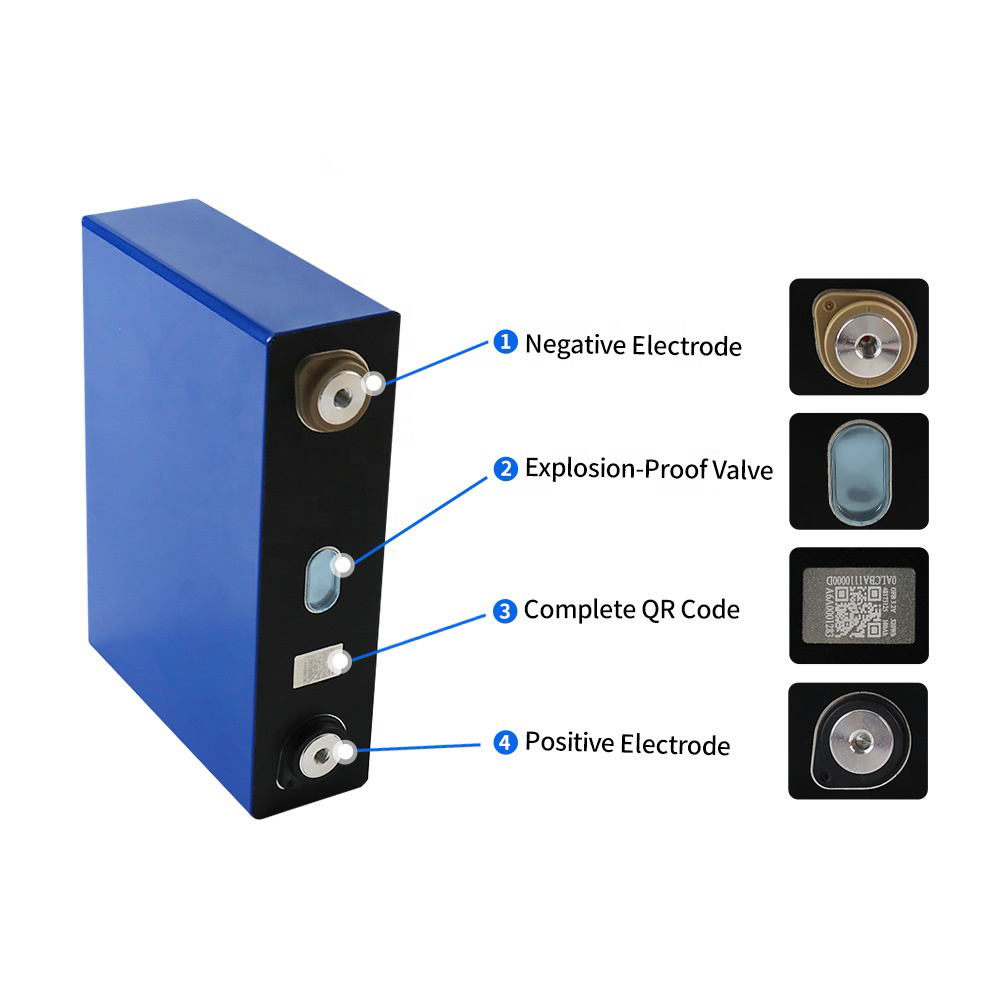

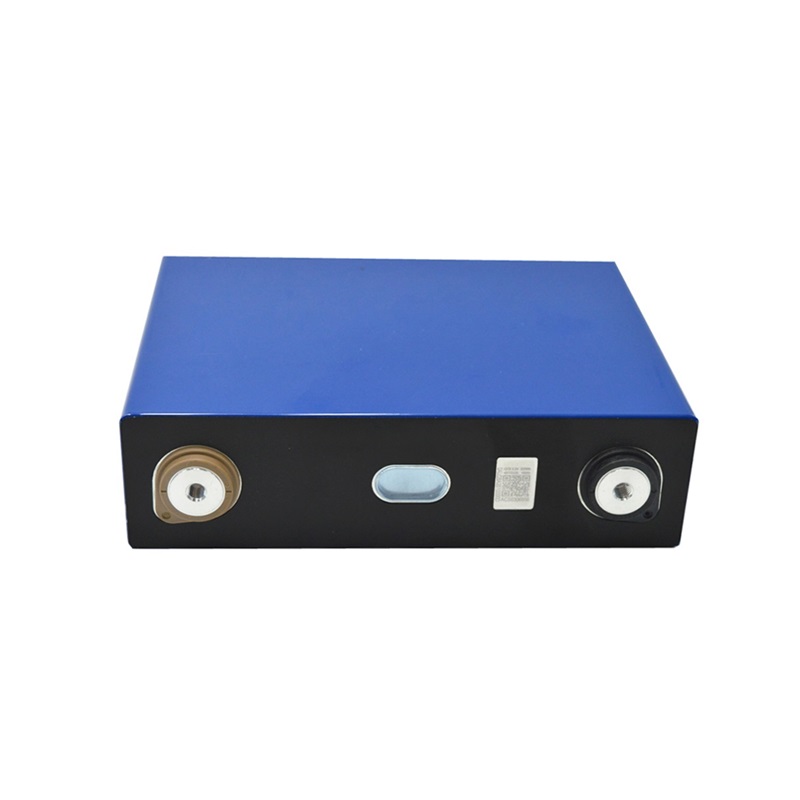

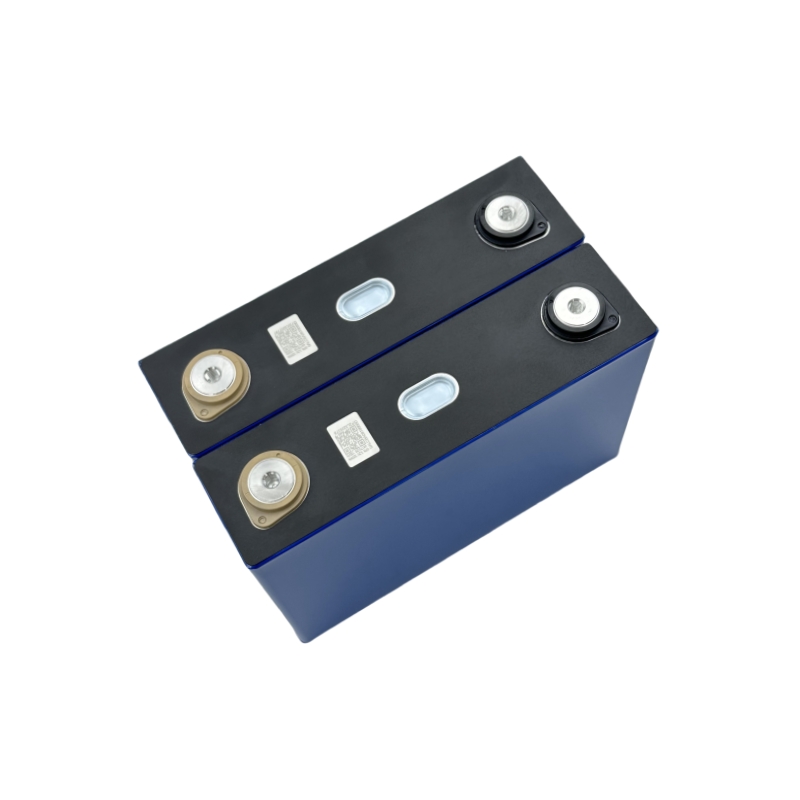

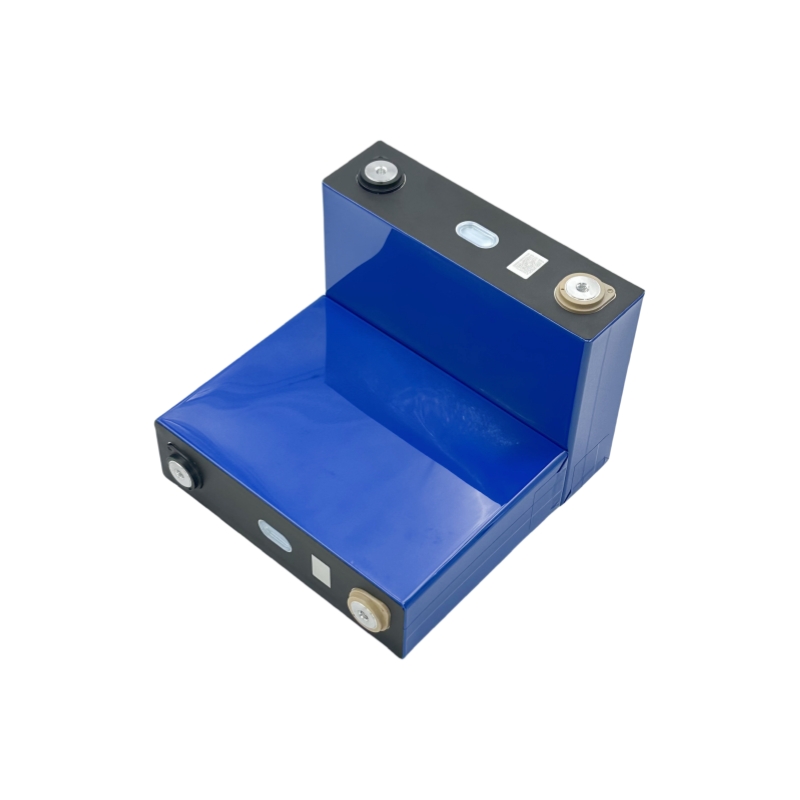

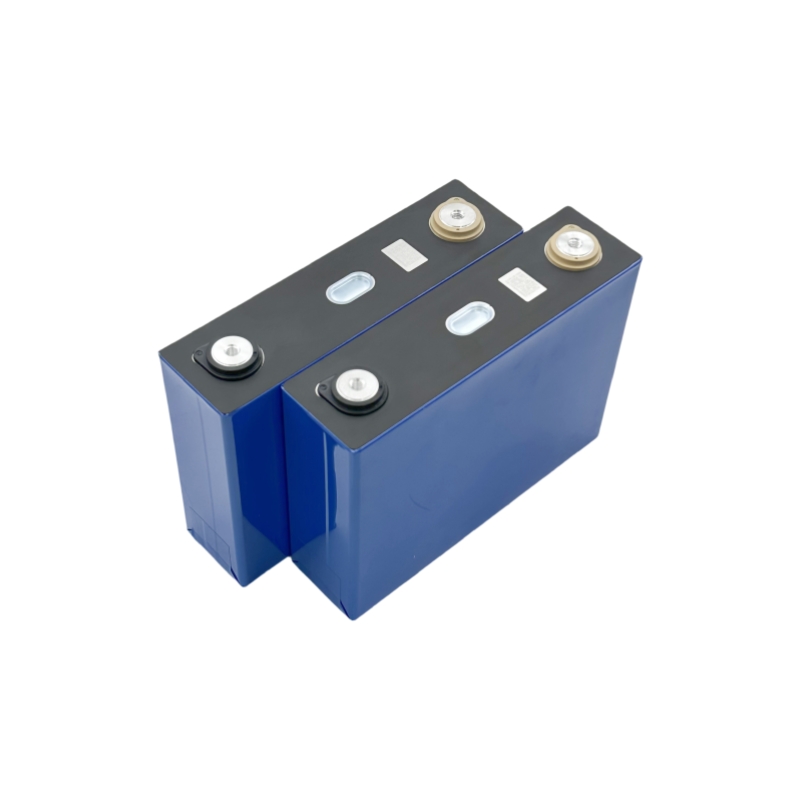

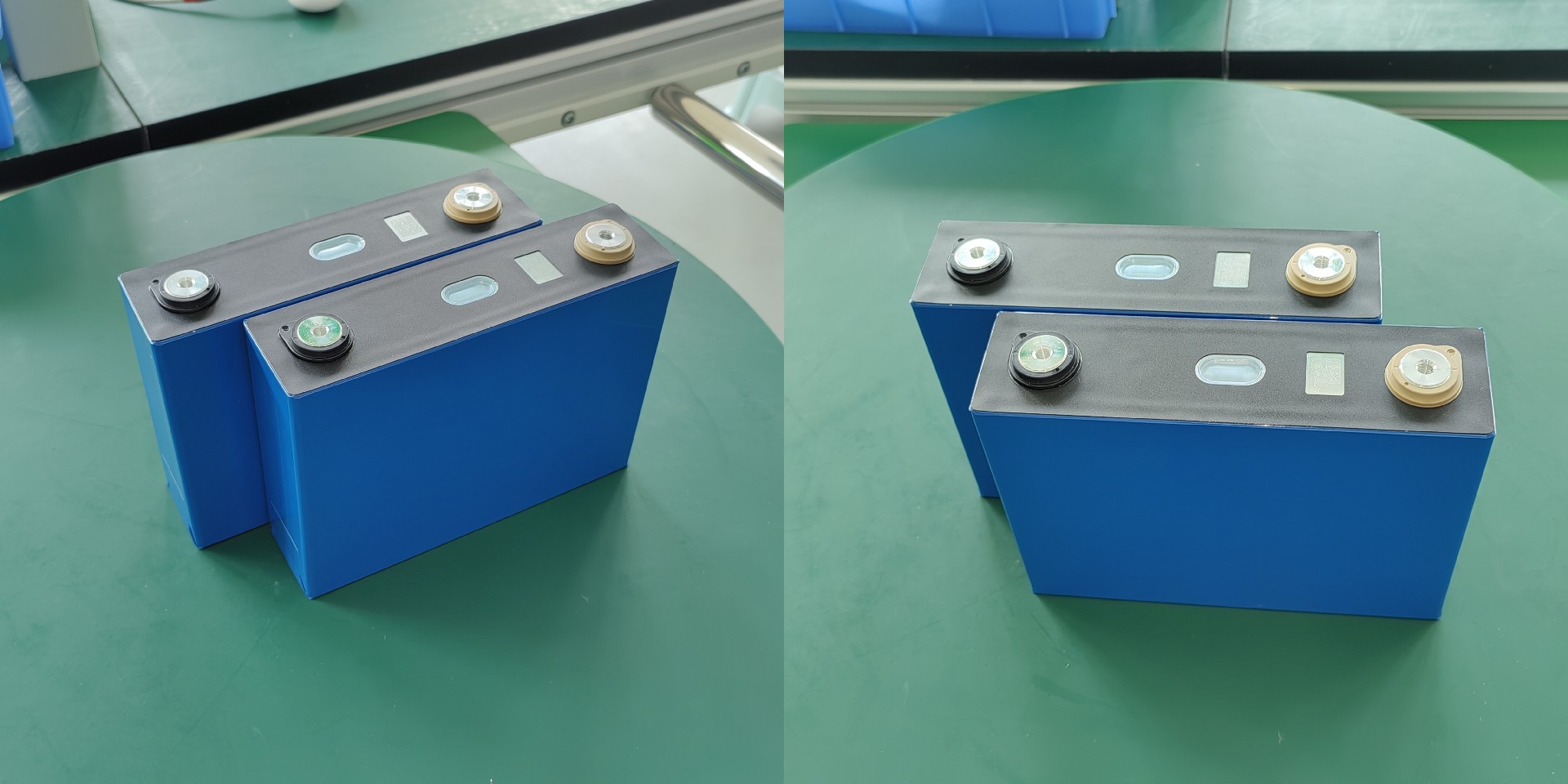

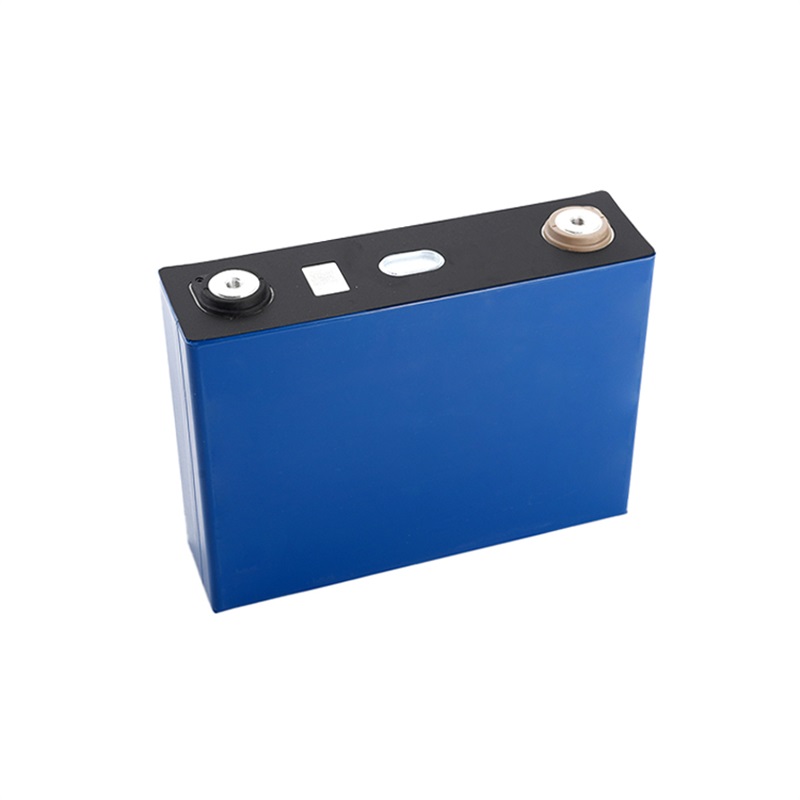

LiFePO4 Prismatic 100Ah 3.2 V Battery Cell
The LiFePO4 Prismatic 100Ah 3.2V Battery Cell is suitable for automotive golf carts and more.
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
Features of 3.2v lifepo4 prismatic 100ah GFB 48173125-100Ah:
1. EV, e-scooter, electric golf car, electric vacuum sweeper.
2. Electronic toy, model airplane, remote control.
3. Communication equipment: Cordless telephone, inter-phone.
4. Modality equipment and consumer electronics.
5. Decorative lighting, Solar lamps, torch, emergency light, solar street light and power supply.
specifications
Item | Parameter |
Typical Capacity | 100Ah |
Operating Voltage | 2.5~3.65V, 0℃<T≤60℃ 2.0~3.65V, -20℃<T≤0℃ |
Impedance(1KHZ) | ≤0.4mΩ |

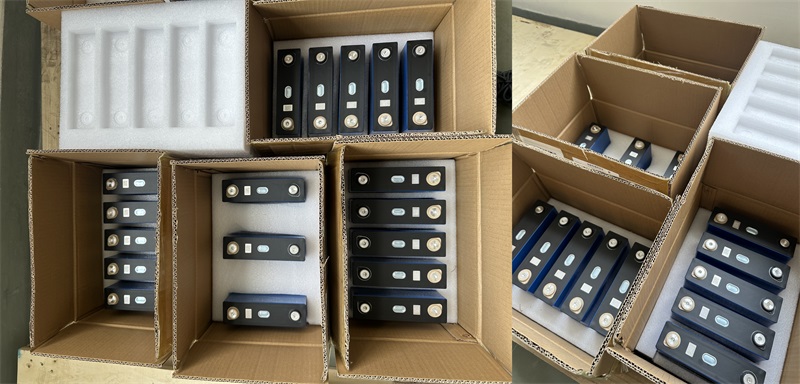

Shipping capacity | 3~30% SOC |
Operating temperature(charging) | 0~60℃ |
Operating temperature(discharging) | -20~60℃ |
Self-discharge | ≤3.5%/month |
Standard charge current | 0.5C |
Standard charge voltage | Cell max voltage 3.65V |
Maximum charge current(continuous) | 1C |
Standard charge method | CC/CV |
Standard charge temperature | 25±2℃ |
Absolute charge temperature (Cell temperature) | 0~60℃ |
Absolute charge voltage | 3.65V |
Standard discharge current | 0.5C |
Maximum discharge current (continuous) | 1C |
Maximum discharge current (long pulse) | 2C |
Maximum discharge current (short pulse) | 3C |
Discharge cut-off voltage | 2.5V, 0℃<T≤60℃ 2.0V, -20℃<T≤0℃ |

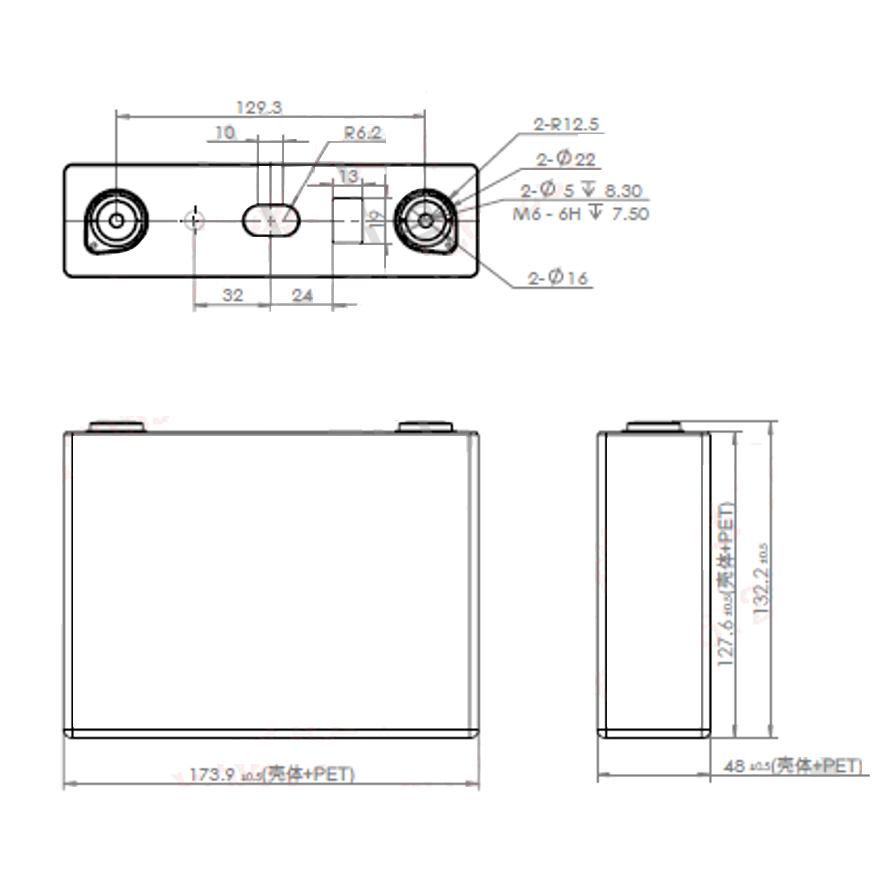

Cell dimension | 48*173.9*132.2mm |
Weight | 2.3kg |
Details
Attention:
1. Do not expose to, dispose of the battery in fire.
2. Do not put the battery in a charger or equipment with wrong terminals connected.
3. Avoid shorting the battery
4. Avoid excessive physical shock or vibration.
5. Do not disassemble or deform the battery.
6. Do not immerse in water.
7. Do not use the battery mixed with other different make, type, or model batteries.
8. Keep out of the reach of children.
