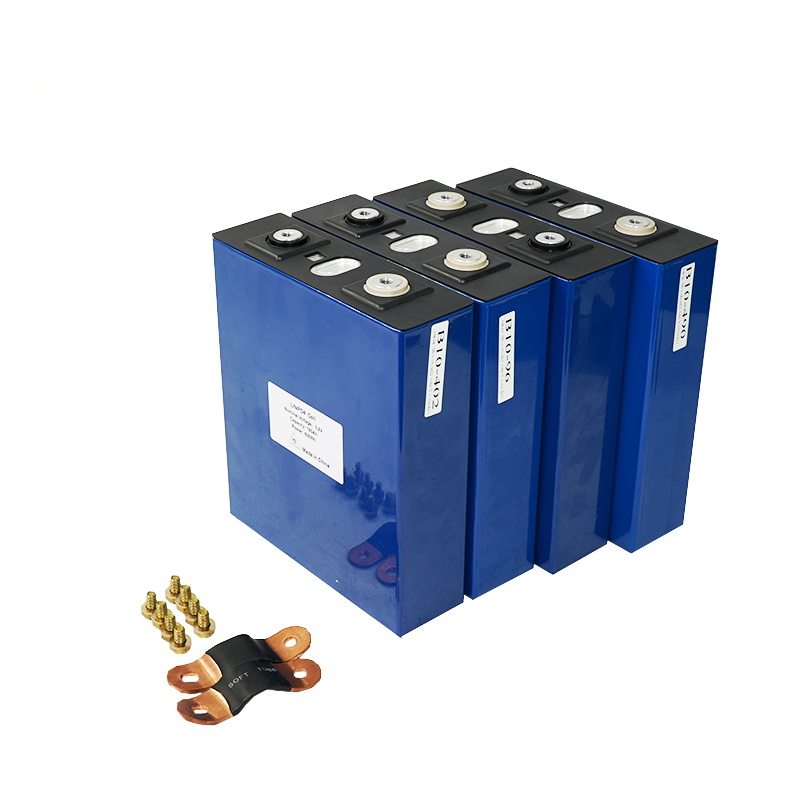

Lithium iron phosphate lifepo4 3.2v 90ah battery cell
Lithium iron phosphate lifepo4 3.2v 90ah battery cell with long cycles
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
We provide 3.2V190Ah high-power Lithium iron phosphate cell which has long cycles for Solar Energy Storage Solar power system UPS, Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools...Solar and wind power system, RV, caravan...
We are a professional LiFepo4 lithium iron phosphate battery cells dealer for over the world,we provide high-quality lifepo4 lithium battery/Ncm battery/BMS and forklift battery&battery charger,if you have any demands,please feel free to contact us.
Application:
Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools... Solar and wind power system, RV, caravan...Back-up system and UPS... Torch LED light emergency light.
Specification:
No | Item | Parameter Specification | |
1 | Battery Module | Lithium iron phosphate cell | |
2 | Nominal Capacity | 190Ah | |
3 | Nominal Voltage | 3.2 V | |
4 | Internal Resistance | ≤0.3mΩ | |
5 | Charging(CC-CV) | Recommend Constant Current | 190A (1C) |
Charging Upper Limit Voltage | 3.65V | ||
6 | Discharging | Max Continuous Discharge Current | 190A (1C) |
Discharging Cut-off Voltage | 2.5V | ||
7 | Recommended SOC Usage Window | SOC: 10%~90% | |
8 | Operation Thermal Ambient | Charging | 0°C ~ 65°C |
Discharging | -20°C ~ 55°C | ||
9 | Storage Thermal Ambient | Short-term (within 1 month) | -20°C ~ 65°C |
Long term (within 1 year) | -20°C ~ 55°C | ||
10 | Storage Humidity | < 70% | |
11 | Battery Weight | 4.0±0.10kg | |
12 | Battery Dimension | 174*54*207mm | |
13 | Shell Material | Aluminium | |
