LP44147272-130Ah Lithium LiFePO4 Power Cell

LP44147272-130Ah 3.2V Lithium iron Phosphate Power lifepo4 Battery Cell with M8 internal thread

Grade A Lishen 3.2V 130Ah lithium power LiFePO4 battery cell with M8 internal thread, maximum 6C fast charge, 12C high discharge rate, low internal resistance, long cycle life, no memory effect, perfect for electric vehicles, electric bikes, scooters, boats, submarines, golf carts, etc.


Specifications


Item

Specification

Cell Type

Lithium -ion power cell

Cell Model

LP44147272

Nominal Capacity

130Ah

Nominal Voltage

3.2V

AC-impedance

≤ 1.0mΩ

Weight

3425±100g

Dimension

147.05(L)*44.4(T)*272(H)mm

Standard Charge Method

Constant Current and Constant Voltage (CC/CV)

Standard Charge Current

1C

Charge Voltage

3.65V

Charge End Current

6.5A

Maximum Charge Current

3C(Continuous), 6C (10s)

Charging Voltage

3.65V

Standard Discharge

Constant Current (CC)

Standard Discharge Current

1CA

Discharge End Voltage

2.0V

Maximum Discharge Current

6C (Continuous)12C(30s)

Cycle Life

Capacity≥80% Nominal Capacity @2000th cycles

Max Operating Temperature Range

Charge: 0℃ ~ 45℃, Discharge: -20℃ ~ 60℃

Optimal Operating Temperature Range

Charge: 15℃ ~ 35℃

Discharge: 15℃ ~ 35℃

Storage Temperature

1 month -40℃~ 45℃

6 months: -20℃ ~ 35°C

Cells should be stored at 35%SOC or the voltage is between 3.275V and 3.305V

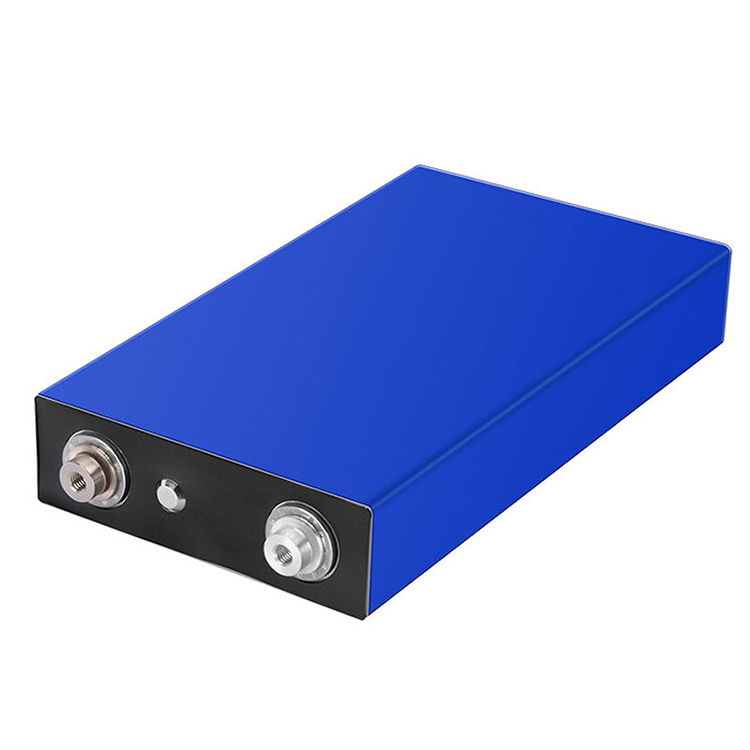

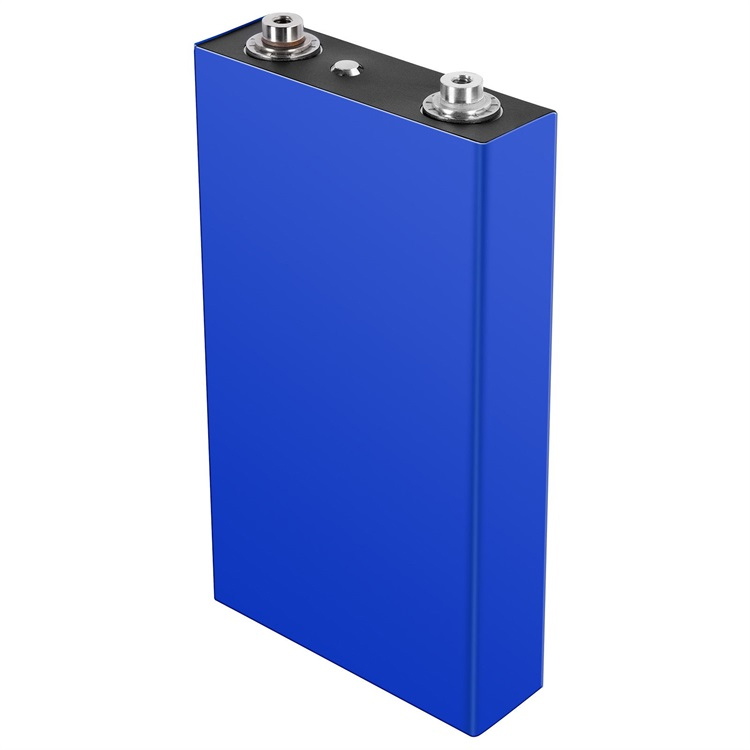

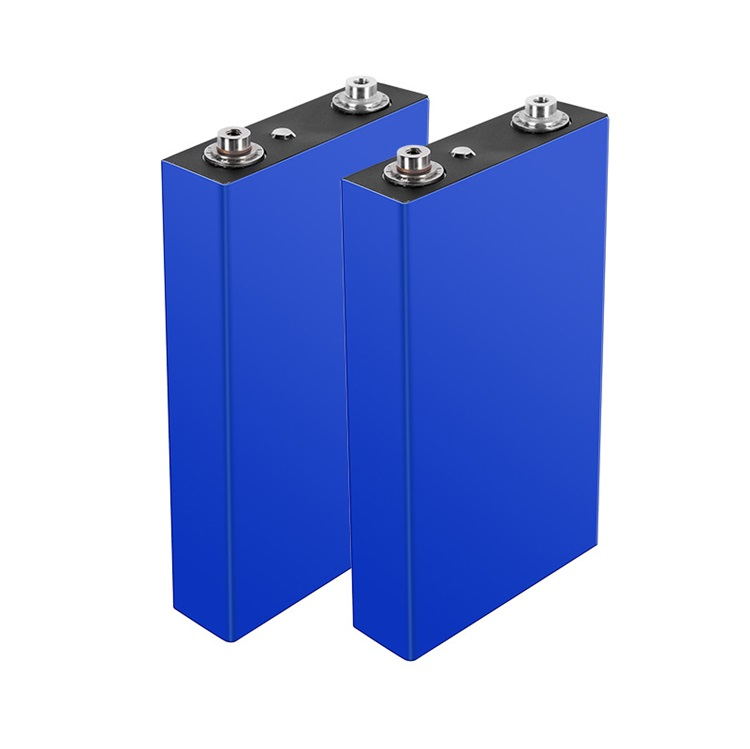

Detail images

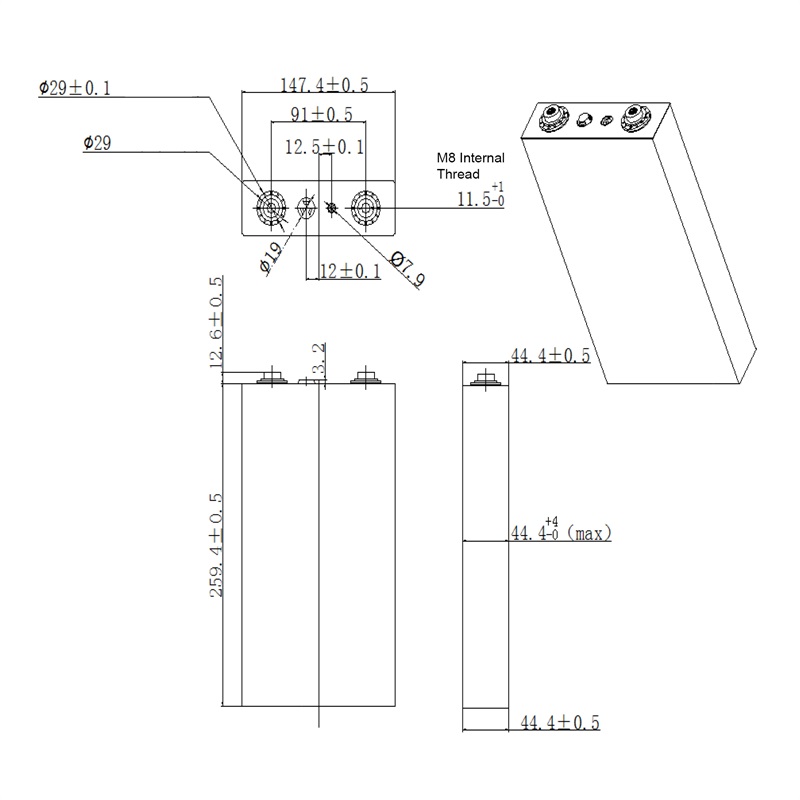

detailsdimension



Applications


electric vehicle, electric bikes, scooters, boats, submarines, golf carts, communications, energy storage, Intelligent network, etc.



Warning


· Avoid overheat in any circumstances.Don't modify or disassemble the battery. It will be dangerous, and may cause ignition, heating, leakage or explosion.

· Don't put cells in overheatcircumstancesor disposed in fire ‚don't put cells under the sunshine.

· Don't short-circuit positive(+) and negative(-) terminals. Keep away from metal or other conductive materials. Jumbling the batteries of direct contact with positive(+) and negative(-) terminals or other conductive materials may cause short-circuit and may even cause fire and explosion.

· Don't reverse the positive (+) and negative (-) terminals.

· Don't put cells in water or other conductive liquids or let cells absorb amoisture.

· Don't impact cells excessively.

· Don't solder the battery directly. Excessive heating may cause deformation of the battery components such as the gasket, which may lead to the battery swelling, leakage, explosion,or ignition.

· Don't use abnormal cell which has damages by shipping stress, drop, short or something else, and which gives off electrolyte odor.

· Don't contact cans directly or with other conductive materails during the using process.

· Don't twist the terminal post with the torque which is more than 15N • m.
