MB30 lifepo4 3.2v battery 306Ah Cell for ess and solar
MB30 lifepo4 3.2v battery 306Ah Cell for ess and solar

MB30 lifepo4 3.2v battery 306Ah Cell for ess and solar

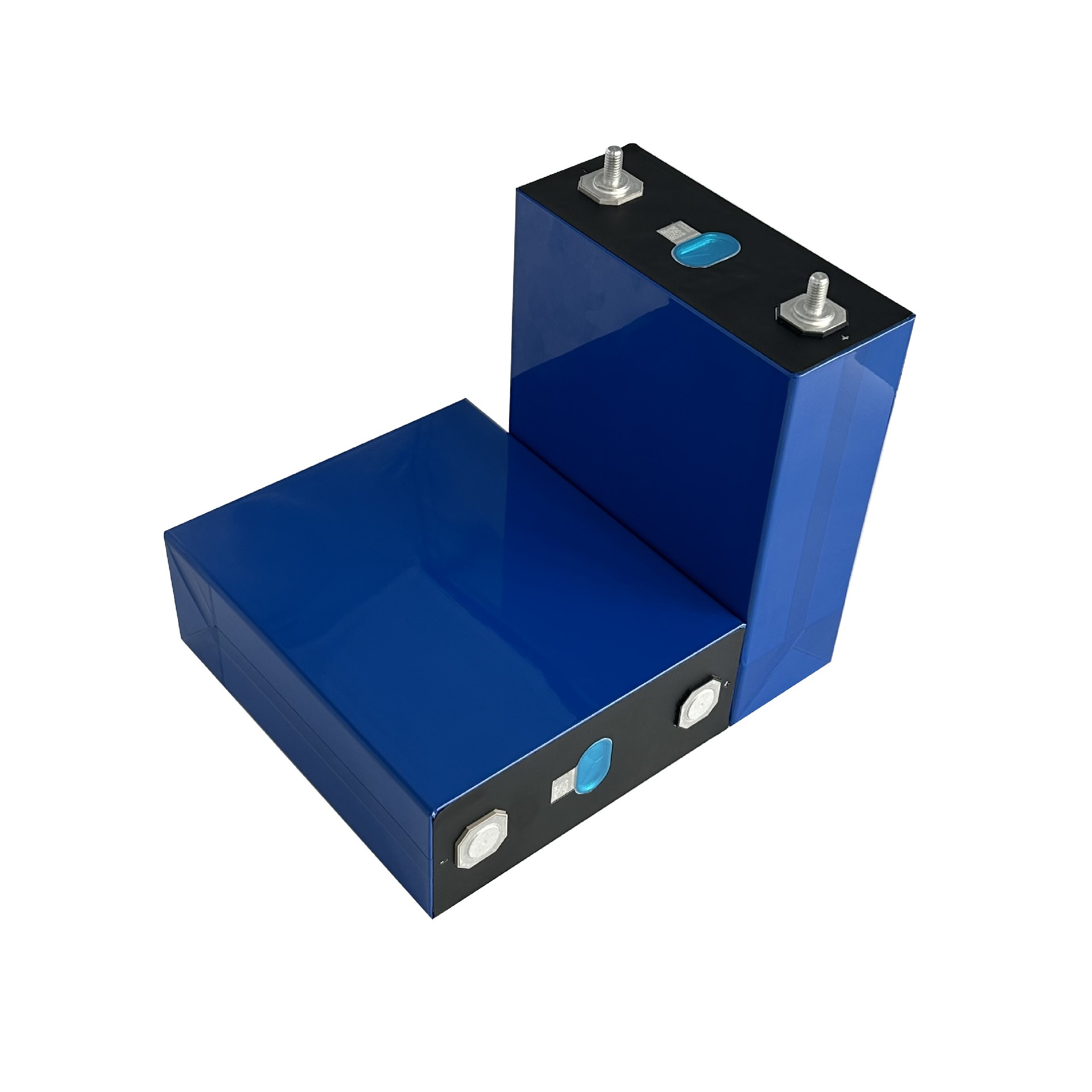

MB30 3.2V 306Ah LiFePO4 Battery Prismatic cells with 10000 Cycles for ess, solar

Product Features

Automated: automated production/Product consistency

Ultra-Safe: Explosion-proof / No leakage

Stable: Low IR / High CRD/ Discharge Steadily

Customized: Customer Demand Customization

Super Long: Ultra-long life cycle

Environmentally Friendly: Passed environmental/system certification

Specifications

Specification Parameters
Nominal Capacity306Ah
Nominal Voltage3.2V
Initial IR0.1 8 mΩ ±0.05 mΩ
Weight5600g ±300g
Charging Cut-off Voltage3.65V
Discharging Cut-off  voltage2.5 V T >0℃ 2.0 V T ≤0℃
Discharging Temperature- 30~60℃
Storage Temperature0~35℃
Model NameMB30
Cycle Life10000
Standard Charging Power0.5P
Standard Discharging Power0.5P
Height(H) with terminal207.2 mm ±0.5 mm
Height(h) without terminal204.6 mm ±0.5 mm
Length173.7 mm ±0.5 mm
Thickness71.7 mm ±0.8 mm

Details

details

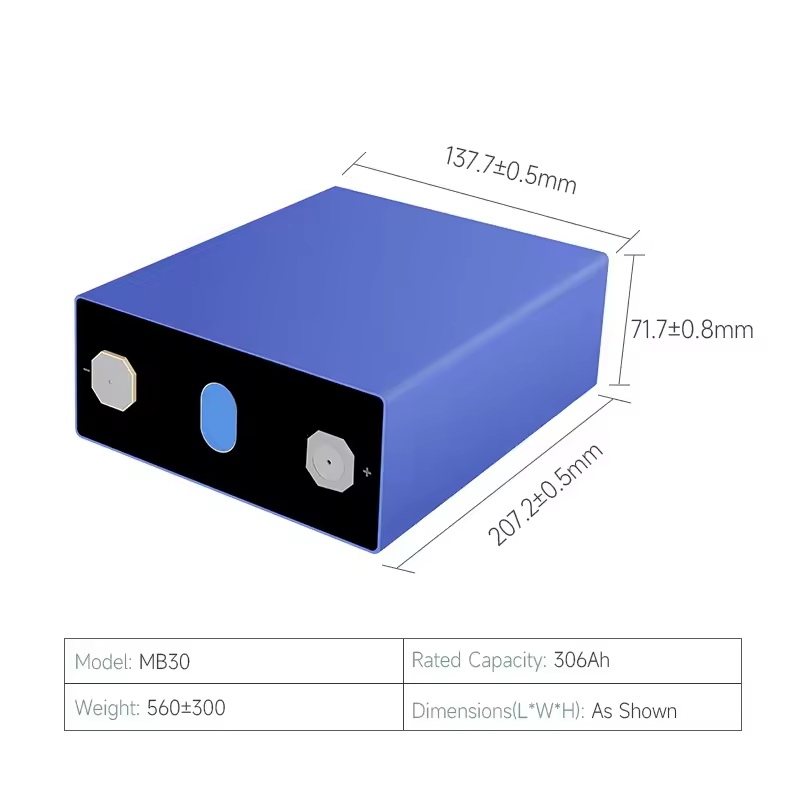

dimension

Applications

ThePrismatic LFP Cell is widely used in the following scenarios. Please consult online customer service for specific models
