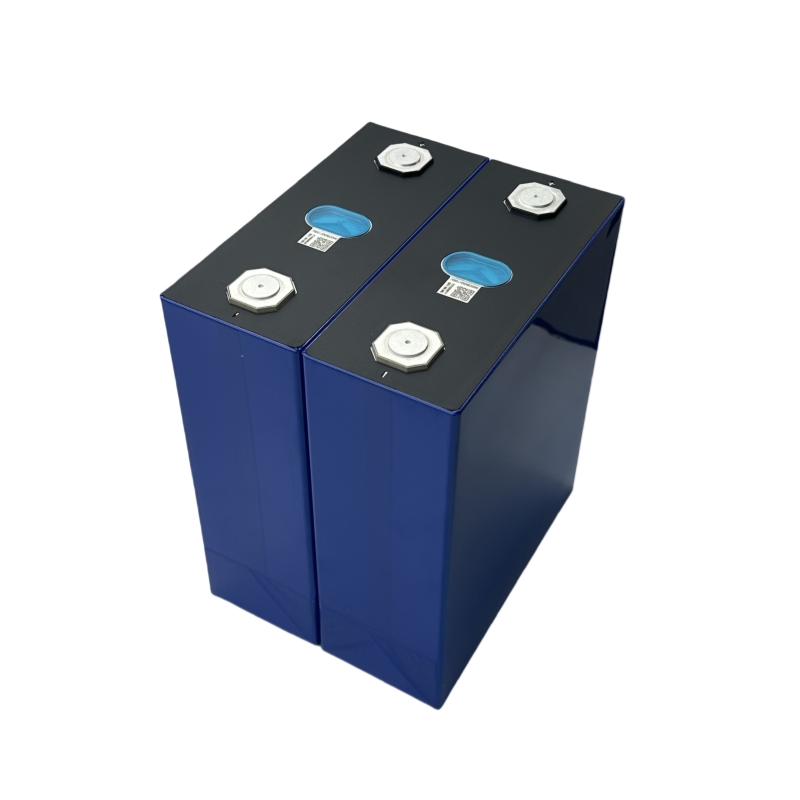

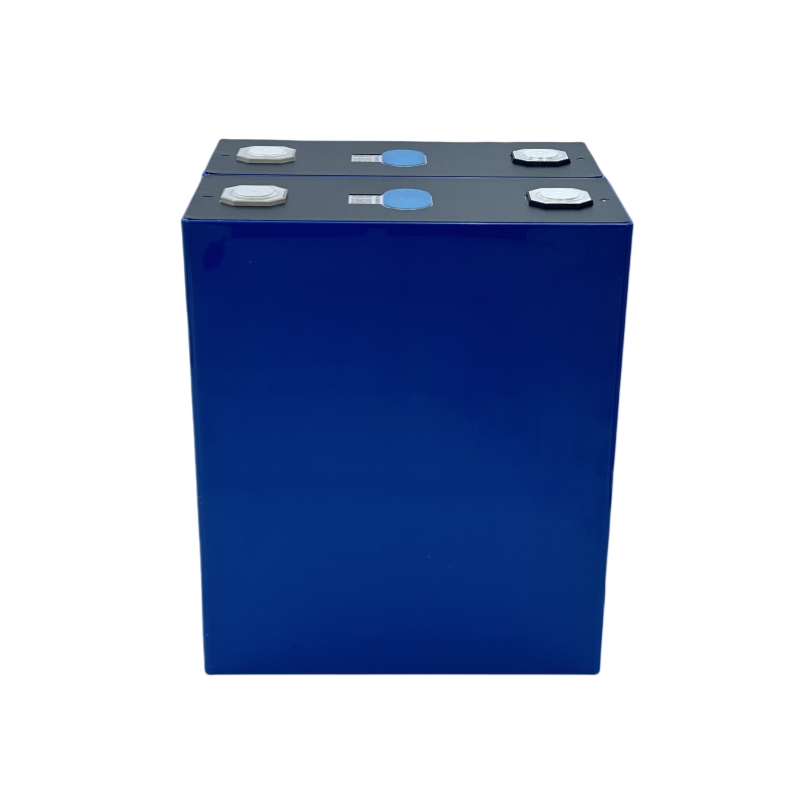

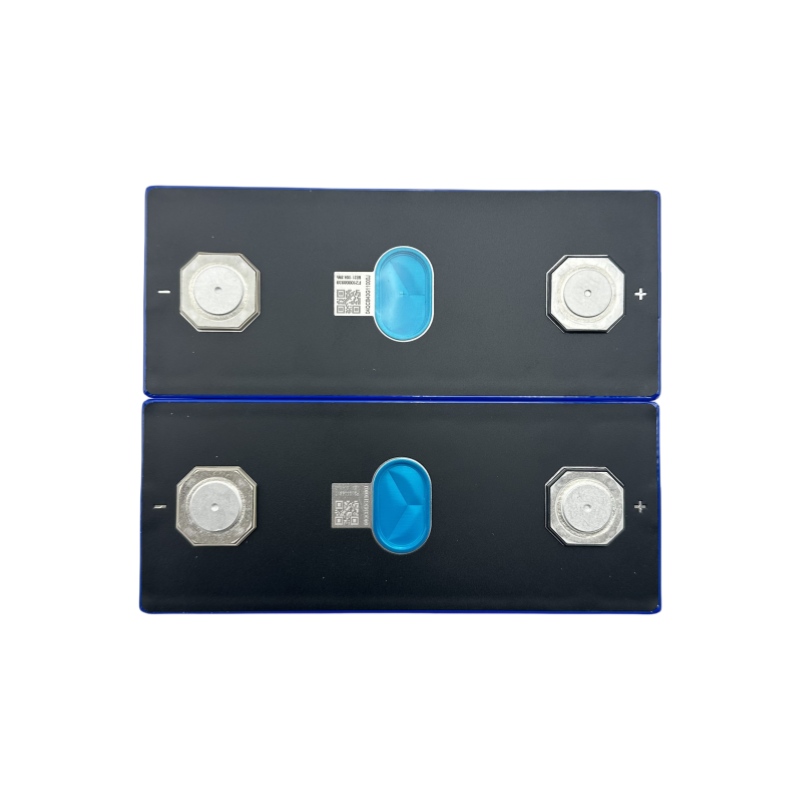

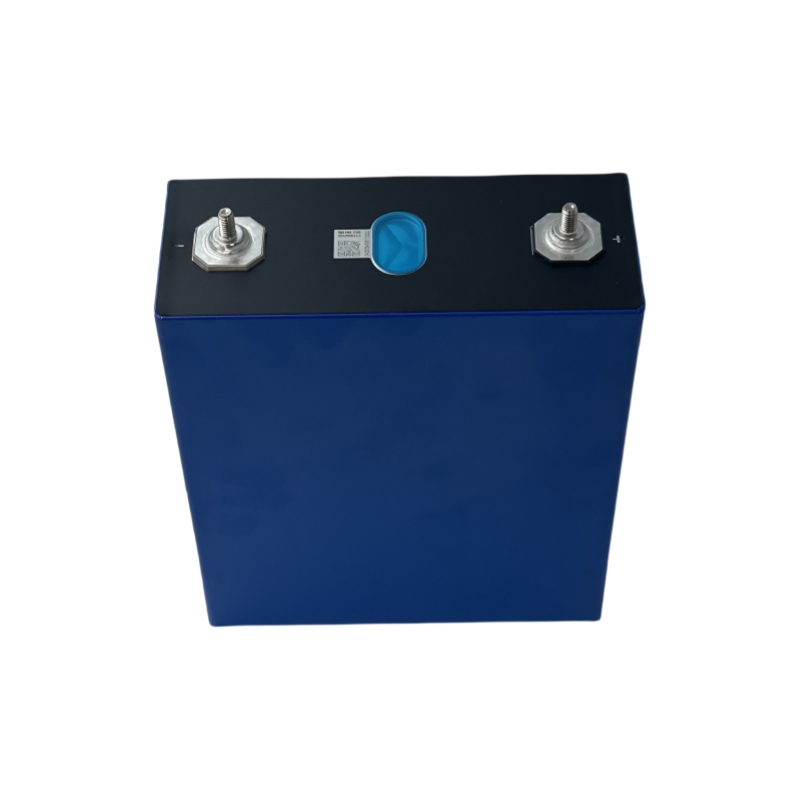

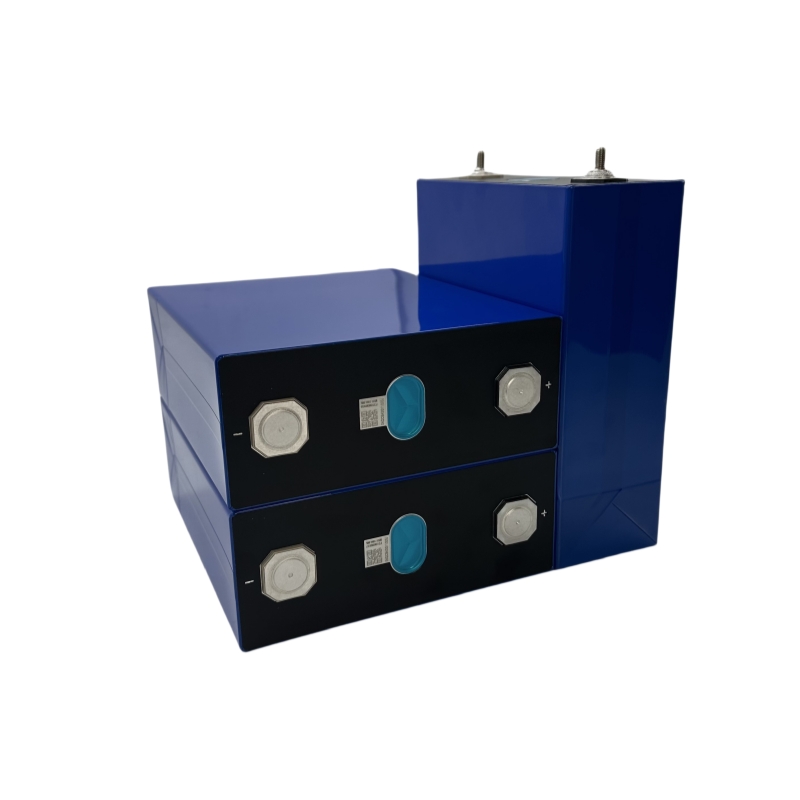

MB31 3.2V 314Ah LiFePO4 prismatic battery cell

MB31 3.2V 314Ah Prismatic LiFePO4 LFP Battery cell with long life cycle of up to 8000 cycles for ess

Product Features

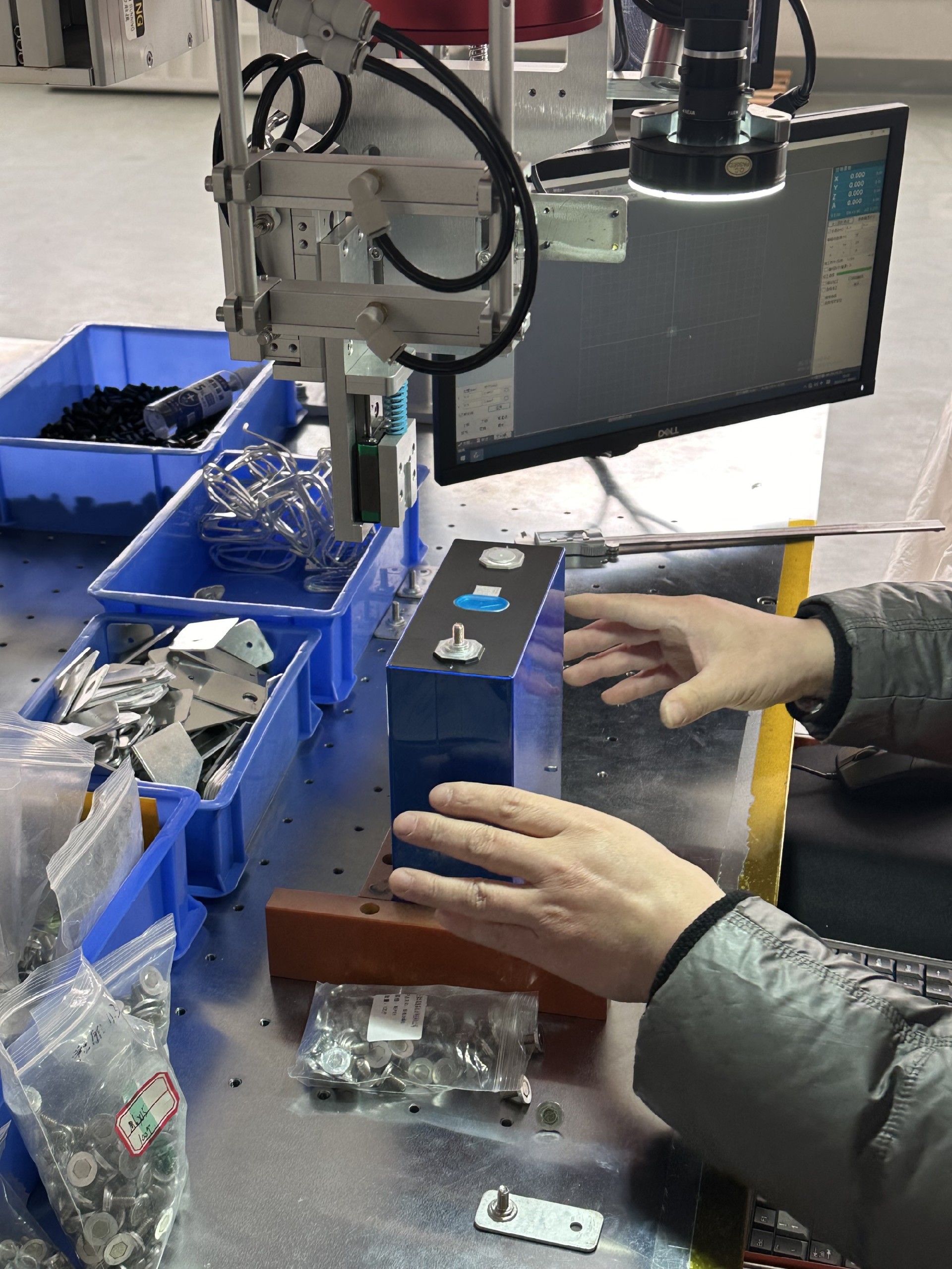

Automated: automated production/Prodcut consistency

Ultra-Safe: Explosion-proof / No leakage

Stable: Low IR / High CRD/ Discharge Steadily

Customized: Customer Demand Customization

Super Long: Ultra-long life cycle

Environmentally Friendly: Passed environmental/system certification


Specifications


Nominal Capacity314Ah
Nominal Voltage3.2V
Initial IR0.1 8 mΩ ±0.05 mΩ
Weight5 600 g ±300 g
Charging Cut-off Voltage3.65 V
Discharging Cut-off V oltage2.5 V T >0℃ 2.0 V T ≤0℃
Charging Temperature0~60℃
Discharging Temperature- 30~60℃
Storage Temperature0~35℃
Model NameMB31
Cycle Life8000 Cycles
Standard Charging Power0.5P
Standard Discharging Power0.5P

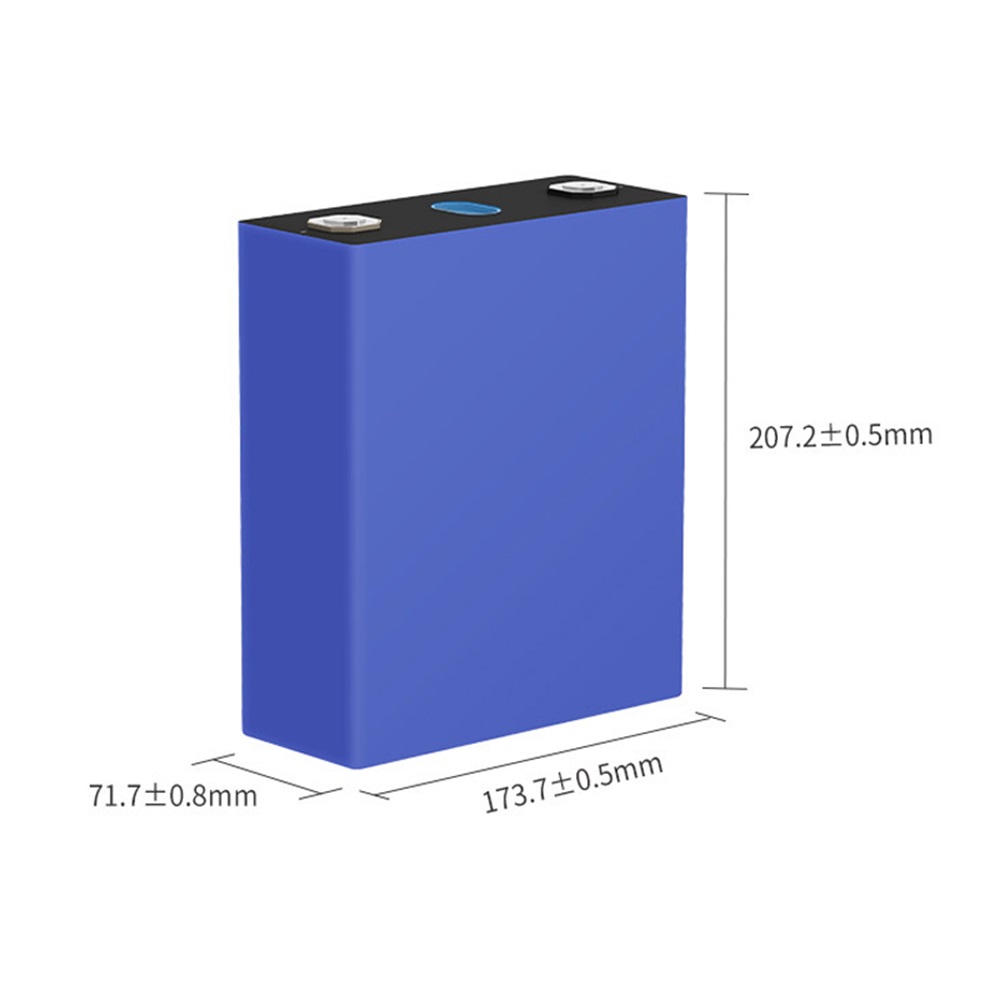

Height(H) with terminal207.2 mm ±0.5 mm
Height(h) without terminal204.6 mm ±0.5 mm
Length173.7 mm ±0.5 mm
Thickness71.7 mm ±0.8 mm



Long Life Cycle


Long Life Cycle


Ultra-Safe

Square aluminum shell structure | Explosion-proof | No leakage


Ultra-Safe


Stable

Low Internal Resistance√ |  High Charge Rate√ | Discharge Steadily√

Applications

ThePrismatic LFP Cell is widely used in the following scenarios.Please consult online customer service for specific models


application
