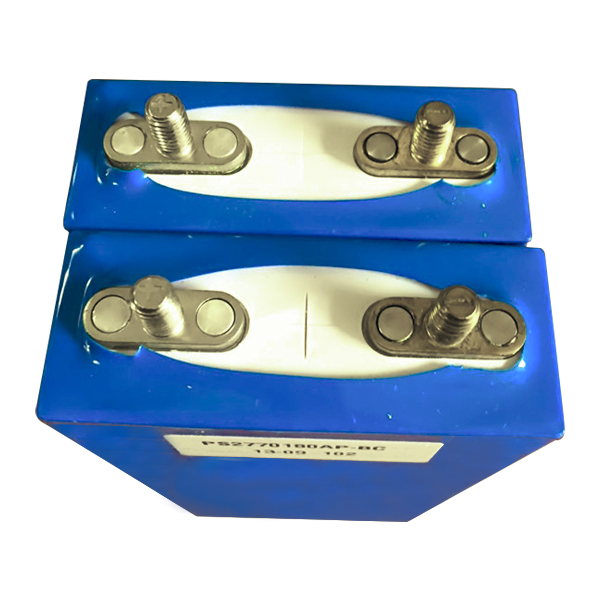

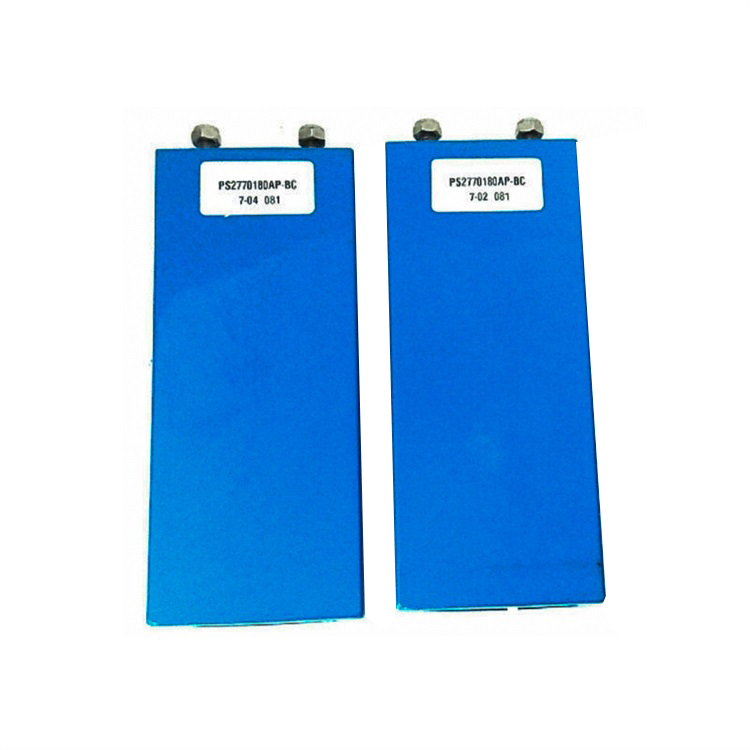

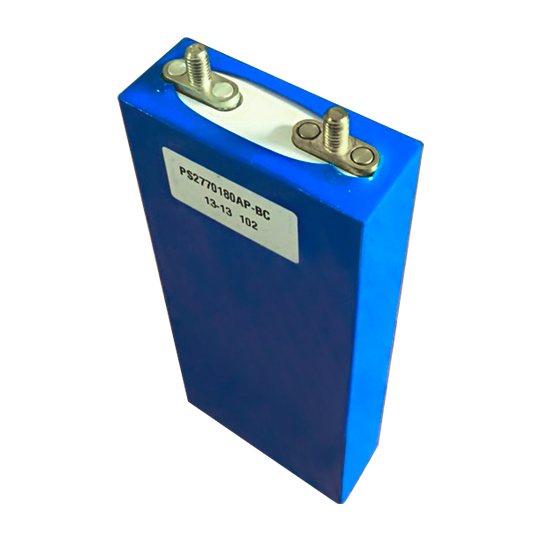

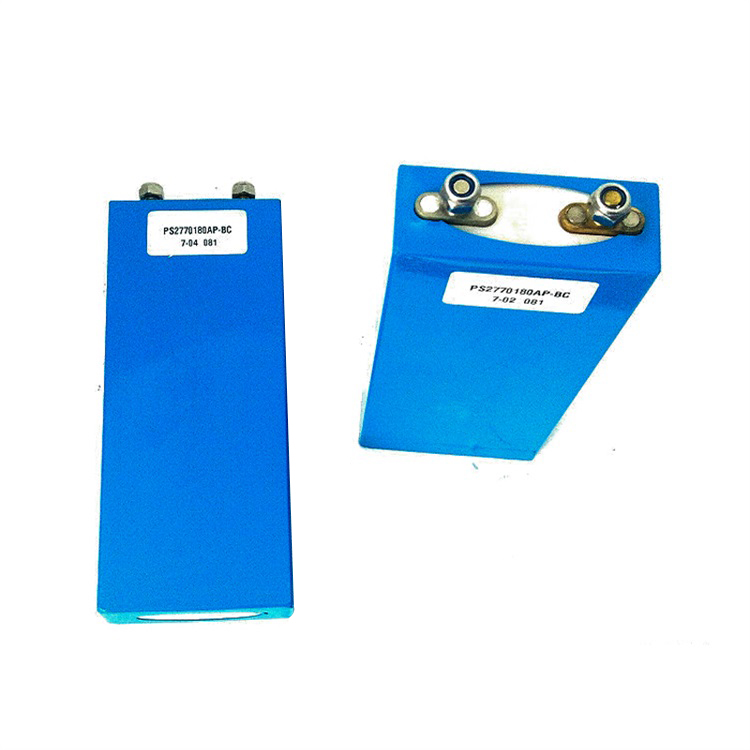

PS2770180AP-BC 3.2V 20Ah Lithium Iron Phopshate Lifepo4 Battery

PS2770180AP-BC 3.2V 20Ah Lithium iron phopshate lifepo4 battery with more than 2000 cycles

PS2770180AP-BC 3.2V 20Ah20230422102677397739.jpg


Specifications


Items

Parameters

Battery Module

20AH LiFePO4 Battery

Nominal Capacity

20AH @ 1C Discharging

Minimum Capacity

20AH @1C Discharging

Nominal Voltage

3.2V

Internal Resistance

≤2mΩ

Maximum Charging Current

1C

Charging Upper Limit Voltage

3.65V

Maximum Discharging Current

2C

Discharging Cut-off Voltage

3V

Standard Charging

4h

Quick-acting Charging

1h

Recommended SOC Usage Windom

SOC: 10%~90%

Charging Temperature range

0°C ~ 45°C

Discharging Temperature range

-20°C ~ 55°C

Storage Humidity

< 70%

Battery Weight

Around 0.5kg

Battery Dimension

180*70*28 mm




Features


1. Long cycle life. More than 2500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles);

2. Compact in size and light in weight. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.

3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, overcharged or short circuit.

4. Good charging and discharging performance. 3C continuous discharge and 10C burst.

5. Full green and no pollution. All raw materials of the batteries are environmental-friendly,

6. Wide working temperature range: From -20ºC to 60ºC, extremely cold and hot weather will not affect its performance.

7. Bar Code management system. All data is managed by the system, we can trace the cell information and match every pack with the closest data.

8. Produced by automatic equipment.


Applications


1. Passenger and commercial plug-in hybrid electric vehicles (PHEVs)

2. Passenger and commercial battery electric vehicles (BEVs)

3. Solar power storing, e-bikes, e-scooters, golf carts, And Others

4. wildly use batteries, model aircraft, electric tools, power tools, Golf carts, sightseeing coaches, DIY battery pack , solar energy, inverters, and others
