SP-LFP Series LiFePO4 Prismatic 3.2V Battery Cell Overview

We could send SP-LFP series lifepo4 prismatic 3.2v battery cells to you by sea or by air in a very short lead time.

As one of the leading battery dealers, we could send batteries to you by sea or by air in a very short lead time.

The single lifepo4 battery cells are 40Ah, 60Ah, 100Ah, 200Ah, 300Ah, 400Ah LiFePO4 battery cells.

100Ah LiFePO4 battery is one of the most popular battery

EnergyX is an official Sinopoly distributor partner in Europe North America and Australia.

We have a Battery warehouse in Hong Kong for the overseas market and a dealer in Germany special for the European market.

We also have a partner in the USA who helps us deal with clients in North America.




SP-LFP Series LiFePO4 Prismatic 3.2V Battery Cell Overview

Applications: EV, energy storage & other power source system

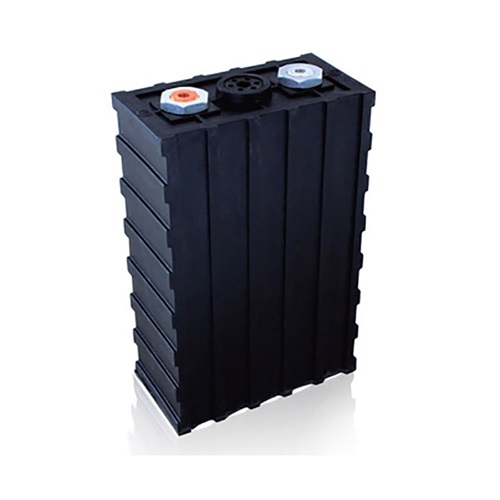

3.2V 40Ah LiFePO4 Battery Cell SP-LFP40AHA

 3.2V 40Ah LiFePO4 Battery Cell SP-LFP40AHA

  Capacity

40Ah

  Nominal Voltage

3.2V

  Cut-off Voltage (discharge)

2.8V

  Cut-off Voltage (charge)

3.8V

  Max. Charge current

3C

  Max. discharge current (constant)

3C

  Max. discharge current (Impulse 10S)

5C

  Dimensions

4.6" x 7.3" x 1.9"

  Weight

3.4 lbs (1.53kg)

 Cycle life

80% DOD > 2000 Charges
70% DOD > 3000 Charges


3.2V 40Ah SP-LFP60AHA

3.2V 40Ah SP-LFP60AHA

Capacity

60Ah

  Nominal Voltage

3.2V

  Cut-off Voltage (discharge)

2.8V

  Cut-off Voltage (charge)

3.8V

  Max. Charge current

3C

  Max. discharge current (constant)

3C

  Max. discharge current (Impulse 10S)

5C

  Dimensions

4.6" x 7.3" x 2.4"

  Weight

4.4 lbs (1.99kg)

 Cycle life

80% DOD > 2000 Charges
70% DOD > 3000 Charges

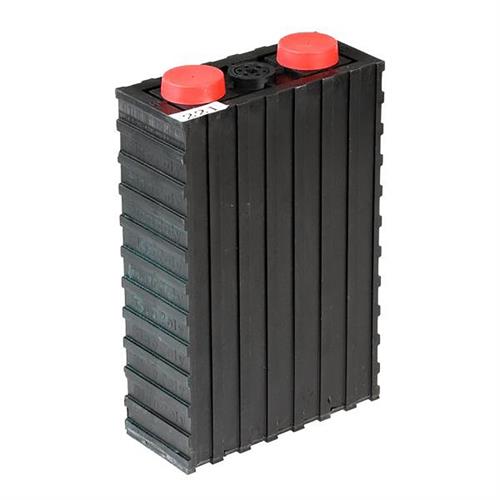

3.2V 90Ah LiFePO4 Battery Cell SP-LFP90AHA

3.2V 90Ah LiFePO4 Battery Cell SP-LFP90AHA


Capacity

90Ah

  Nominal Voltage

3.2V

  Cut-off Voltage (discharge)

2.8V

  Cut-off Voltage (charge)

3.8V

  Max. Charge current

3C

  Max. discharge current (constant)

3C

  Max. discharge current (Impulse 10S)

5C

  Dimensions

5.6" x 8.7" x 2.4"

  Weight

6.9 lbs (3.13kg)

 Cycle life

80% DOD > 2000 Charges
70% DOD > 3000 Charges


3.2V 100Ah LiFePO4 Battery SP-LFP100AHA

3.2V 100Ah LiFePO4 Battery SP-LFP100AHA

Capacity

100Ah

  Nominal Voltage

3.2V

  Cut-off Voltage (discharge)

2.8V

  Cut-off Voltage (charge)

3.8V

  Max. Charge current

3C

  Max. discharge current (constant)

3C

  Max. discharge current (Impulse 10S)

5C

  Dimensions

5.6" x 8.7" x 2.4"

  Weight

6.9 lbs (3.13kg)

 Cycle life

80% DOD > 2000 Charges
70% DOD > 3000 Charges


SP-LFP180AHA

SP-LFP180AHA


 Capacity

180Ah

  Nominal Voltage

3.2V

  Cut-off Voltage (discharge)

2.8V

  Cut-off Voltage (charge)

3.8V

  Max. Charge current

3C

  Max. discharge current (constant)

3C

  Max. discharge current (Impulse 10S)

5C

  Dimensions

7.1" x 11.1" x 2.8"

  Weight

12.7 lbs (5.79kg)

 Cycle life

80% DOD > 2000 Charges
70% DOD > 3000 Charges


3.2V 200Ah LiFePO4 Battery Cell P-LFP200AHA

3.2V 200Ah LiFePO4 Battery Cell P-LFP200AHA


Capacity

200Ah

  Nominal Voltage

3.2V

  Cut-off Voltage (discharge)

2.8V

  Cut-off Voltage (charge)

3.8V

  Max. Charge current

3C

  Max. discharge current (constant)

3C

  Max. discharge current (Impulse 10S)

5C

  Dimensions

7.1" x 11.1" x 2.8"

  Weight

12.7 lbs (5.79kg)

 Cycle life

80% DOD > 2000 Charges
70% DOD > 3000 Charges


3.2V 300Ah SP-LFP300AHA

3.2V 300Ah SP-LFP300AHA

Capacity

300Ah

  Nominal Voltage

3.2V

  Cut-off Voltage (discharge)

2.8V

  Cut-off Voltage (charge)

3.8V

  Max. Charge current

3C

  Max. discharge current (constant)

3C

  Max. discharge current (Impulse 10S)

5C

  Dimensions

54x 362 x 310mm

  Weight

21lbs (9.51kg)

 Cycle life

80% DOD > 2000 Charges
70% DOD > 3000 Charges


3.2V 400Ah SP-LFP400AHA

3.2V 400Ah SP-LFP400AHA


Capacity

400Ah

  Nominal Voltage

3.2V

  Cut-off Voltage (discharge)

2.8V

  Cut-off Voltage (charge)

3.8V

  Max. Charge current

3C

  Max. discharge current (constant)

3C

  Max. discharge current (Impulse 10S)

5C

  Dimensions

71 x 451 x 285mm

  Weight

31.6 lbs (14.3kg)

 Cycle life

80% DOD > 2000 Charges
70% DOD > 3000 Charges


SP-LFP500AHA

SP-LFP500AHA

Capacity

500Ah

  Nominal Voltage

3.2V

  Cut-off Voltage (discharge)

2.8V

  Cut-off Voltage (charge)

3.8V

  Max. Charge current

3C

  Max. discharge current (constant)

3C

  Max. discharge current (Impulse 10S)

5C

  Dimensions

71 x 451 x 285mm

  Weight

35lbs (16kg)

 Cycle life

80% DOD > 2000 Charges
70% DOD > 3000 Charges


SP-LFP700AHA

SP-LFP700AHA


Capacity

700Ah

  Nominal Voltage

3.2V

  Cut-off Voltage (discharge)

2.8V

  Cut-off Voltage (charge)

3.8V

  Max. Charge current

3C

  Max. discharge current (constant)

3C

  Max. discharge current (Impulse 10S)

5C

  Dimensions

67 x 628 x 312mm

  Weight

48.6 lbs (21.9kg)

 Cycle life

80% DOD > 2000 Charges
70% DOD > 3000 Charges


SP-LFP1000AHA

SP-LFP1000AHA

Capacity

1000Ah

  Nominal Voltage

3.2V

  Cut-off Voltage (discharge)

2.8V

  Cut-off Voltage (charge)

3.8V

  Max. Charge current

3C

  Max. discharge current (constant)

3C

  Max. discharge current (Impulse 10S)

5C

  Dimensions

71 x 850 x 308mm

  Weight

71.7 lbs (32.3kg)

 Cycle life

80% DOD > 2000 Charges
70% DOD > 3000 Charges
