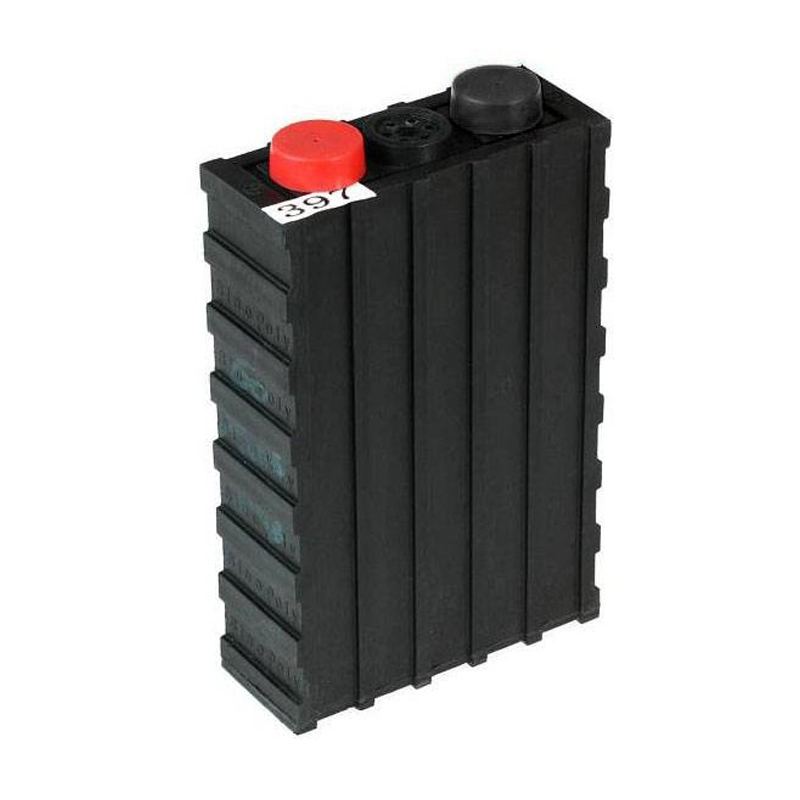

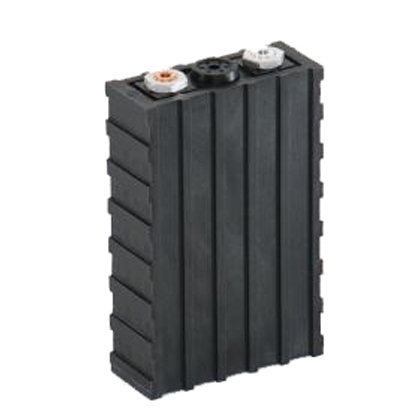

SP-LFP40AHA 3.2V 40Ah LiFePO4 Battery Cell
SP-LFP40AHA 3.2V 40Ah lifepo4 battery cell for ev, energy storage & other power source system.
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
As one of the leading battery dealers, we could send batteries to you by sea or by air in a very short lead time.
The single lifepo4 battery cells are 40Ah, 60Ah, 100Ah, 200Ah, 300Ah, 400Ah LiFePO4 battery cells.
100Ah LiFePO4 battery is one of the most popular battery
EnergyX is an official Sinopoly distributor partner in Europe North America and Australia.
We have a Battery warehouse in Hong Kong for the overseas market and a dealer in Germany special for the European market.
We also have a partner in the USA who helps us deal with clients in North America.
Specifications
Item | specification | |
Product Model | SP-LFP-40AHA(A) | |
Nominal Capacity | 40Ah | |
Nominal Voltage | 3.2V | |
Weight | 1.5Kg±0.1Kg | |
Internal Impedance | ≤0.8mΩ | |
Cycle Life | ≥2000Times | |
Self-discharge rate | ≤5% | |
Dimension | Height | 186±1mm |
Width | 116±1mm | |
Thickness | 46±0.5mm | |
Charge | Standard Current | 13A |
Max. Current | 80A | |
Limited Voltage | 3.65V | |
Discharge | Cut-off Current | 0.8A |
Standard Current | 13A | |
Max. Current | 120A | |
Cut-off Voltage | 2.5V | |
Operation Temperature | Charge | 0℃~45℃ |
Discharge | -20℃~55℃ | |
Storage Temperature | -10℃~45℃ | |
Storage Humidity | 25%~85% | |

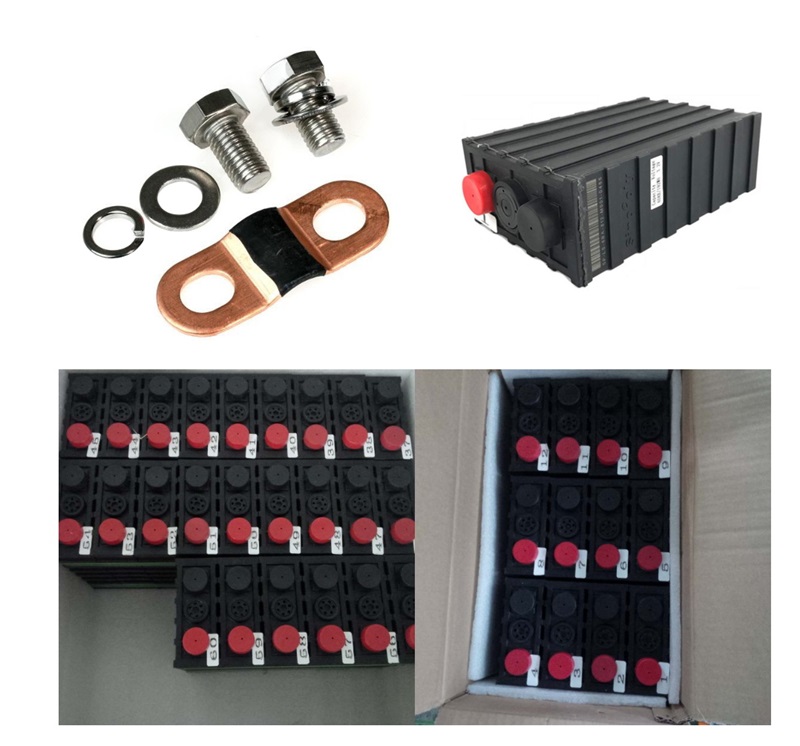

Details

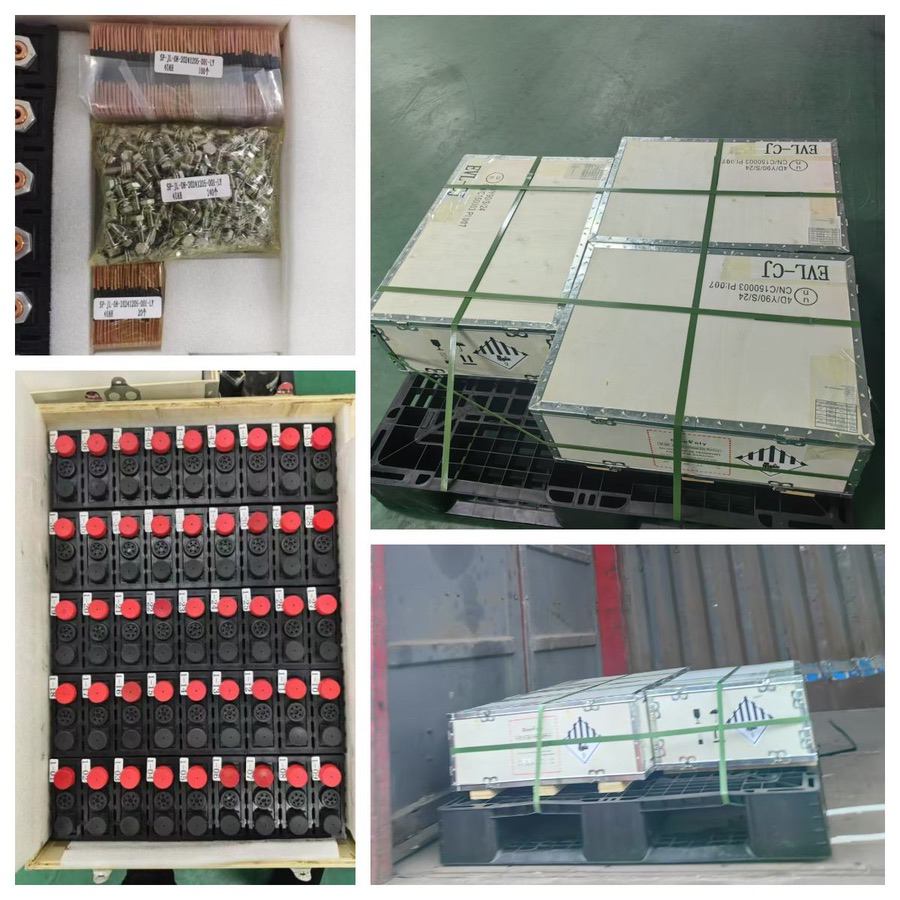

Pack and Ship
