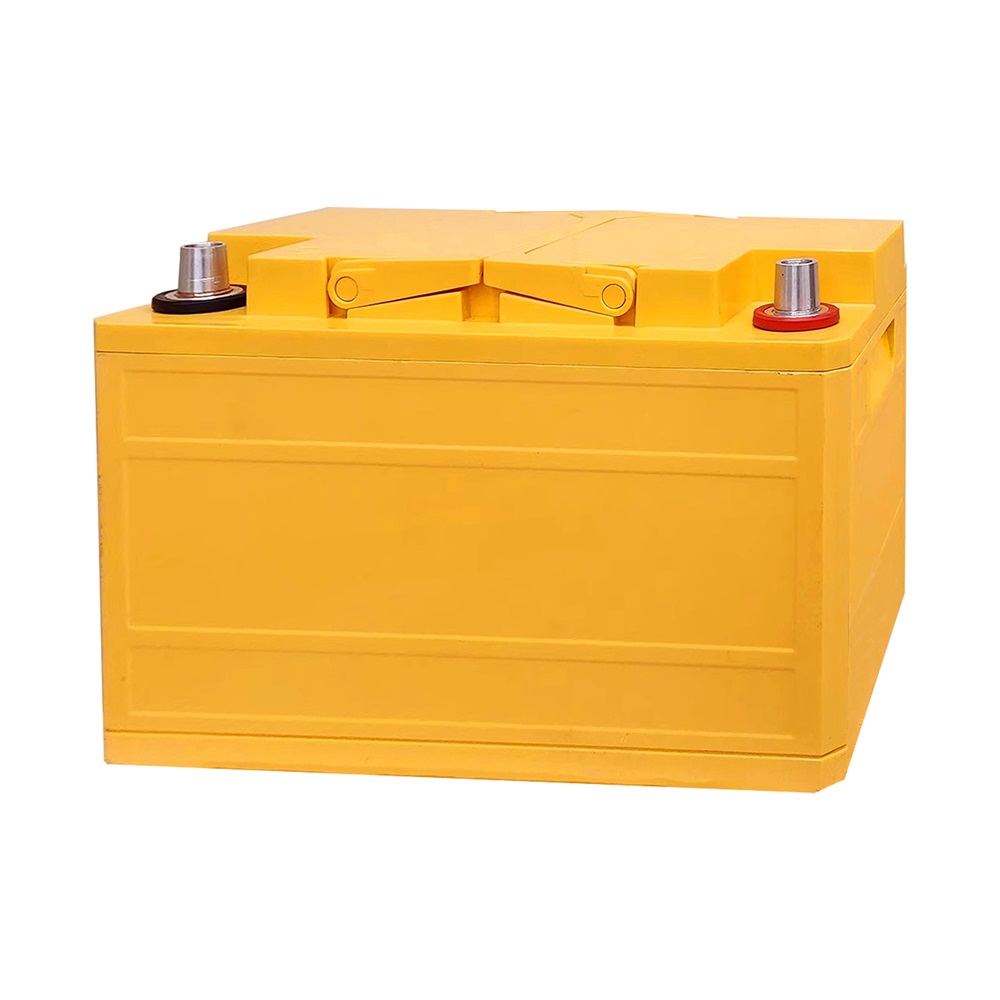

TSWB-LP12V100AH 12V 100Ah LiFePO4 Battery Pack For Lead-acid Replacement

TSWB-LP12V100AH 12V 100Ah LiFePO4 Battery Pack For Lead-acid Replacement,perfect for your power needs

TSWB-LP12V100AH 12.8V 100Ah lifepo4 battery pack A high-performance LiFePO4 Battery Pack with long cycle life, high density, and fast charging, perfect for your power needs. Ideal alternative to lead-acid batteries

Features

Winston Battery: the Safest Lithium Technology / Integrated Battery Management System(BMS)

Long CycleLife>11000cycles @60% DOD.

High Density, High Discharge Current, High Temperature Range.

Low Weight, Free Maintenance. / Fast Charging. /Environment Friendly.

The BMS monitors and controls the individual cells of a battery and protects them from damage, such as overload and over voltage.


Specifications


Parameter

specification

Rated Capacity

100Ah

Energy

1408Wh

Nominal Voltage

12.8V

Charge Voltage

14.4± 0.2

Resistance

≤2.7mΩ

Efficiency

99%

Cycle Life

>11000 cycles@0.5C, 60% DOD

Discharge Temperature

-20℃~60℃(-4℉~140℉)

Charge Temperature

0℃~45℃(32℉~113℉)

Storage Temperature

-20℃~60℃(-4℉~140℉)

BMS High Temperature Cut-off

80℃(176℉)

Continuous Discharge Current

100A

Pulse Discharge Current

750A(<6 seconds)

Recommended Volt Disconnect

10V

BMS Discharge Cut-off Voltage

9.2V

Short Circuit Protection

200~600 us

Recommended Float Voltage

13.8V

Recommended Charge Current

50A

Maximum Charge Current

100A

BMS Charge Cut-off Voltage

14.8V

Weight

15.3kg

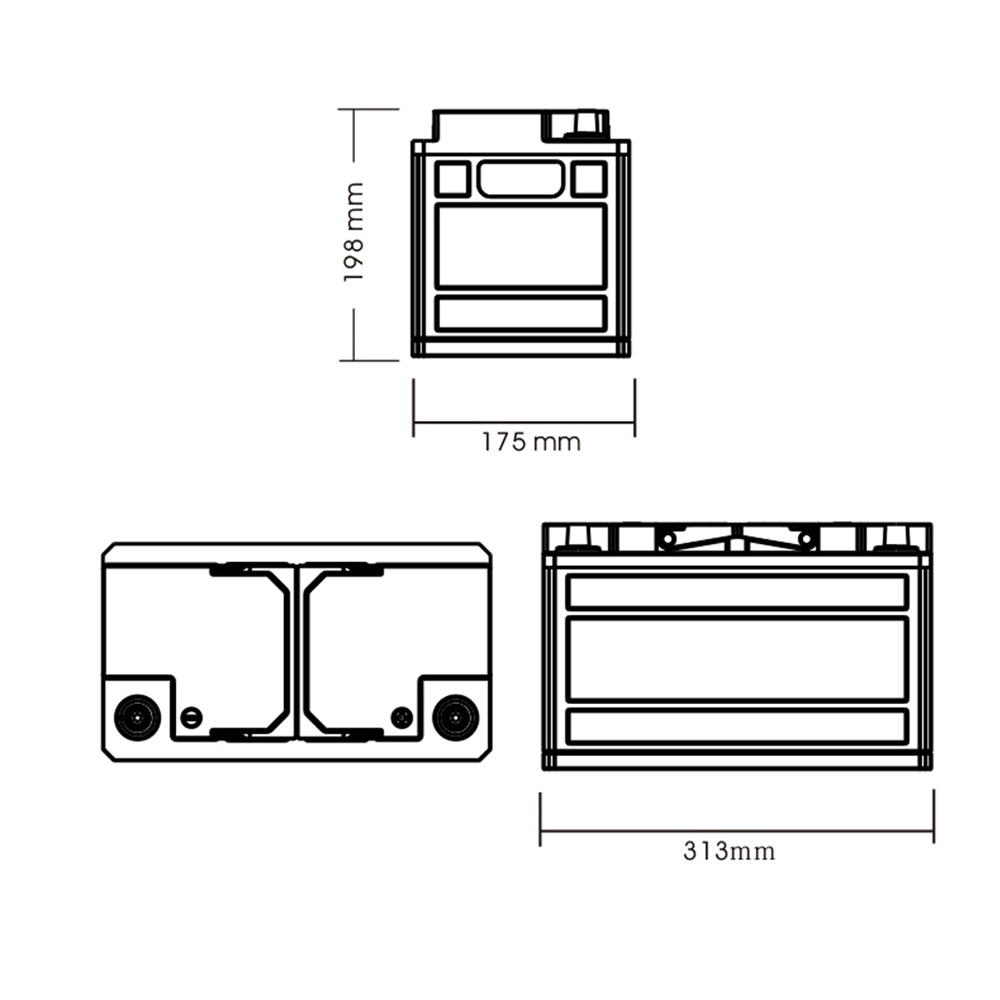

Dimension

313mm(L)*175mm(W)*198mm(H)



 Performance Characteristics

12V 100Ah lifepo4 battery pack performance charateristics

Ideal Replacement for Lead-Acid Batteries

The Winston Battery 12V 100Ah Lithium Iron Phosphate (LiFePO4) Battery is the ultimate upgrade from traditional lead-acid batteries. Weighing just 37.4 lbs, it is significantly lighter and more compact than conventional options while delivering 3-5 times higher energy density. Engineered to thrive in extreme conditions, it operates flawlessly in temperatures ranging from -45°C to 85°C (-49°F to 185°F), making it resilient against both scorching heat and freezing cold. With robust, stable performance, this battery is the future-forward choice for the new energy era.

Advanced Safety & Low-Temperature Performance

Equipped with a built-in Battery Management System (BMS), this LiFePO4 battery safeguards against overcharging, over-discharging, over-current, and short circuits. Its upgraded low-temperature protection activates at -20°C (-4°F), ensuring reliable operation even in harsh environments. The BMS optimizes performance between -20°C to 65°C (-4°F to 149°F), guaranteeing safety and efficiency in any scenario.

Unmatched Longevity & Cost Efficiency

Designed for heavy-duty use, this battery supports 7,000+ charge-discharge cycles at 70% depth of discharge (DoD), offering a lifespan of up to 20 years. With a self-discharge rate of just 1.5%—far below industry standards—it retains power longer during storage. Its unparalleled durability and low lifetime cost make it the most economical lithium-ion solution on the market.

Eco-Conscious & Certified

Compliant with UL, CE, and RoHS certifications, this battery prioritizes sustainability. It contains no toxic heavy metals and uses eco-friendly materials, including water-based adhesives instead of traditional PVDF. From production to recycling, it aligns with global environmental standards, making it a green energy champion.

Rugged Design for Demanding Applications

Housed in a wear-resistant, IP-rated waterproof casing, the battery withstands tough outdoor conditions. Its internal structure is optimized to resist impact and vibration, ensuring reliability during high-intensity activities. Operating seamlessly from -45°C to 85°C (-49°F to 185°F), it powers everything from marine systems to RV adventures, solar setups, and more.

Upgrade to Innovation

Experience next-generation power with Winston Battery’s LiFePO4 technology—where safety, longevity, and sustainability redefine energy storage. Perfect for automotive, renewable energy, and industrial applications, it’s engineered to outperform, outlast, and inspire confidence.

Battery Applications

Data Center UPS / Telecommunication Backup Power / Military Power Supply / Solar Energy Storage System / Floor Cleaning Machines / Electric Mobility (E-scooters ,Wheelchair) / Golf Trolley & Golf Carts / Electric Ships

certification

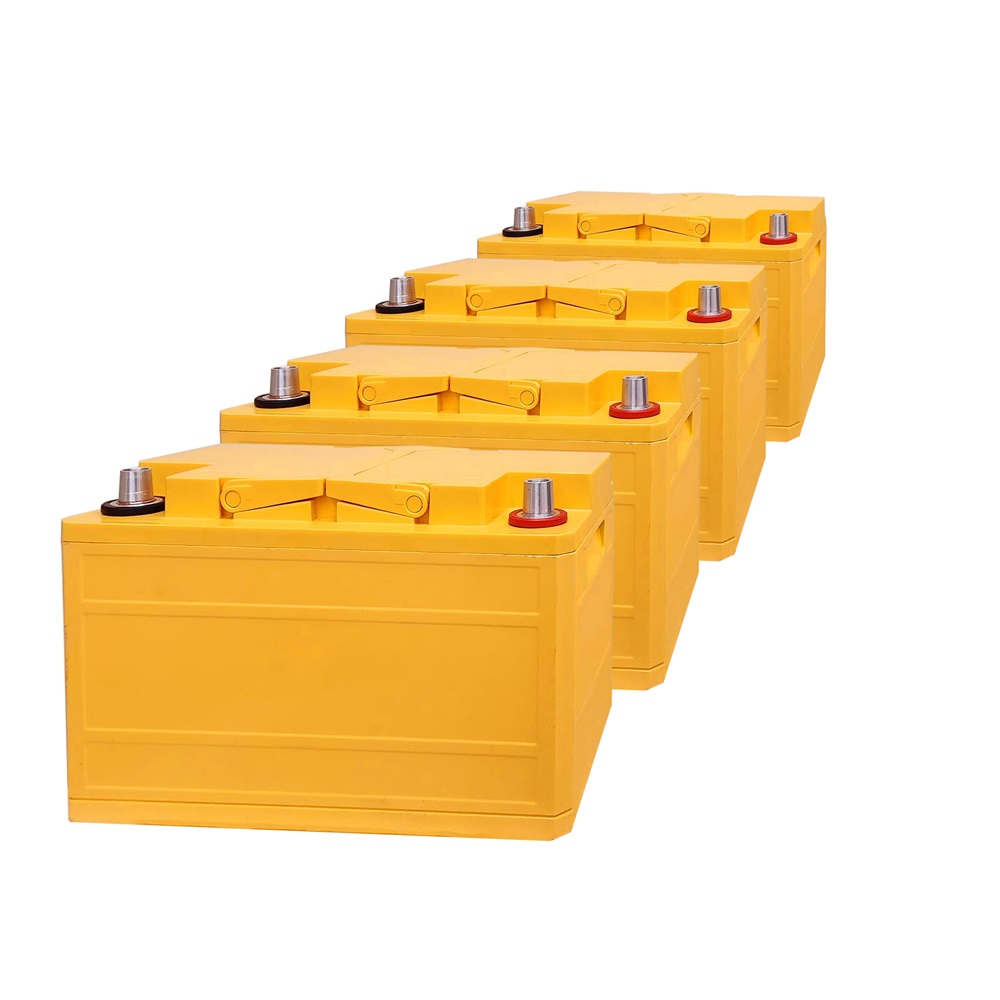

Series or parallel connection

up to 4 batteries can be connected in series in series or parallel to make a 48v battery pack

12V 100 lifepo4 battery pack Series or parallel connection

details

appplications

Ready to Ship: U.S. Stock Available Now!

We currently have a large inventory of 12V 100Ah Winston LiFeYPO4 Battery Packs in stock across the USA, ensuring fast delivery and seamless fulfillment. Whether you're upgrading systems, powering projects, or scaling operations, our high-performance lithium iron phosphate batteries are ready to meet your needs.
