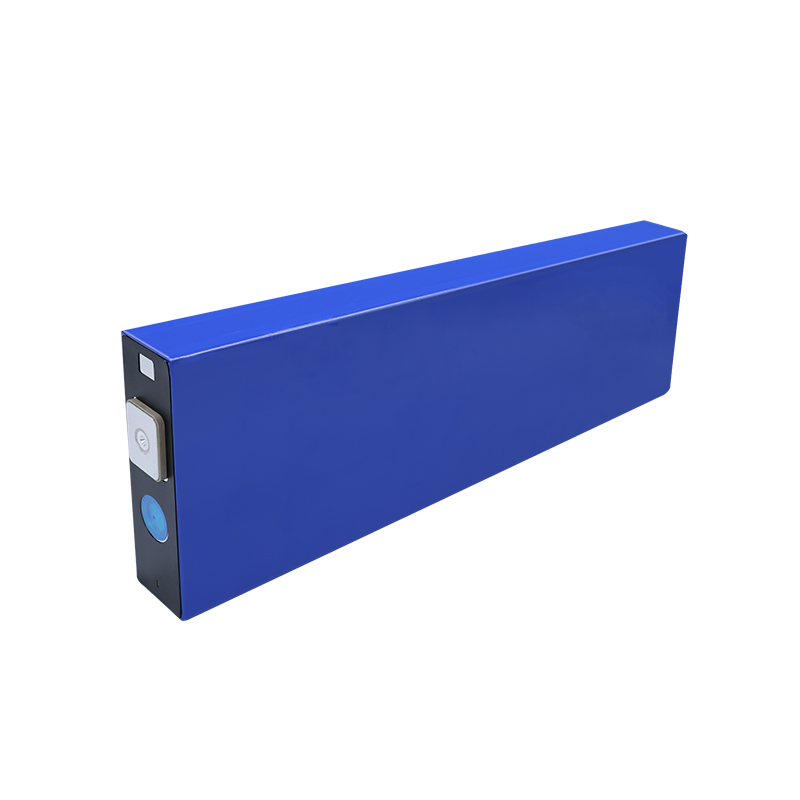

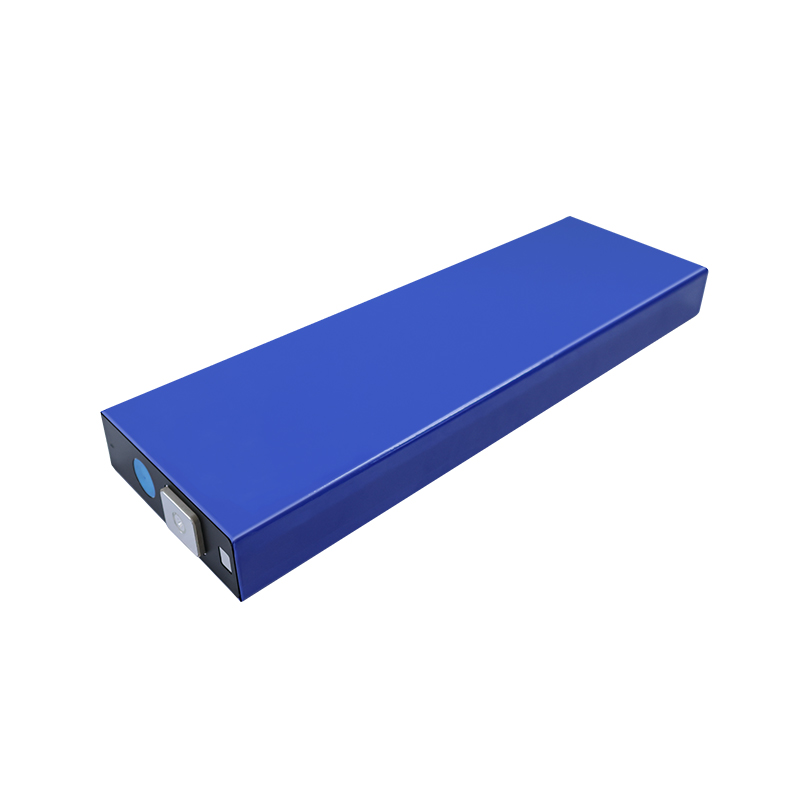

V21 154Ah 3.2V Prismatic LiFePO4 Fast Charge EV Batteries Cells for Sale

V21 154Ah 3.2V LiFePO4 Battery Electric Vehicle battery Fast charging LiFePO4

V21 154Ah 3.2V Prismatic LiFePO4 Fast Charge EV Batteries Cells for Sale

V21 154Ah 3.2V Prismatic lifepo4 Fast charge ev batteriies cells for saleV21 154Ah 3.2V Prismatic lifepo4 Fast charge ev batteriies cells for sale

The V21 154Ah 3.2V Prismatic lifepo4 Fast charge ev batteriies features a long lifespan, stable performance, and excellent safety characteristics.   It is widely applicable in the following areas:  Bulldozers, Heavy Trucks, Forklifts, Passenger Cars, Buses  , This battery provides reliable power support in various working environments, making it an ideal choice for industrial applications and daily transportation, ensuring efficient operation of equipment.


Product Feature

· ULTRA-LONG LIFE CYCLE

Long cycle, long calendar life, long warranty, low internal resistance,high discharge rate,  Up to 2000 cycles Capacity Retention =80%(25'C 0.5C/0.5C)

· HIGH CONSISTENCY

Smart factory, highly automated production line and high-precision equipment, more than 2856 control points to ensure battery consistency

· ULTIMATE SAFETY

High-precision explosion-proof valve design, intrinsic safety, obtained GB, CE, lEC, UL full system certification


Specification


Items

Standards

Remark

Min. Capacity

154Ah

1/3C, 25℃±2℃, 2.50~3.65V

Min. Energy

495.8Wh

1/3C, 25℃±2℃, 2.50~3.65V

Initial IR

≤0.50mΩ

AC, 1kHz, 20%~30%SOC

Nominal Voltage

3.22 V

1/3C, 2.50~3.65V

Weight

2755±30g


Charging Cut-off Voltage

3.65V


Discharging Cut-off Voltage

2.50 V(T>20℃)

2.00 V(-30℃≤T≤20℃)


Standard Charging Current

51.3 A

1/3C

Standard Discharging Current

51.3 A

1/3C

25℃ fast charge cycle

2000 Cycles 80%DOD


Operation Temperature

Charging Temperature: -20~55 ℃


Discharging Temperature: -30~55 ℃


Dimension(L*H*T)

346.4*110.0*33.7mm

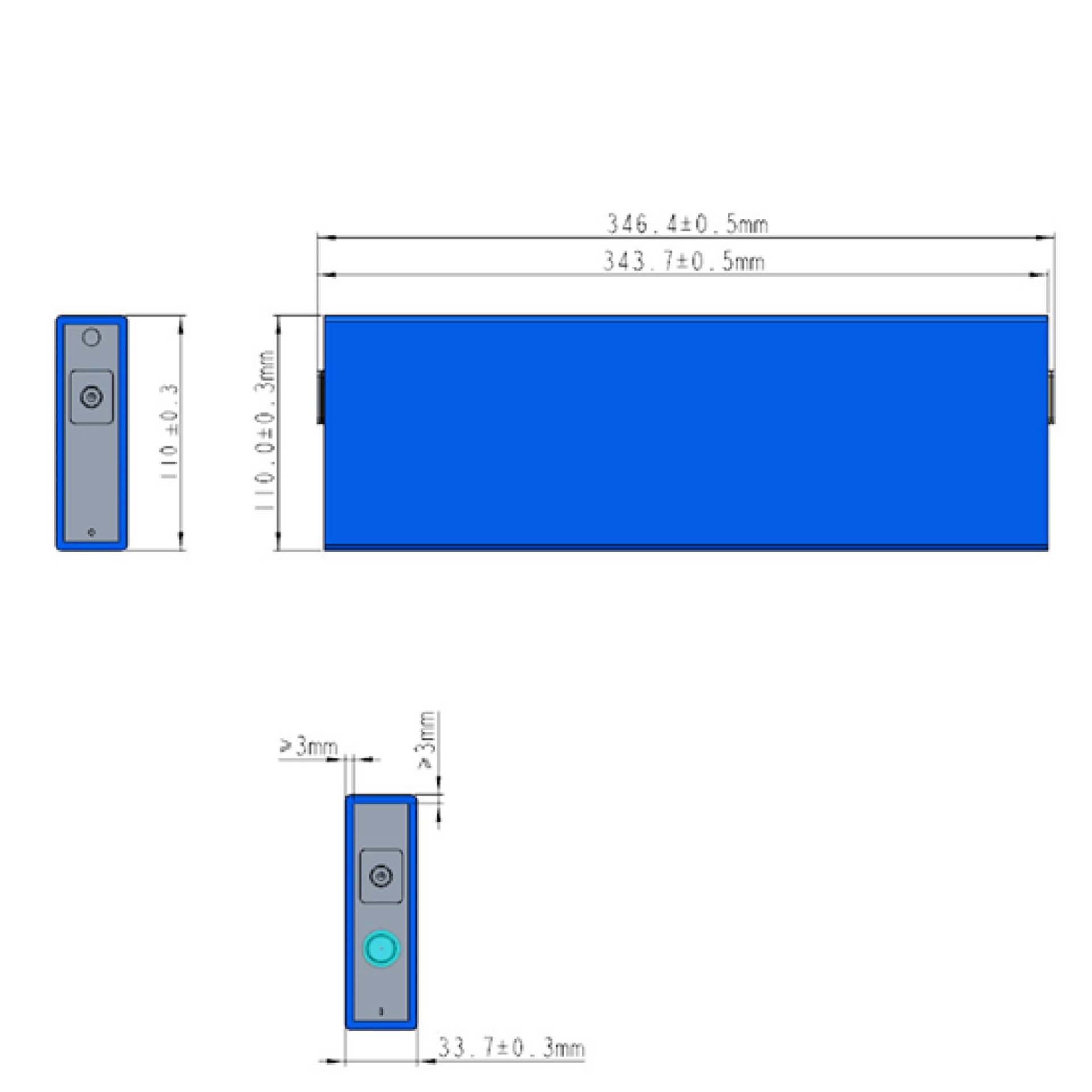

Dimension and Details

dimension


Certification





1. International safety certification, we have CE, ROHS, RECHAR, BIS, EPR, RCM, PSE, GOST, MIC

2. In the product test report we have IEC62368, IEC62619, IEC62620, CB, GB, CCC, and CCS.

3, in terms of international transportation, we have UN38.3(support for sea, land and air transportation), MSDS, UL, ATEX.

4. Special certification :ESG, ASPICE CL2, ISO26262, TISAX, Green Factory5. We support certification according to customer needs to ensure product quality and safe transportation




Application

V21 154Ah 3.2V LiFePO4 Prismatic Battery is suitable for electric vehicles, AGVs, home energy storage, and engineering vehicles.


application
