LP12V 60Ah Lithium-ion power battery LiFePO4 Start Battery

Nominal Capacity：60AH, Operation Voltage：Charge16V Discharge11V , Weight：10.7kg±200g, Cycle Life：5-10 Years

Vehicle Starter Battery Serial Item No.:TSWB-LP

Vehicle Starter Battery Serial Item No.

LP series high-voltage water-based lithium-ion power battery is the best product to replace lead-acid battery.

Specifications

Model	TSWB-LP12V60AH
Nominal Capacity	60AH
Dimension	282(L)125(W)230(H)mm
Operation Voltage	Charge	16V
	Discharge	11V
Internal resistance	≤3mΩ
Max Discharge Current	Constant Current	≤3CA
	Impulse Current	≤10CA
Standard Charge/Discharge Current	30A(0.5CA)
Cycle Life	5-10 Years
Temperature Durability Of Case	≤200℃
Operation Temperature	Charge	-45℃~85℃
	Discharge
	Storage Humidity	≤75%RH
Self-discharge Rate	≤1% Monthly
Weight	10.7kg±200g

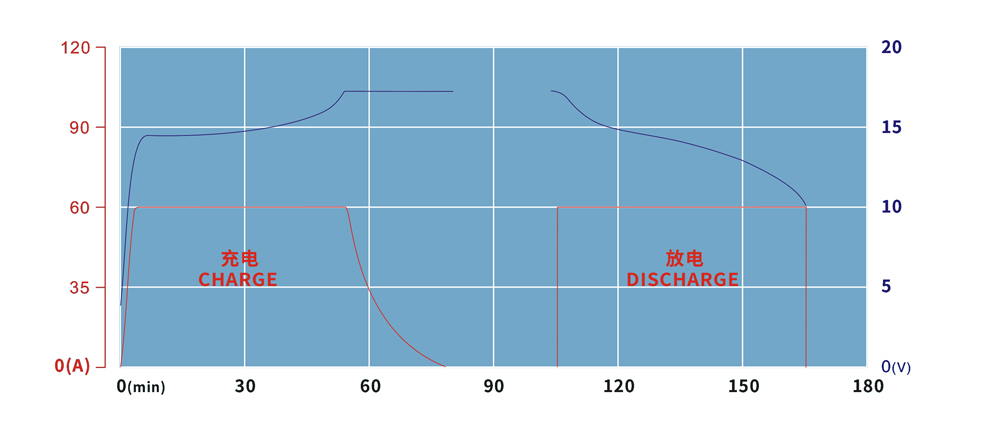

LP12V90AH CHARGE&DISCHARGE CHART

TSWB-LP12V90AH CHARGE&DISCHARGE CHART
