LP12V 40Ah Lithium-ion power battery LiFePO4 Start Battery

Nominal Capacity:40AH, Operation Voltage:Charge 14.5V Discharge 11V, Weight:7.9kg士200g, Cycle Life:5-10 Years

LP12V 40Ah LiFePO4 Battery


Vehicle Starter Battery Serial Item

LP series high-voltage water-based lithium-ion power battery is the best product to replace lead-acid battery.


Specifications



Model

TSWB-LP12V40AH

Nominal Capacity

40AH

Dimension

225(L)*125(W)*208(H)mm

Operation Voltage

Charge

16V

Discharge

11V

Internal resistance

≤3mΩ


Max Discharge Current

Constant Current

≤3CA

Impulse Current

≤10CA

Standard Charge/Discharge Current

20A(0.5CA)


Cycle Life

5-10 Years


Temperature Durability Of Case


≤200℃


Operation Temperature

Charge

-45℃~85℃

Discharge

Storage Humidity

≤75%RH

Self-discharge Rate

≤1% Monthly

Weight

7.9kg±200g

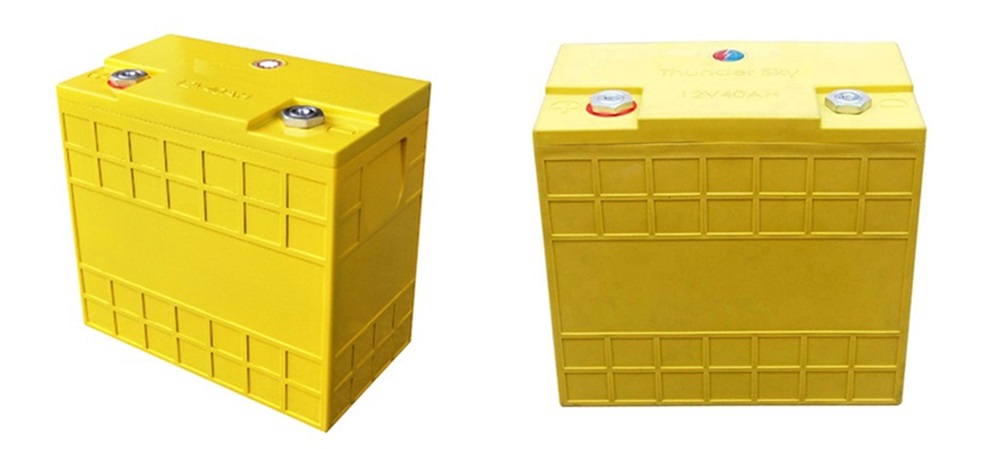

Details Of 12V 40Ah LiFePO4 Battery

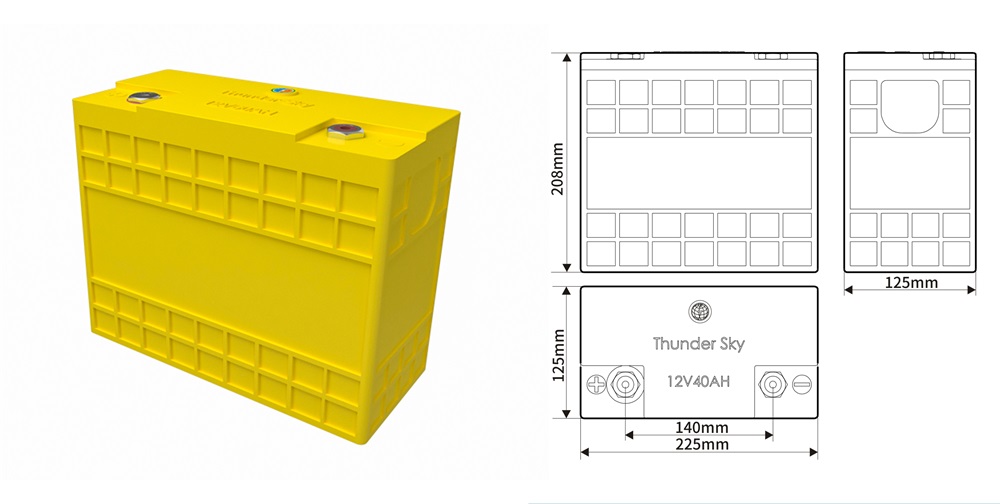

details and dimension


LP12V90AH CHARGE&DISCHARGE CHART

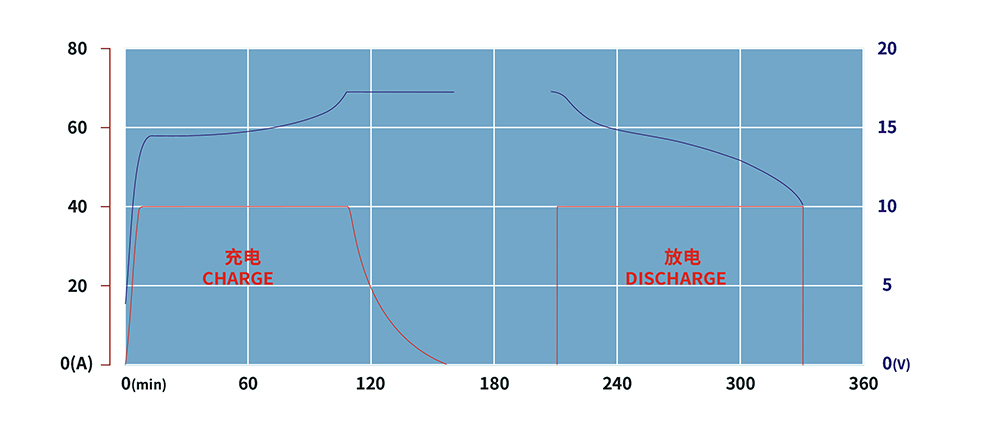

TSWB-LP12V40AH CHARGE AND DISCHARGE BY 40A AT TEMPERATURE OF 25℃

TSWB-LP12V40AH CHARGE AND DISCHARGE BY 40A AT TEMPERATURE OF 25℃

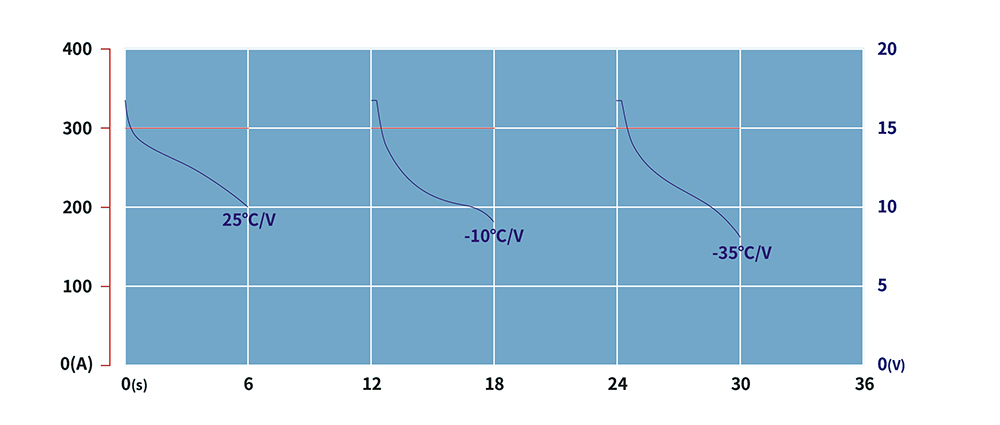

TSWB-LP12V40AH IMPULSE DISCHARGE AT DIFFERENT TEMPERATURE

TSWB-LP12V40AH IMPULSE DISCHARGE AT DIFFERENT TEMPERATURE
