LP12V 90Ah Lithium-ion power battery LiFePO4 Start Battery

Nominal Capacity：90AH, Operation Voltage：Charge16V Discharge11V , Weight：14.6kg±300g, Cycle Life：5-10 Years

TSWB-LP12V 90Ah LiFePO4 Start Battery

Vehicle Starter Battery Serial Item No

LP series high-voltage water-based lithium-ion power battery is the best product to replace lead-acid battery.

Specifications

Model	TSWB-LP12V90AH
Nominal Capacity	90AH

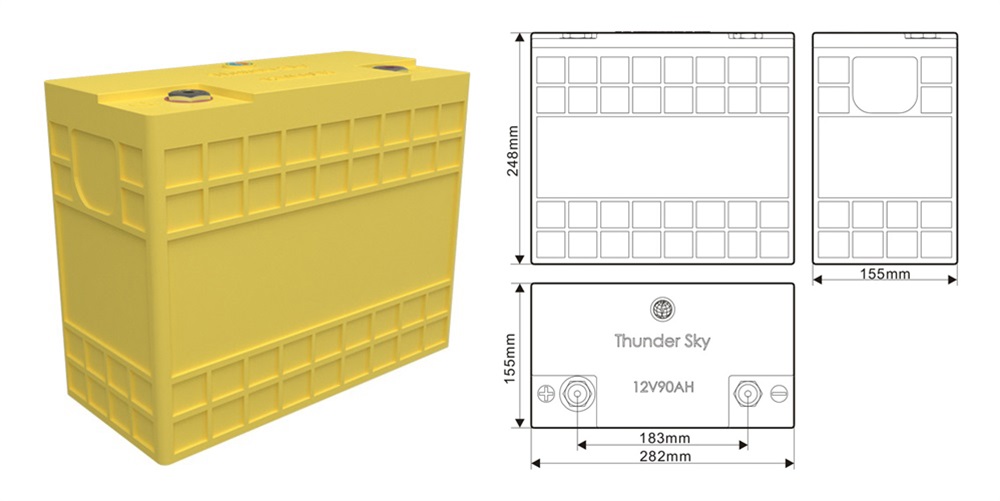

Dimension	282(L)155(W)248(H)mm
Operation Voltage	Charge	16V
	Discharge	11V
Internal resistance	≤3mΩ
Max Discharge Current	Constant Current	≤3CA
	Impulse Current	≤10CA
Standard Charge/Discharge Current	45A(0.5CA)
Cycle Life	5-10 Years
Temperature Durability Of Case	≤200℃
Operation Temperature	Charge	-45℃~85℃
	Discharge
	Storage Humidity	≤75%RH
Self-discharge Rate	≤1% Monthly
Weight	14.6kg±300g

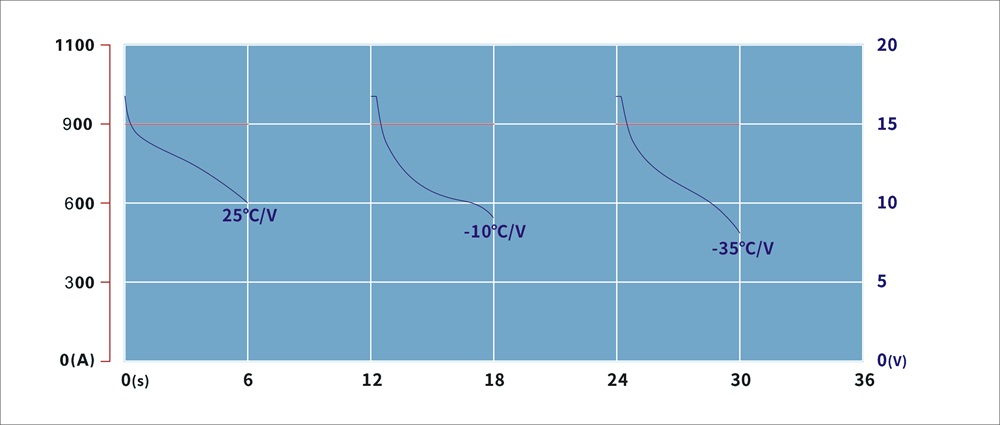

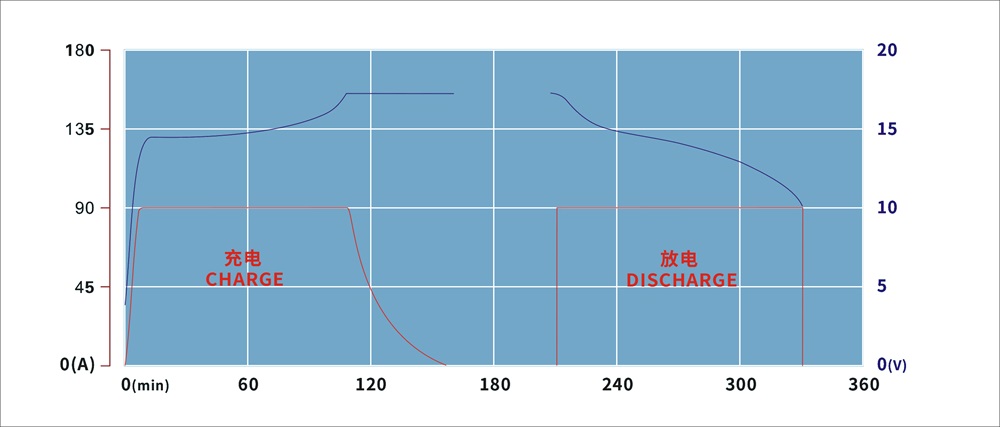

TSWB-LP12V90AH CHARGE&DISCHARGE CHART
