LiFePO4 Golf trolley battery 12V series

12V 16Ah/20Ah/23Ah/24Ah lithium iron phopshate LiFePO4 Golf trolley battery

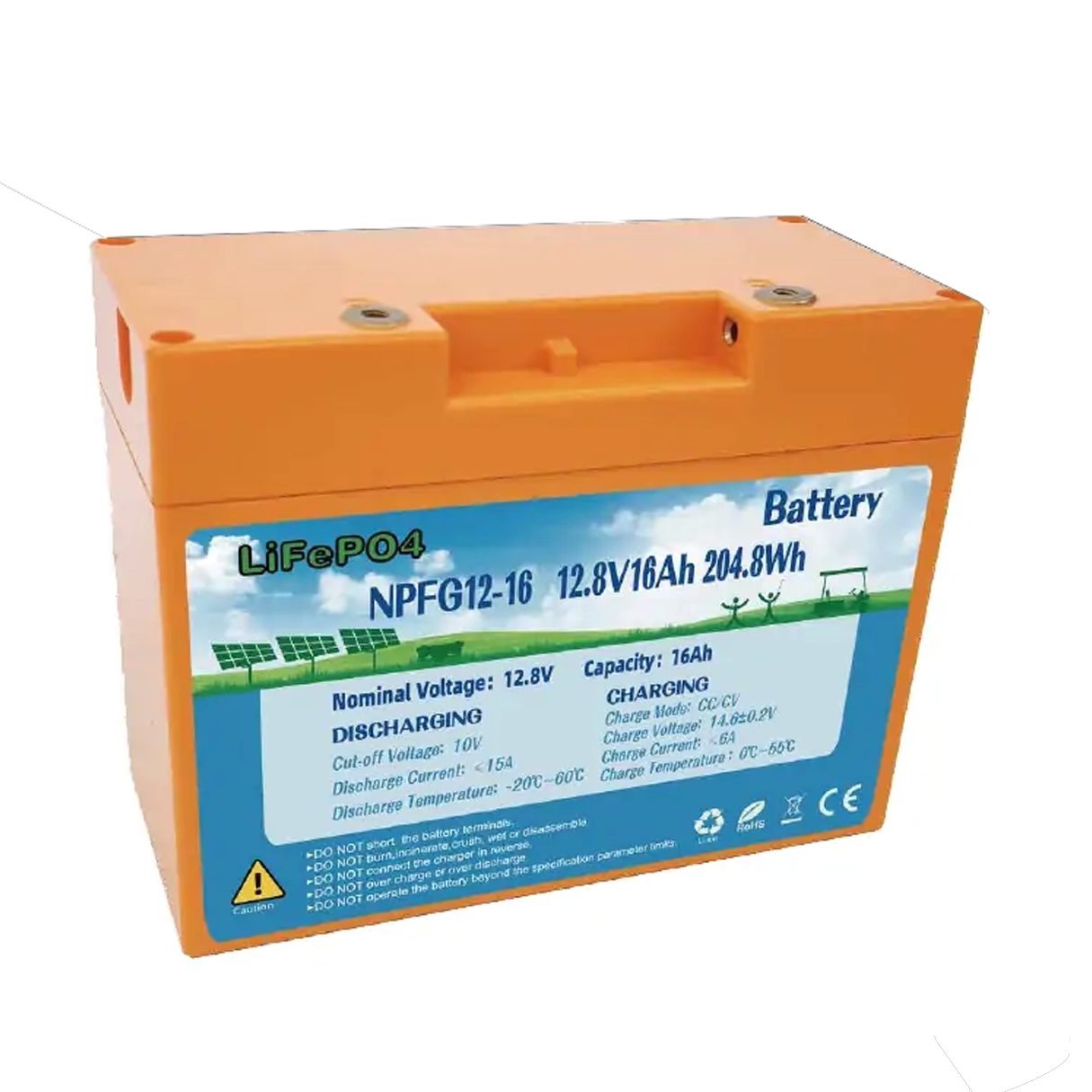

Model：NPFG12-16 12.8V 16Ah LiFePO4 Battery

Nominal Voltage: 12.8V

Nominal Capacity: 16Ah

Energy: 204.8Wh

Internal Resistance (AC): ≤50mΩ

Cycle Life: ≥2000(100%DOD

Monthly Self Discharge: ≤ 2%

Protection Function: Over charge protection, Over discharge protection, Temperature protection, Short-circuit protection, Balanced function

Charge Voltage: 14.4±0.2V

Charge Mode: CC/CV

Charge Current: 4A

Max. Charge Current: 6A

Continues Discharge Current: 15A

Max. Pulse Current: 15~20A(≤5min) 60A(≤3S）

Discharge Cut-off Voltage: 9V

Charge Temperature Range: 0℃-55℃

Discharge Temperature Range: -20℃-60℃

IP Class: IP64

Dimension(L*W*H): 167mm*77mm*129mm

Weight: 2.0±0.1Kg

Material of case: ABS plastic

Discharge Connector: T-Anderson or Aviation plug

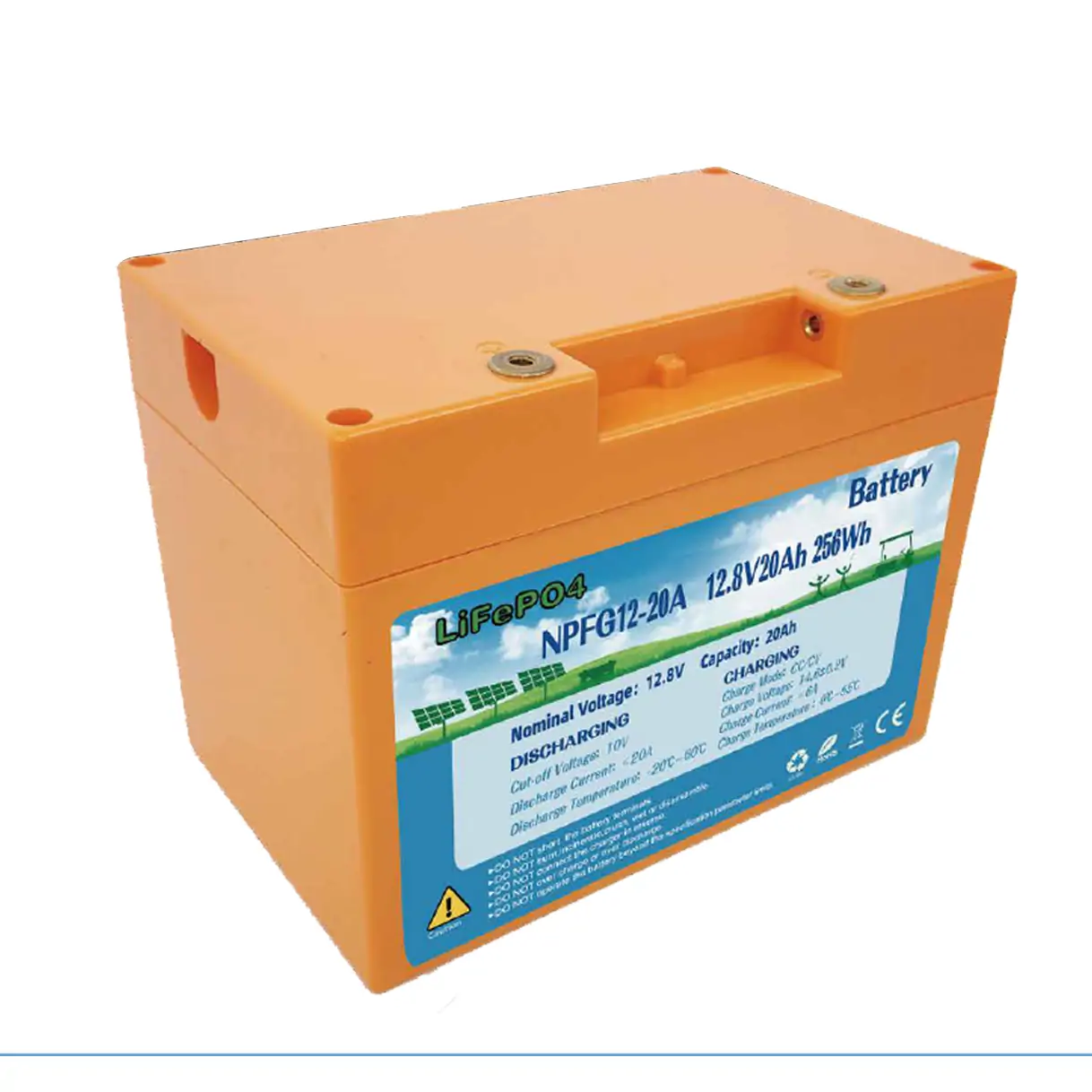

Model：NPFG12-20A 12.8V 20Ah LiFePO4 Battery

Nominal Voltage: 12.8V

Nominal Capacity: 20Ah

Energy: 256Wh

Internal Resistance (AC): ≤45mΩ

Cycle Life: ≥2000(100%DOD)

Monthly Self Discharge: ≤ 2%

Protection Function: Over charge protection, Over discharge protection, Temperature protection, Short-circuit protection, Balanced function

Charge Voltage: 14.4±0.2V

Charge Mode: CC/CV

Charge Current: 4A

Max. Charge Current: 6A

Continues Discharge Current: 20A

Max. Pulse Current: 20~25A(≤5min) 80A(≤3S）

Discharge Cut-off Voltage: 9V

Charge Temperature Range: 0℃-55℃

Discharge Temperature Range: -20℃-60℃

IP Class: IP64

Dimension(L*W*H): 167mm*105mm*129mm

Weight: 2.4±0.1Kg

Material of case: ABS plastic

Discharge Connector: T-Anderson or Aviation plug

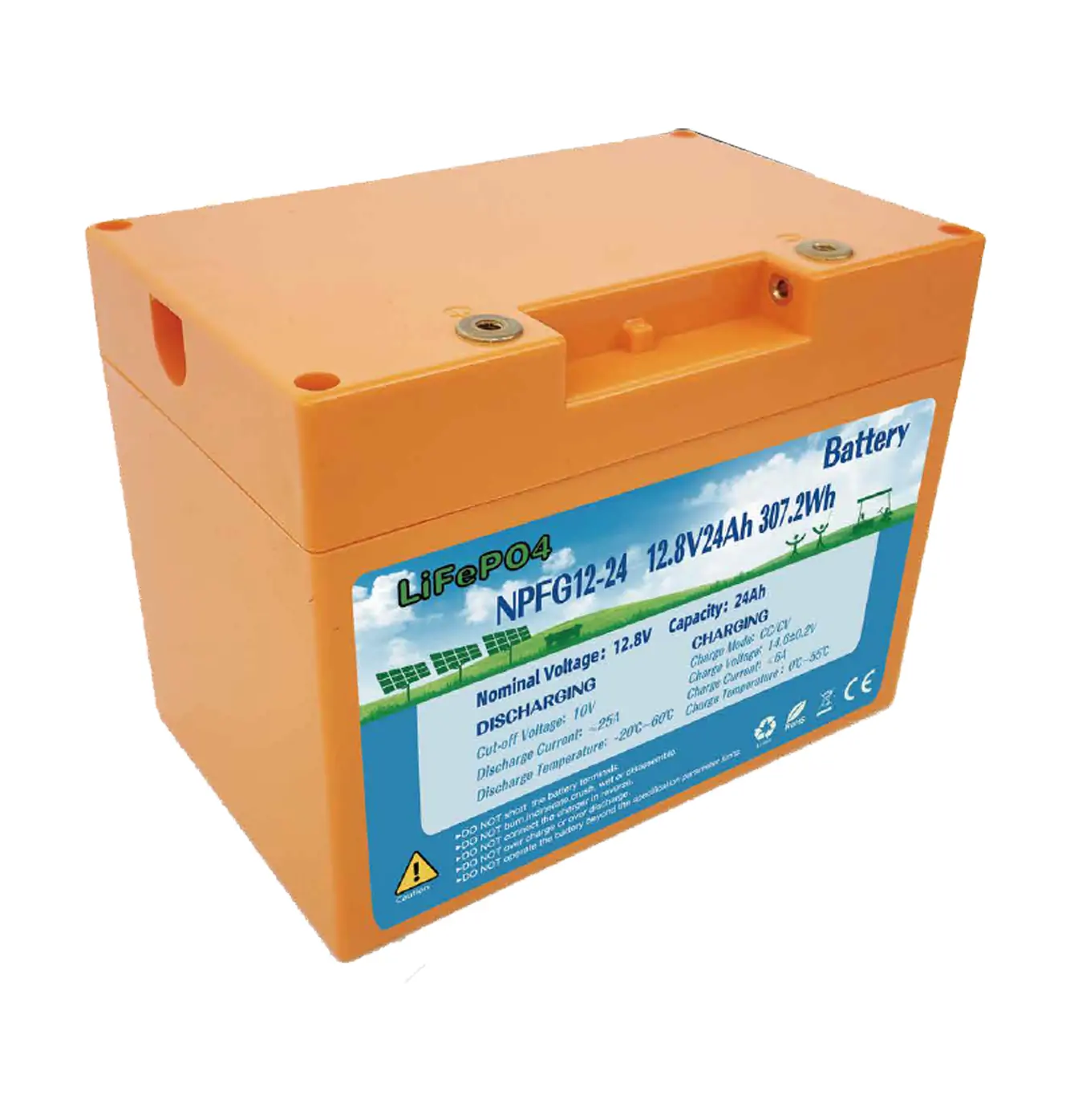

Model：NPFG12-24 12.8V 24Ah LiFePO4 Battery

Nominal Voltage: 12.8V

Nominal Capacity: 24Ah

Energy: 307.2Wh

Internal Resistance (AC): ≤45mΩ

Cycle Life: ≥2000(100%DOD)

Monthly Self Discharge: ≤ 2%

Protection Function: Over charge protection, Over discharge protection, Temperature protection, Short-circuit protection, Balanced function

Charge Voltage: 14.4±0.2V

Charge Mode: CC/CV

Charge Current: 4A

Max. Charge Current: 6A

Continues Discharge Current: 25A

Max. Pulse Current: 25~30A(≤5min) 80A(≤3S）

Discharge Cut-off Voltage: 9V

Charge Temperature Range: 0℃-55℃

Discharge Temperature Range: -20℃-60℃

IP Class: IP64

Dimension(L*W*H): 167mm*105mm*129mm

Weight: 2.8±0.1Kg

Material of case: ABS plastic

Discharge Connector: T-Anderson or Aviation plug

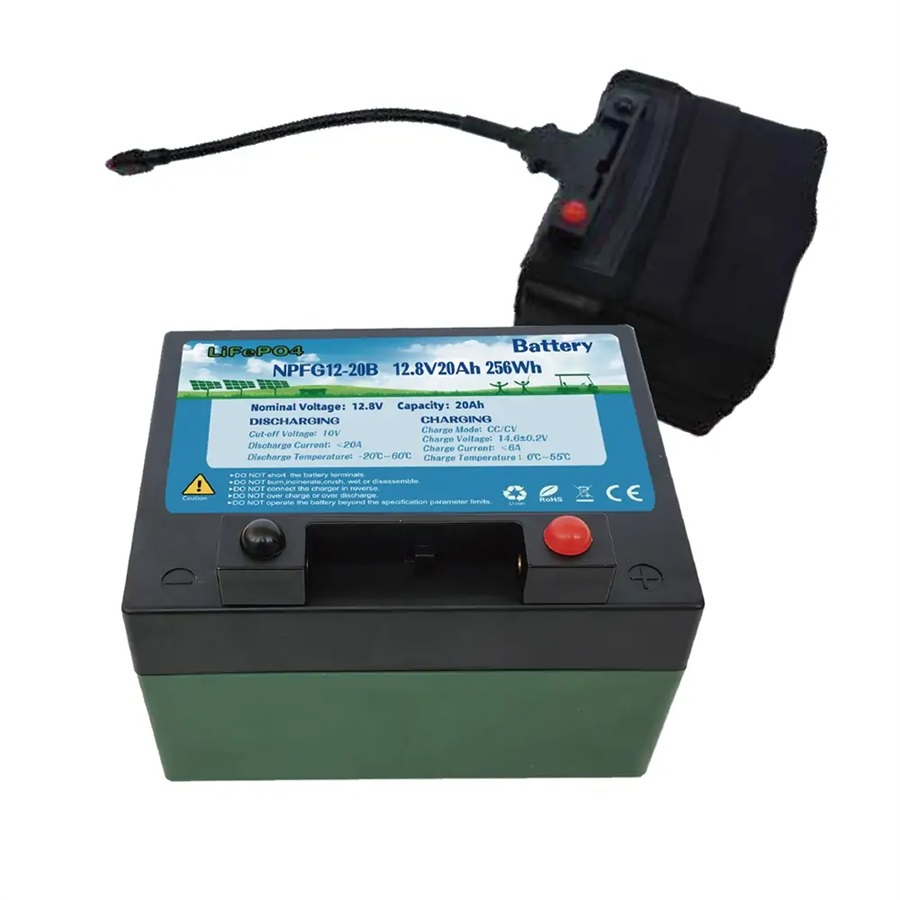

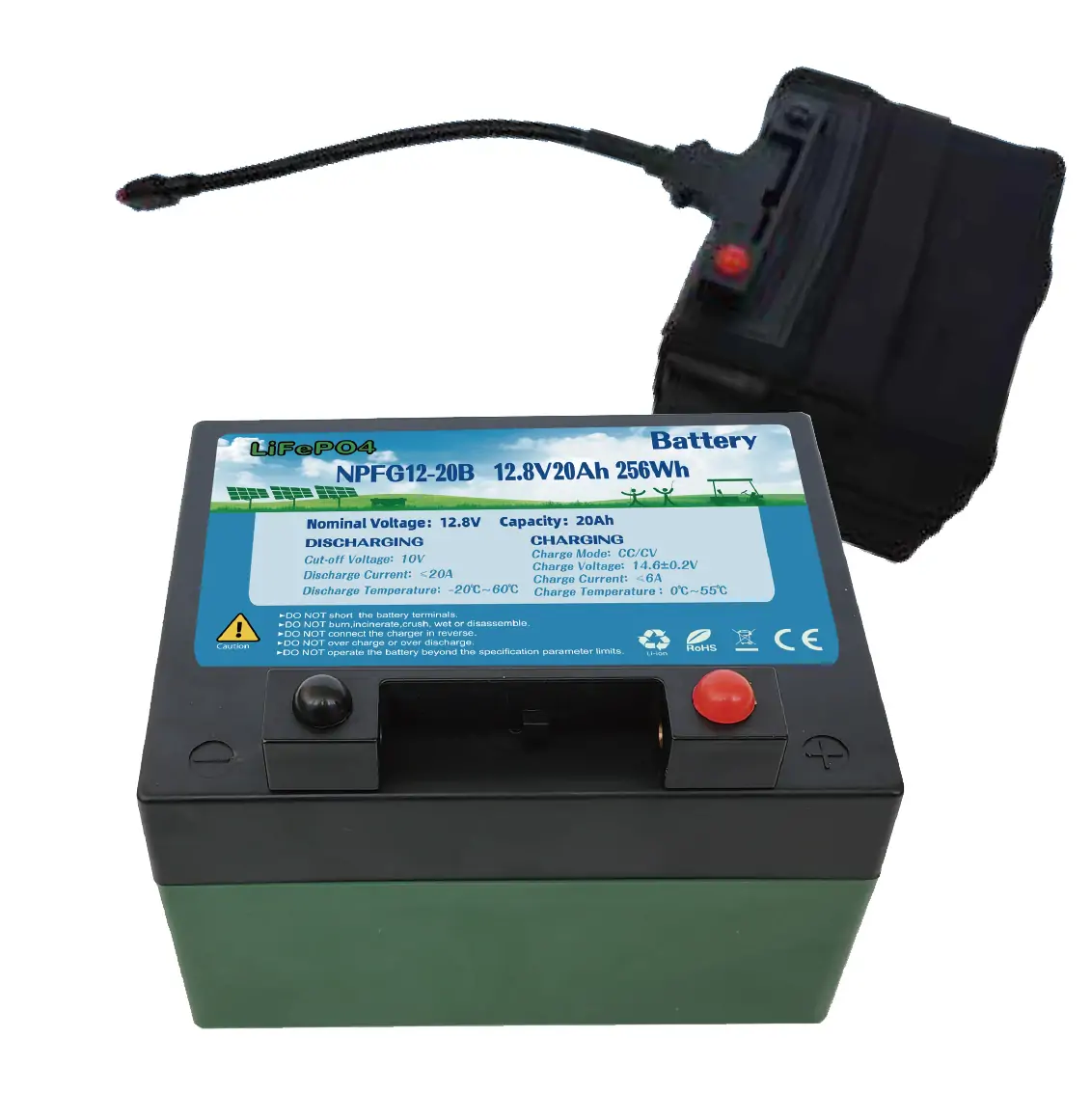

Model：NPFG12-20B 12.8V 20Ah LiFePO4 Battery

Nominal Voltage: 12.8V

Nominal Capacity: 20Ah

Energy: 256Wh

Internal Resistance (AC): ≤45mΩ

Cycle Life: ≥2000(100%DOD)

Monthly Self Discharge: ≤ 2%

Protection Function: Over charge protection, Over discharge protection, Temperature protection, Short-circuit protection, Balanced function

Charge Voltage: 14.4±0.2V

Charge Mode: CC/CV

Charge Current: 4A

Max. Charge Current: 6A

Continues Discharge Current: 20A

Max. Pulse Current: 20~25A(≤5min) 80A(≤3S）

Discharge Cut-off Voltage: 9V

Charge Temperature Range: 0℃-55℃

Discharge Temperature Range: -20℃-60℃

IP Class: IP64

Dimension(L*W*H): 167mm*105mm*129mm

Weight: 2.4±0.1Kg

Material of case: ABS plastic

Discharge Connector: T-Anderson or Aviation plug

Model：NPFG12-23 12.8V 23Ah LiFePO4 Battery

Nominal Voltage: 12.8V

Nominal Capacity: 23Ah

Energy: 294.4Wh

Internal Resistance (AC): ≤45mΩ

Cycle Life: ≥2000(100%DOD)

Monthly Self Discharge: ≤ 2%

Protection Function: Over charge protection, Over discharge protection, Temperature protection, Short-circuit protection, Balanced function

Charge Voltage: 14.4±0.2V

Charge Mode: CC/CV

Charge Current: 4A

Max. Charge Current: 6A

Continues Discharge Current: 25A

Max. Pulse Current: 25~30A(≤5min) 80A(≤3S）

Discharge Cut-off Voltage: 9V

Charge Temperature Range: 0℃-55℃

Discharge Temperature Range: -20℃-60℃

IP Class: IP64

Dimension(L*W*H): 167mm*105mm*129mm

Weight: 2.4±0.1Kg

Material of case: ABS plastic

Discharge Connector: T-Anderson or Aviation plug
