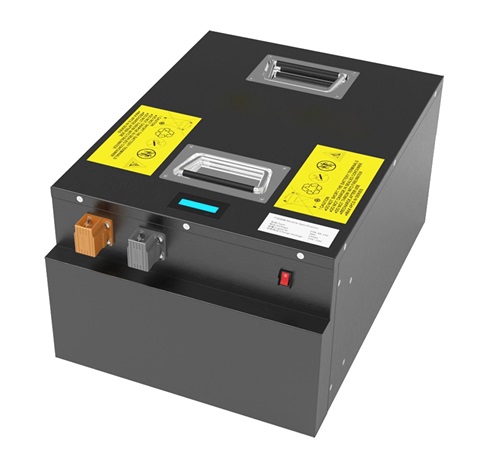

48V 100 Ah Lithium Battery LiFePO4 Golf Cart Battery Pack

48V 100 Ah Lithium Battery LiFePO4 Golf Cart Battery Pack, voltage and capacity can be customized(24V, 36V, 48V, 72V)

48V 100Ah LiFePO4 Lithium Golf cart Battery Pack

48V 100 Ah Lithium Battery LiFePO4 Golf Cart Battery Pack


Factory Price, OEM, ODM

Model:   51.2V 100AH (Welcome customized 36v ,48v, 72v, 60ah, 80ah )

Rated Voltage (V):   51.2V

Rated Capacity (Ah):   100Ah

Supply Ability:   500,000 per Month

MOQ:   10-50PCS

Approx Dimension:   520*334*237mm (Acceptable customized)

Approx Weight:   45.5±0.5

Certificate:   CE, UL, ICE, UN38.3, MSDS, ISO9001






51.2V 100Ah Lithium iron phosphate battery module which designed for golf cart, energy storage, power supply applications.  This LiFePO4 battery module integrated with intelligent BMS inside, has big advantages on safety, cycle life, energy density, temperature range and environmental protection.


Advantages of 48V 100 Ah Lithium Battery LiFePO4

The battery module consists of single LFP cells, wire, BMS and container.

● Packed with high performance LFP single cell, long life, safety and wide temperature range

● High energy density, small size, light weight, no pollution;

● High efficiency, fast charging;

● Built-in BMS, protect voltage, current, temperature in whole process

● Standard VRLA battery case , can replace the VRLA battery directly

● Various single cell types, customize dimension and capacity easily

● 10 years design life, Stable performance, maintenance-free

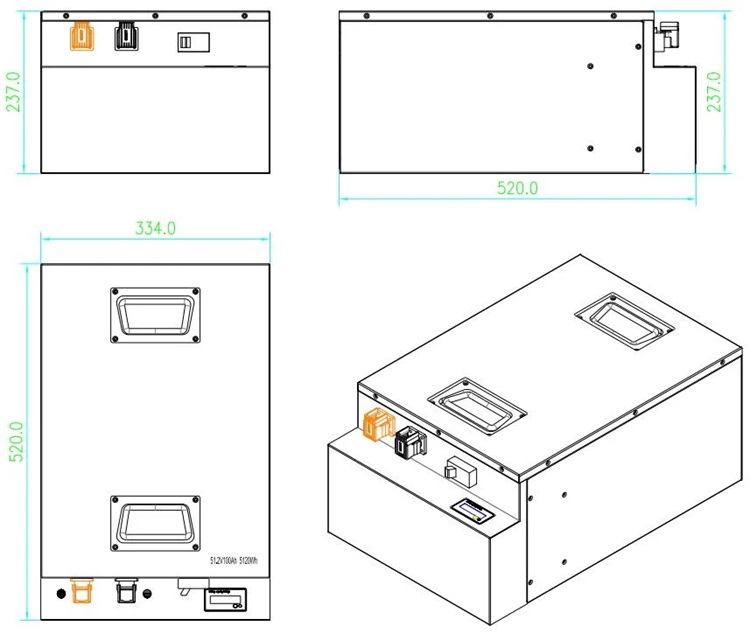

DIMENSION




Battery specification


Items

Parameters

Model

LFP-51.2100

Rated Voltage

51.2V

Rated Capacity (0.2C, @25oC)

100Ah

Rated Energy

5120Wh

Cell & Pack

LiFePO4, Prismatic, Aluminum shell

Output voltage range

40.0V~57.6V

Charging voltage

56~56.8V, CC-CV

Cut-off voltage

40.0V

Internal Resistance

≤6.4mΩ

Max. Constant Charging current

150A

Recommended charging current

<50A, best @ 20A

Recommended charging type

CC-CV until current <0.02C

Max. Constant Discharging current

150A

Efficiency

≥99.4%

Mechanical

Case material

Metal

Dimension L*W*H(mm)& Terminal

520*334*237, M8

Weight(kg)

45.5±0.5

Environment

Humidity

5%~95% relative humidity

Charging temperature

-10oC~+45oC

Discharging temperature

-20oC~+65oC

Storage temperature

-20oC~45oC

Service Life

Cycle life

80%DOD>4000 times, @0.5C,25oC

Design life

>10 years
