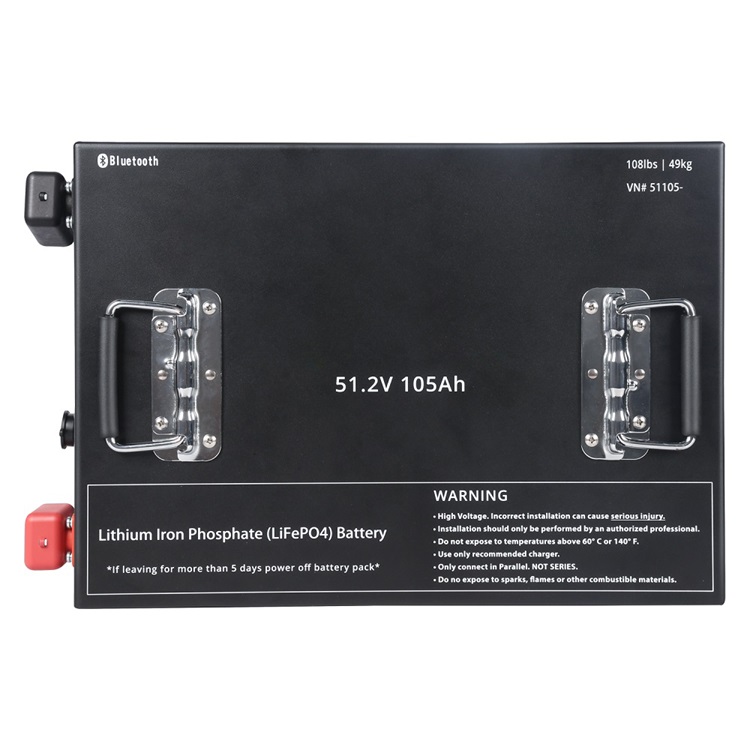

105Ah 51.2V/48V Lithium Golf Cart Battery

Lithium Golf Cart 48V/51.2V 105Ah LiFePo4 Battery Pack with IP67 Waterproof for lead-acid batteries replacement.

Lithium Golf Cart 48V/51.2V 105Ah LiFePo4 Battery Pack with IP67 Waterproof for lead-acid batteries replacement


detaildetail


Features of lithium golf cart battery


PET can bear 850kg, avoid bulging

CCS vehicle-grade craft, integrated wires

Support RS485/CAN/Bluetooth etc

3-4mm metal plates on both side

Reserve 1mm width for potential bulging

Distributed sampling system to solve sampling impedance problem

WATERPROOF IP67


Specifications of lithium golf cart battery


Item

Specification

Cell Model

16S1P

Communication Function

RS485/ Bluetooth APP

Way to Work

Use alone or in parallel

Rated Capacity

Typical 105Ah

Nominal Voltage

51.2V

Discharge Cut-off Voltage

44.8V

Charging Voltage

58.4V

Internal Resistance

≤10mΩ

Standard Charge

Constant current 0.5C5A charge to 58.4V,

then constant voltage 58.4V to

current below 0.5A cutoff.

Standard Discharge

Constant Current 1.0C5A end voltage 44.8V

Fast Charge

Constant current 1.0C5A charge to 58.4V,

then constant voltage 58.4V

to current below 0.5A cutoff.

Fast Discharge

Constant Current 1.5C5A end voltage 44.8V

Maximum Continuous

Charge Current

1.0C5A

Maximum Continuous

Discharge Current

1.5C5A

Discharge Pulse Current

300A

Operation Temperature Range

Charge: 0~55°C

Discharge: -20~65°C

Weight

Approx: 49.0Kg

Dimension (H*W*T)

457*298*260.4±5mm

Energy Extension

The same voltage and batch

Ingress Protection

IP65

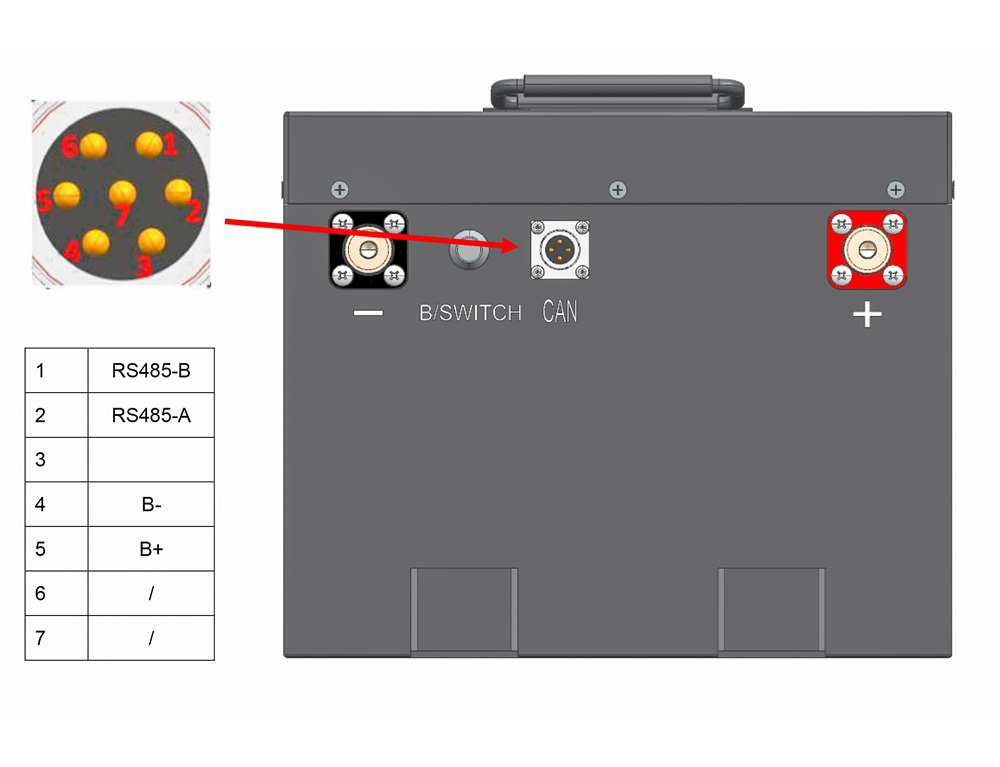

Port definitions


definitions

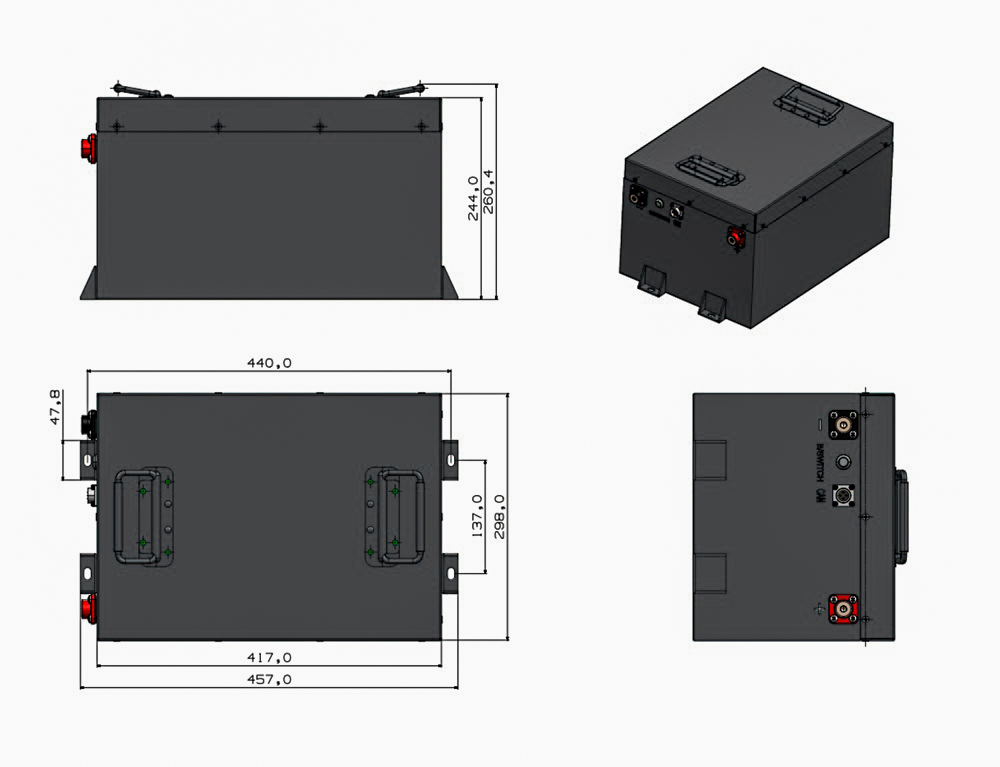

dimension

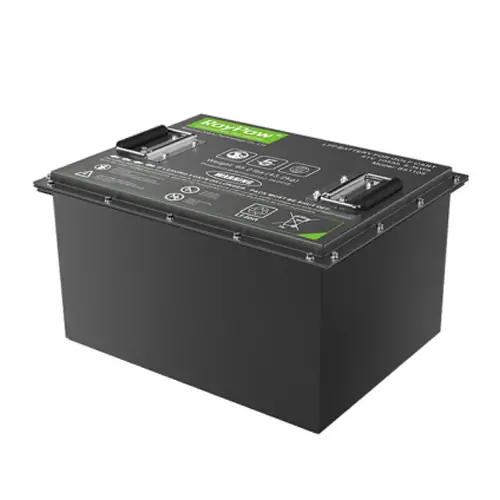

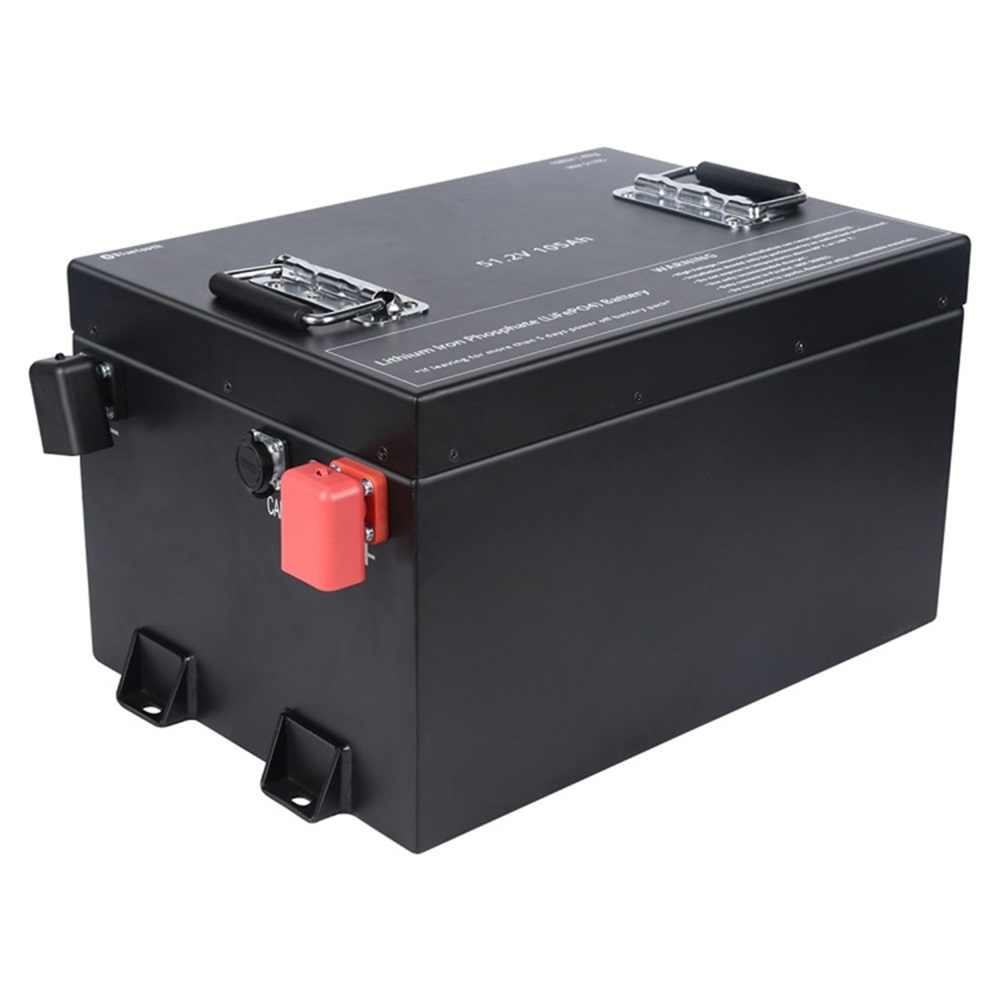

Lithium Golf Cart Battery
