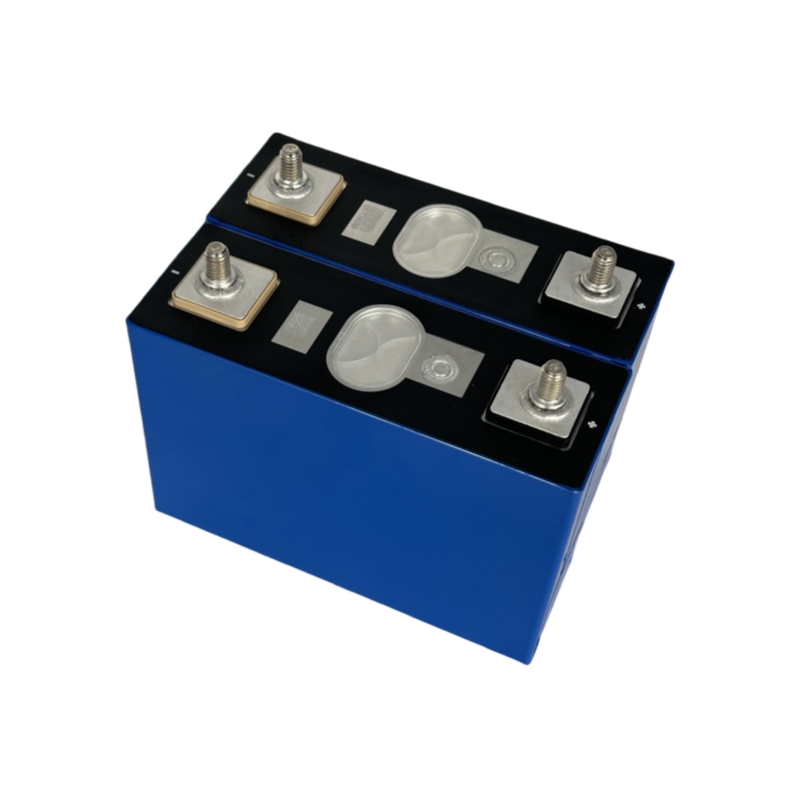

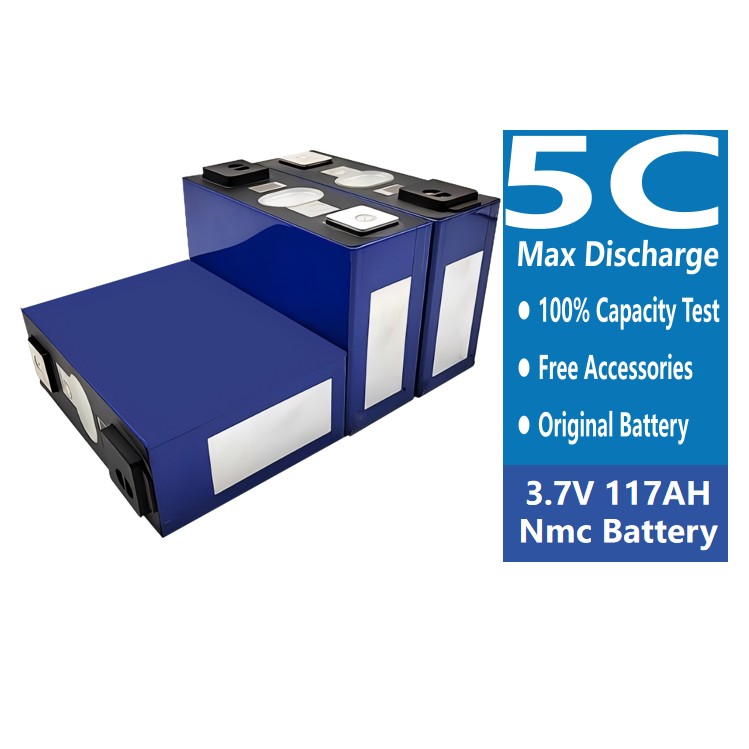

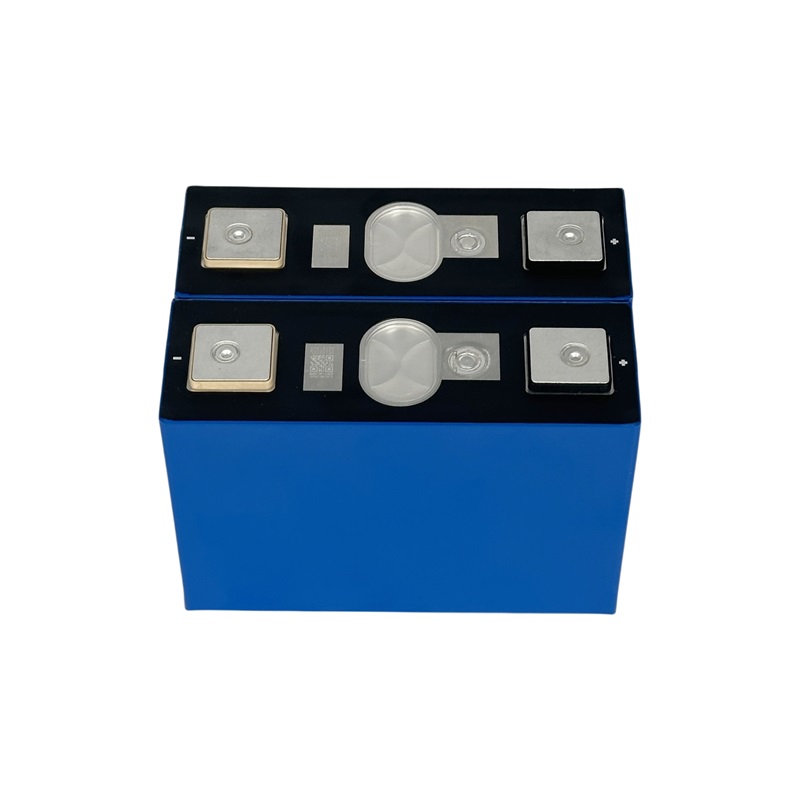

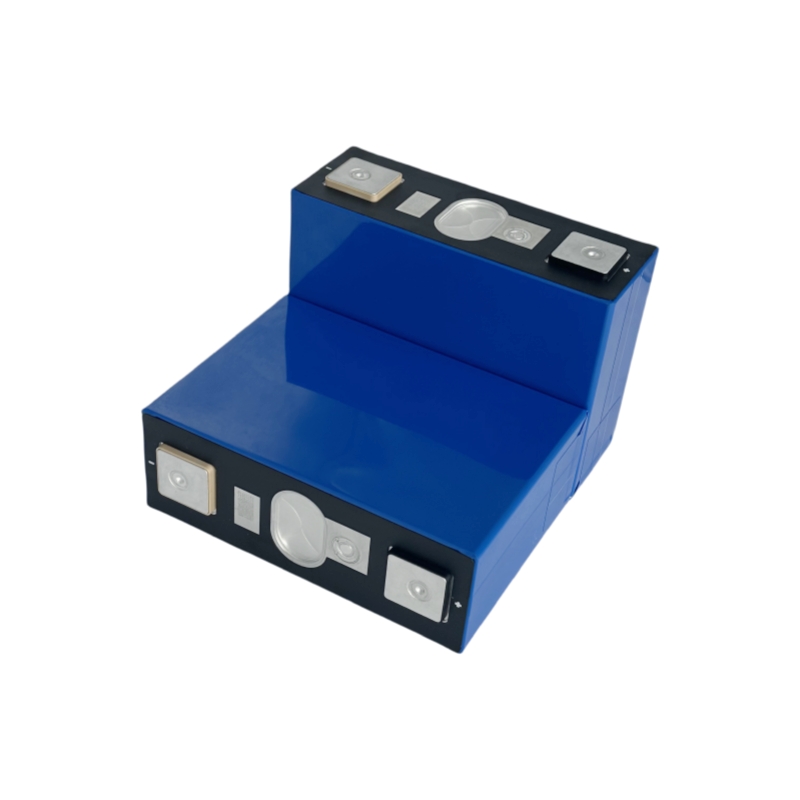

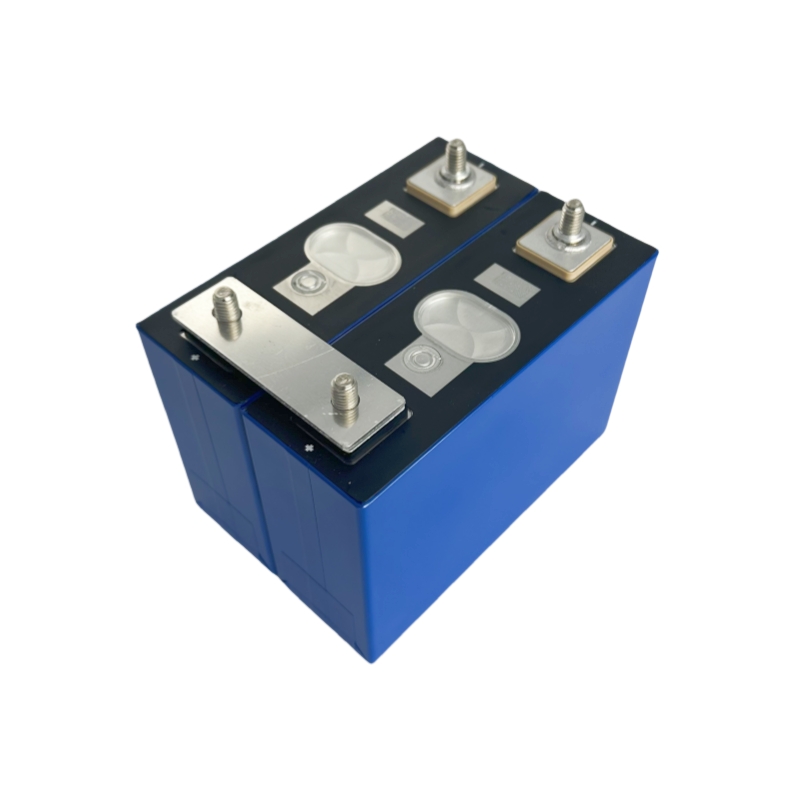

CE1L4L36B-117Ah Lithium Ion 3.7V Ternary NMC Battery Cell
117Ah rechargeable lithium ion 3.7v Ternary NMC Battery Cell for sale
- Category: Lithium Ternary NMC Battery
- Tag:
Feature
1. High capacity and stable discharge voltage
2. Longer working time with high performance
3. Lightweight with sa mall size
4. Outstanding discharge properties and small internal resistance
5. No memory effect, good discharge ability and high load and resist high temperature
6. Pollution-free for environmental protection
7. 100% Authentic original li-ion rechargeable battery
8. Bulid in anti-explosion protection and circuit protection
9. Long cycle life more than 2000 times
10. Good consistency, low self-discharge
Specifications
Parameter | Specification |
Nominal Capacity
| ≥114 Ah (25℃, 114 A(1C) DC to 2.8V) ≥117 Ah (25℃, 39 A(1/3C) DC to 2.8V) |
Discharge Energy
| ≥421.8 Wh (25℃, 114 A(1C) DC to 2.8V) ≥438.7 Wh (25℃, 39 A(1/3C) DC to 2.8V) |
Energy Density
| ≥230 Wh/kg (25℃, 114 A(1C) DC to 2.8V) ≥240 Wh/kg (25℃, 39 A(1/3C) DC to 2.8V) |
Operating Voltage
| 2.8 ~ 4.4 V (0℃<T≤55℃) 2.5 ~ 4.4 V (-20℃<T≤0℃) 2.1 ~ 4.4 V (-30℃≤T≤-20℃) |
ACR(1kHz) | ≤0.4 mΩ; 25℃, BOL, 70%SOC |
DCR | ≤0.8mΩ; 25℃, BOL, 70%SOC 300A 10s |
Outgoing Voltage | 3.970±0.010 V; 25℃, BOL, 70%SOC |
Outgoing Capacity | ≥117 Ah; 25℃, 39 A(1/3C) DC to 2.8V |
Operating Temperature | Charge: -20 ~ 55℃ Discharge: -30 ~ 55℃ |
Cycle Life | ≥1400 |
Recommended SOC Range | 10% ~ 95% |
Weight | 1805±30g |
Dimension (mm) | (146±0.3)*(50.0±0.30*(102.8±0.4)mm |

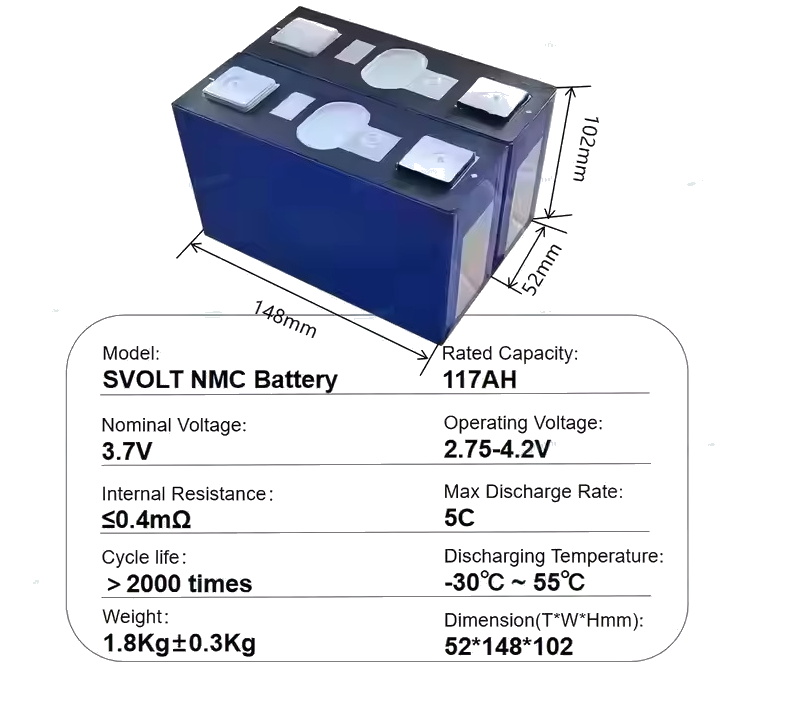

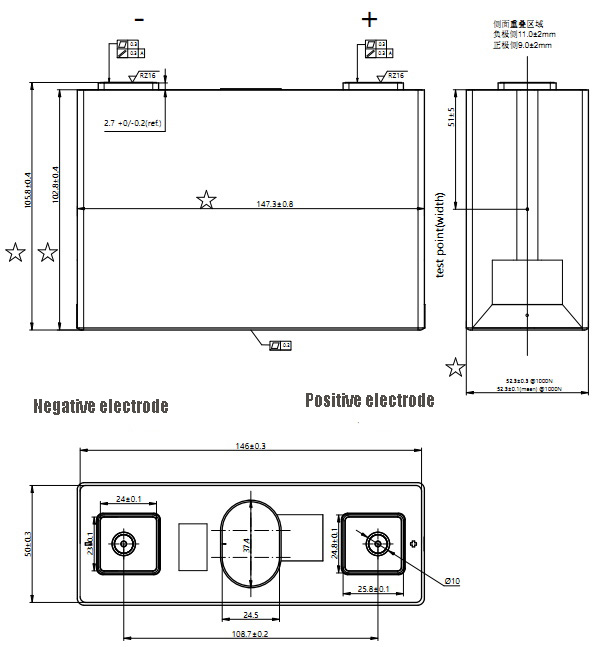

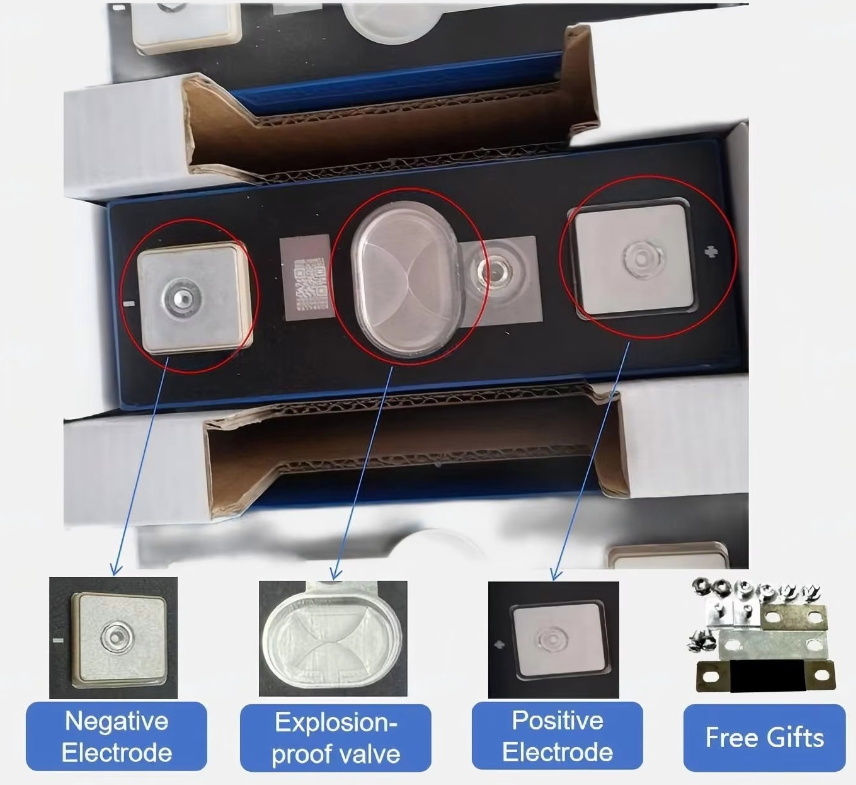

Dimension and Details

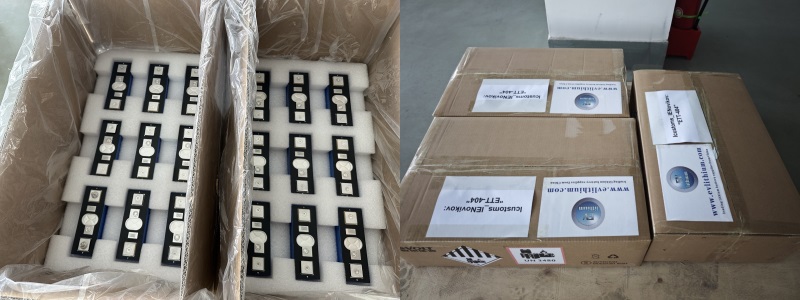

Customer Order Packaging
Applications
Widely used in electric sprayer, solar power general, energy storage devices, telecom base station, solar street light, UPS, ESS and so on.
Attention
1. Do not expose to, dispose of the battery in fire.
2. Do not put the battery in a charger or equipment with wrong terminals connected.
3. Avoid shorting the battery
4. Avoid excessive physical shock or vibration.
5. Do not disassemble or deform the battery.
6. Do not immerse in water.
7. Do not use the battery mixed with other different make, type, or model batteries.
8. Keep out of the reach of children.
