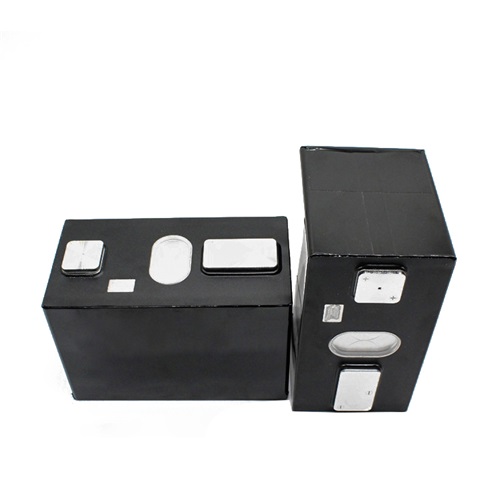

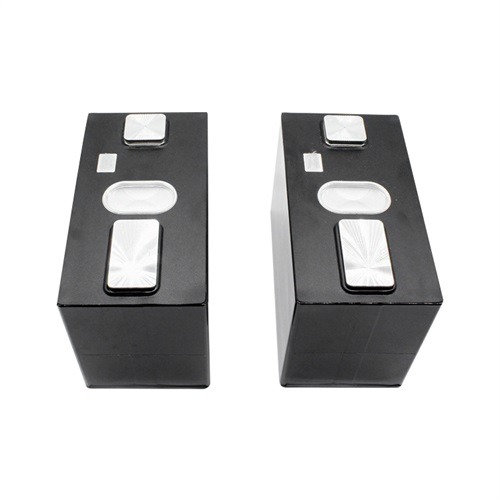

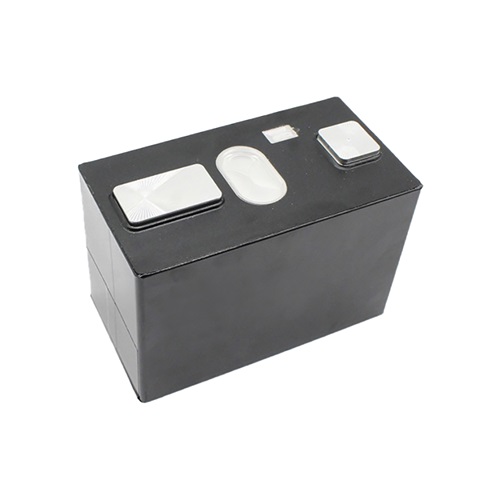

3.7V 153Ah Lithium ternary nmc battery

7914897-NMC-153Ah 3.7V 153Ah lithium NMC battery Cell

7914897-NMC-153Ah 3.7V 153Ah lithium NMC battery Cell

3.7V 153Ah Lithium ternary nmc battery3.7V 153Ah Lithium ternary nmc battery

Cell Specification

Parameters

Dimension(T*W*H)

79.2mm*148.7mm*97.7mm

Min. Capacity @25℃, 1C

153Ah

Nominal Voltage

3.692V

Impedance @25℃, 1KZ

≤0.35mohm

DCR (25℃, 4C DC 10s, 50%SOC)

≤0.70mohm

Weight

2.64kg

Max. Continuous Charge Current

1C

Max. Continuous Discharge Current

2C

Max. Pulse Charge Current @ 10s

3C

Max. Pulse Discharge Current @10s

4C

Energy Density - Weight

≥214Wh/kg

Energy Density - Volume (w/o terminals)

490Wh/L


Operating Temperatures

-30℃~55℃

Storage Temperatures

-40℃~60℃



Electrical Performances

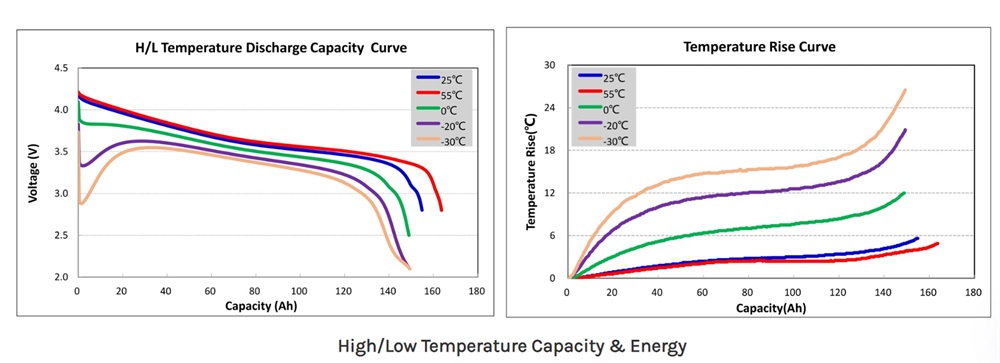

High/Low Temperature Capacity & Energy


Test Procedures: 25℃, 1C CC to 4.3V, 4.3V CV to 0.05C. rest 2h at different temperature. 1C DC to Umin (T>0℃, Umin=2.8V. -20℃<T≤0℃, Umin=2.5V, T≤-20℃, Umin=2.1V ).

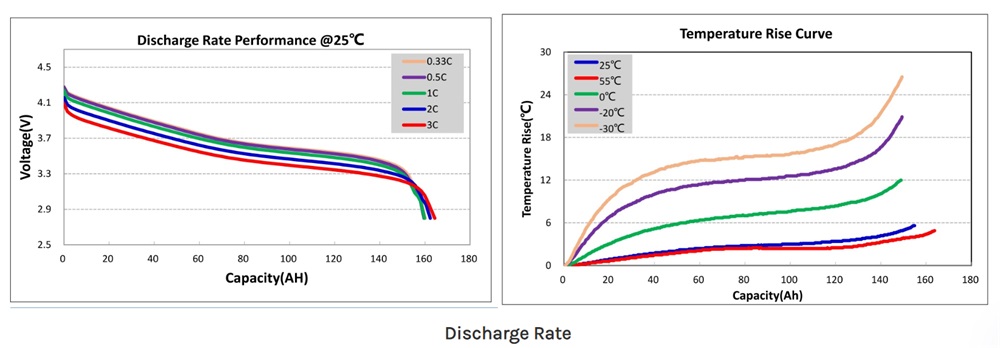

Discharge Rate

Test Procedures: 25℃, 1C CC to 4.3V, 4.3V CV to 0.05C, rest 10min, 0.33C/0.5C/1C/2C/3C/3.5C DC to 2.8V

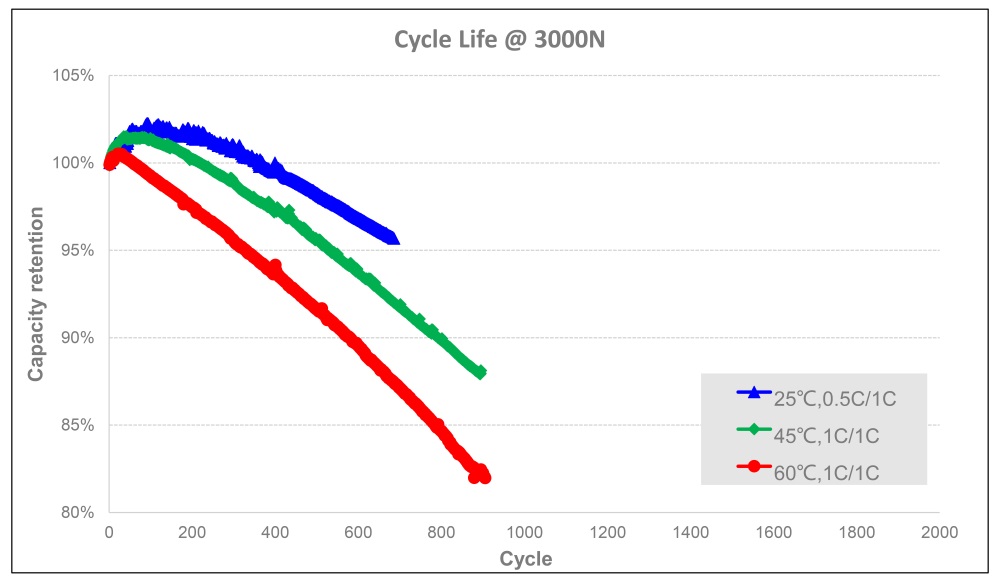

Cycle Life

cycle life

Test Procedures: 25℃/45℃/60℃, 0.5C/1C CC+CV to 4.3V, rest 0.5h, 1C DC to 2.8V, rest 0.5h (3000N)
