3.7V 173Ah ternary BEV lithium batteries for electric cars

3.7v 173ah ternary lithium nmc battery for BEV is suitable for battery electric vehicles (BEV) because it has a high energy density, long cycle life, and good power performance.

3.7V 173Ah ternary BEV NMC NCM lithium ion batteries for electric cars


3.7V 173Ah ternary BEV lithium batteries3.7V 173Ah ternary BEV lithium batteries


3.7v 173ah ternary lithium nmc battery for BEV is a type of lithium-ion battery that uses a nickel manganese cobalt oxide (NMC) cathode material and a graphite anode material. It has a nominal voltage of 3.7 volts and a nominal capacity of 173 ampere-hours. It is suitable for battery electric vehicles (BEV) because it has a high energy density, long cycle life, and good power performance.




Item

Condition

Data

Capacity

25°C, 0.33C (min)

173 Ah

Dimensions

without terminal (mm)

44.5*220.3*110.2 mm

Weight

max

≤2.58 Kg

Voltage

25°C, 0.33C (max/nominal/min)

4.35V/3.74V/2.8V

Energy

25°C, 0.33C (min)

645.7Wh

Specific ED

25°C, 0.33C (min)

250 Wh/Kg

Volumetric ED

25°C, 0.33C (min)

606 Wh/L

DC-IR

10s discharge @25°C, 50%SOC,BOL

< 0.75 mΩ

Fast charge

3~80%SOC @25°C

30 min

Cycle life

Step charge/1C@25°C, 94%DOD, EOL80%

≥1500 Cycle

Step charge/1C@45°C, 94%DOD, EOL80%

≥1000 Cycle

Operating Temperature

Charge

-20°C~55°C

Discharge

-30°C~55°C

Storage

-40°C~60°C




detailsdimension

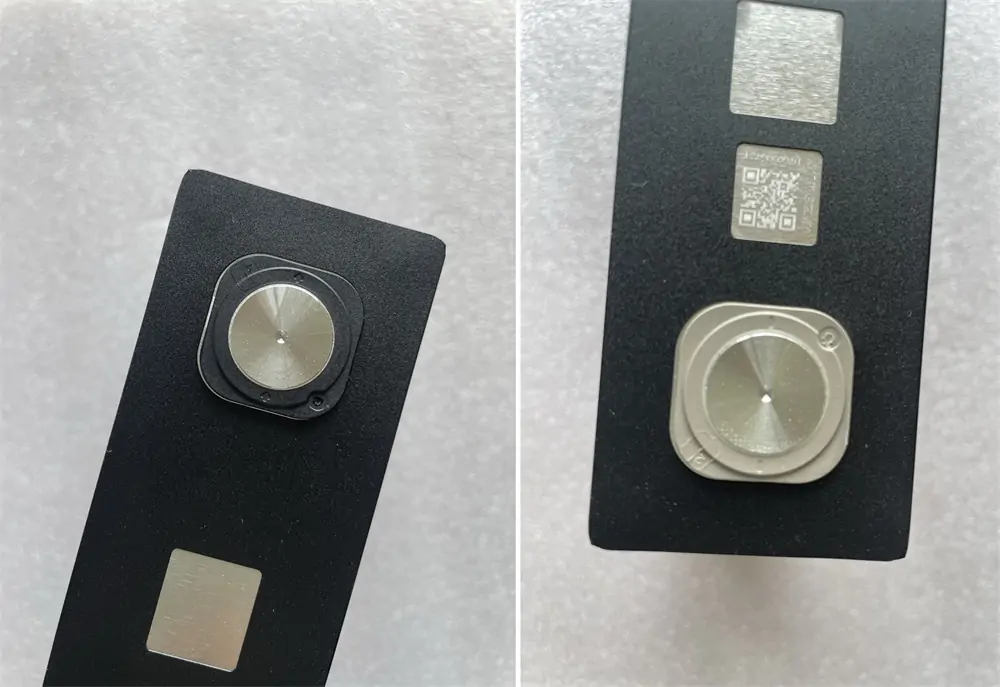

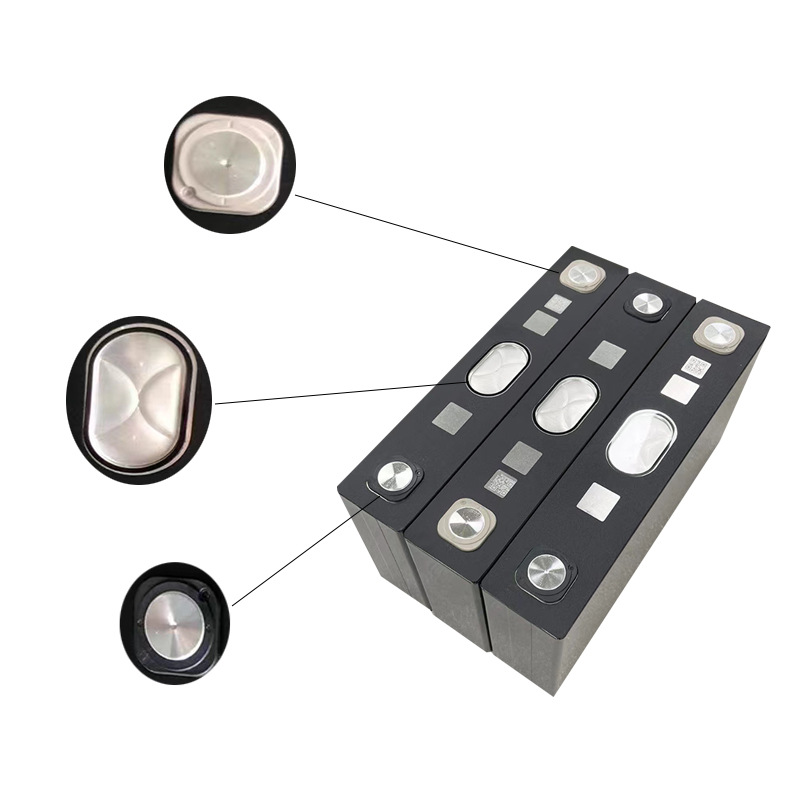

Positive and negative details


*Remark: The original battery cells do not have welded screws on their terminals. However, we offer a welded and customized service for you.


3.7V 173Ah lithium nmc battery cell 3.7V 173Ah lithium nmc battery cell

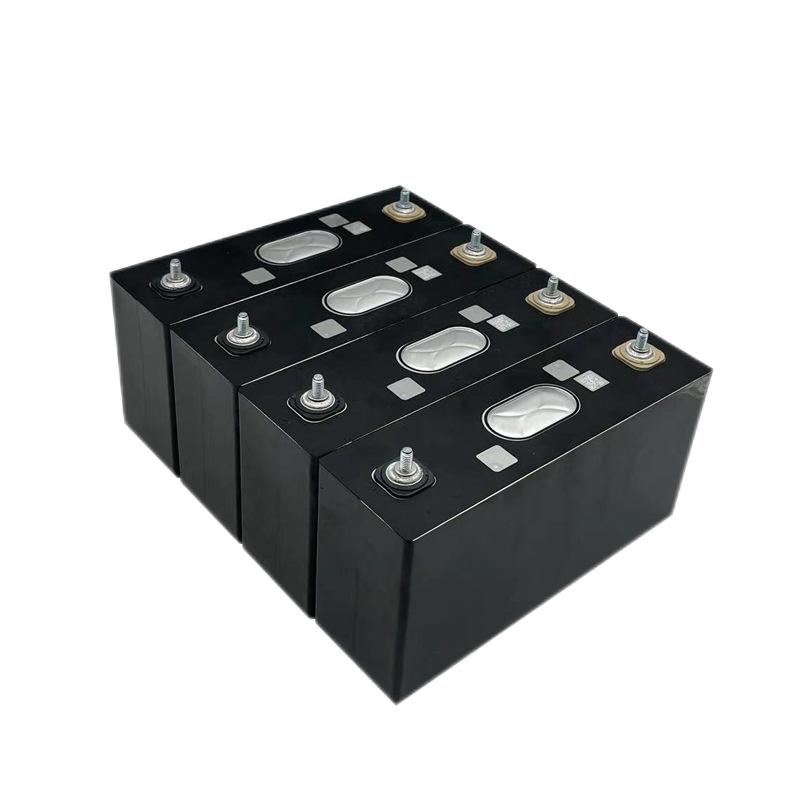

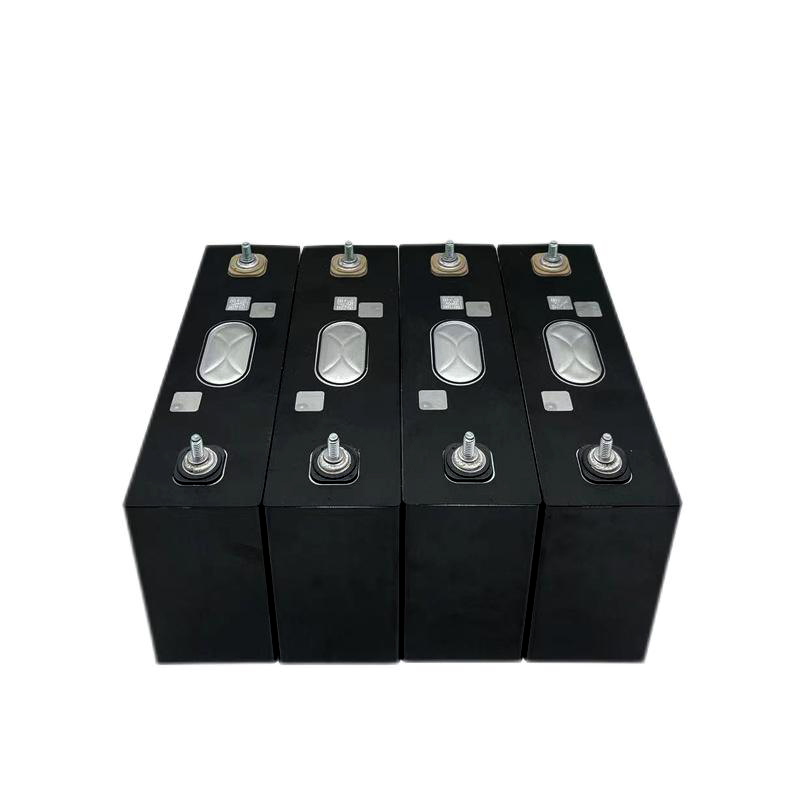

*3.7V 173Ah lithium nmc battery cell with welded screws on the terminals
