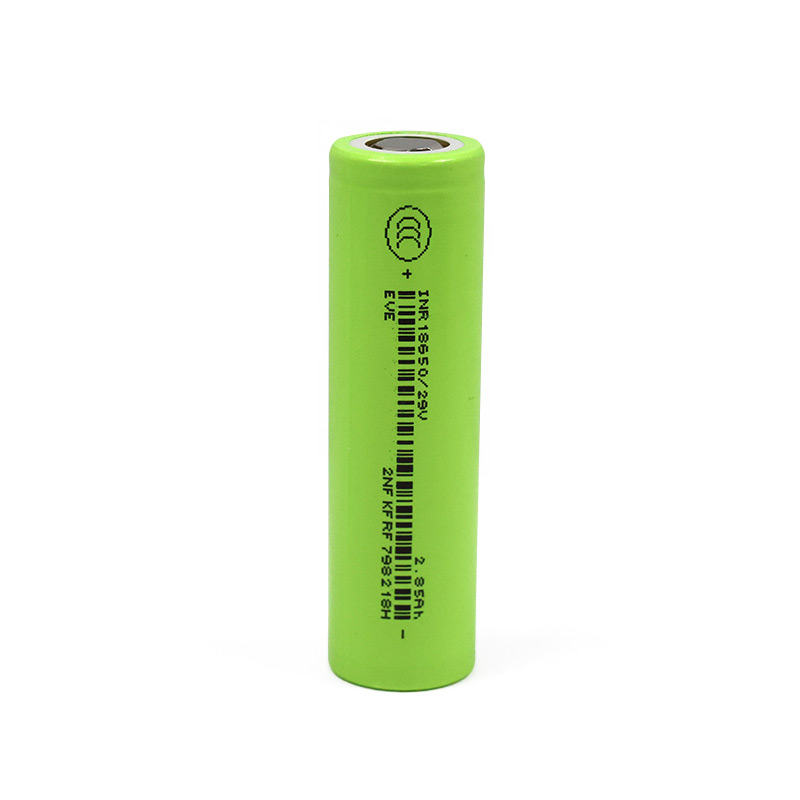

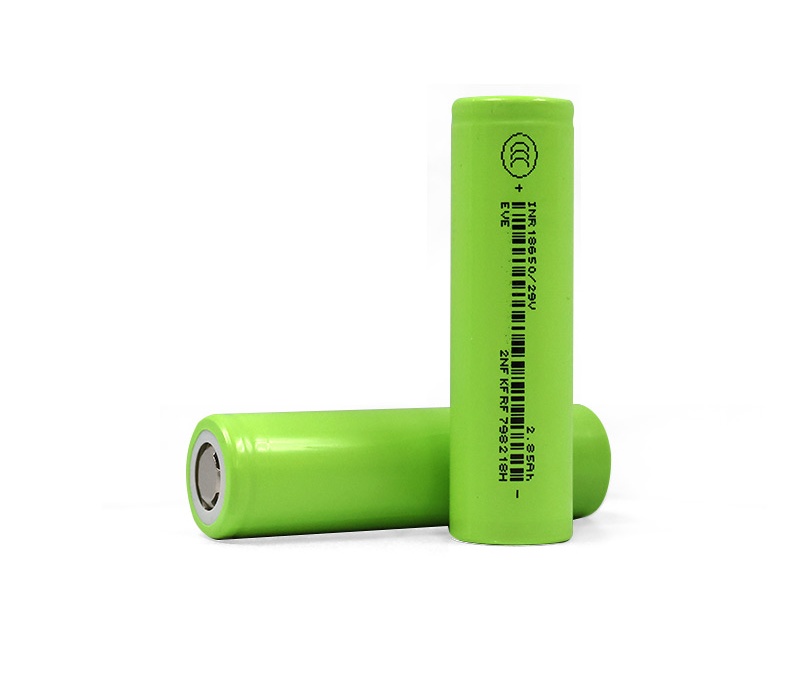

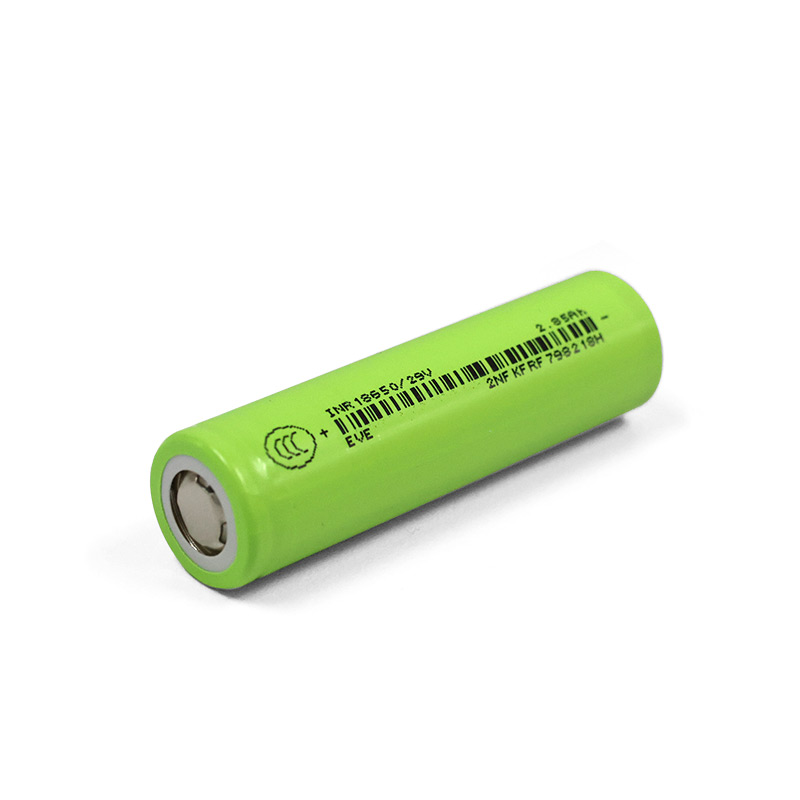

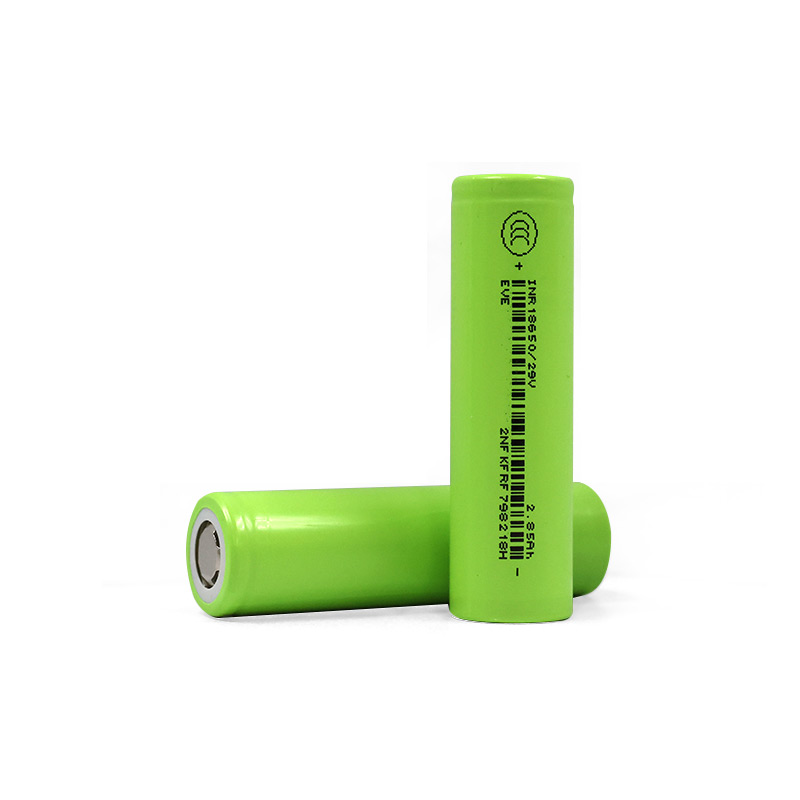

18650/29V 3.6V 2850mah NMC 18650 Ternary Lithium Battery Cell
EVE 18650-29V 3.6V 2850mah NMC 18650 Ternary Lithium Battery Cell for Portable Power Station Battery
- Category: Lithium Ternary NMC Battery
- Tag: Lithium Ternary NMC Battery
Solution Advantages
● Comprehensive Solution: High energy cylindrical cel, High power cylindrical cell,Long life cylindrical cell
● Practical Application: Over 2.2 billion batteries have been sold globally.
● Safety and Reliability Certification: CQC, UL.UN,IEC ,BIS ,PS E,etc
● Product Core Characteristics: High energy density, High capacity y, Long cycle life, Low self-discharge rate.Low internal resistance, High discharge rate, Good safety performance.
Specifications
Parameter | Specification |
Brand Name | EVE |
Model | 18650 29V |
Size | 65.10±0.5mm（H）*18.35±0.1mm(D) |
Nominal Capacity | 2850mah |
Nominal Voltage | 3.6V |
Operating voltage range(V) | 2.5~4.2 |
Energy density(Wh/kg) | 231 |
Weight(g) | 44.5±2g |
Cycle(25℃) life | 1000cycs |
Application | AGVs, Forklifts, Electric Treadmills, Balance Bikes, Vacuum Cleaners, Sweeping Robots, Portable Energy Storage、E-Bike |
Certification | CE、BIS、IEC、CB、BSMI、CTIA、KC、PSE、UL、RoHs、POPS.... |

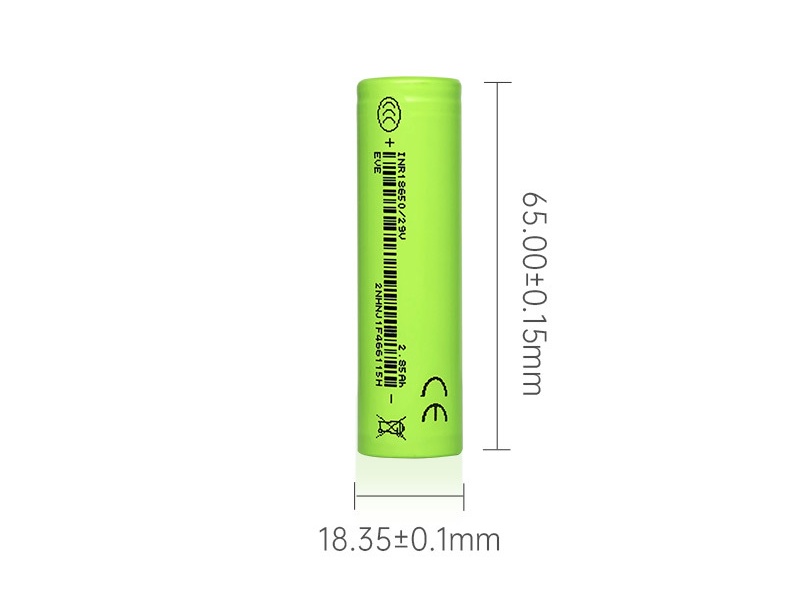

Dimension and Details
Comprehensive Customized Battery Pack
EVE 18650/21700 customized pack
EVE 33140/40135 customized pack
Standardization of battery packs Perfectly matched to your needs: 60V30Ah/48V20Ah/48V30Ah/60V40Ah/60V20Ah/72V30Ah, etc.
Comprehensive Solution for Cylindrical NMC Batteries
Application scenario: Power tools, garden tools, cleaning tools battery solutions. Recommended model: 21700 40P, 18650 25P, 20P, 15P
Battery Safety Specification
During the use of batteries, the following requirements must be observed
1) Do not remove the battery from its original packaging before use.
2) Do not place the battery scattered together to avoid accidental short circuit.
3) Do not heat the battery above 100C or burn it.
4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.
5) Do not mix new and used batteries, or batteries from different places of origin.
6) Disassembling and dissecting the battery is strictly prohibited.
7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
