L300N137B 3.7V 137Ah Prismatic Lithium-Ion NCM Battery Cell
L300N137B 3.7V 137Ah Prismatic Lithium-Ion NCM Battery Cell

L300N137B 3.7V 137Ah Prismatic Lithium-Ion NCM Battery Cell

3.7v 137ah Prismatic Lithium Ion Battery is a battery electric vehicle power lithium battery with long life and ultra-long battery life.

L300N137B 3.7V 137Ah Prismatic Lithium Ion  NCM Battery Cell

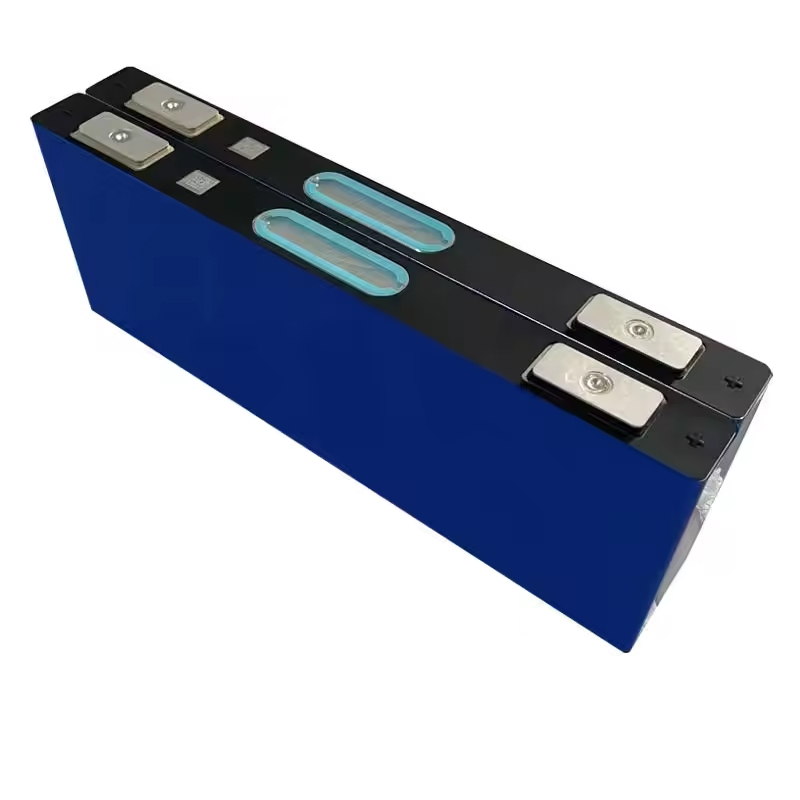

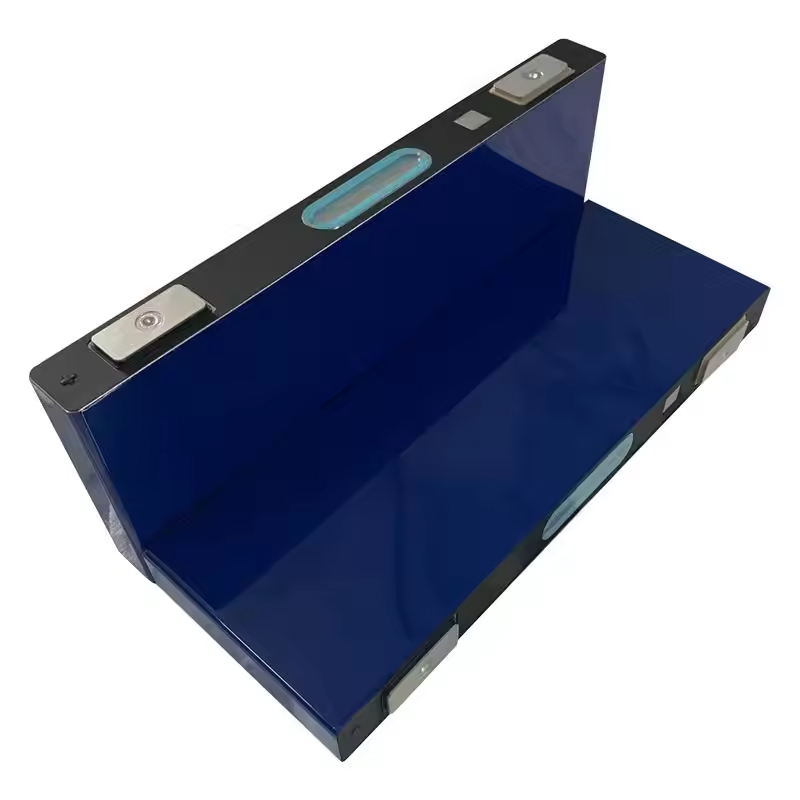

3.7V 137Ah Prismatic lithium Ion Battery3.7V 137Ah Prismatic lithium Ion Battery



3.7v 137Ah prismatic lithium lon Battery adopts an aluminum shell, supports welding, long cycle life, high energy density, and wide operating temperature range, suitable for electric forklifts, electric bicycles, electric motorcycles, electric tricycles, electric four-wheelers, and other power battery fields.



Specifications


Parameter

Specification

Rated Capacity

1C Discharge: 137Ah

Standard Discharge: 140Ah

Rated Voltage

1C Discharge: 3.68V

Standard Discharge: 3.74V

Voltage Range

2.80~4.35V (0℃≤T≤55℃)

2.50~4.35V (-30℃≤T＜0℃)

Rated Energy

1C Discharge: 504.16Wh

Standard Discharge: 523.6Wh

Cell Weight

2.13±0.02kg

Mass Energy Density

245.8Wh/kg

Volume

0.886L, (without a terminal)

Volume Energy Density

591.0Wh/L

ACR

Alternating Current Resistance

0.45mΩ

Temperature

Range

Charging: -20~55°C

Discharging: -30~55°C

Storage: -40~60°C

Fast Charging Time

≤20min(10~80% SOC)

Dimensions (L x W x H)

(27.74±0.4)x(300.14±0.5)x(111.0±0.6)mm

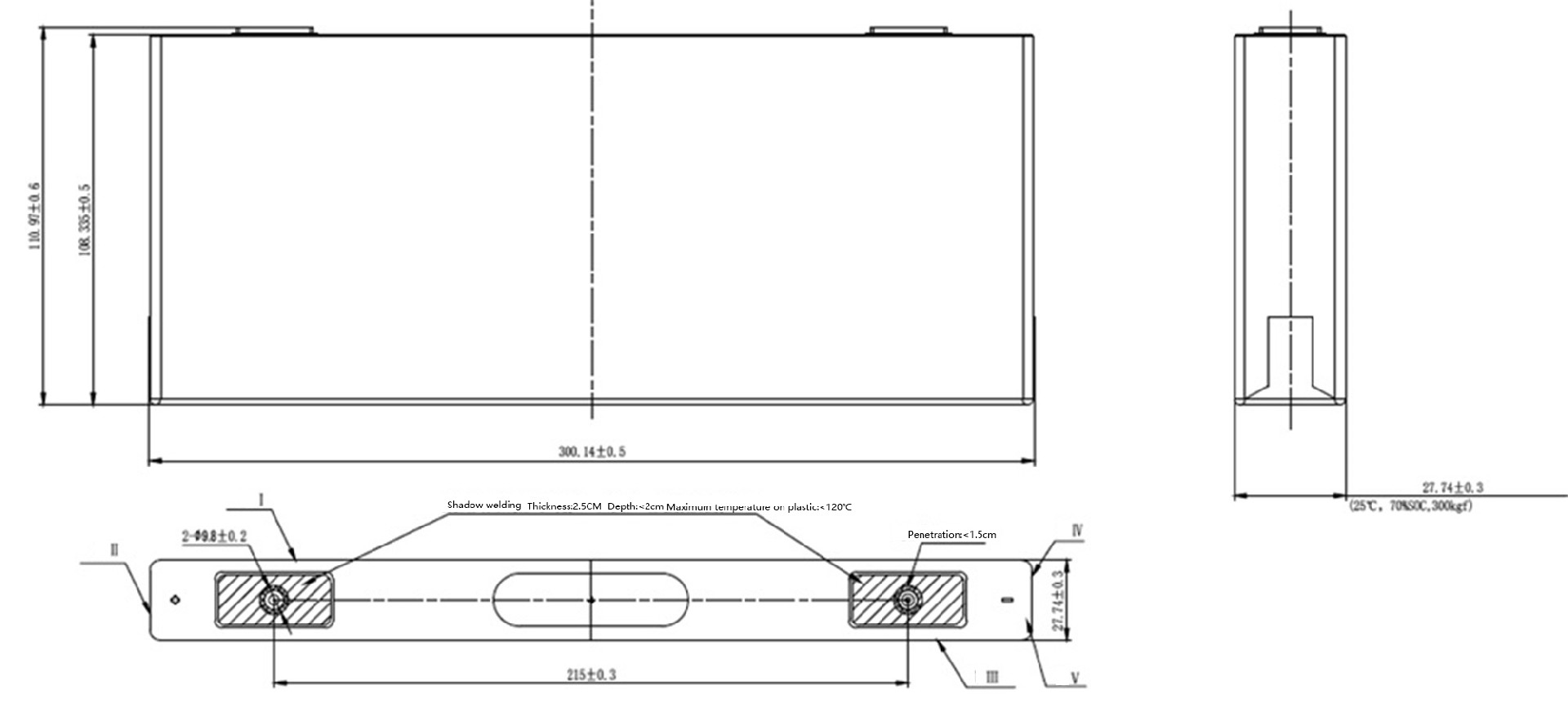

Product Dimension




dimension

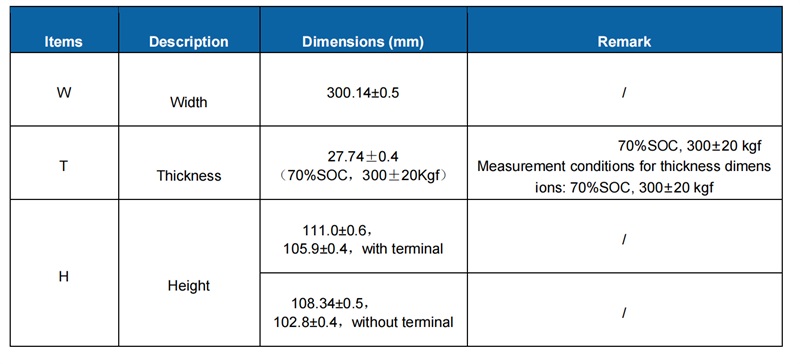

Cell Dimensions

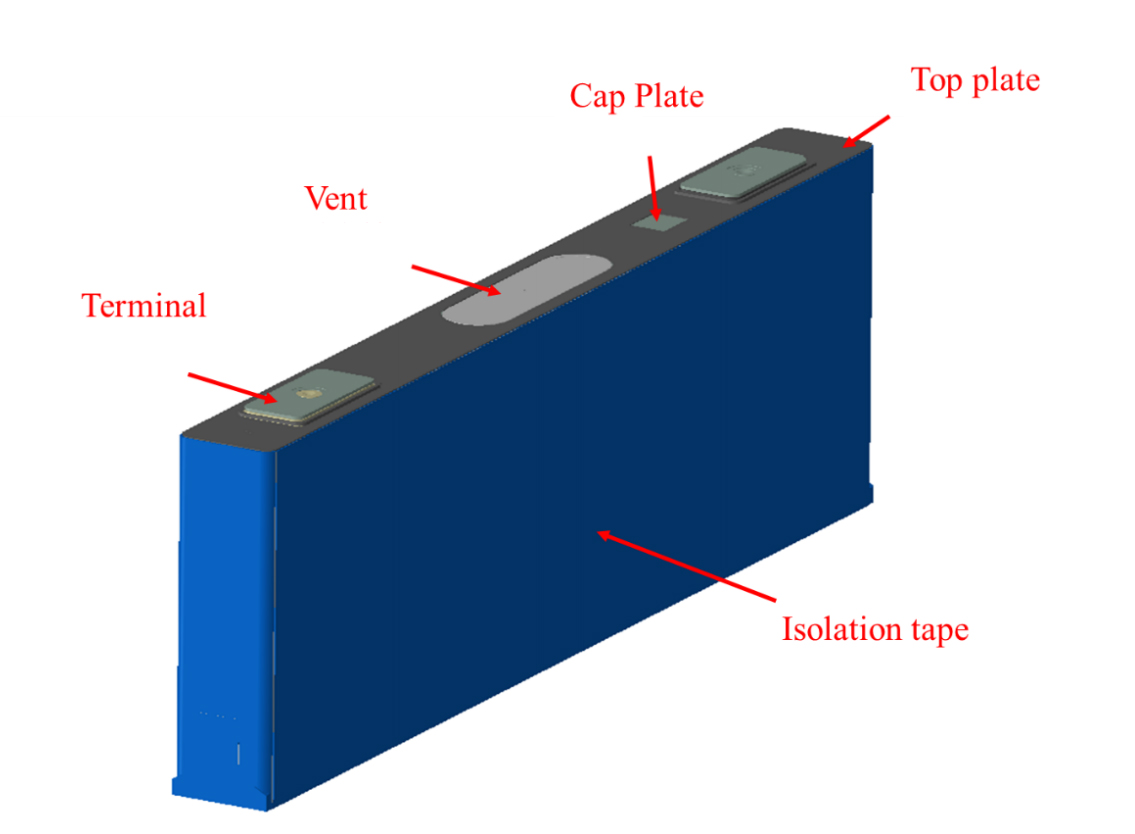

Cell Image

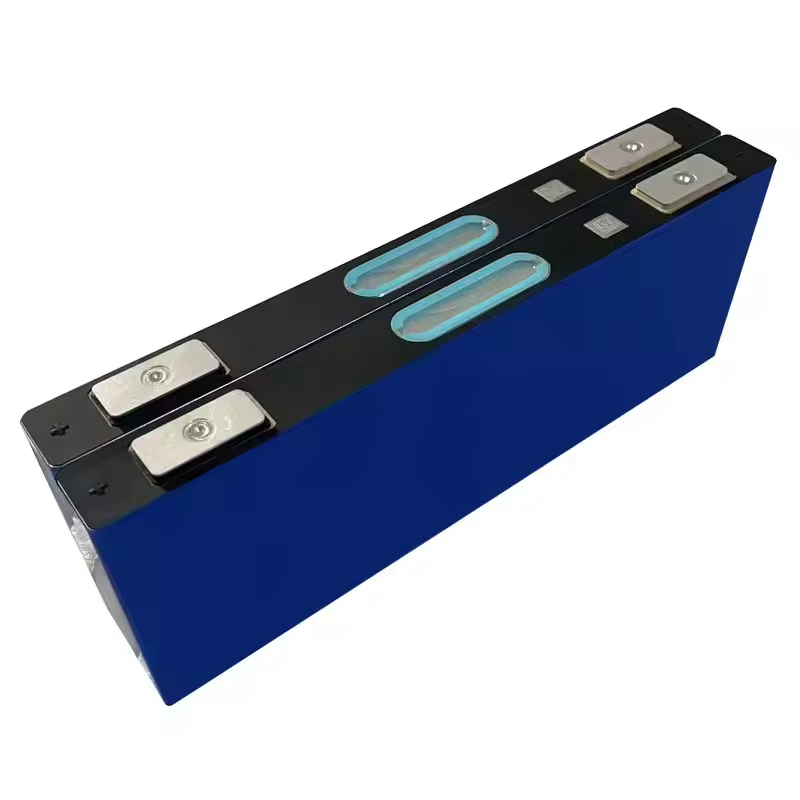

Cell Image

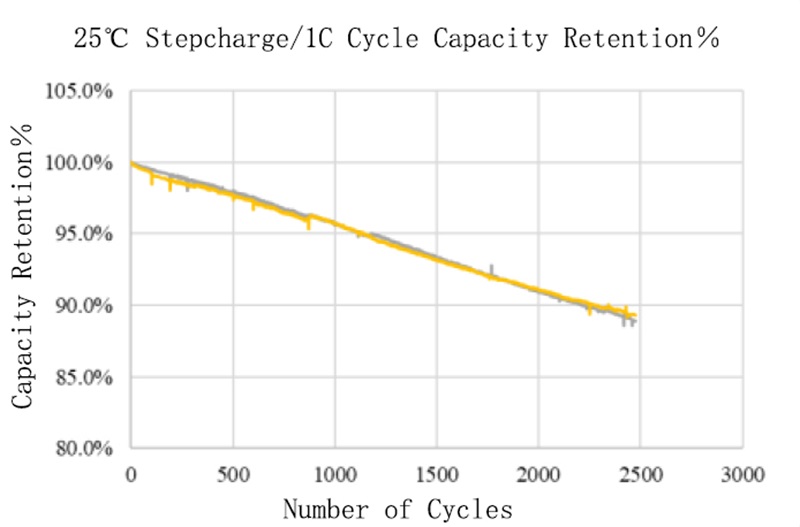

Charge/discharge Cycle


Charge/discharge Cycle



Test Condition

Temperature：25℃

Discharge：1C1.0C CC discharge, 2.8 V cutoff

Charge：1C CC 3.64V, 2.35C CC 3.9V, 2.1C CC 3.94V, 1.8C CC 4.02V, 1.6C CC 4.12V, 1.4C CC 4.16V, 1.2C CC 4.18V, 1C CC 4.2V, 0.8C CC 4.23V, 0.6C CC 4.24V, 0.33C CC 4.25V, 0.15C CC 4.27VStepcharge, 4.27V cutoff



Application

Electric bicycles/scooters, electric forklifts, electric motorcycles, electric tricycles, electric four-wheeler electric wheelchairs, power systems, uninterruptible power supply, etc.


Prohibition

1) It is forbidden to throw the battery into the fire or place it near the heat source, and it is forbidden to throw or soak the battery

in water.

2) It is forbidden to short-circuit conductive objects to the positive and negative poles of the battery. Do not place conductive

objects near the battery, such as screwdrivers, pliers, and wires.

3) Do not puncture the battery with sharp objects, do not hit the battery with heavy objects, do not step on or drop the battery,

and do not weld on the battery surface.

4) It is forbidden to disassemble the battery without the guidance of professional personnel and in an unspecified environment.
