3.7V 50Ah L148N50A

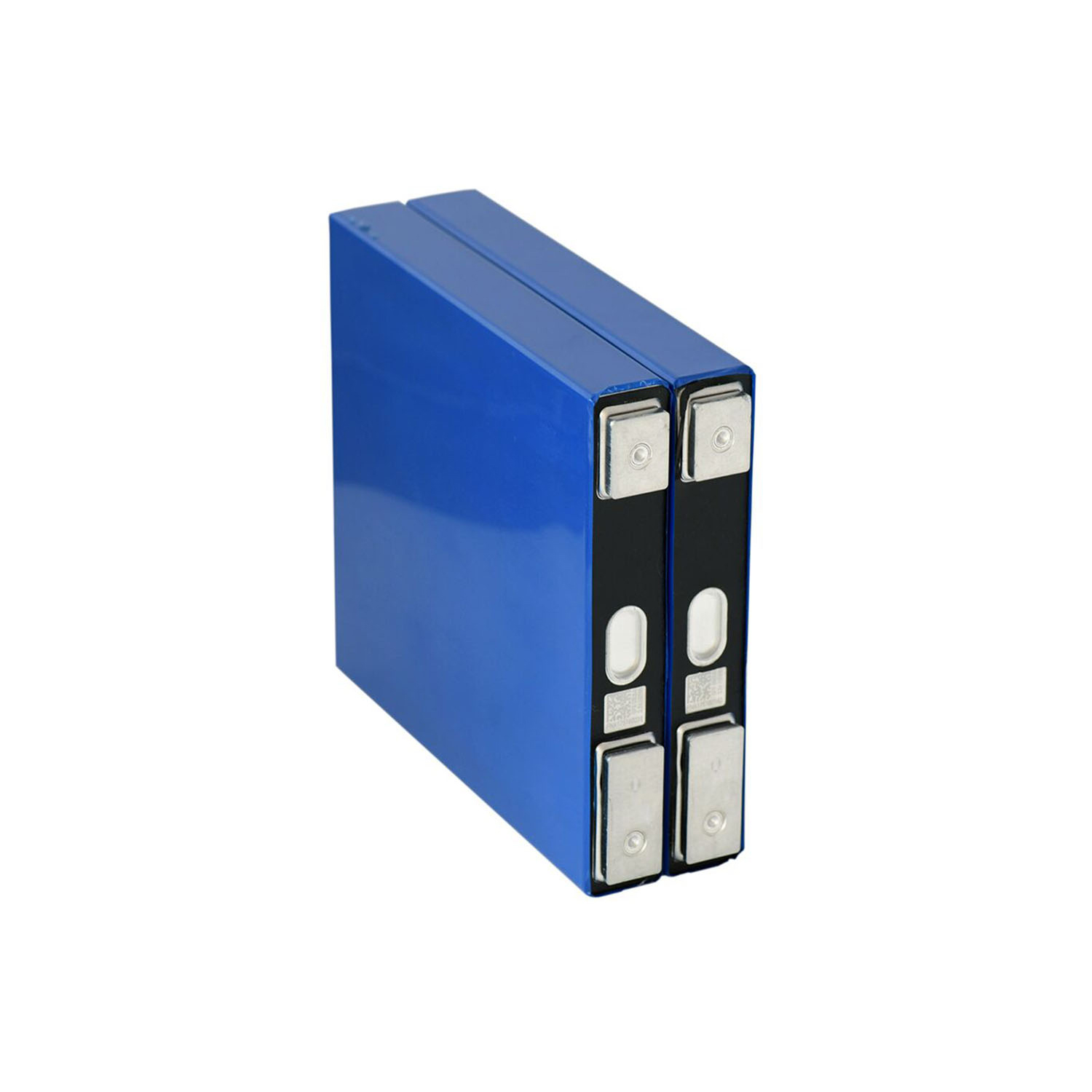

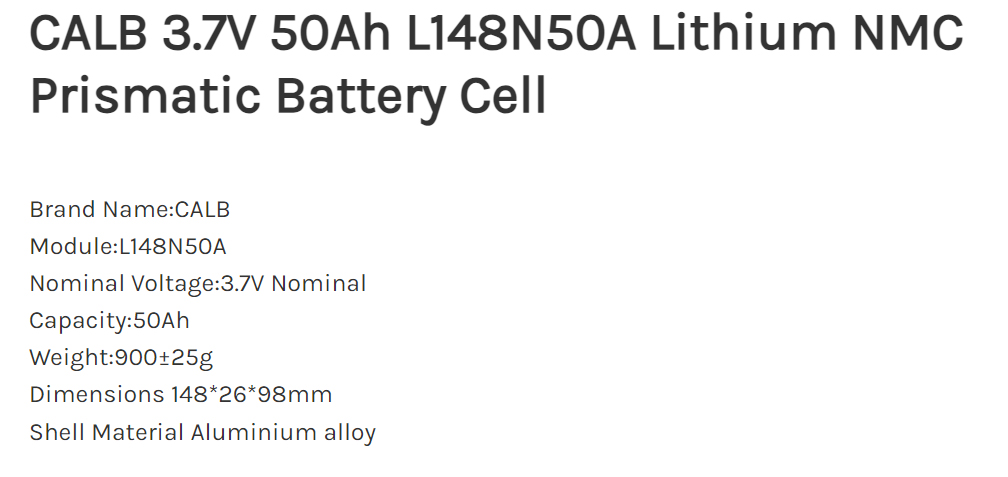

3.7V 50Ah L148N50A Lithium NMC Prismatic Battery Cell

L148N50A 3.7V 50Ah NMC Lithium-ion Battery produced by CALB with more than 2000 cycles life, High energy density, 3C max discharge rate

3.7V 50Ah L148N50A Lithium NMC Prismatic Battery Celldetails

Applications:


◆UPS

◆Solar & Wind power system

◆Golf Cart

◆Electric vehicle, E-bike

◆Lighting

◆DIY Battery Pack


Parameters:



NO

Items

Parameter

Remarks

1

Nominal Capacity

50Ah

Standard Discharge

2

Minimal Capacity

50Ah

Standard Discharge

3

Work Voltage

2.75-4.25V

2.5-4.25V

2.0-4.25V

T≥0℃

-20℃≤T＜0℃

-30℃≤T＜-20℃

4

Internal Resistance（Ac. 1kHz）

0.60~0.80mΩ

Fresh Cell、50%SOC

5

Charging Time

~4h

Standard Charge

6

Recommended SOC Window

SOC：5%~97%


7

Operating
Temperature

Charging
Temperature

-5~55°C


Discharging
Temperature

-30~55°C


8

Weight

900±25g


9

Shell Material

Aluminium alloy
