D148N58 Lithium EV Battery Module
D148N58 3P4S/3P5S/3P6S 14.68V/18.35V/22.02V 174Ah EV Battery Module
- Category: Lithium Ternary NMC Battery
- Tag: Lithium Ternary NMC Battery

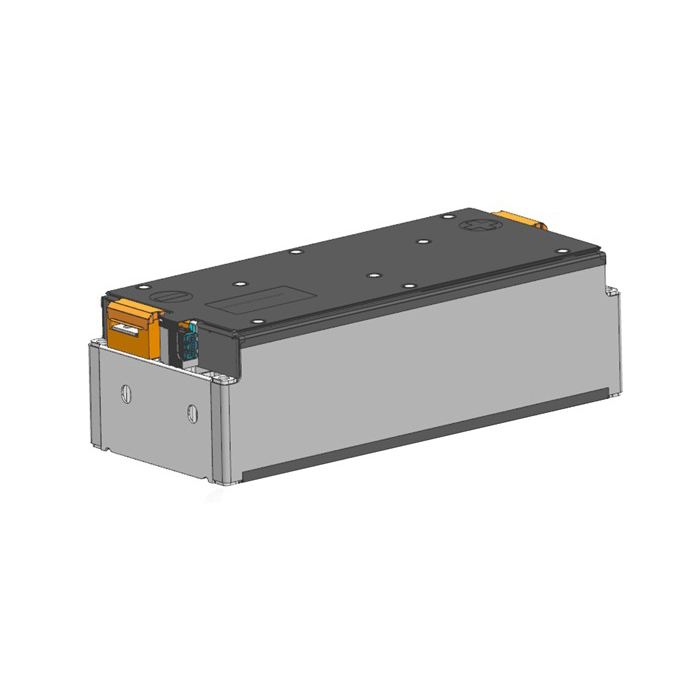

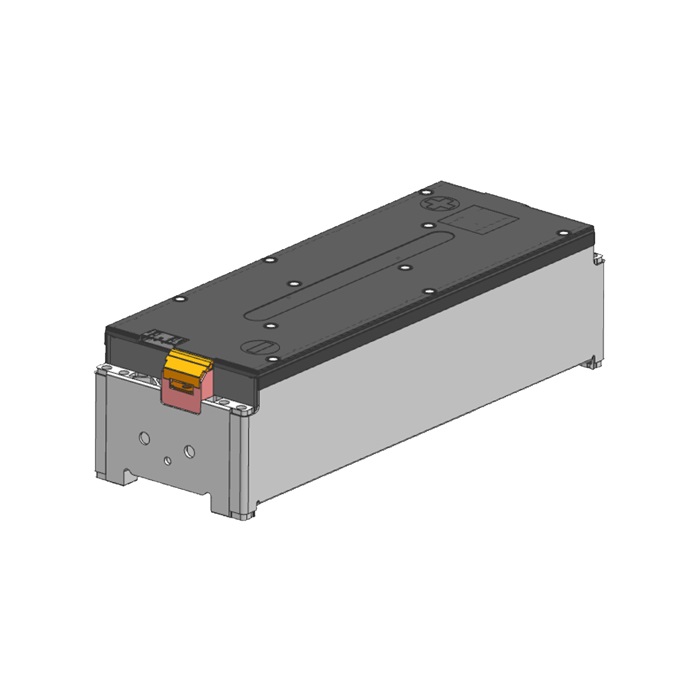

D148N58 3P4S/3P5S/3P6S 174Ah EV Battery Module
D148N58 | |
Module Configuration | Module Dimension(mm) |
3P5S | 440.5*153*108~122(VDA) |
3P6S | 522.2*153*108~122(VDA) |
3P8S | 696.6*153*108~122(VDA) |

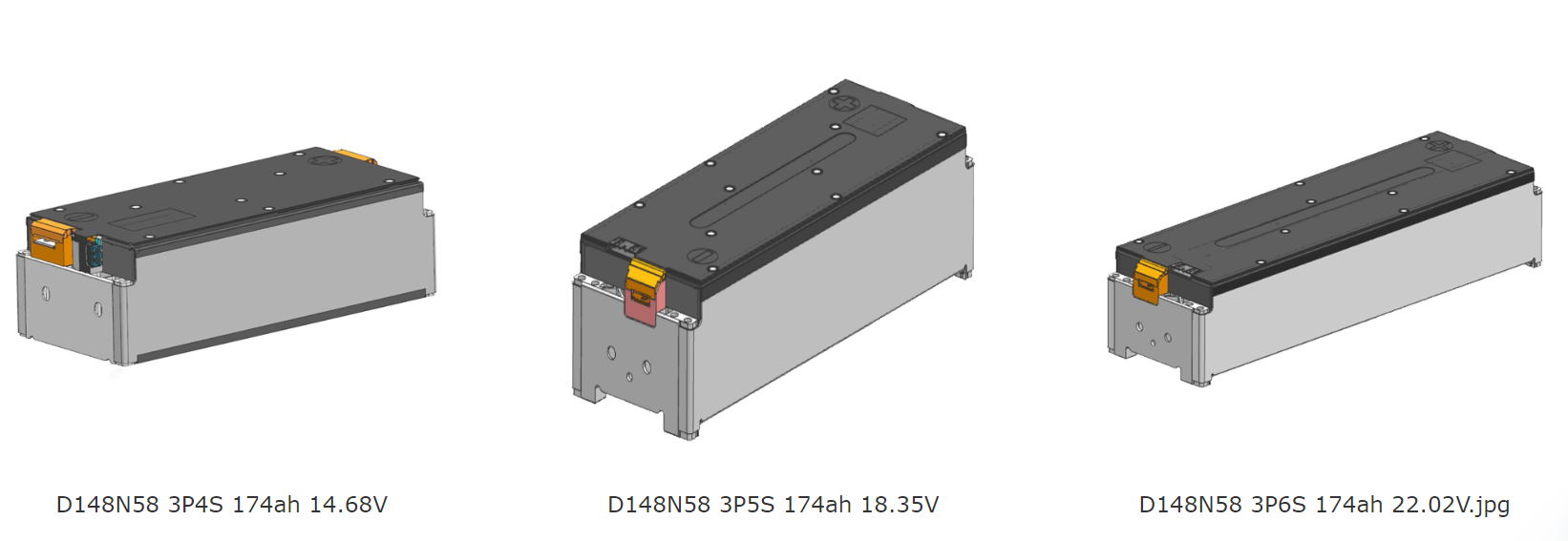

D148N58 14.68V(3P4S) / 18.35V(3P5S) / 22.02V(3P6S) 174Ah Lithium Ternary MNC Battery Module for electric car applications.
Specifications
Battery model | D148N58-3P4S | D148N58F-3P5S | D148N58F-3P6S |
Rated Capacity | 174Ah | 174Ah | 174Ah |
Rated voltage | 14.68V | 18.35V | 22.02V |
Overall length | 355±1mm | 440.5±1mm | 522.2±1mm |
Width dimension | 151.3±1mm | 151.9±1mm | 151.9±1mm |
Overall height | 108.1±1mm
| 119±1mm | 119±1mm |
Weight | ≤12.2kg | 15.33±0.2kg | 18.24±0.25kg |
Operating Voltage | 11.0~17.4V@0℃≤T≤55℃ 8.8~17.4V@-30℃≤T＜0℃ | 13.75~21.75V @ T＞0 12.5~21.75V @-20℃＜T≤0℃ 10~21.75V @T≤-20℃ | 16.5~26.1V @T＞0 15~26.1V @-20℃＜T≤0℃ 12~26.1V @T≤-20℃ |
Internal resistance | ＜4.5mΩ | ＜4mΩ | ＜5mΩ |
Recommended SOC use window | 5%~97%（97%SOC，CCV4.3） | ||
Operating temperature | -30~55℃ (Discharge), -20~55°C (Charge) | ||
Cycle life | 1000 cycles @80%DOD, 25℃
| 1200 cycles @80%DOD, 25℃ | |
Storage | Storage temperature: -40°C ~ 60°C | ||
Storage humidity: ＜70%RH | |||
How to use the lithium battery module
1. The charging current must not exceed the maximum allowable charging current specified. Charging with a current higher than the recommended value may cause problems with the battery's charge and discharge performance, mechanical performance, and safety performance, and may cause heat generation or liquid leakage.
2. The charging voltage must not exceed the absolute charging voltage specified. When the battery voltage is higher than the absolute charging voltage value, it may cause problems of the battery's charge and discharge performance, mechanical performance and safety performance, and may cause heat generation or liquid leakage.
3. The battery must be charged within the absolute charging temperature: 0 ℃ ~ 50 ℃.
4. Connect the positive and negative poles of the battery correctly, and reverse charging is strictly prohibited. If the positive and negative poles of the battery are reversed, the battery will be scrapped and there will be potential safety hazards.
