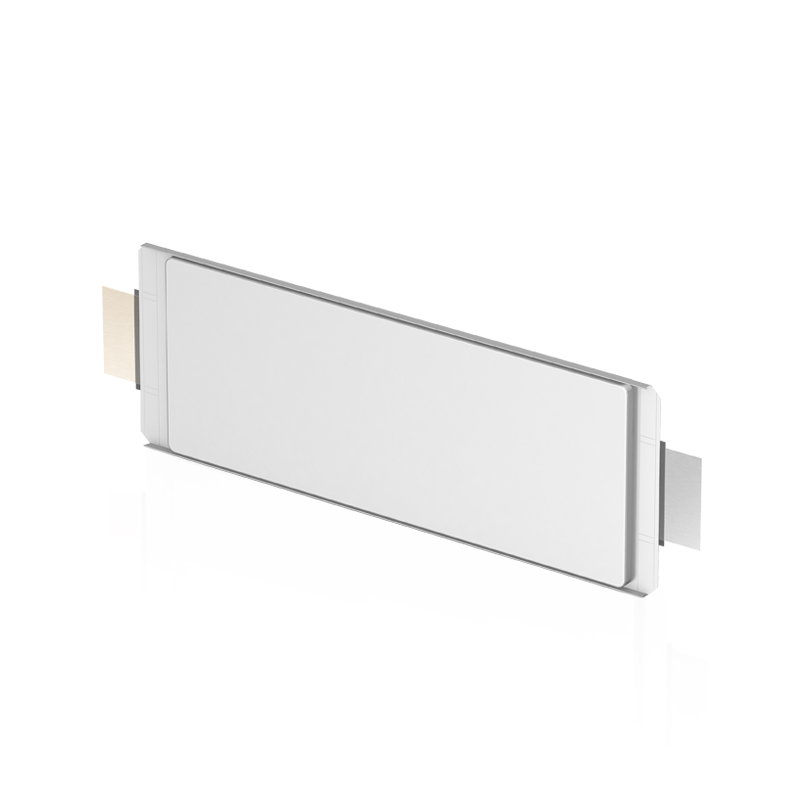

3.65V 50.5Ah lithium NMC pouch battery cell
D21 3.65V 50.5Ah Lithium NMC pouch Battery cell for Pure electric vehicles (BEV), Plug-in hybrid electric vehicles
- Category: Lithium Ternary NMC Battery
- Tag: Lithium Ternary NMC Battery
D21 3.65V 50.5Ah Lithium NMC pouch Battery cell for EV, BEV
D21 3.65V 50Ah Lithium NMC Pouch Battery Cell is used for Pure electric vehicles (BEV), Plug-in hybrid electric vehicles
High Consistency:
Fully automated equipment, advanced production management, and MES system management
High Security:
Aluminum-plastic film flexible packaging structure, safety margin performance
Wide Temperature Characteristics:
Strong temperature adaptability, wide temperature power output characteristics
Environmental compliance:
Products meet GB,UN, ROHScertification requirements

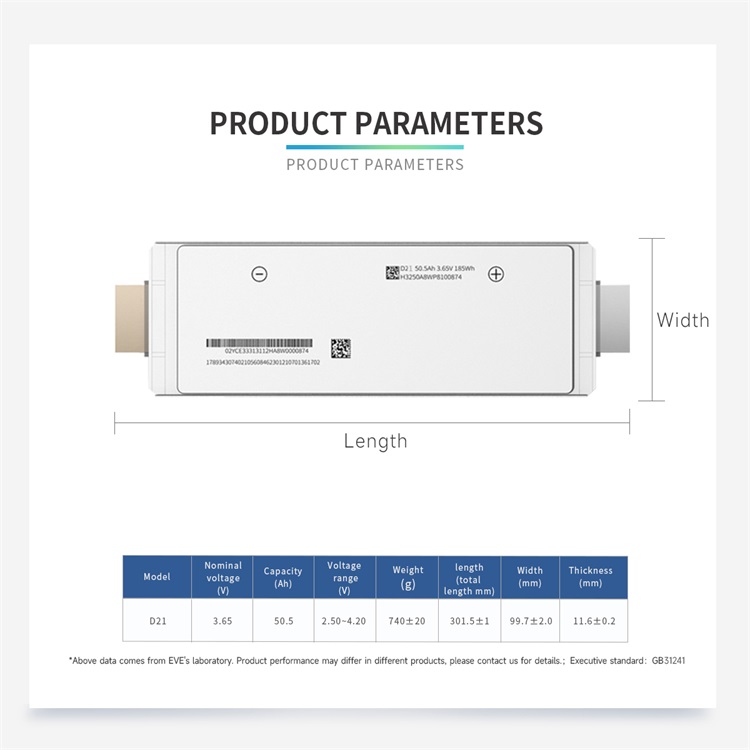

Specifications
Item | Specification | Comment | |
Minimum Discharge Capacity | 52.0Ah | 0.33C, 25±2℃, 2.5-4.2V | |
Minimum Discharge Energy | 188.8Wh | 0.33C, 25±2℃, 2.5-4.2V | |
ACR | ≤1.20mΩ | AC, 1kHz, 30%SOC | |
Nominal Voltage | 3.63V | 1C, 2.5-4.2V | |
Weight | 740±20g | ||
Maximum Operating Voltage (Max) | 4.2V | ||
Minimum Operating Voltage (Min) | 2.5V(>0℃) 2.0V(≤0℃) | ||
Recommended SOC Range | 10%-90%SOC | ||
Standard Charging Current | 17.3A | 1/3C | |
Standard Discharging Current | 17.3A | 1/3C | |
Cycle Life | 0.33C/0.33C @25℃ | 3000 cycles | Capacity retention: ≥80% |
0.33C/0.33C @45℃ | 1000 cycles | Capacity retention: ≥80% | |

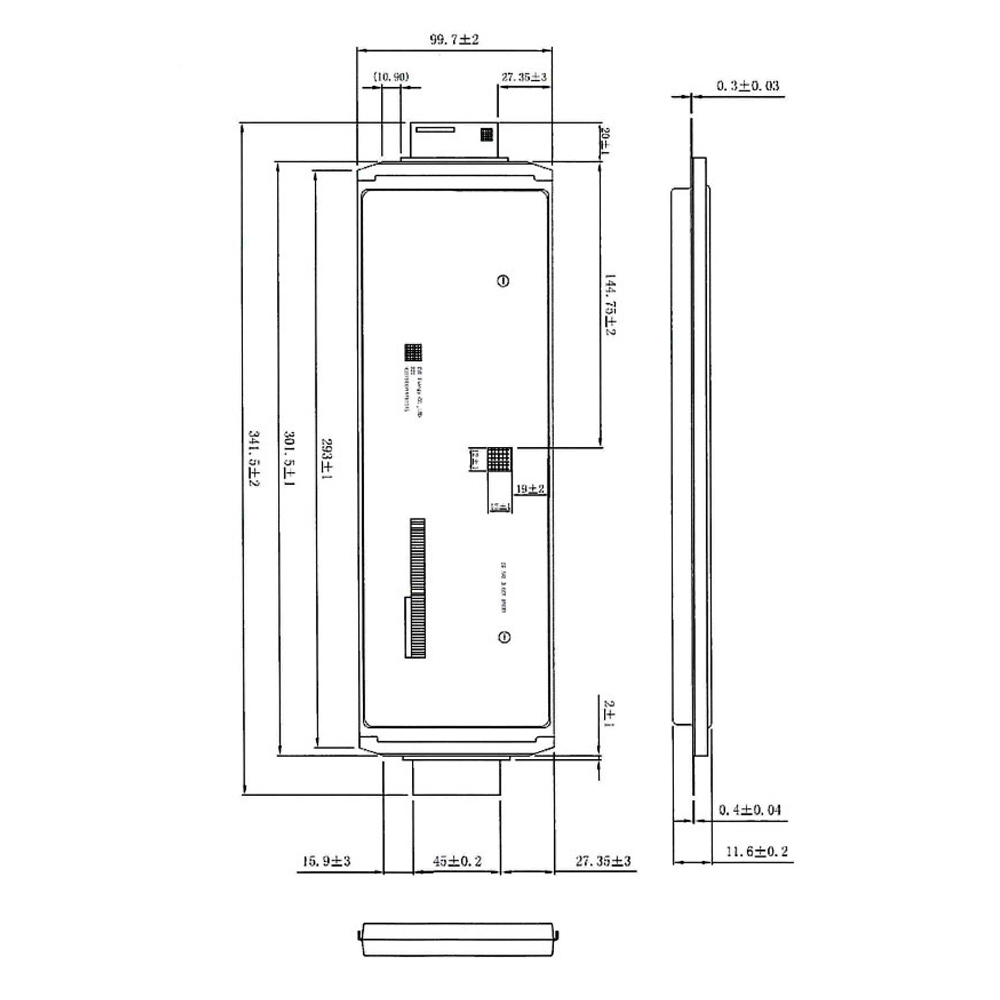

Cell Dimensions | Length | 301.5±1.0mm | |
Width | 99.7±2.0mm | ||
Thickness | 11.6±0.2mm | 30%SOC, 800±300N, ≤10sec | |
Operation Temperature | Charge Temperature | -20~55℃ | |
Discharge Temperature | -30~55℃ | ||
Storage Temperature | 1 year | 0~25℃ |
At Shipping SOC |
3 months | 0~45℃ | ||
1 month | 0~60℃ | ||
