EVE 61Ah NCM Ternary Rate Lithium Polymer 3.65V NMC Li-ion Pouch Cell Rechargeable Battery for RV Electric Vehicle

Feature of E29 Pouch NMC Cell

1. Ultra-thin AluminumComposite Film-259wh/kg

Effective improvement of weight energy den-sity and volume energy density

2. High safety performance

The advantage of low temperature performance ofternary soft pack battery cell is obviousAluminum-plastic film packaging will not occur inthe internal pressure and explosion

3. low internal resistance

Low self-discharge, good fast charging performance,the internal resistance of soft pack batteries is relatively small,more suitable for high rate charging

4. Long life-3000cycle

The overall flexibility and compatibility of flexible pack batteries are higher, less affect-ed by the structure,and have a longer service life than aluminum casing batteries.


Specifications


Parameter

Specification

Model Number

E29

Weight

858±20g

The charging ratio

20.3A

The discharge rate

20.3A

Anode Material

NCM

Application

electric vehicles

Electric Energy

222Wh

Product name

EVE 61Ah NCM Ternary Rate Lithium Polymer

Minimum Discharge Capacity

61.0Ah

Nominal Voltage

3.65V

ACR

≤1.20mΩ

Standard Charging Current

20.3A(1/3C)

Standard Discharging Current

20.3A(1/3C)

Cycle Life

3000 cycles

Storage Temperature

0~60℃(1 month)


Details and Dimesnion

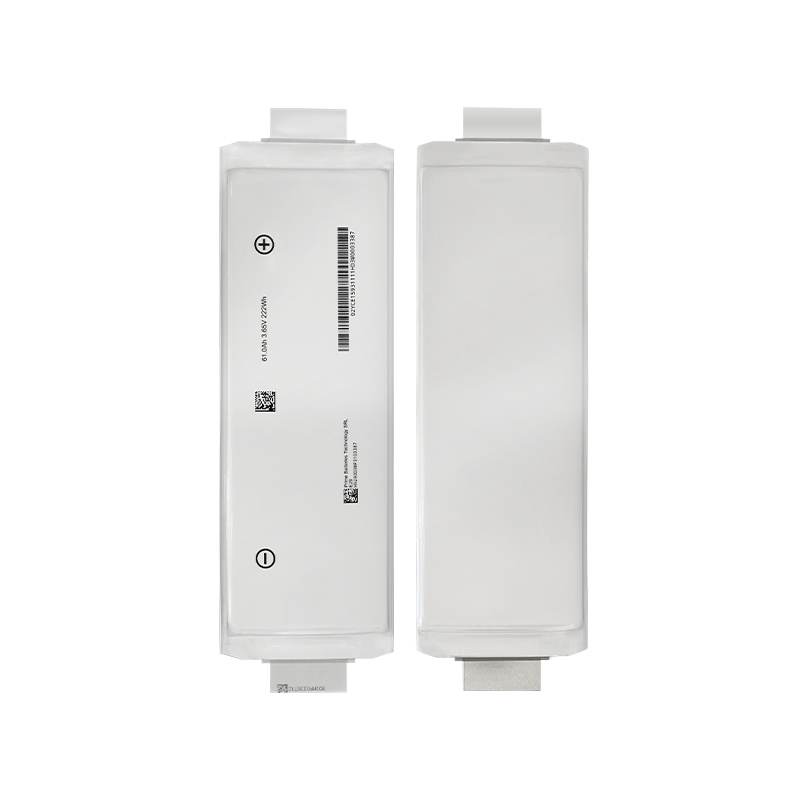

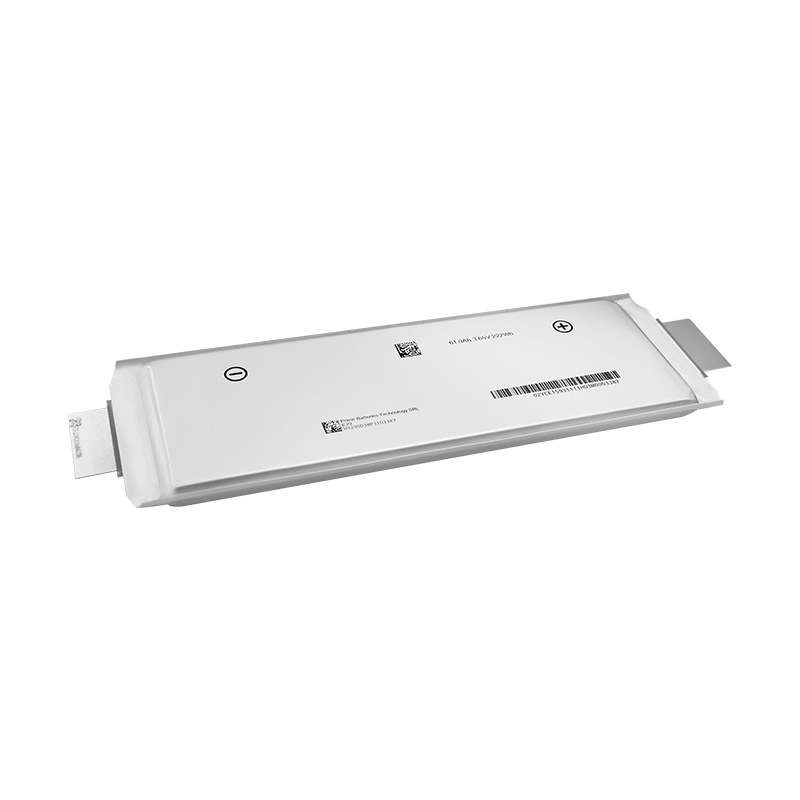

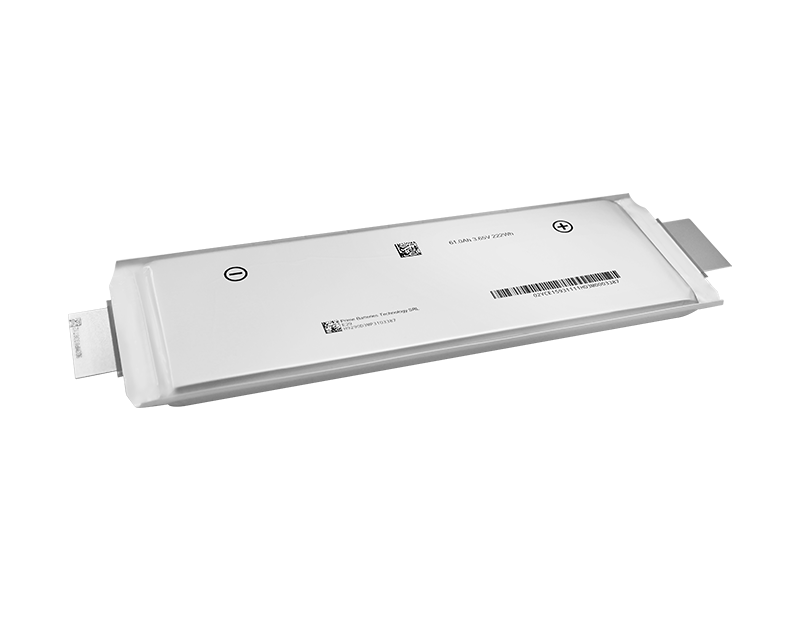

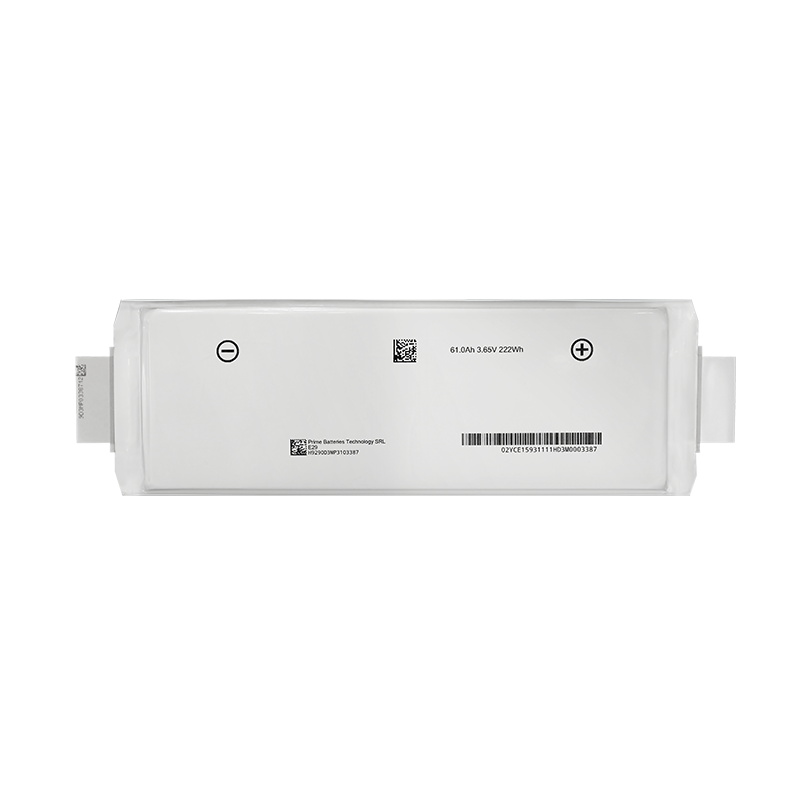

EVE E29 3.7V 61Ah NMC Battery

EVE E29 3.7V 61Ah NMC Battery


Applications-EV/PHEV


e29 Applications


Battery Safety Specification

During the use of batteries, the following requirements must be observed

1) Do not remove the battery from its original packaging before use.

2) Do not place the battery scattered together to avoid accidental short circuit.

3) Do not heat the battery above 100C or burn it.

4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.

5) Do not mix new and used batteries, or batteries from different places of origin.

6) Disassembling and dissecting the battery is strictly prohibited.

7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
