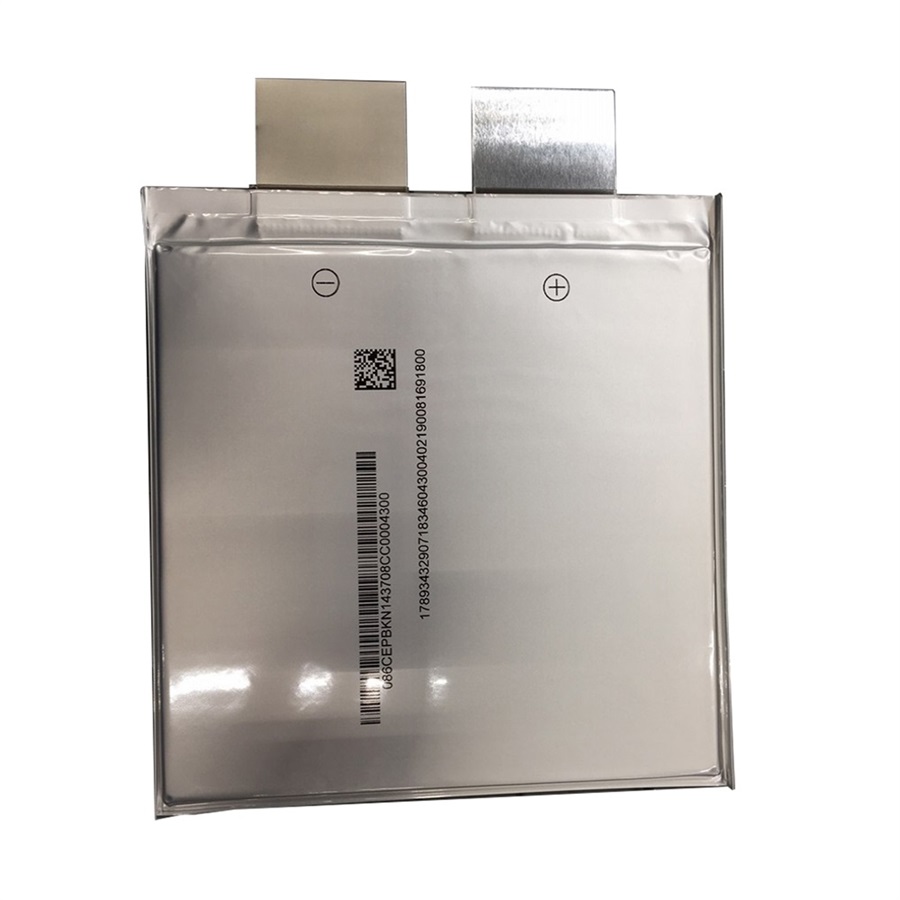

E370 3.7V 37Ah Lithium NMC PHEV Battery Cell
E370 3.7V 37Ah Lithium pouch NMC PHEV Battery Cell
- Category: Lithium Ternary NMC Battery
- Tag:

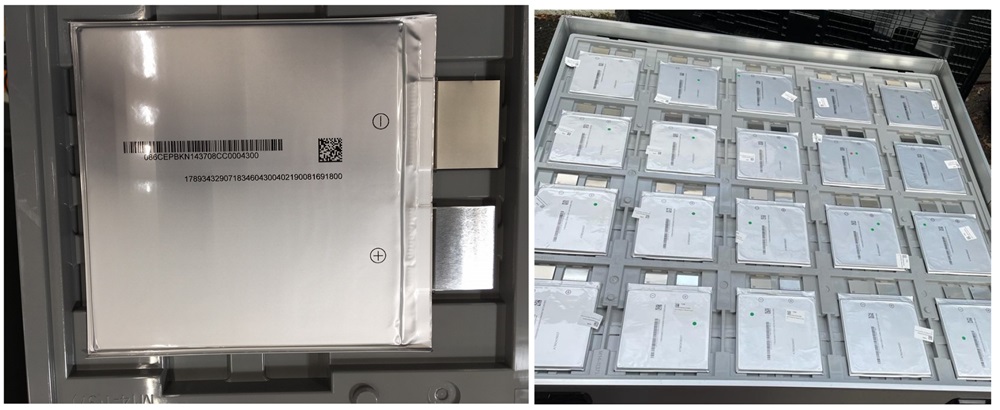

E370 Stock Clearance Lithium Ion NMC pouch battery cells
This cell is designed for the EV industry. 37Ah cell has 10 years of service and a 1mWh cycle life.

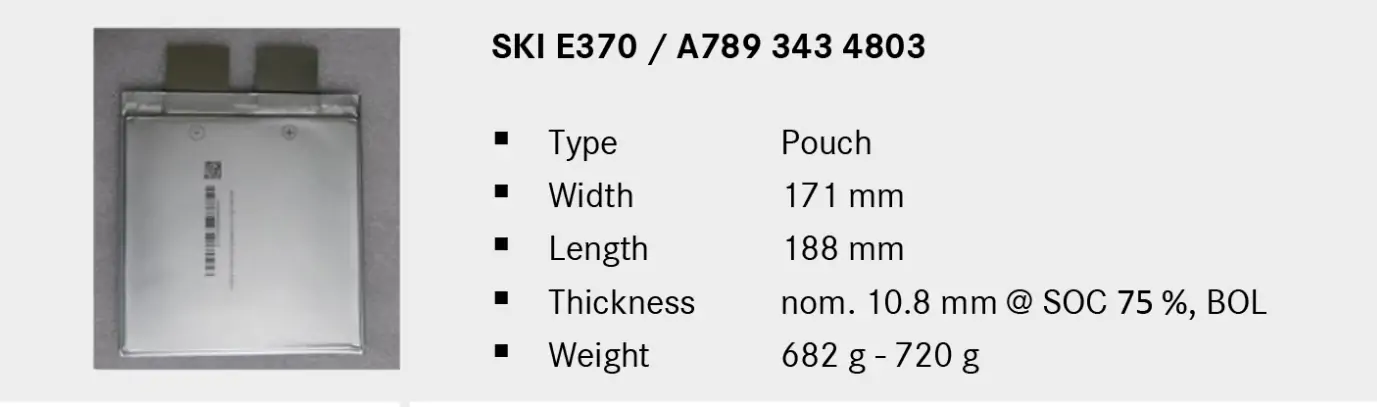

Specifications
Items | Parameters |
Capacity | Nominal 37.8ah ±0.8ah Minimal 37Ah |
Voltage@25℃ | Min. 2.5V Max. 4.2V |
Dc internal resistance (discharge, 10s, 300A @SOC 50%, 25℃±2K) | ＜1.12mΩ |
Energy density | 192wh/kg / 381Wh/L |
Max. Charging current(25℃, SOC 50%) | 2.16C(80A) constant 5.4C(200A) 10s pulse |
Max. Discharge current(25℃) | 3.7C(140A) constant 8.7C(325A) 10s pulse |
Max. Discharging power(25℃, SOC 80%) | 910W 10s pulse |
Service life | 10 years |
Total energy throughput | 996kwh |
SOHC@10 years | 63% |
