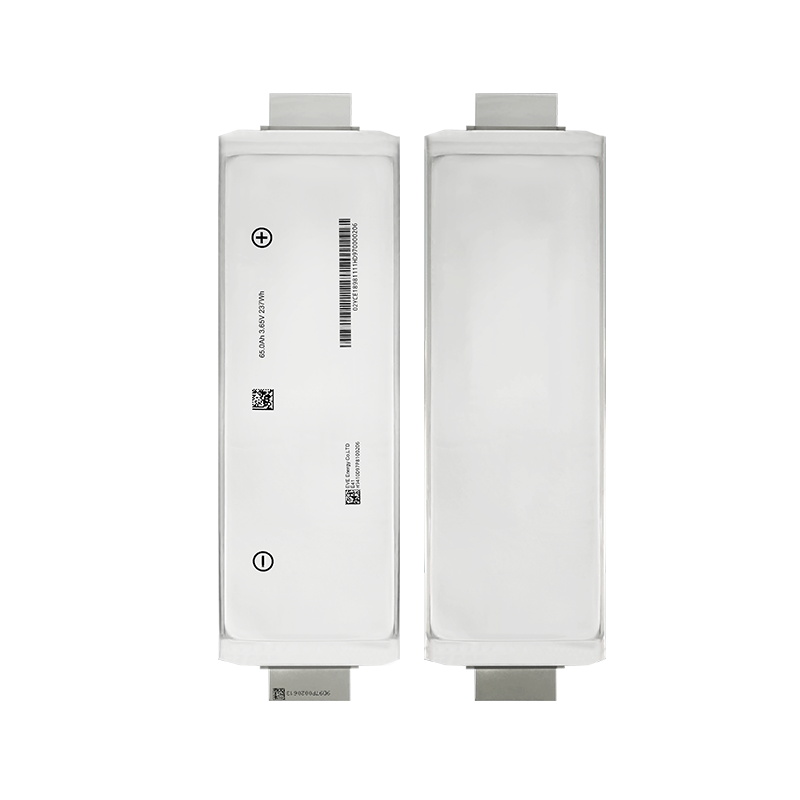

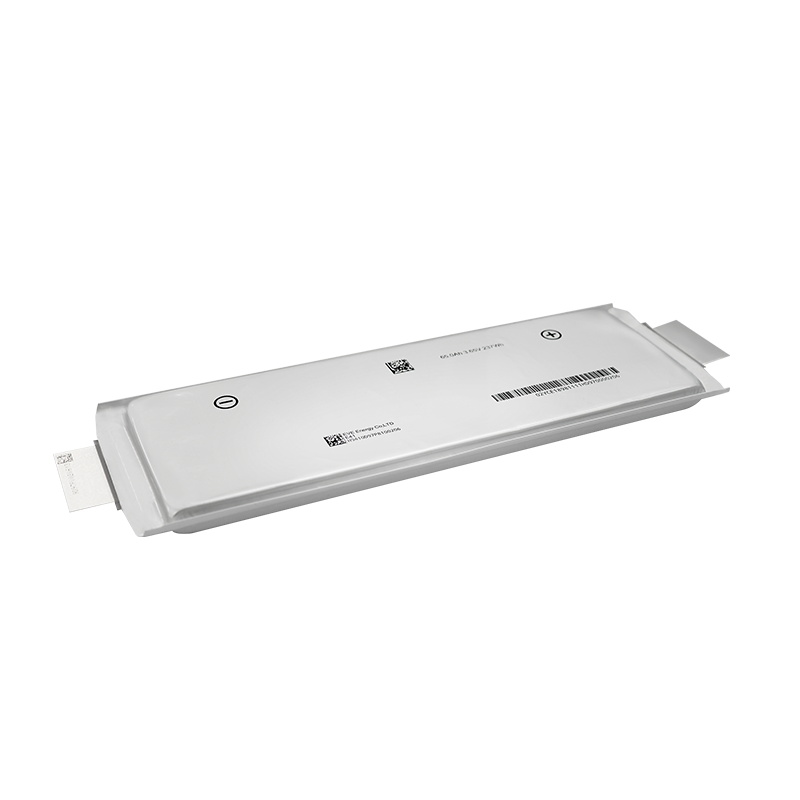

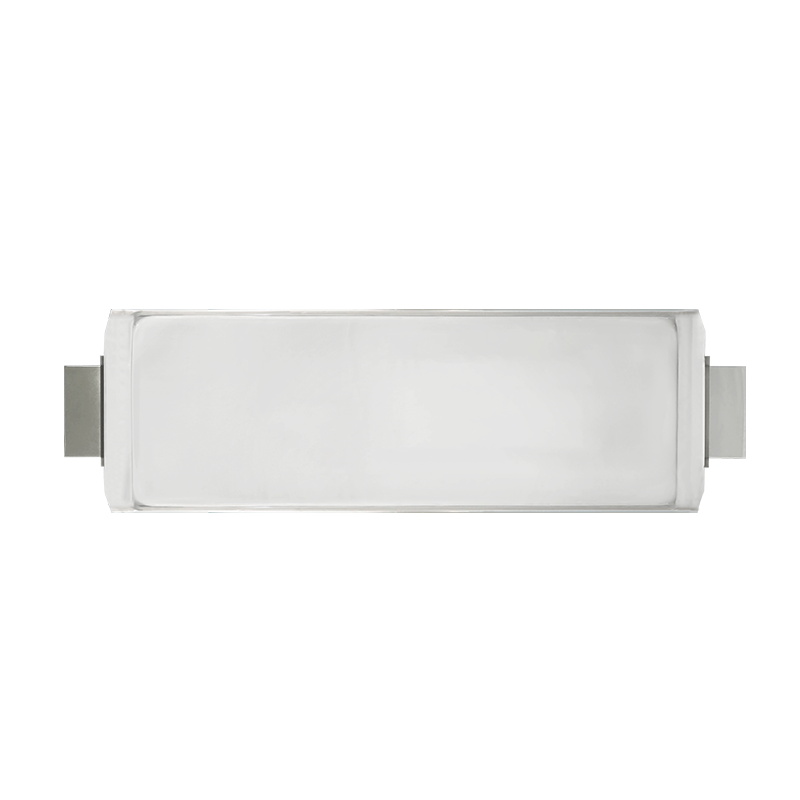

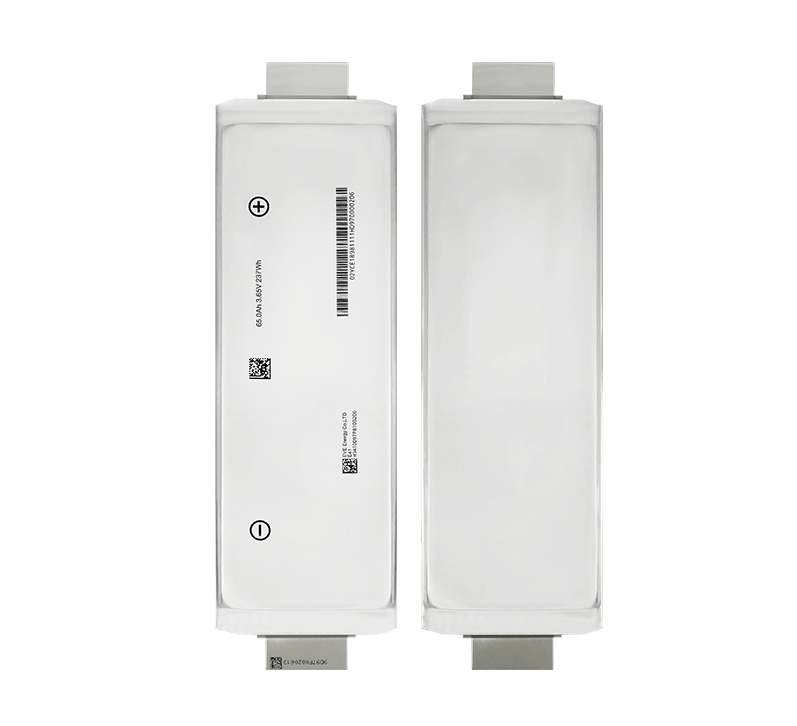

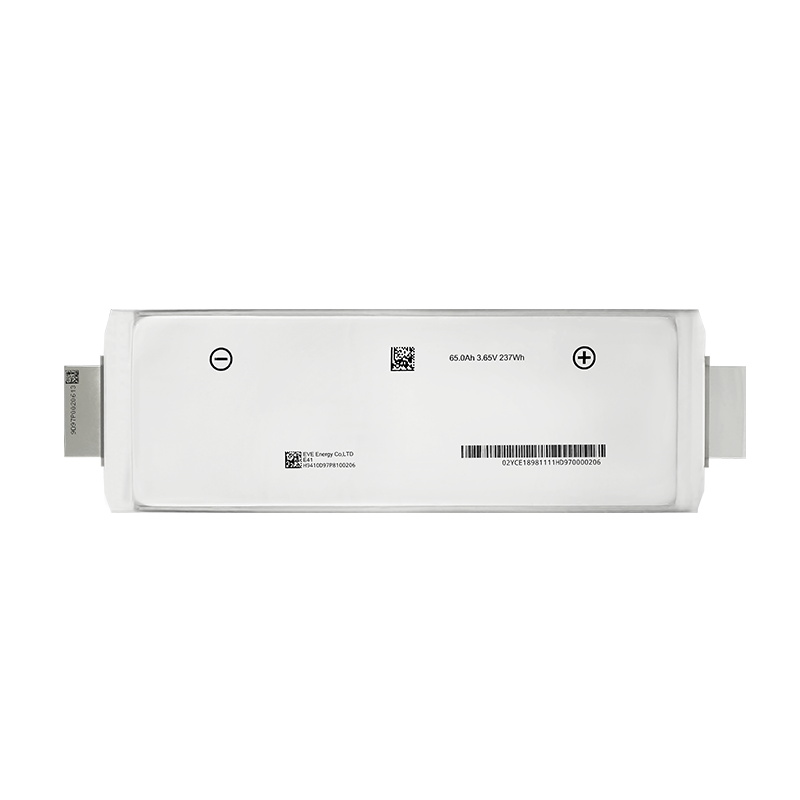

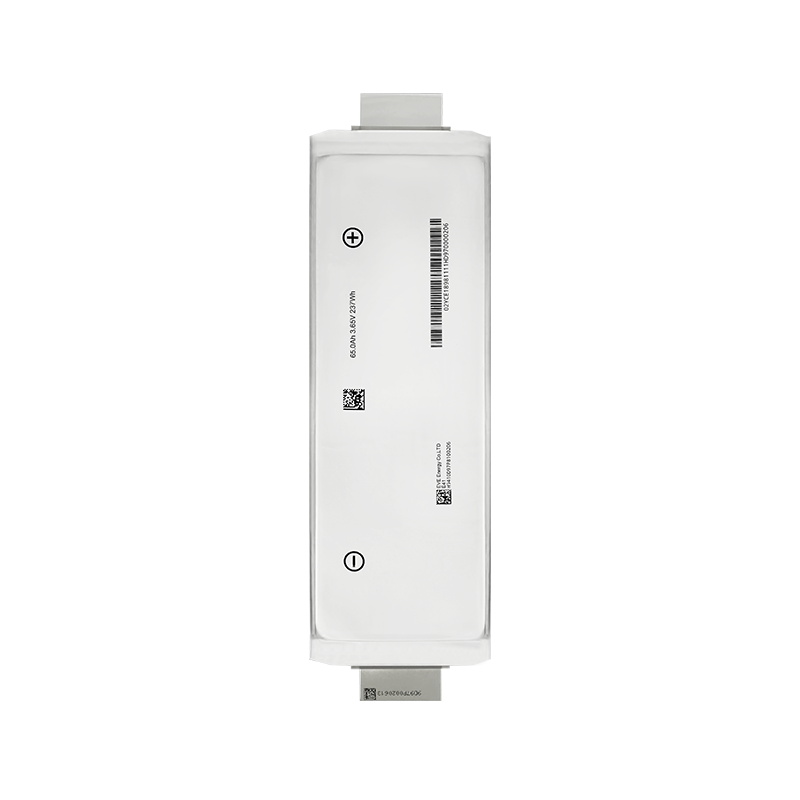

E41 65Ah Pouch NCM Ternary Lithium Ion 3.7V Rechargeable Battery
EVE E41 65Ah Li-ion Pouch Cell NCM Ternary Lithium Ion 3.7V Rechargeable Battery for Rv Electric Vehicle, PHEV
- Category: Lithium Ternary NMC Battery
- Tag: Lithium Ternary NMC Battery
Feature of E41 Pouch NMC Cell
1. Ultra-thin AluminumComposite Film-262wh/kg
Effective improvement of weight energy density and volume energy density
2. High safety performance
The advantage of low-temperature performance of ternary soft pack battery cell is obviousAluminum-plastic film packaging will not occur in the internal pressure and explosion
3. low internal resistance
Low self-discharge, good fast performance, the internal resistance of soft pack batteries is relatively small, suitable for high rate charging
4. Long life-3000cycle
The overall flexibility and compatibility of flexible pack batteries are higher, less affected by the structure, and have a longer service life than aluminum casing batteries.
Specifications
Parameter | Specification |
Model Number | E41 |
Weight | 903±20g |
The charging ratio | 21.7A(0.33C) |
The discharge rate | 21.7A(0.33C) |
Anode Material | NCM |
Application | electric vehicles |
Electric Energy | 237Wh |
Product name | EVE 65ah NCM Ternary Rate Lithium Polymer |
Minimum Discharge Capacity | 65.0Ah |
Minimum Discharge Energy | 237Wh |
ACR | ≤1.20mΩ |
Nominal Voltage | 3.65V |
Standard Charging Current | 21.7A(0.33C) |
Standard Discharging Current | 21.7A(0.33C) |
Cycle Life | 3000 cycles(≥70%) |
Storage Temperature | 0~60℃(1 month) |
Operation Temperature | -30~55℃(Discharge) |
Dimension
Applications
Battery Safety Specification
During the use of batteries, the following requirements must be observed
1) Do not remove the battery from its original packaging before use.
2) Do not place the battery scattered together to avoid accidental short circuit.
3) Do not heat the battery above 100C or burn it.
4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.
5) Do not mix new and used batteries, or batteries from different places of origin.
6) Disassembling and dissecting the battery is strictly prohibited.
7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
