​EVE ICR18650/26V 2550mAh 18650 Cylindrical Ternary NCM Cell

EVE ICR18650/26V 2550mAh 18650 Battery Cylindrical Lithium Ternary NCM Cell

EVE ICR18650/26V 2550mAh 18650 Battery Cylindrical Lithium NCM Cell


1.png      520.jpg

18650 battery refers to a cylindrical battery with a diameter of 18mm and a length of 65mm.

Features:

High-energy density

High-safety

Fast charging

Long cycle life at room temperature

Excellent high temperature and low temperature cycle


Specification:


Item

Specification

Model

ICR18650/26V

Typical Discharge Capacity

2500mAh Charge:0.75A,4.20V,CCCV50mA cut-off Discharge:1.25A,2.75VDC cut-off

Typical Voltage

3.60V

Standard Charge

CCCV,0.75A,4.20±0.05V,50mA cut-off

Rapid Charge

CCCV,1.25A,4.20±0.05V,50mA cut-off

Standard Discharge

DC,1.25A,2.75V cut-off

Max.Instantaneous Discharge

DC,7.5A,2.75V cut-off

Charge/Discharge Voltage Range

4.20~2.75V

Cell Weight

48.0g Max

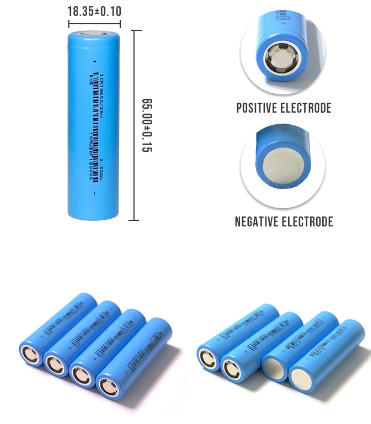

Cell Dimension

Height:65.15±0.15mm

Diameter:18.40±0.20mm

OperationTemperature (SurfaceTemperature)

Charge:0 - 45°C

Discharge:-20 - 60°C



Details:
