3.68V 5Ah High C Rate Lithium NCM Battery

3.68V 5Ah Lithium NCM 523+Gr High C Rate Battery Cell, modules and packs for ev batteries for sale

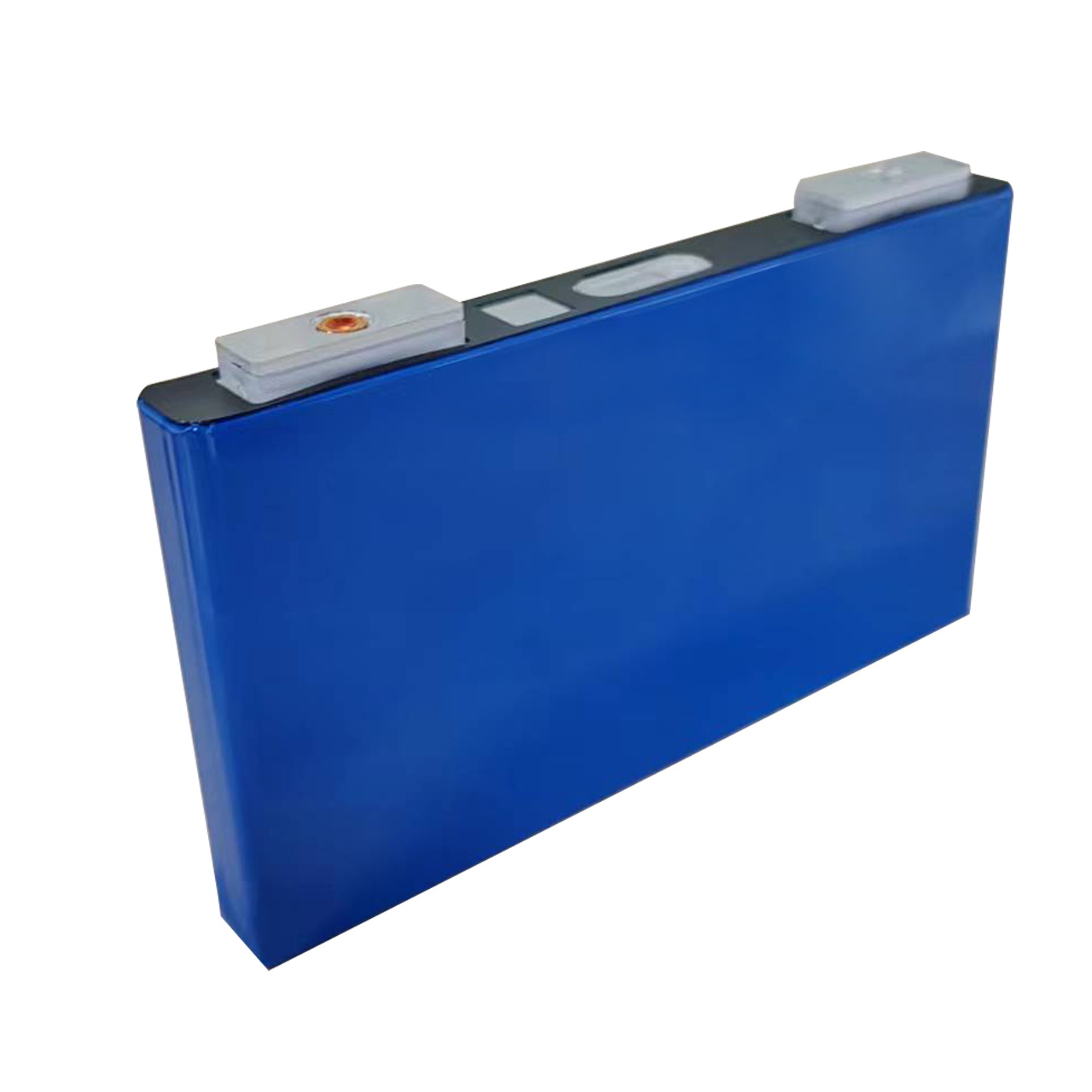

3.68V 5Ah Lithium NCM 523+Gr High C Rate Battery Cell

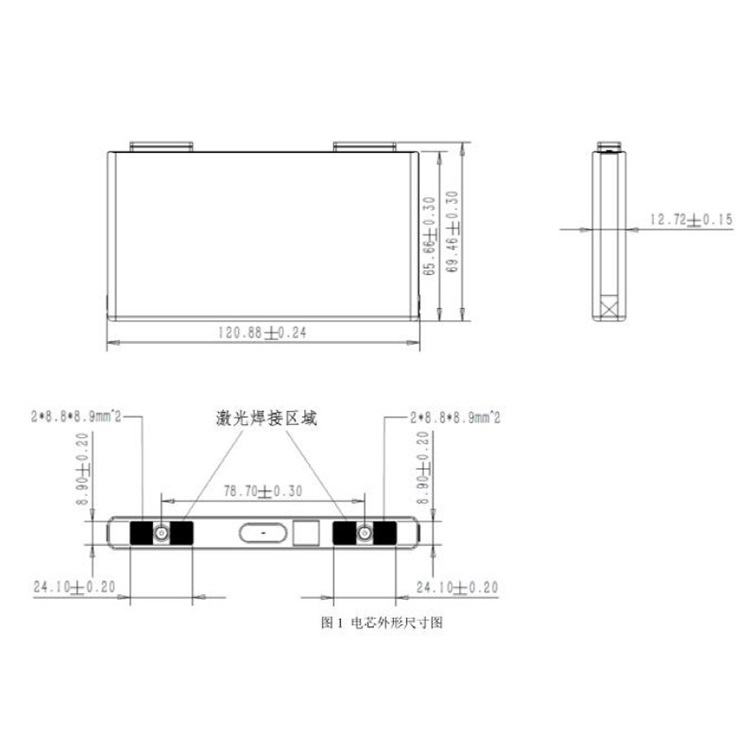

3.68V 5Ah High C Rate Lithium NCM Battery3.68V 5Ah High C Rate Lithium NCM Battery dimension


Specifications



Items

5.0Ah

Remark

Chemical system

NCM523+Gr


Nominal voltage

3.68V

1C

Voltage Range

2.7~4.2V

-

Nominal capacity

5.0Ah

25℃ 、1C

Energy density

102Wh/kg

25℃、1C

Charging power density

6532W/kg

(10s 25℃ 50%SOC)

Discharging power density

5082W/kg

(10s 25℃ 50%SOC)

Peak Charging Current

60C

(10s 25℃ 50%SOC)

Peak Discharging Current

50C

(10s 25℃ 50%SOC)

Cycle life

≥20000cycle

10C/10C 25℃ EOL80%

30~80%SOC

Charging temperature

-30℃~55℃

-

Discharging temperature

-35℃~55℃

-

Storage temperature

-40℃~60℃

-

Cell weight

≤187g

-

Recommended SOC window

30%~80%

-




Pack system parameters


Pack system parameters

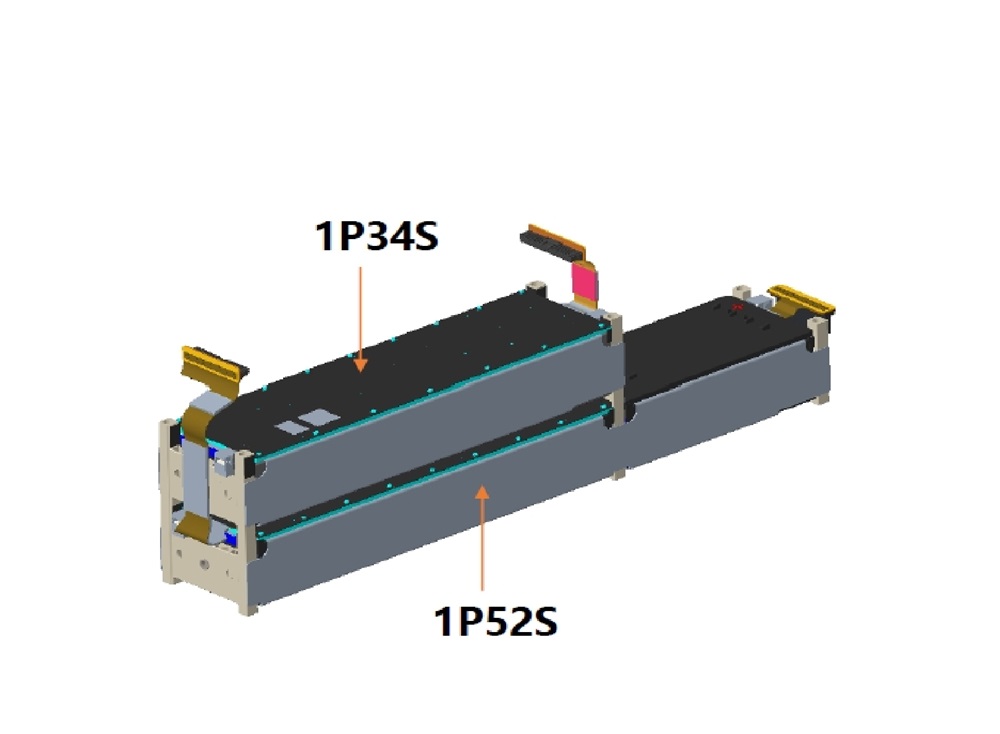

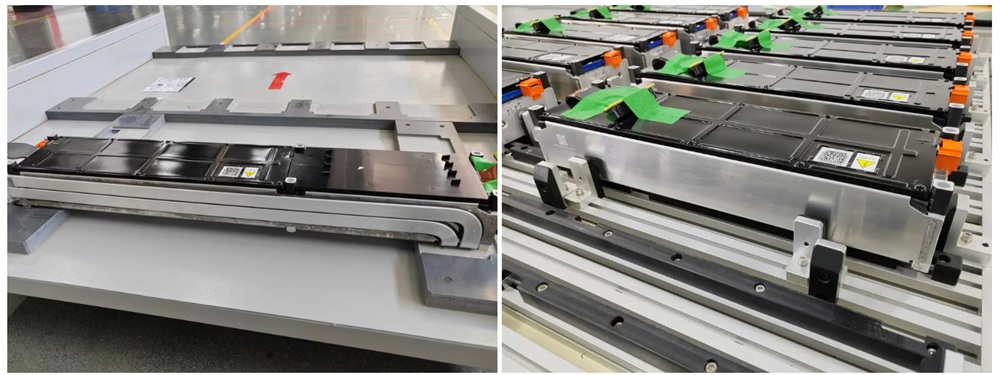

Basic Parameter of modules


Basic Parameter of modules



Items

Module  A

Module B

Configuration

1P34S

1P52S

Dimension

485*125*88mm

745*125*88mm

Nominal voltage

125.12V

191.36V

Voltage Range

91.8~142.8V

140.4~218.4V

Nominal capacity

5.0Ah

5.0Ah

Module energy

626Wh

956Wh

Peak charging power

≥22.8Kw

≥34.8Kw

Peak discharging current

≥21.3Kw

≥32.3Kw

Weight

≤7.8kg

≤11.6kg

Charging temperature

-30℃~60℃

-30℃~60℃

Discharging temperature

-35℃~60℃

-35℃~60℃

Storage temperature

-40℃~60℃

-40℃~60℃

Recommended SOC window

30%~80%

30%~80%

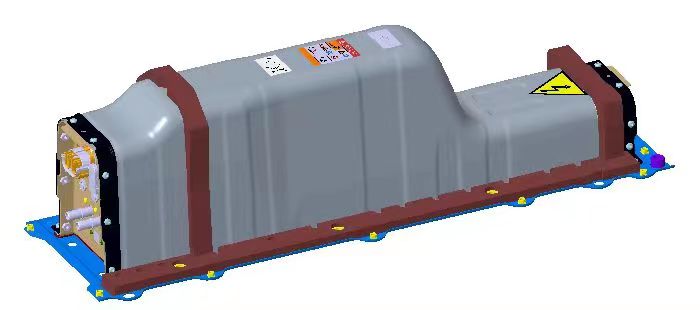

Key Parameter of whole battery packs


Key Parameter of whole battery packs



Item

Parameter

Pack

5.2Ah-1P86S

Nominal voltage

316.48V

Voltage range

232.2~361.2V

Configuration

1P86S

Nominal Capacity

5.0Ah

Energy

1.58KWh

Recommended SOC usage Window

30%~80%

Peak discharging power BOL

65KW,10s,50%SOC

Peak charging power  BOL

47KW,10s,50%SOC

Operating temperate

-35℃~55℃

Storage temperature

-40℃~60℃

IP class

IP67

Cooling way

Liquid cooling

Weight

38.5±1kg

Design life

10 years/200,000 km
