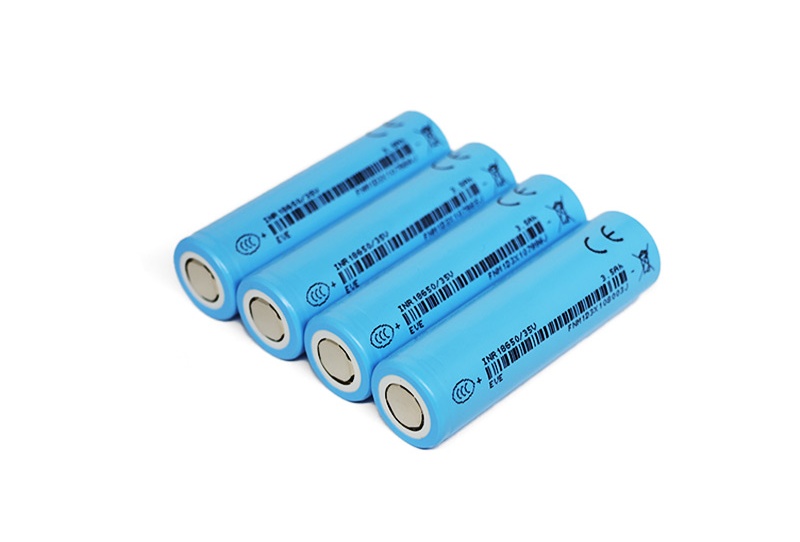

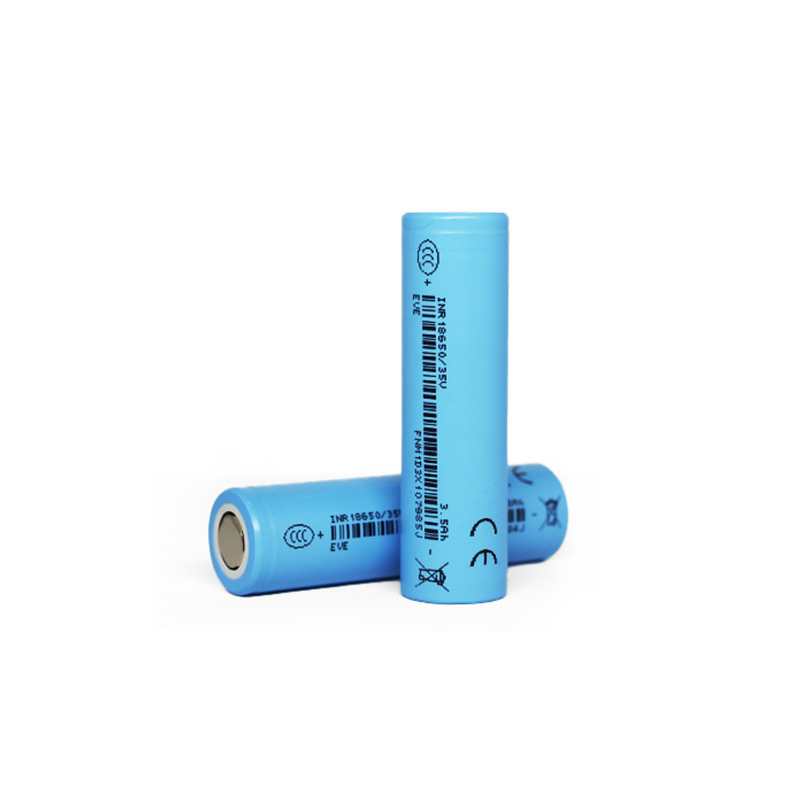

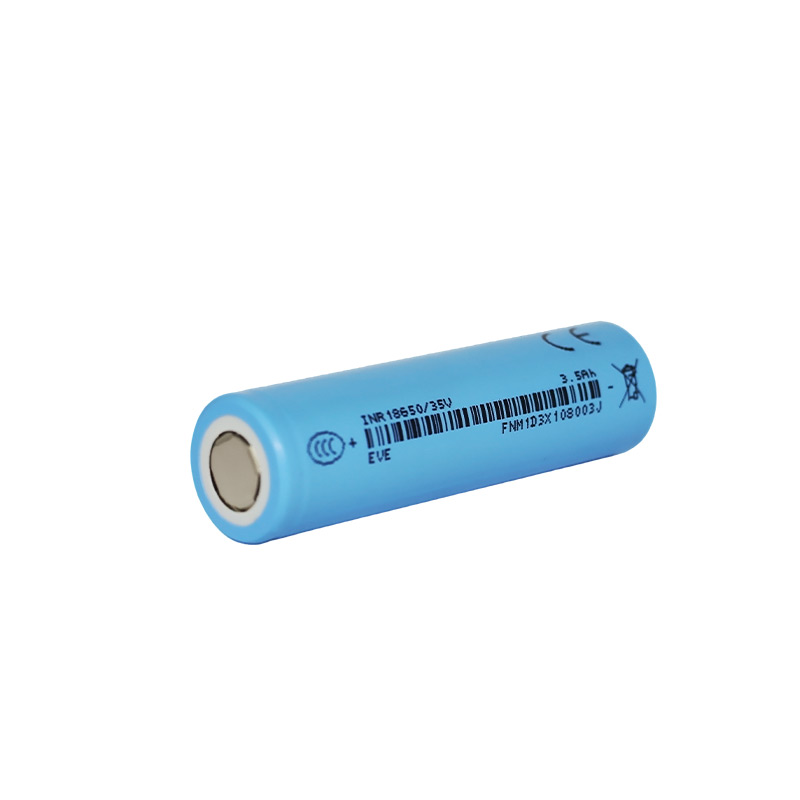

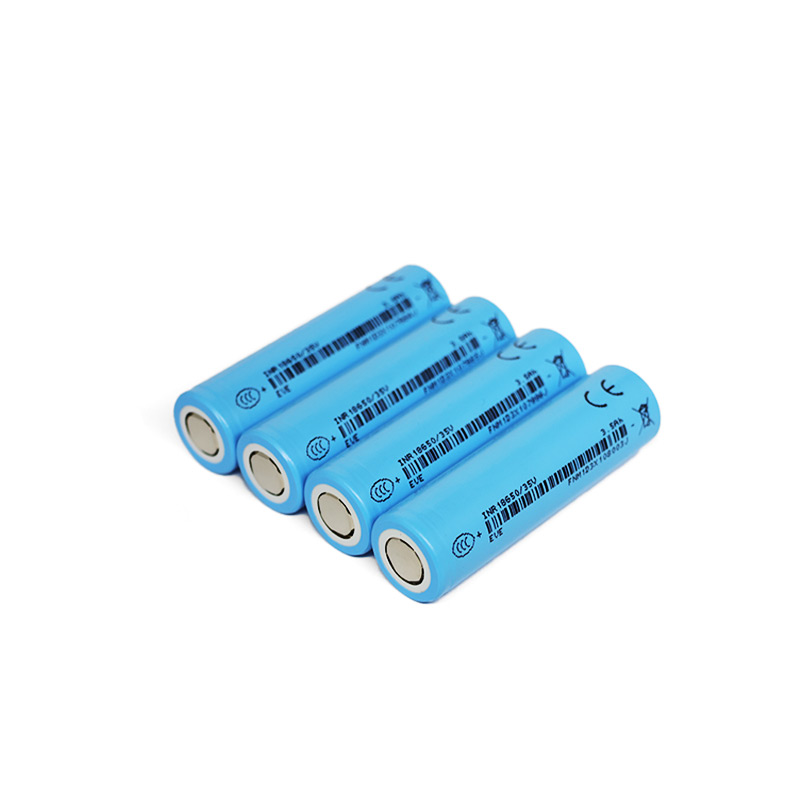

INR18650/35V Tenergy 18650 NMC 3.7 V 3500mah Rechargeable Battery
INR18650/35V Tenergy 18650 3C Rate NMC 3.7 V 3500mAh Rechargeable Battery
- Category: Lithium Ternary NMC Battery
- Tag: Lithium Ternary NMC Battery
Solution Advantages
● Comprehensive Solution: High energy cylindrical cel, High power cylindrical cell,Long life cylindrical cell
● Practical Application: Over 2.2 billion batteries have been sold globally.
● Safety and Reliability Certification: CQC, UL.UN,IEC ,BIS ,PS E,etc
● Product Core Characteristics: High energy density, High capacity y, Long cycle life, Low self-discharge rate.Low internal resistance, High discharge rate, Good safety performance.
Specifications
Parameter | Specification |
Model | 18650/35V |
Nominal Voltage | 3.65V |
Nominal Capacity | 3500mAh |
Application Scenarios | Electric two-wheelers, Smart robots, E-bikes, Robotic vacuums, Portable energy storage |
Minimum Discharge Capacity | 3400mAh |
Standard Charge Voltage | 0.68A, 4.20±0.05V, CC/CV, 68mA cutoff |
Fast Charge | 1.5A, 4.20±0.05V, CC/CV, 68mA cutoff |
Standard Discharge | DC discharge: 0.68A, 2.5V cutoff |
Max Discharge Current | DC discharge: 10.2A, 2.5V cutoff |
Charge/Discharge Voltage Range | 4.20V ~ 2.5V |
Cell Weight | 50.0g |
Cell Dimensions | Height: 65.10±0.15mm, Diameter: 18.35±0.10mm |
Max Continuous Charge/Discharge Current | 3.4A / 10.2A |

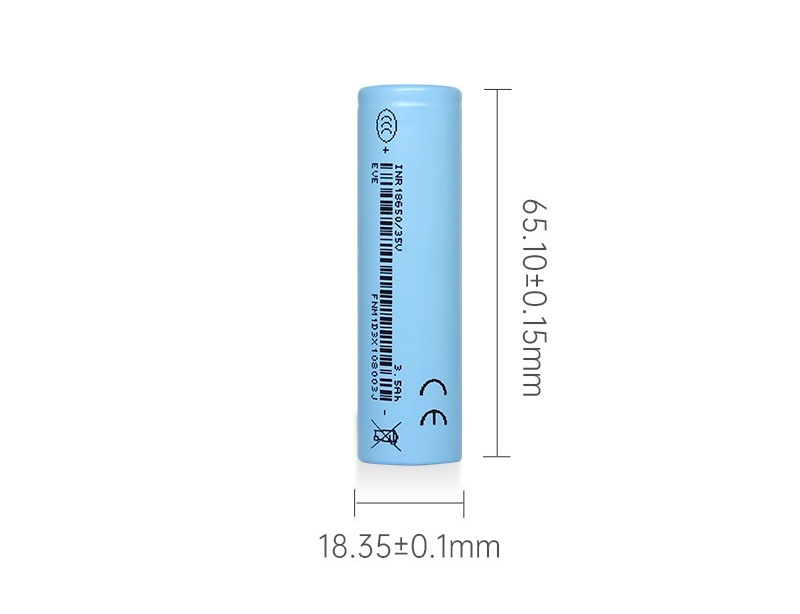

Dimension and Details
Comprehensive Customized Battery Pack
EVE 18650/21700 customized pack
EVE 33140/40135 customized pack
Standardization of battery packs Perfectly matched to your needs: 60V30Ah/48V20Ah/48V30Ah/60V40Ah/60V20Ah/72V30Ah, etc.
Product Packaging
Comprehensive Solution for Cylindrical NMC Batteries
Application scenario: Power tools, garden tools, cleaning tools battery solutions. Recommended model: 21700 40P, 18650 25P, 20P, 15P
Battery Safety Specification
During the use of batteries, the following requirements must be observed
1) Do not remove the battery from its original packaging before use.
2) Do not place the battery scattered together to avoid accidental short circuit.
3) Do not heat the battery above 100C or burn it.
4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.
5) Do not mix new and used batteries, or batteries from different places of origin.
6) Disassembling and dissecting the battery is strictly prohibited.
7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
