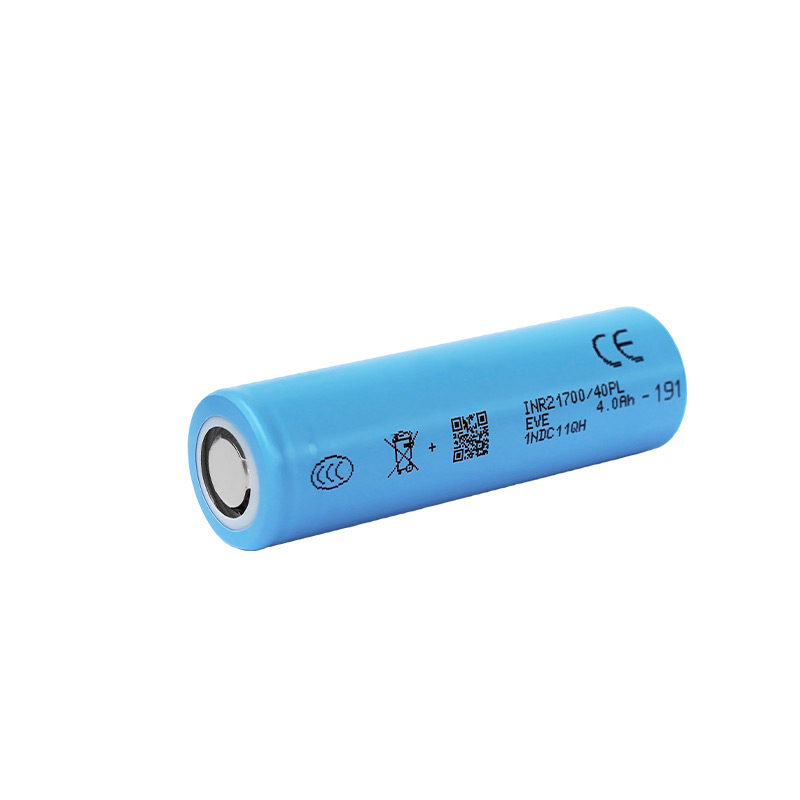

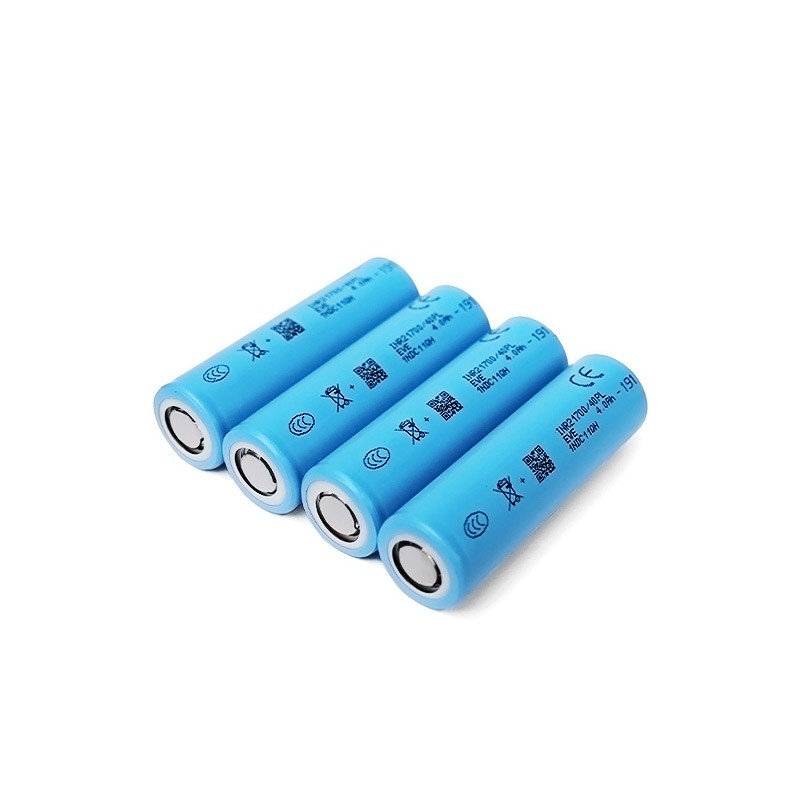

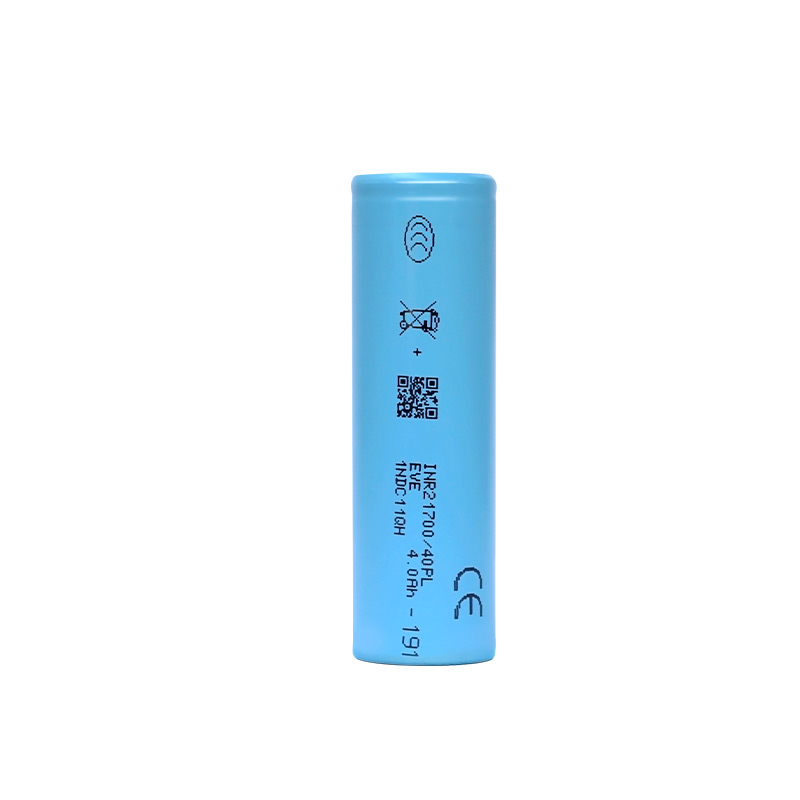

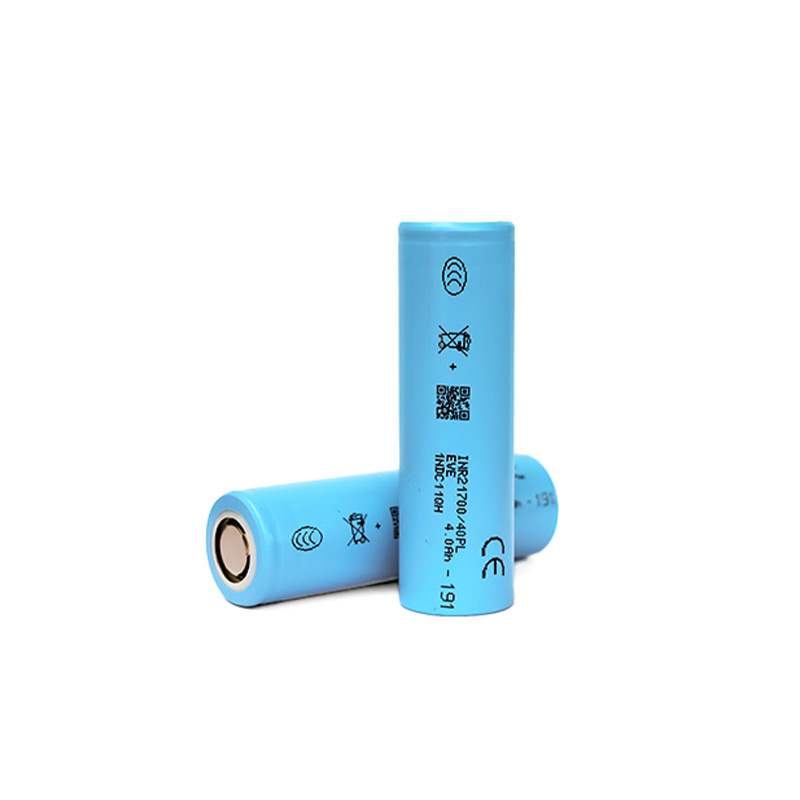

INR21700/40PL 3.6V 4000mAh 21700 NMC Ternary Lithium Battery

INR21700/40PL High Rate 3.6V 4000mAh 21700 NMC Ternary Lithium Battery Cells For Power Tools Garden Tools.

Solution Advantages

● Comprehensive Solution: High energy cylindrical cel, High power cylindrical cell,Long life cylindrical cell

● Practical Application: Over 2.2 billion batteries have been sold globally.

● Safety and Reliability Certification: CQC, UL.UN,IEC ,BIS ,PS E,etc

● Product Core Characteristics: High energy density, High capacity y, Long cycle life, Low self-discharge rate.Low internal resistance, High discharge rate, Good safety performance.


Specifications


Parameter

Specification

Model

EVE 21700/40PL

Nominal Voltage

3.6V

Nominal Capacity

4000mAh

Applications

Vacuum cleaners, drills, lawnmowers, power tools, garden tools

Standard Charge

2.0A CC to 4.20±0.05V, CV cutoff at 100mA

Fast Charge

8A CC to 4.20±0.05V, CV cutoff at 100mA

Standard Discharge

0.8A CC discharge to 2.50V cutoff

Voltage Range

2.50V–4.20V

Weight

67g

Dimensions

Height: 70.15±0.15mm, Diameter: 21.15±0.10mm

AC Impedance

≤5mΩ

Max Continuous Current

Charge: 8.0A / Discharge: 70A

Size

148.3(W)±0.5*26.7±0.5(T)*94.3±0.5(H)mm

Weight

725±50g


Comprehensive Customized Battery Pack


EVE 18650/21700 customized pack

EVE 33140/40135 customized pack

comprehensive customized battery pack

Standardization of battery packs Perfectly matched to your needs: 60V30Ah/48V20Ah/48V30Ah/60V40Ah/60V20Ah/72V30Ah, etc.


Applications

Application scenario: Power tools, garden tools, cleaning tools battery solutions. Recommended model: 21700 40P, 18650 25P, 20P, 15P


AOOLICATIONS


Battery Safety Specification

During the use of batteries, the following requirements must be observed

1) Do not remove the battery from its original packaging before use.

2) Do not place the battery scattered together to avoid accidental short circuit.

3) Do not heat the battery above 100C or burn it.

4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.

5) Do not mix new and used batteries, or batteries from different places of origin.

6) Disassembling and dissecting the battery is strictly prohibited.

7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
