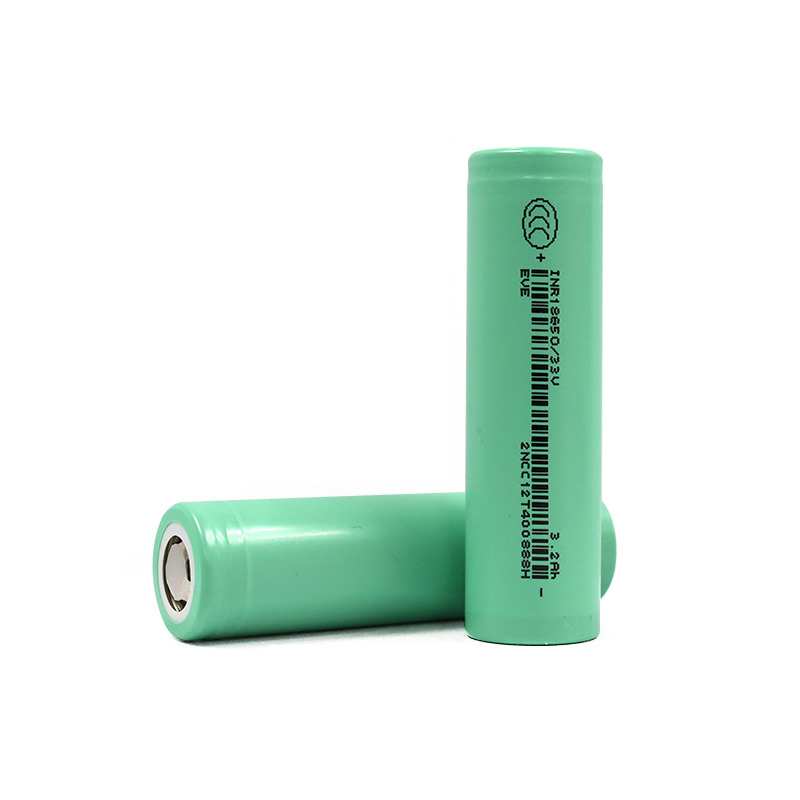

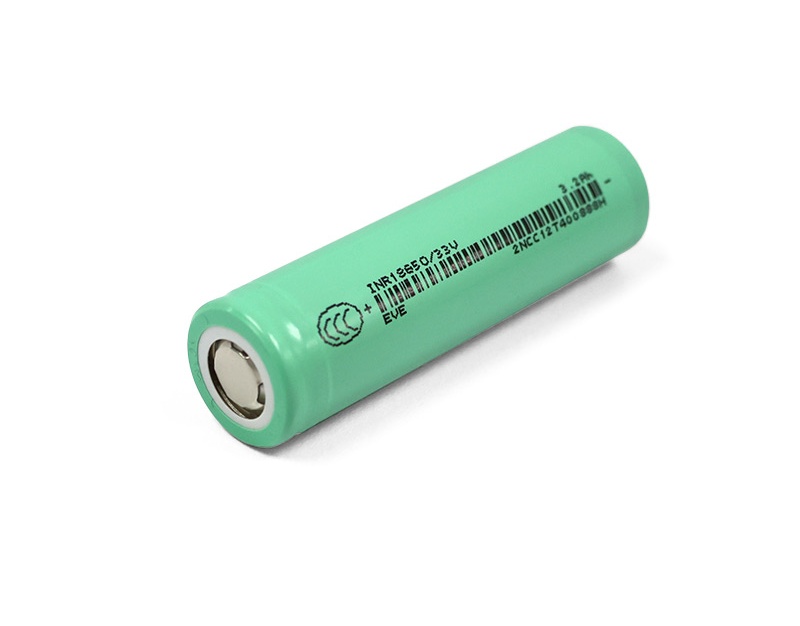

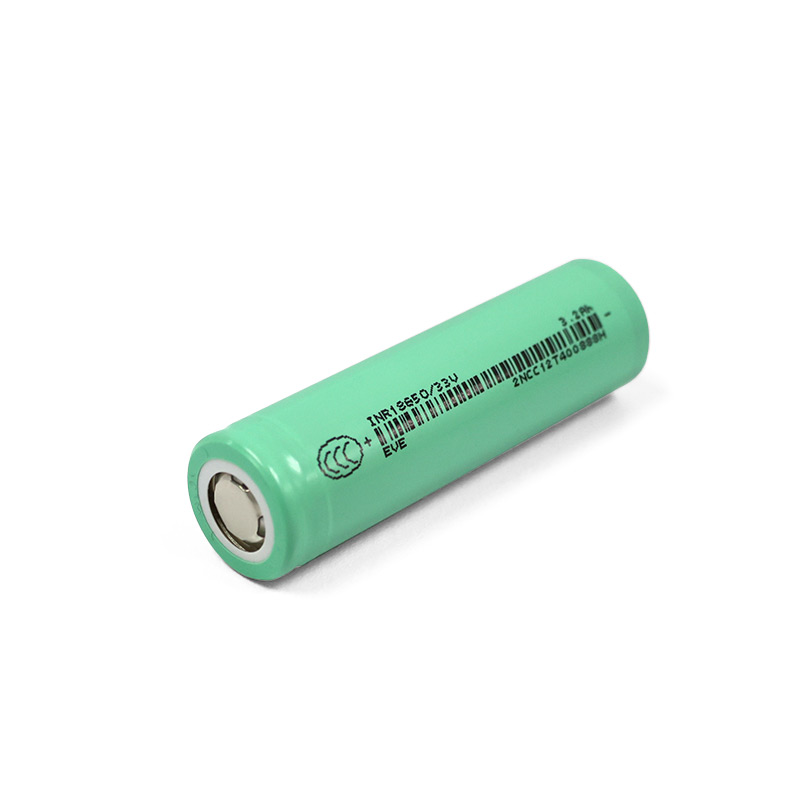

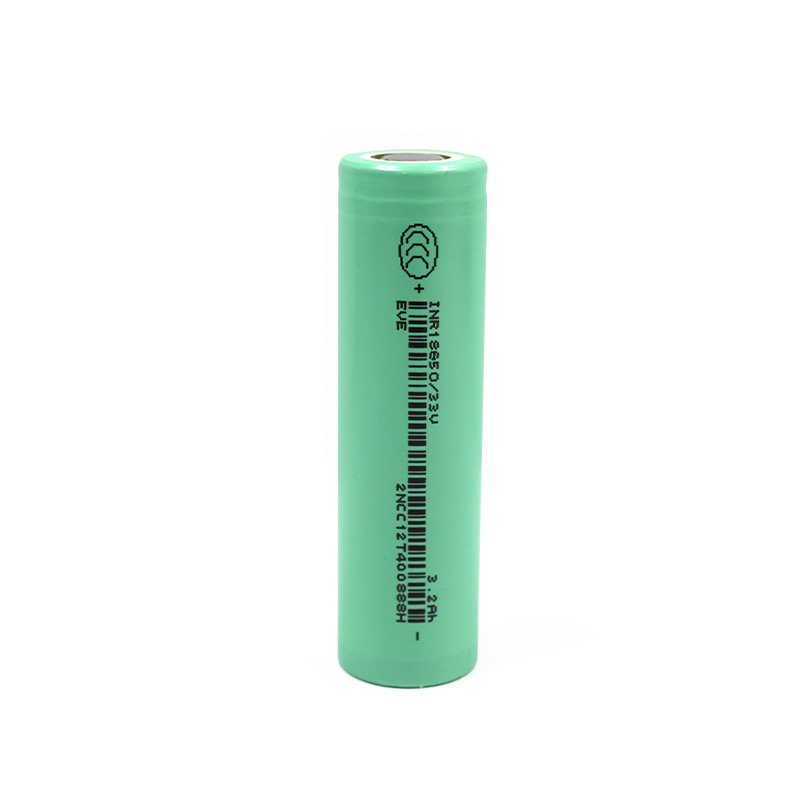

EVE 18650 33V Lithium Battery 3.6V High-capacity Large Power Cell 3200mAh
EVE 18650 33V Lithium Battery 3.6V High-capacity Large Power Cell 3200mAh
EVE 18650 33V Lithium Battery 3.6V High-capacity Large Power Cell 3200mAh

Lithium INR18650/33V Battery 3.6V 3300mah 18650 NMC Ternary Lithium Ion Battery

Lithium 18650 33V Battery 3.6V 3300mah 18650 Battery Cell for Electric Bicycle and Home Energy Storage

18650/33V Solution Advantages

● Comprehensive Solution: High energy cylindrical cel, High power cylindrical cell,Long life cylindrical cell

● Practical Application: Over 2.2 billion batteries have been sold globally.

● Safety and Reliability Certification: CQC, UL.UN,IEC ,BIS ,PS E,etc

● Product Core Characteristics: High energy density, High capacity y, Long cycle life, Low self-discharge rate.Low internal resistance, High discharge rate, Good safety performance.


Specifications



Parameter

Specification

Model

INR18650/33V

Nominal Voltage

3.6V

Nominal Capacity

3300mAh

Max Continuous Discharge

10000mA (10A)

Applications

Power tools, garden tools, e-bikes/scooters,

vacuums, robot cleaners, outdoor energy storage

AC Impedance

≤30mΩ

Cell Weight

48g

Charge Cutoff Current

62mA

Standard Charge Current

1550mA (1.55A)

Storage Humidity

≤65% RH

Charge/Discharge Cutoff Voltage

4.2V / 2.5V

Standard Discharge Current

620mA (0.62A)

Max Continuous Current

Charge: 3.2A / Discharge: 10A

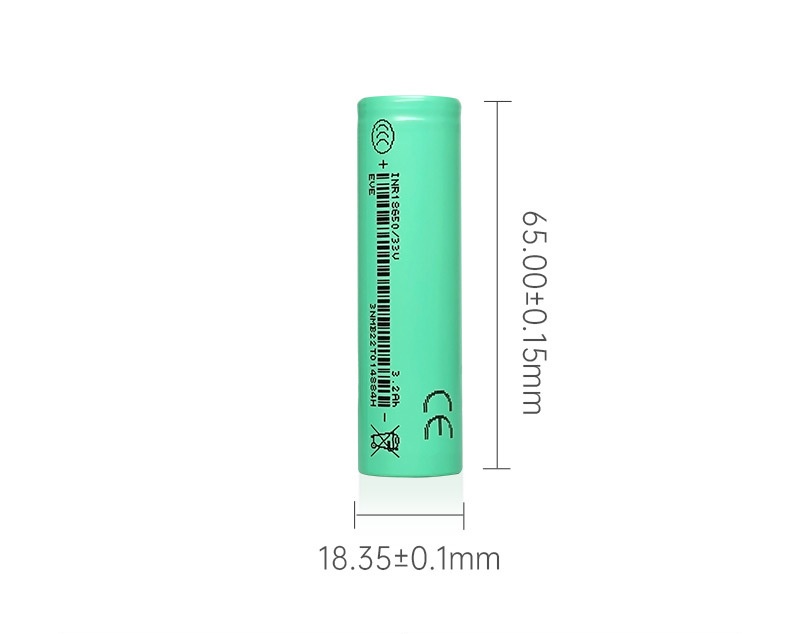

Dimension and Details


EVE INR18650/33V NMC BATTERYEVE INR18650/33V NMC BATTERY

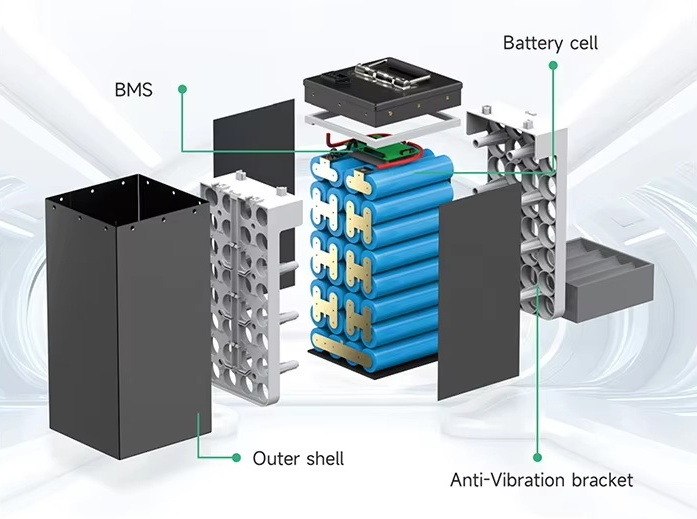

Comprehensive Customized Battery Pack


EVE 18650/21700 customized pack

EVE 33140/40135 customized pack

comprehensive customized battery pack

Standardization of battery packs Perfectly matched to your needs: 60V30Ah/48V20Ah/48V30Ah/60V40Ah/60V20Ah/72V30Ah, etc.


Applications

Application scenario: Power tools, garden tools, cleaning tools battery solutions. Recommended model: 21700 40P, 18650 25P, 20P, 15P


AOOLICATIONS


Battery Safety Specification

During the use of batteries, the following requirements must be observed

1) Do not remove the battery from its original packaging before use.

2) Do not place the battery scattered together to avoid accidental short circuit.

3) Do not heat the battery above 100C or burn it.

4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.

5) Do not mix new and used batteries, or batteries from different places of origin.

6) Disassembling and dissecting the battery is strictly prohibited.

7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
