M11 3.7V 114Ah Prismatic NMC Lithium Ternary Battery Cell

M11 Prismatic NMC Lithium Ternary Battery Cell 3.7V 114.2Ah Rechargeable Electric Hybrid Passenger Car

Feature

Long Life

Long cycle and calendar life

Long-Lasting

NCM material system with high energy and high power storage capacity

High Safety Performance

Highly reliable explosion-proof valve,anti-short-circuit structural design andhigh-security isolation membrane coating process, high safety performance

Excellent Discharge Performance

Strong fast-charging capability,excellent multiplier discharge performanceContinuous discharge multiplier(25℃)

For specific models, please consult online sales


Specifications



Item

Value

Brand Name

EVE

Model Number

M11

Anode Material

NCM

Application

electric vehicles, Electric Forklifts

Capacity
114Ah

Voltage

3.73V

Electric Energy

425Wh

Cycle life

1500

Energy density

245Wh/kg

Continuous discharge rate

3.3C

Size

302*27*92mm

Certificate

ESG、CE、RoHS、UN38.3、MSDS、UL、IEC、ATEX、Reach、GB/T、BIS...

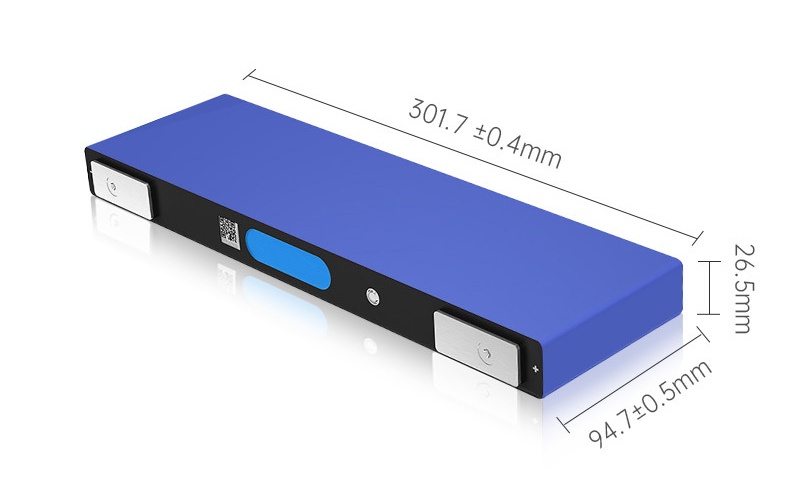

Dimension and Details


EVE NMC M11 DimensionEVE M11 3.7V 114AH

eve M11 114AH NMC Battery

Certifications

1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...

2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...

3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...

4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...

5.We support certification according to the needs of our customers to ensure product quality and safe transportation


Certifications


Product Application Case

Passenger car solutions, commercial vehicle solutions, engineering power solutions, electric energy storage, industrial and commercial energy storage, household energy storage, communication energy storage, electric ships


Applications


Battery Safety Specification

During the use of batteries, the following requirements must be observed

1) Do not remove the battery from its original packaging before use.

2) Do not place the battery scattered together to avoid accidental short circuit.

3) Do not heat the battery above 100C or burn it.

4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.

5) Do not mix new and used batteries, or batteries from different places of origin.

6) Disassembling and dissecting the battery is strictly prohibited.

7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
