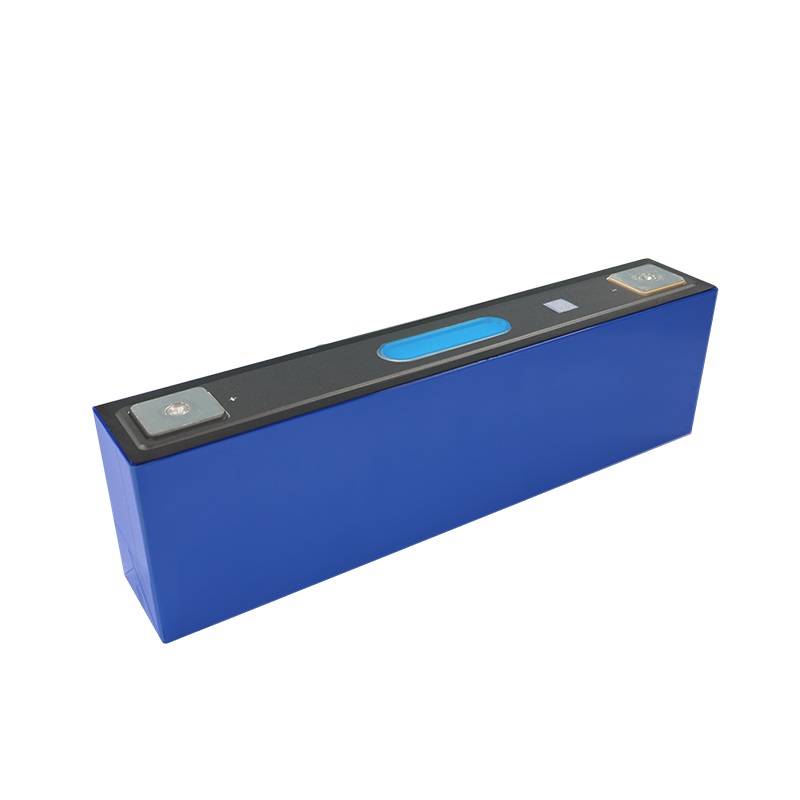

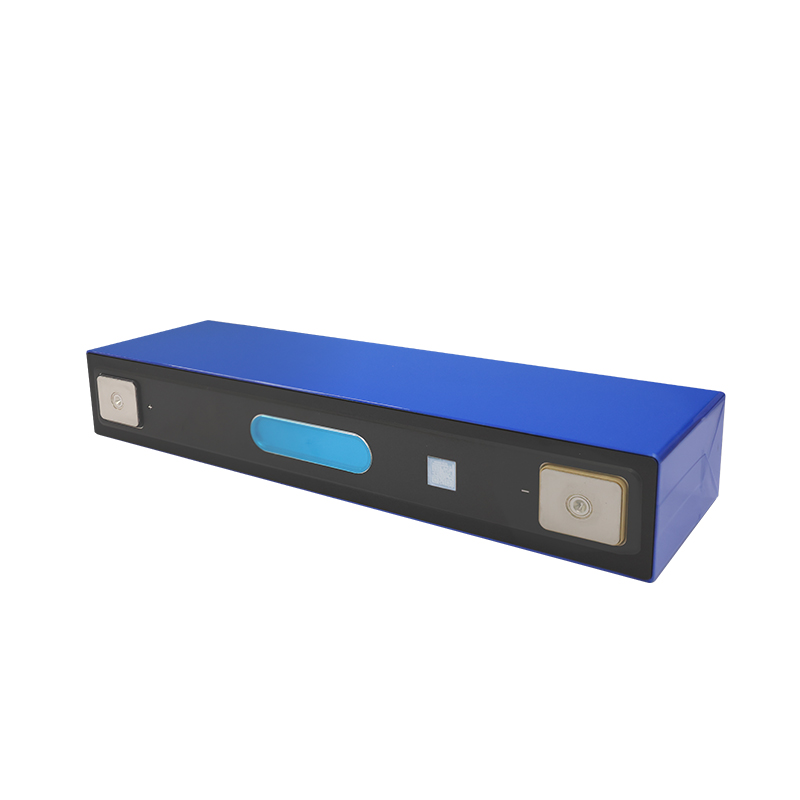

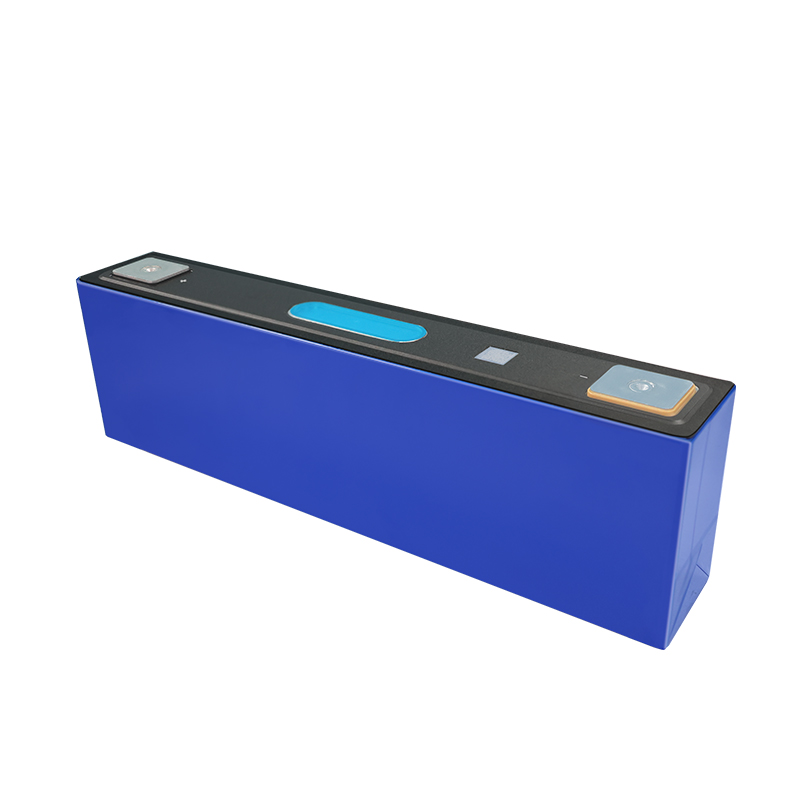

M12 3.7V 188Ah MNC Lithium ion Ternary Battery Cell For EV

M12 3.7V 188Ah 703Wh NMC Lithium Ternary NMC Battery 1500 Cycles Prismatic NCM INR Battery Cell EV Car

M12 NMC 188Ah 703Wh 3.7V 1500 Cycles Prismatic NCM INR Battery Cell EV Car

M12 NMC 188Ah 703Wh 3.7V 1500 Cycles Prismatic NCM INR Battery CellM12 NMC 188Ah 703Wh 3.7V 1500 Cycles Prismatic NCM INR Battery Cell

Feature

Long Cycle Life

Long cycle and calendar life

Long-Lasting

NCM material system with high energy and high power storage capacity

High Safety Performance

Highly reliable explosion-proof valve,anti-short-circuit structural design andhigh-security isolation membrane coating process, high safety performance

Excellent Discharge Performance

Strong fast-charging capability, excellent multiplier discharge performanceContinuous discharge multiplier(25℃)

For specific models, please consult online sales

Specifications


Item

Value

Brand Name

EVE

Model Number

M12

Anode Material

NCM、Lithium iron phosphate battery

Application

electric vehicles, Electric Forklifts

Capacity188Ah

Voltage

3.74V

Electric Energy

703Wh

Cycle life

1500

Continuous discharge rate

3C

Size

88.6*301.3*50.62mm

Certificate

ESG、CE、RoHS、UN38.3、MSDS、UL、IEC、ATEX、Reach、GB/T、BIS...


EVE M12 NMC Battery


Certifications

1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...

2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...

3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...

4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...

5.We support certification according to the needs of our customers to ensure product quality and safe transportation


EVE M12 NMC Battery Certifications


Product Application Case

Passenger car solutions, commercial vehicle solutions, engineering power solutions, electric energy storage, industrial and commercial energy storage, household energy storage, communication energy storage, electric ships


EVE M12 NMC Battery Applications

Battery Safety Specification

During the use of batteries, the following requirements must be observed

1) Do not remove the battery from its original packaging before use.

2) Do not place the battery scattered together to avoid accidental short circuit.

3) Do not heat the battery above 100C or burn it.

4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.

5) Do not mix new and used batteries, or batteries from different places of origin.

6) Disassembling and dissecting the battery is strictly prohibited.

7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
