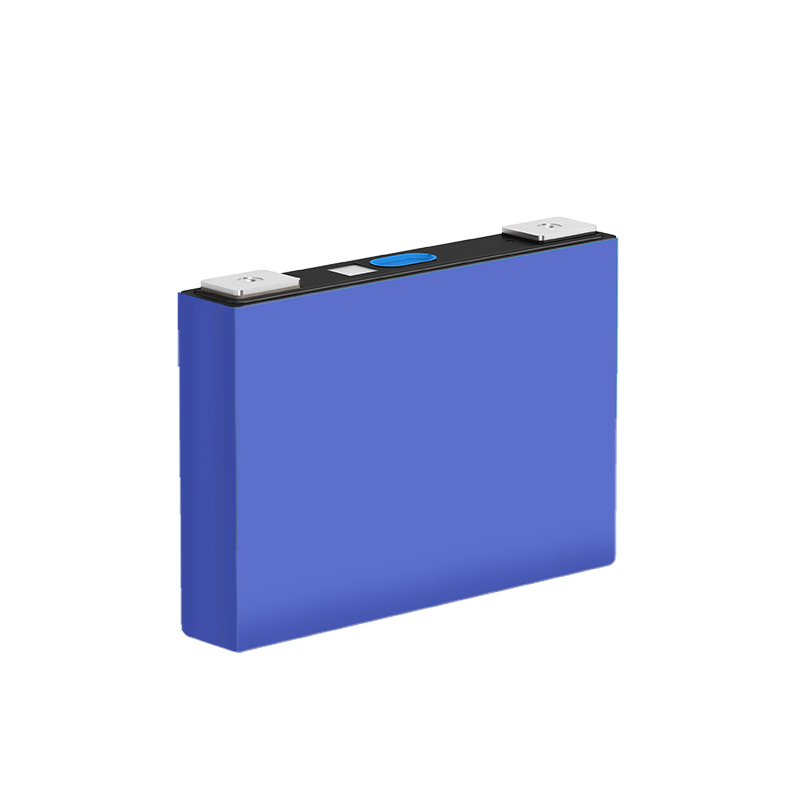

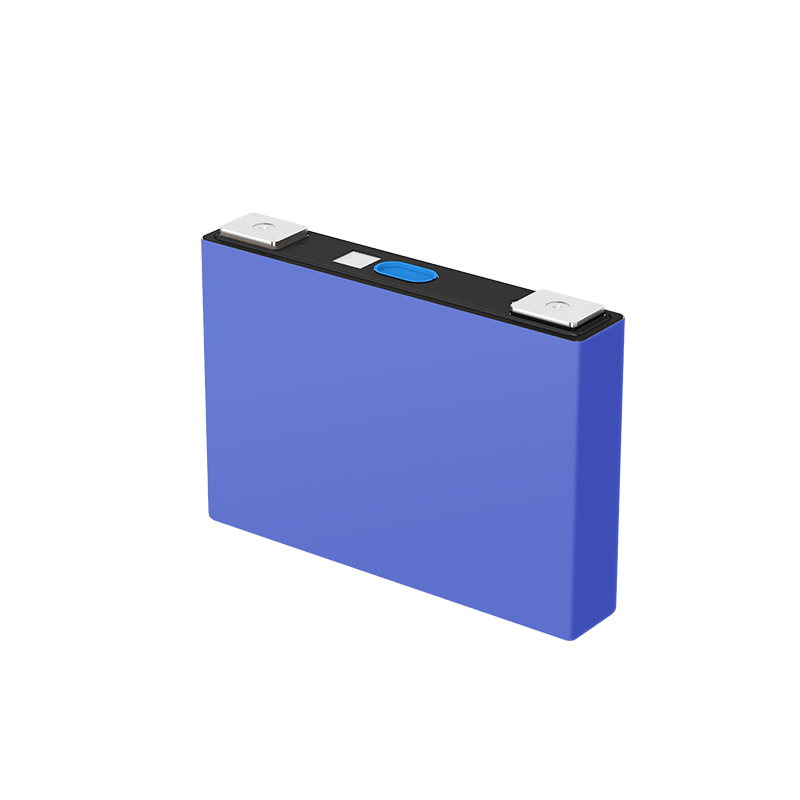

M21 NMC 3.7V 58Ah Rechargeable Lithium Ternary Batery Cell

M21 58Ah Rechargeable Battery 3.7V NMC Prismatic INP58P NMC battery

Feature

Long Life

Long cycle and calendar life

Long-Lasting

NCM material system with high energy and high power storage capacity

High Safety Performance

Highly reliable explosion-proof valve,anti-short-circuit structural design andhigh-security isolation membrane coating process, high safety performance

Excellent Discharge Performance

Strong fast-charging capability,excellent multiplier discharge performanceContinuous discharge multiplier(25℃)

For specific models, please consult online sales


Specifications


Items

Standards

Model

M21

Capacity (min.)

58.0Ah

Energy (min.)

210.0Wh

Internal Resistance

0.5±0.1mΩ

Nominal Voltage

3.62V

Cell Weight

860±15g

Maximum charging voltage(Umax)

4.25V

Minimum discharge voltage(Umin)

2.8V >0℃

2.5V 0℃≤T

2.2V ≤-20℃

Standard Charge Current

58.0A

Standard Discharge Current

58.0A


M21


Certifications

1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...

2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...

3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...

4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...

5. We support certification according to the needs of our customers to ensure product quality and safe transportation


EVE M21 NMC Battery Certifications


Product Application Case

Passenger car solutions, commercial vehicle solutions, engineering power solutions, electric energy storage, industrial and commercial energy storage, household energy storage, communication energy storage, electric ships


EVE M12 NMC Battery Applications


Battery Safety Specification

During the use of batteries, the following requirements must be observed

1) Do not remove the battery from its original packaging before use.

2) Do not place the battery scattered together to avoid accidental short circuit.

3) Do not heat the battery above 100C or burn it.

4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.

5) Do not mix new and used batteries, or batteries from different places of origin.

6) Disassembling and dissecting the battery is strictly prohibited.

7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
