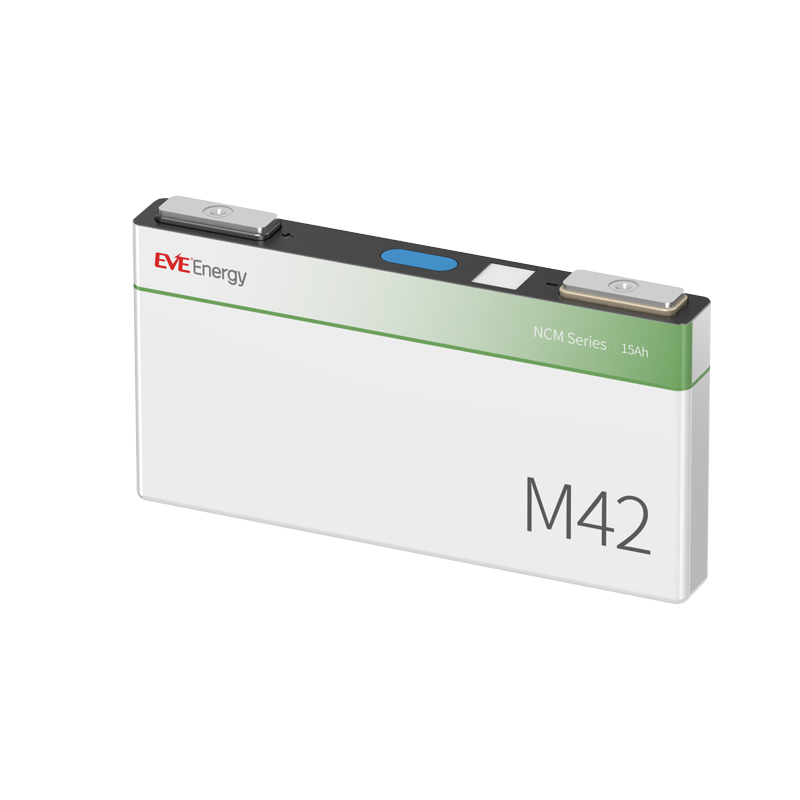

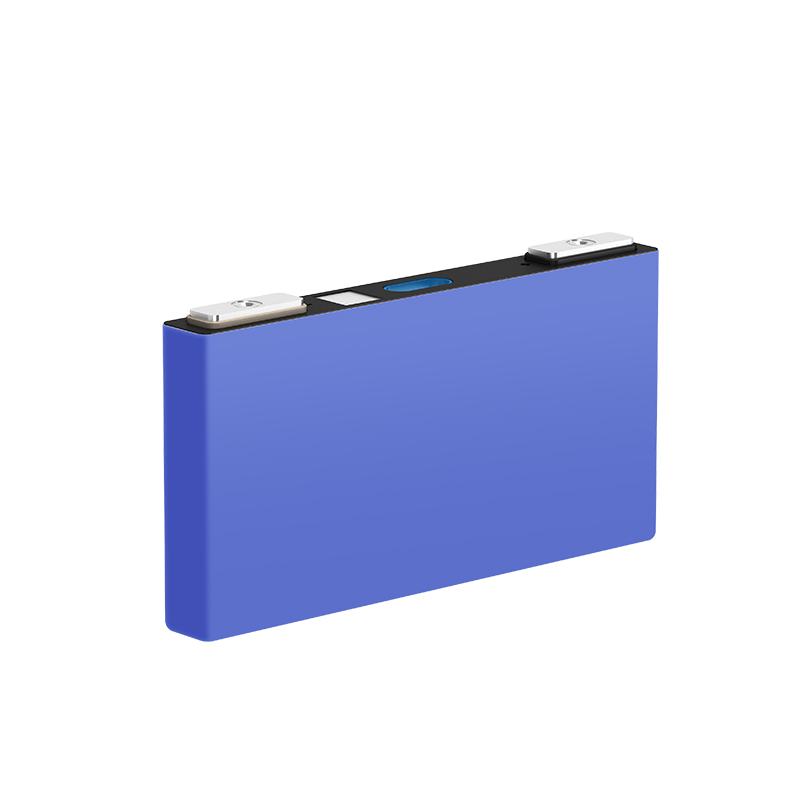

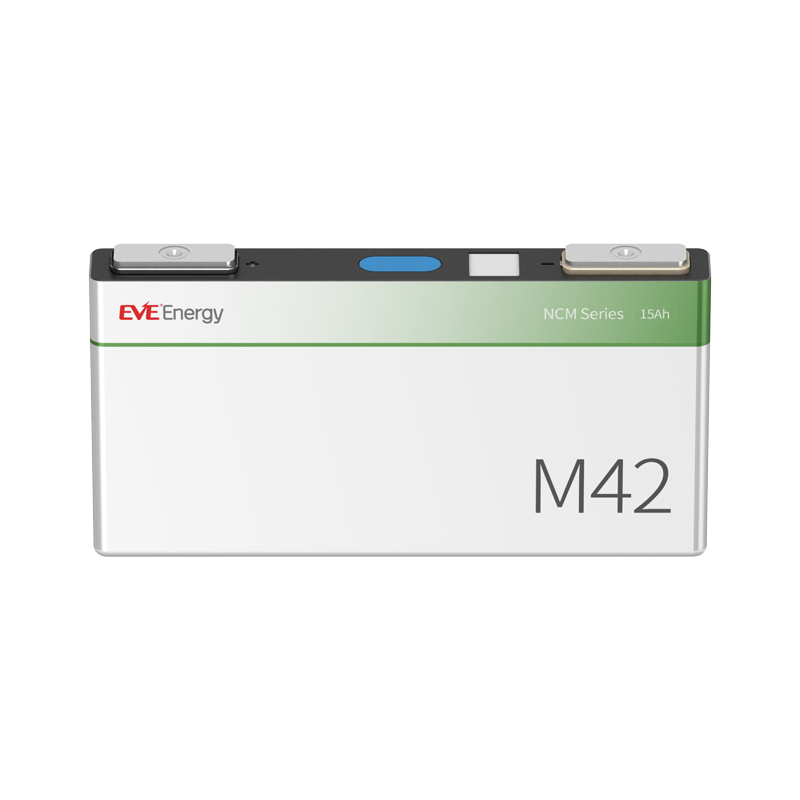

M42 3.66V 15Ah Lithium NMC Prismatic Lithium Ternary Battery Cells
M42 3.66V 15A Lithium NMC Prismatic Lithium Ternary Battery Cells Powers a Two-wheeler and a Three-wheeler
- Category: Lithium Ternary NMC Battery
- Tag: Lithium Ternary NMC Battery
Feature of M42 Lithium Ternary Battery
Long Life
Long cycle and calendar life
Long-Lasting
NCM material system with high energy and high power storage capacity
High Safety Performance
Highly reliable explosion-proof valve,anti-short-circuit structural design andhigh-security isolation membrane coating process, high safety performance
Excellent Discharge Performance
Strong fast-charging capability, excellent multiplier discharge performanceContinuous discharge multiplier(25℃)
For specific models, please consult online sales
Specifications
Parameter | Specification |
Model number | EVE M42 |
Nominal capacity | 15Ah |
Nominal voltage | 3.66V |
Cycle number | 2000次 |
Initial internal resistance | ≤0.4mΩ |
Standard charge and discharge ratio | 5C/5C |
Weight (g) | 426±7 |
Energy density (Wh/kg) | 128 |
Length x Width x Height (mm) | 78.8*148.7*17.7 |
Standard charging current | 15A |
Cycle Life at 25℃ | ≥3500 cycle @1C/1C |
Size | 148.3(W)±0.5*26.7±0.5(T)*94.3±0.5(H)mm |
Weight | 725±50g |
Certifications
1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...
2. In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...
3. In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...
4. Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...
5. We support certification according to the needs of our customers to ensure product quality and safe transportation
Product Application Case
Passenger car solutions, commercial vehicle solutions, engineering power solutions, electric energy storage, industrial and commercial energy storage, household energy storage, communication energy storage, electric ships
Battery Safety Specification
During the use of batteries, the following requirements must be observed
1) Do not remove the battery from its original packaging before use.
2) Do not place the batteries scattered together to avoid accidental short circuits.
3) Do not heat the battery above 100C or burn it.
4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.
5) Do not mix new and used batteries, or batteries from different places of origin.
6) Disassembling and dissecting the battery is strictly prohibited.
7) Short circuits and reverse connections between the positive and negative electrodes of the battery are prohibited.
