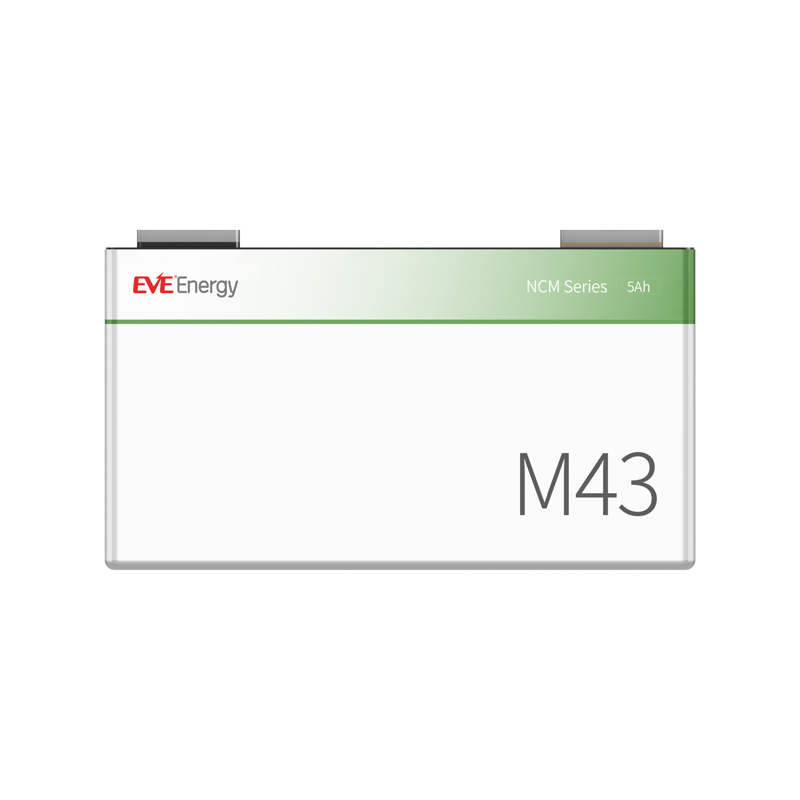

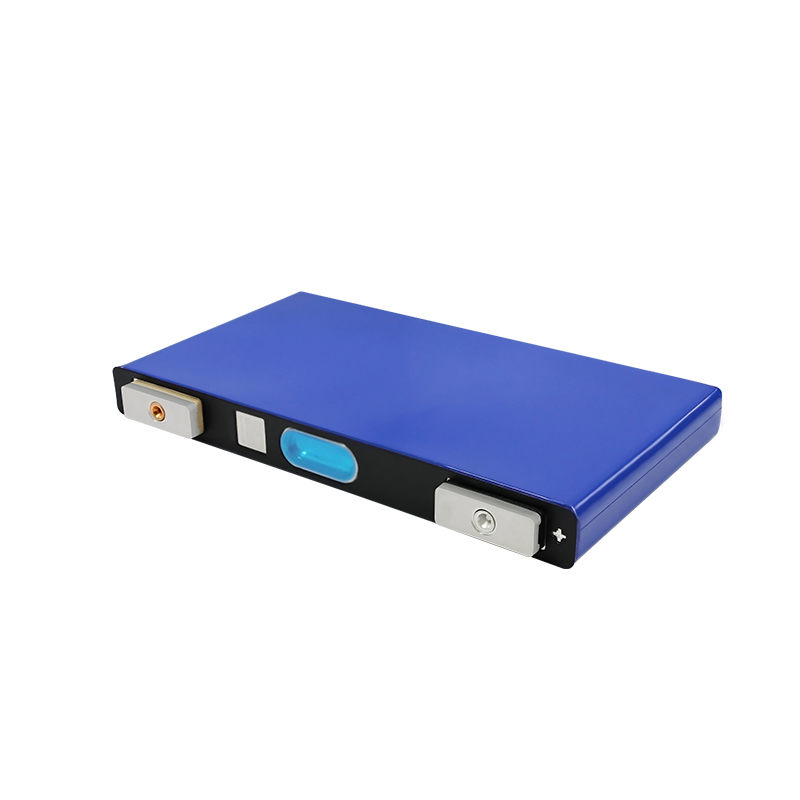

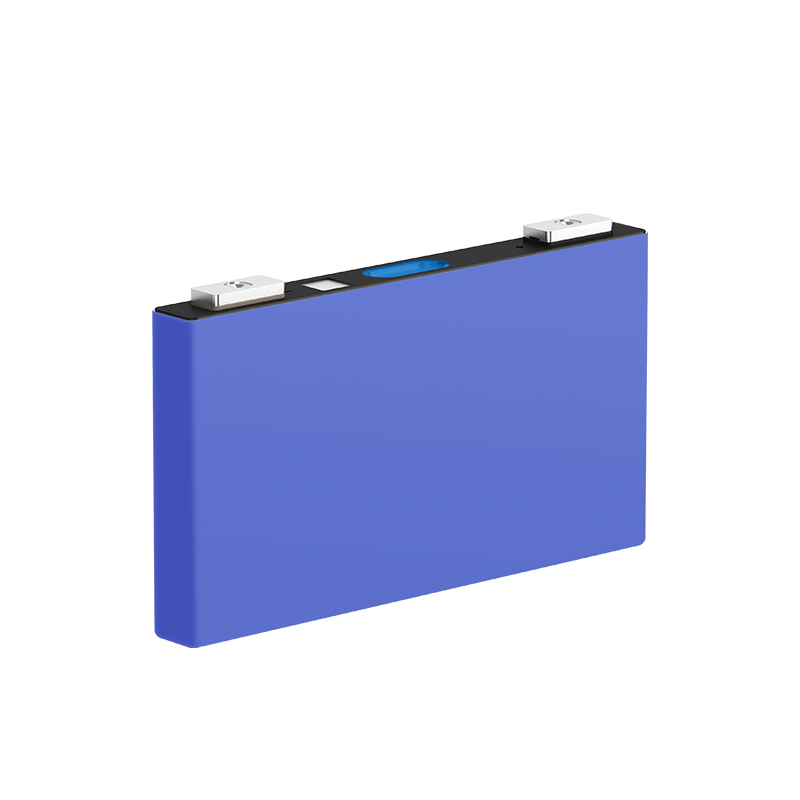

M43 3.66V 5.45Ah ternary lithium NMC Prismatic Battery
M43 3.66V 5.45Ah ternary lithium NMC Prismatic Battery

M43 3.66V 5.45Ah Ternary Lithium NMC Prismatic Battery

M43 3.66V 5.45Ah Ternary Lithium NMC Prismatic Power Battery for Excavators, Forklifts, Buses, Heavy Trucks, Passenger cars

Feature

Long Life

Long cycle and calendar life

Long-Lasting

NCM material system with high energy and high power storage capacity

High Safety Performance

Highly reliable explosion-proof valve,anti-short-circuit structural design andhigh-security isolation membrane coating process, high safety performance

Excellent Discharge Performance

Strong fast-charging capability,excellent multiplier discharge performanceContinuous discharge multiplier(25℃)

For specific models, please consult online sales


Specifications


Parameter

Specification

Model number

M43

Nominal capacity

5.45Ah

Nominal voltage

3.66V

Cycle number

40000次

Weight

189±5g

Length x Width x Height (mm)

69.2*120.2*12.6

Energy density (Wh/kg)

105

Initial internal resistance

≤0.7mΩ

Operating temperature

0~50℃

EVE M43EVE M43

Certifications

1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...

2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...

3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...

4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...

5.We support certification according to the needs of our customers to ensure product quality and safe transportation

EVE M21 NMC Battery Certifications


Product Application Case

Passenger car solutions, commercial vehicle solutions, engineering power solutions, electric energy storage, industrial and commercial energy storage, household energy storage, communication energy storage, electric ships

Applications


Battery Safety Specification

During the use of batteries, the following requirements must be observed

1) Do not remove the battery from its original packaging before use.

2) Do not place the battery scattered together to avoid accidental short circuit.

3) Do not heat the battery above 100C or burn it.

4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.

5) Do not mix new and used batteries, or batteries from different places of origin.

6) Disassembling and dissecting the battery is strictly prohibited.

7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
