25.6V/24V Lifepo4 206Ah Lithium iron phosphate Battery uk Pack

we customized this ifepo4 battery pack has a nominal voltage and capacity of 25.6V 206Ah, a dimension of 470*185*240mm, a weight of 27kg, a maximum discharger

25.6V/24V Lifepo4 206Ah Lithium iron phosphate Battery uk Pack

25.6V 206Ah Lithium Battery Pack

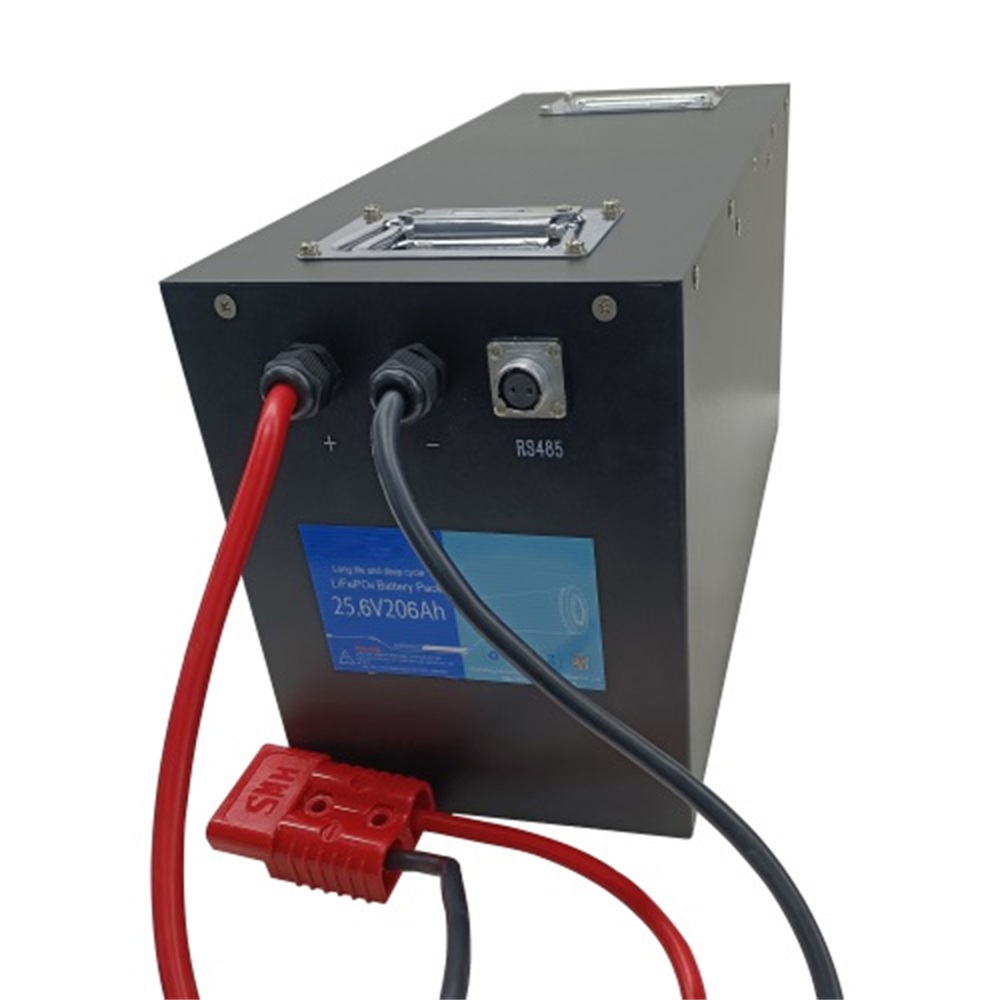

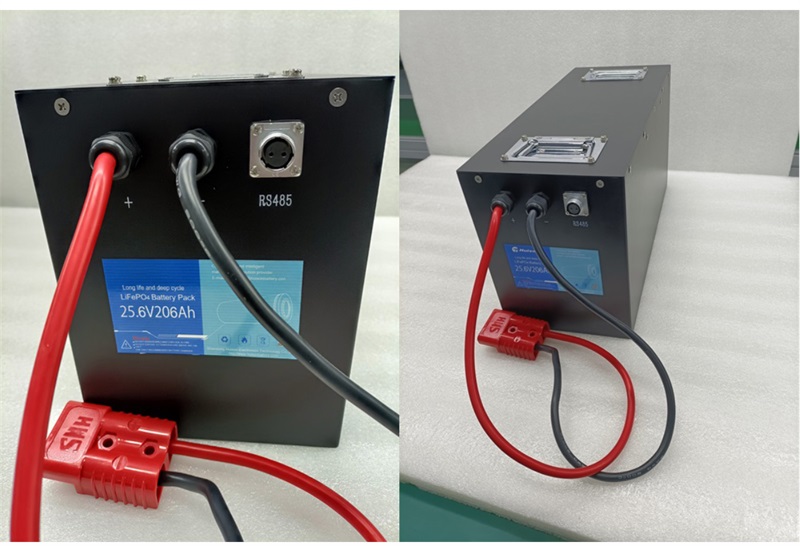

Customized 24v lifepo4 battery pack, uses quality brand new grade A lifepo4 battery cells; with handles on the iron case of the battery pack for easy portable.

we customized this ifepo4 battery pack has a nominal voltage and capacity of 25.6V 206Ah, a dimension of 470*185*240mm, a weight of 27kg, a maximum discharge current of 150A, a maximum charging current of 100A, with an iron shell and a COM port of RS485, build-in an intelligent BMS.



Typical capacity

206Ah

Nominal voltage

25.6V

Typical Energy

5273 Wh

Shipping capacity

60±1Ah

Discharge termination current

20V

Maximum discharge  current

50A

Charging voltage

28.8V

Recommended charging  current

25A

Maximum charging current

50A

Operating   temperature (charging)

0~60°C

Operating temperature (discharge)

-20~60°C

Weight

27Kg

Storage Temp.

-30~60°C

Typical dimension(W*H*T)

470*180*240mm

Cycle performance

≥4000Cycles

With BMS

Yes

With Screen

No

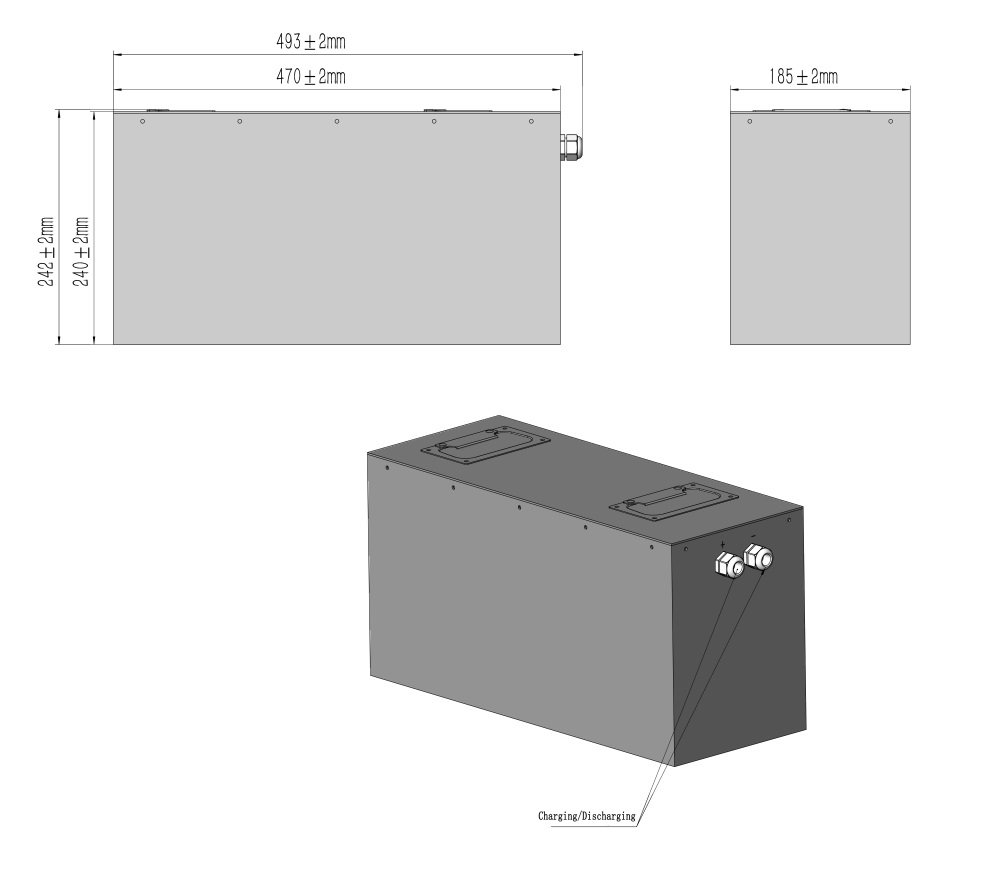

dimensions



Newly Updated Shipment Records for Our Clients' CALB 72Ah lifepo4 Battery Cells Orders

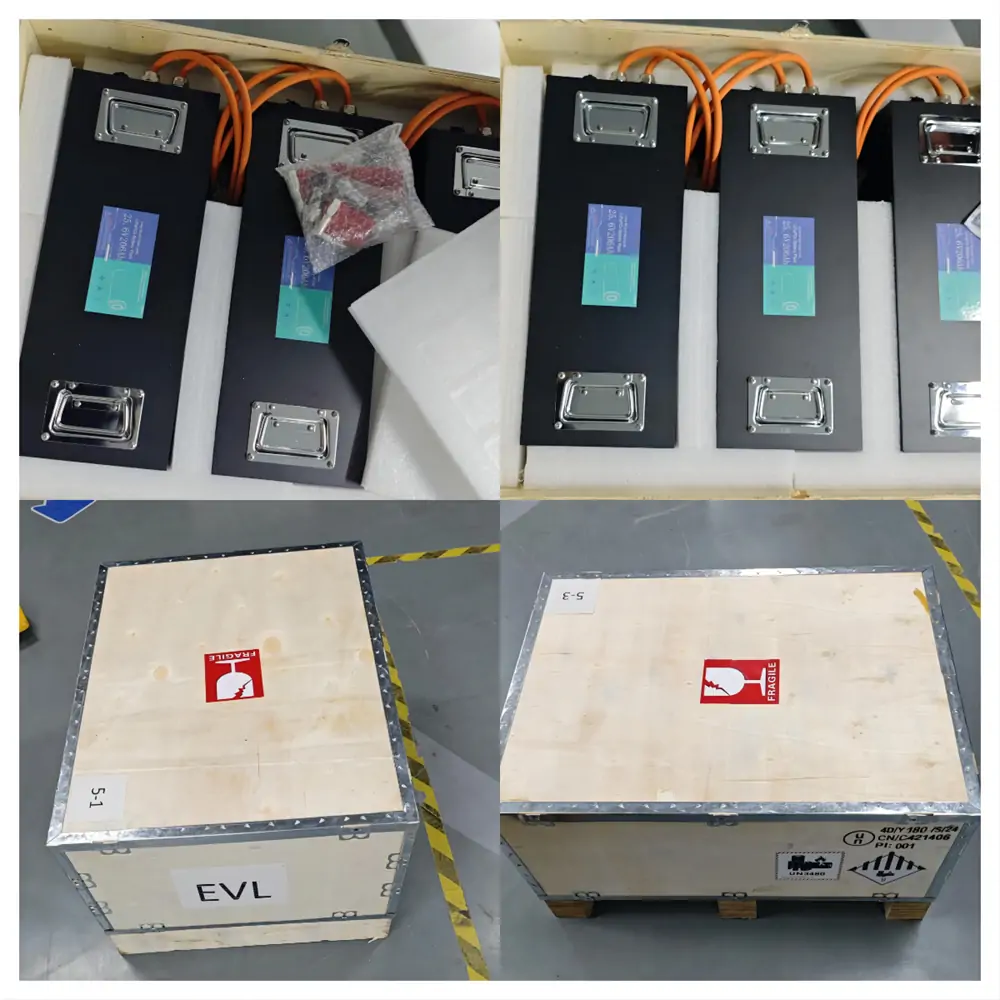

packing of 25.6v 206ah
