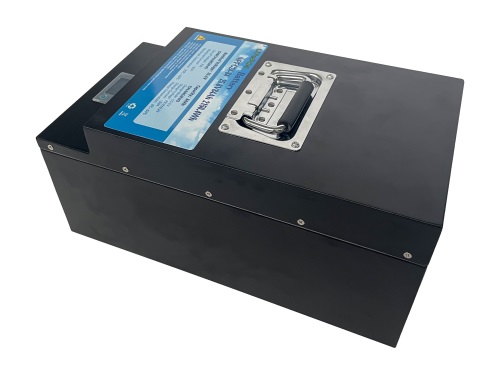

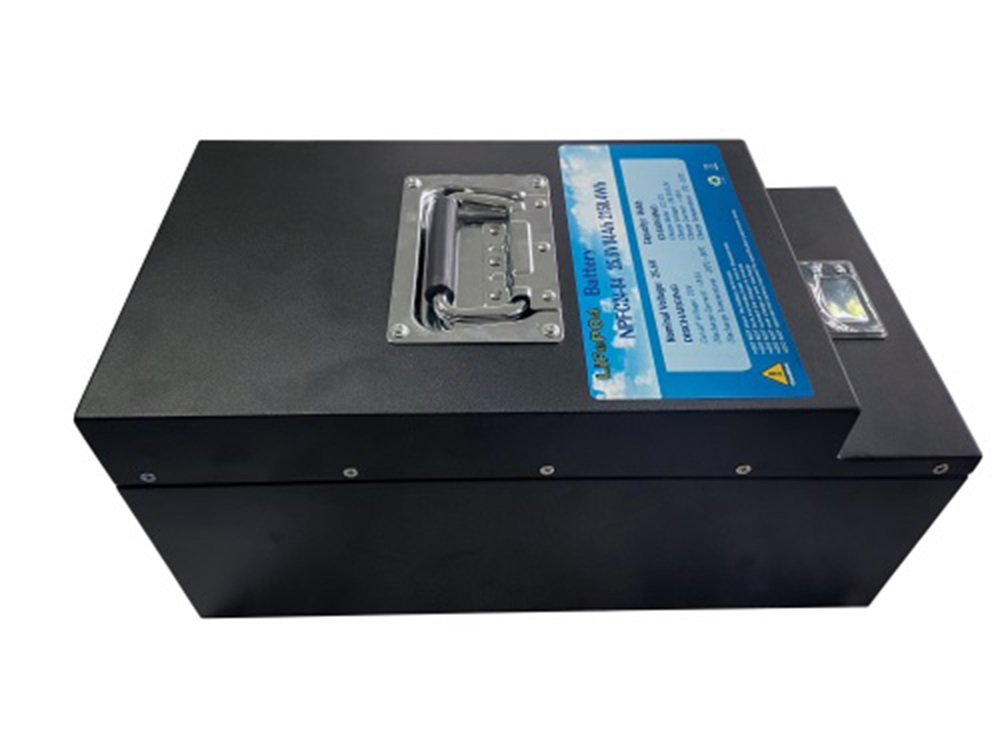

25.6V 84AH Lithium LiFePO4 Battery Pack for trolling motor

25.6V 84AH Lithium LiFePO4 Battery Pack for trolling motor, backup power

25.6V 84AH Lithium LiFePO4 Battery Pack for trolling motor, backup power

NPFC24-84 25.6V 84Ah 2150.4Wh


NPFC24-84 25.6V 84Ah 2150.4WhNPFC24-84 25.6V 84Ah 2150.4Wh


· Build-in Smart Battery Management System

· Use high-quality brand new grade A lifepo4 battery cells

· LCD Display Screen

· Customized capacity, voltage, dimensions, weight, etc,



Specifications


Nominal Voltage: 25.6V

Nominal Capacity: 84Ah

Discharging cut-off voltage: 20V

Discharging current: ≤84A

Charging mode: CC/CV

Charging voltage: 29.2V±0.2V

Charging current: ≤50A

Charging temperature: 0~55℃

Discharging temperature: -20~60℃

Weight: ≤21kg

Dimension: 395*213*185mm



1. Long cycle life and high reliability.

2. Small size, lightweight, high energy density, green environmental protection.

3. It has a communication function and can be connected with Bluetooth of a mobile phone.

4. Wide working temperature range, good high and low-temperature performance.

5. High efficiency, energy saving, stable power supply, high power output, visual design.

6. Modular design, and convenient system maintenance.
