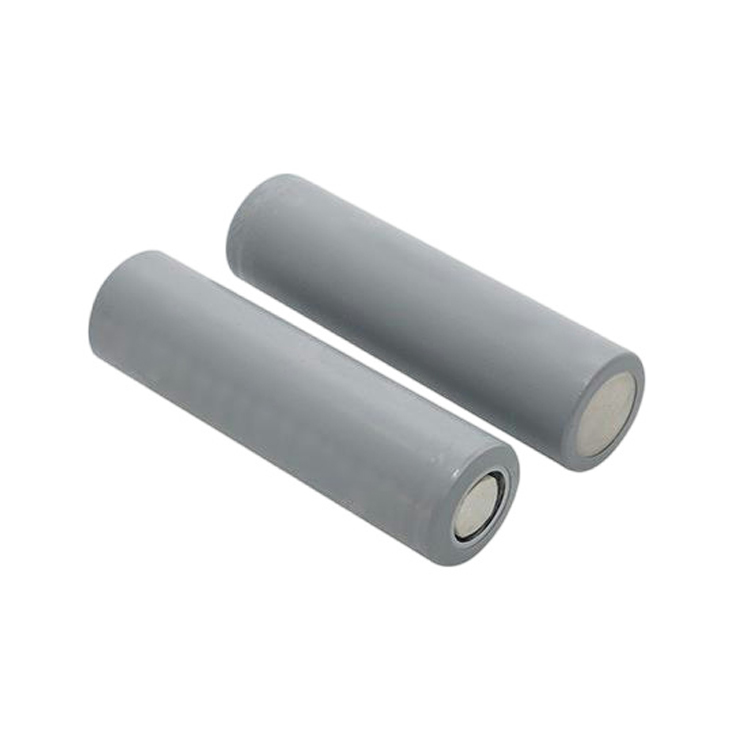

2.4V 1500mAh LTO Lithium Titanate Battery Cell
The 2.4V 1500mAh Lto Lithium Titanate Battery has a high rate, 6 minutes full charge, 6 minutes full discharge, and strong low-temperature tolerance.
- Category: Lithium Titanate LTO Battery
- Tag: Lithium Titanate LTO Battery
Based on LTO material technology and high energy density battery technology with independent intellectual property rights, the company has solved the industry problems of high-temperature gas production of LTO batteries and developed this product with excellent performance and cost-effectiveness. Advanced technology, simple process, low cost.
Advantages
High safety
No dendrite, good thermal stability, intrinsic safety
Long cycle life
More than 20 years
High rate
Fully charged in 6 min, completely discharged in 6 min
Wide Working Temperature
It can be charged and discharged repeatedly at -50~65℃
Recycle
Recycling rate of the cell ＞97%
Specifications
Items | PLITR18650CA-1500mAh-2.4V | PLITR18650CB-1500mAh-2.4V |
Weight | ≤45g | ≤45g |
Nominal capacity | 1500mAh | 1500mAh |
Nominal voltage | 2.4V | 2.4V |
Nominal Energy | 3.6Wh | 3.6Wh |
Energy Density | 80Wh/kg | 80Wh/kg |
Resistance | ≤25mΩ(AC, 1000Hz) | ≤15mΩ(AC, 1000Hz) |
Charging cut-off voltage | 2.7V | 2.7V |
Discharging cut-off voltage | 1.5V | 1.5V |
Standard charging current | 1500mA | 1500mA |
Standard discharging current | 1500mA | 1500mA |
Max. Constant Charging Current | 3000mA | 4500mA |
Max. Constant Discharging Current | 6000mA | 7500mA |
Max. Charging Current | 6000mA | 7500mA |
Max. Discharging Current | 12000mA | 12000mA |
Temperature Range for Storage | Less than one year： -10~25℃； -30~45℃ | Less than one year： -10~25℃； -30~45℃ |
Transportation Voltage | ≥2.4V | ≥2.4V |
Appearance | No crack, scratch, distortion, prominence， leakage, etc. | No crack, scratch, distortion, prominence， leakage, etc. |

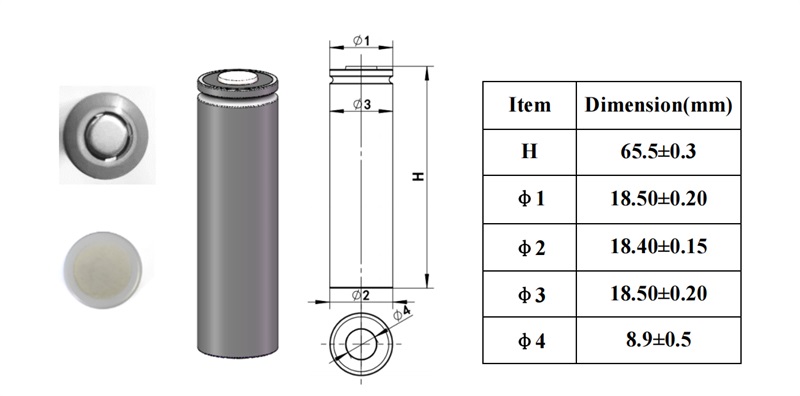

Appearance and Dimension
