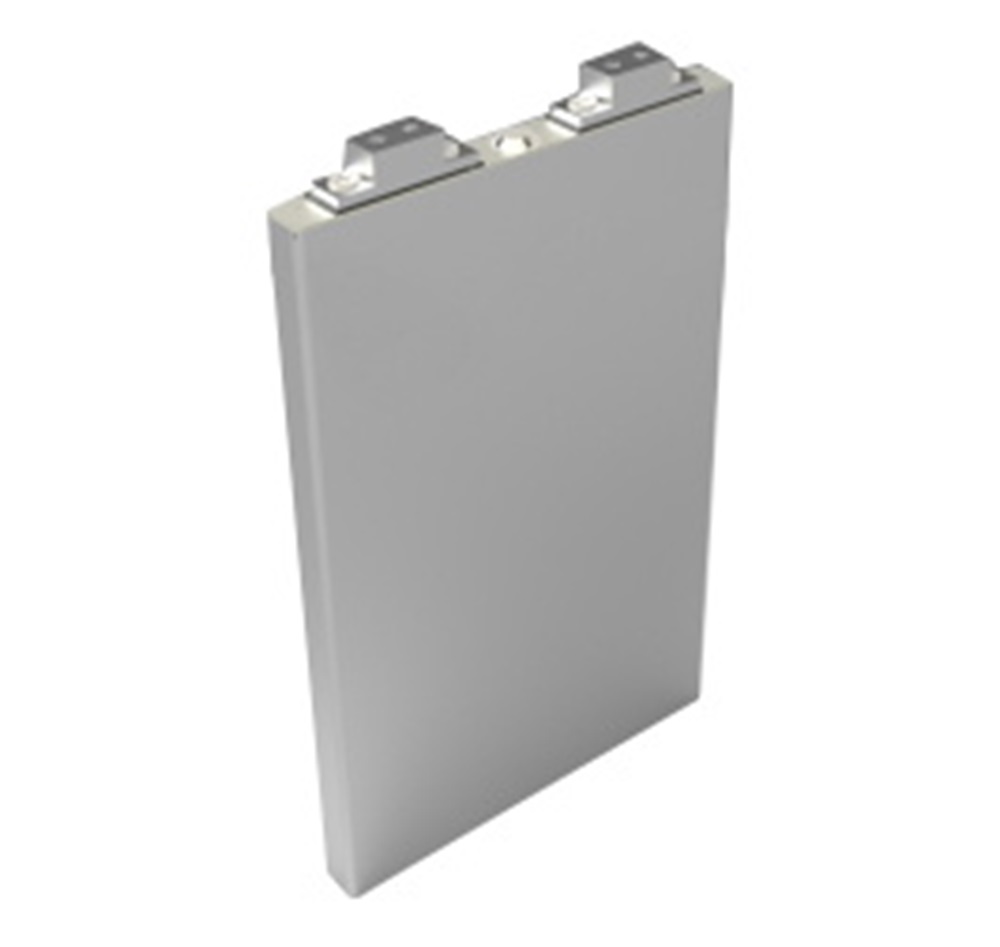

2.4V 26Ah Lithium Titanate LTO Battery Cell for Sale
Compared with traditional materials of NMC and LFP, the 2.4V 26Ah Lithium Titanate LTO Battery Cell has outstanding advantages in safety, cycle life, and low temperature performance,
- Category: Lithium Titanate LTO Battery
- Tag: Lithium Titanate LTO Battery
Item | Parameters | |
Model | 32115170 | |
Materials | LMO/LTO | |
Nominal capacity (0.2C,25℃) | 26 Ah | |
Nominal voltage | 2.4 V | |

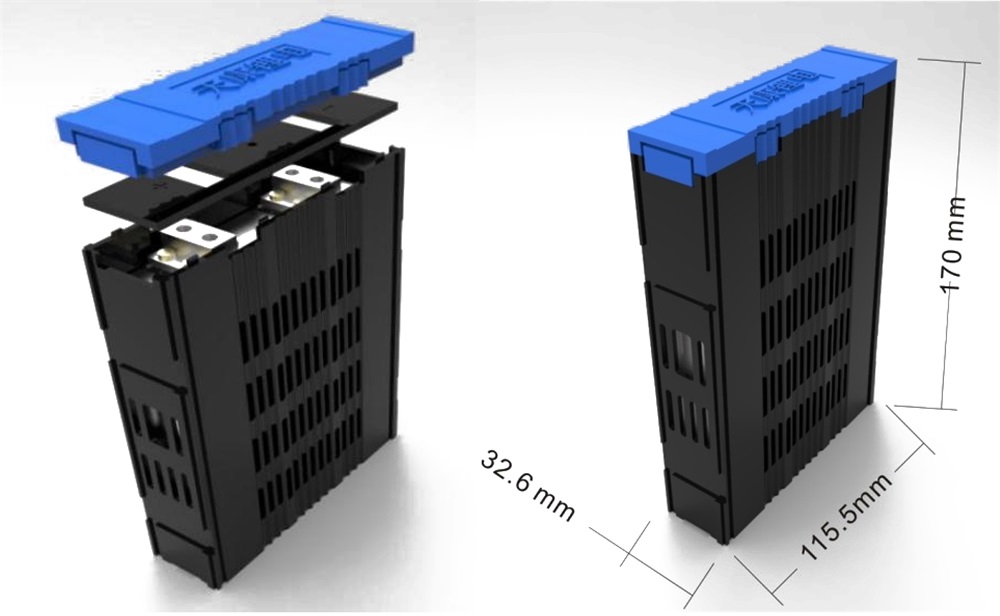

Dimension | 115.5 mm*32.6 mm *170 mm | |
Weight | 1080 g ± 10 | |
Operating voltage | Charge cut-off voltage | 2.7 V |
Discharge closing | 1.5 V | |
Standard charge/discharge current | Charge current | 1C（26 A） |
Discharge current | 1C（26 A） | |
Maximum charge current | 4C（100 A） | |
Maximum discharge current | 7C（180 A） | |
Cycle life | ≥20000 times（0.2C,25℃） | |
Operating temperature | -30℃-55℃（Special requirements can be customized） | |
Applicable Scope
This product is mainly used in the power fields of pure electric / hybrid electric vehicles, pure electric / hybrid electric vehicles, electric forklift, special vehicles etc, and the energy storage fields of photovoltaic / wind power generation system, communication base station power supply, household / industrial UPS, energy storage power station etc.
