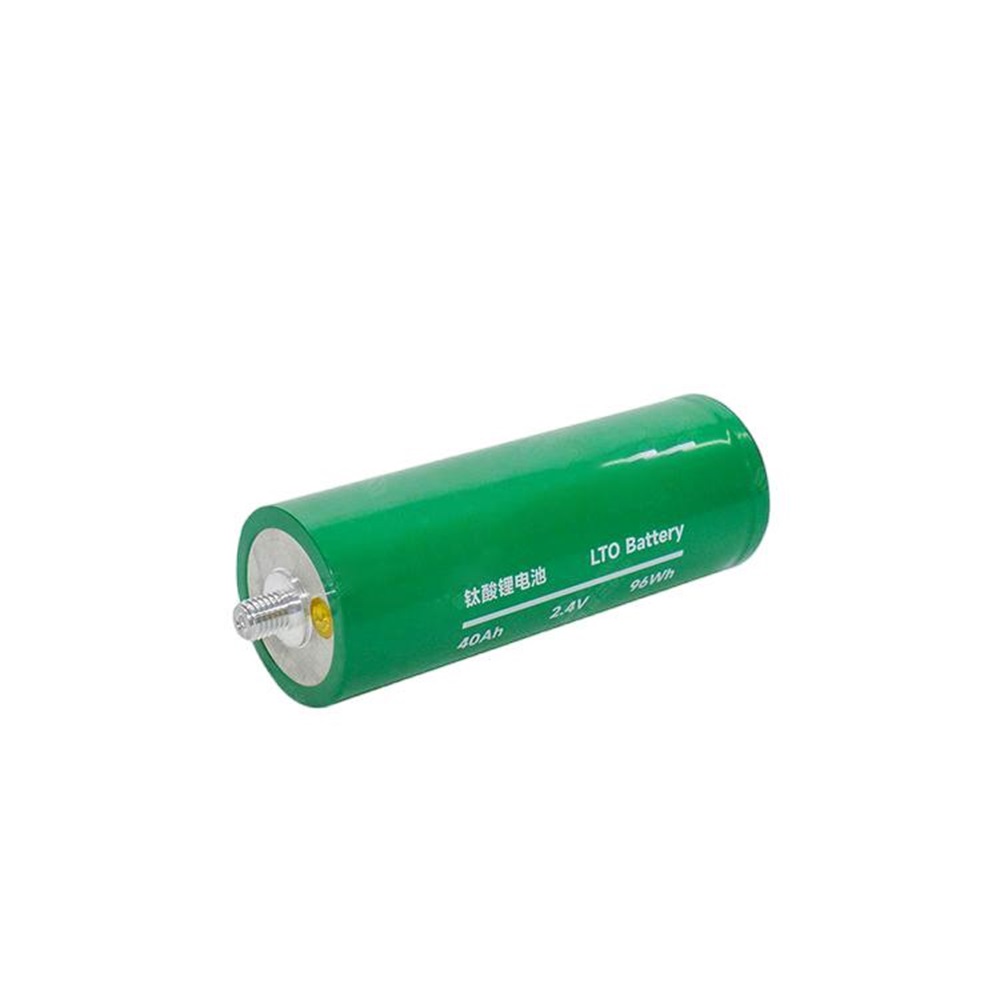

2.4V 40Ah LTO Lithium Titanate Battery Cell
The PLITR60165CST(WL)B-40Ah-2.4V Lto Lithium Titanate Battery has a high rate, 6 minutes full charge, 6 minutes full discharge and strong low temperature tolerance.
- Category: Lithium Titanate LTO Battery
- Tag: Lithium Titanate LTO Battery
Based on LTO material technology and high energy density battery technology with independent intellectual property rights, the company has solved the industry problems of high-temperature gas production of LTO batteries and developed this product with excellent performance and cost-effectiveness. Advanced technology, simple process, low cost.
Advantages
High safety
No dendrite, good thermal stability, intrinsic safety
Long cycle life
More than 20 years
High rate
Fully charged in 6 min, completely discharged in 6 min
Wide Working Temperature
It can be charged and discharged repeatedly at -50~65℃
Recycle
Recycling rate of the cell ＞97%
Specifications
Item | Specification |
Model | PLITR60165CSTB-40Ah-2.4V |
Weight | 1050g±15g |
Nominal capacity | 40Ah |
Nominal voltage | 2.4V |
Nominal Energy | 96Wh |
Energy Density | 91.4Wh/kg |
Resistance | ≤0.3mΩ(AC, 1000Hz) |
Charging cut-off voltage | 2.9V |
Discharging cut-off voltage | 1.5V |
Standard charging current | 40A |
Standard discharging current | 40A |
Max. Constant Charging Current | 240A |
Max. Constant Discharging Current | 320A |
Max. Charging Current | 480A |
Max. Discharging Current | 800A |
Temperature Range for Storage | Less than one year：-10~25℃； |
Transportation Voltage | ≥2.4V |
Appearance | No crack, scratch, distortion, prominence， leakage, etc. |

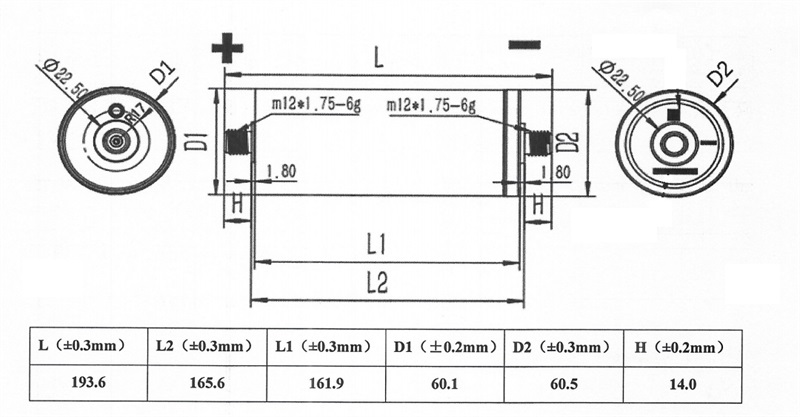

Appearance and Dimension
