2.3V 28AH LTO Lithium Titanate Battery With Long Cycle Life

we supply 2.3V 28AH LTO Lithium Titanate Battery With Long Cycle Life.

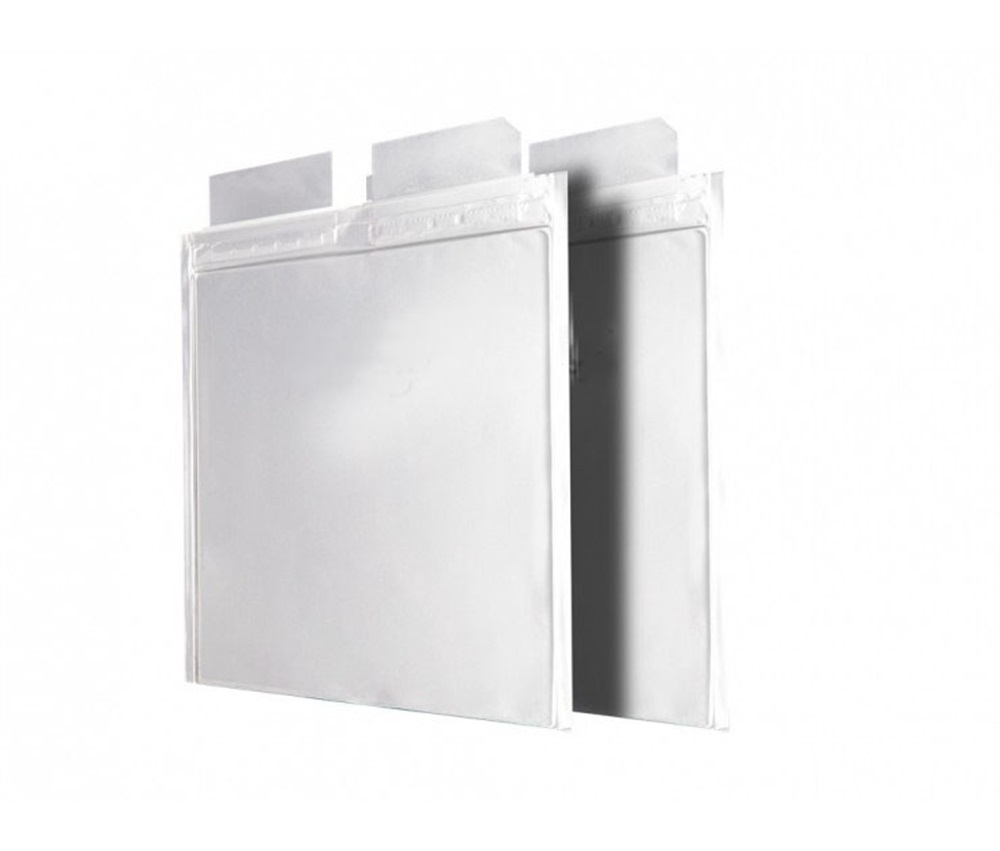

2.3V 28AH LTO Lithium Titanate Battery

Lithium Titanate Battery ：

Positive electrode: lithium iron phosphate, lithium manganate or ternary material, lithium nickel manganate.

Negative electrode: lithium titanate material.

Separator: lithium battery separator with carbon as the negative electrode.

Electrolyte: lithium battery electrolyte with carbon as the negative electrode.

Battery case: lithium battery case with carbon as the negative electrode

Specifications

Item		specification
Battery Module		EVL-LTO-28AH
Battery Type		Lithium Titanate Battery
Nominal Capacity		28Ah
Nominal Voltage		2.3 V
Internal Resistance		≤1mΩ
Charging(CC-CV)	Maximum Charging Current	10C
	Charging Upper Limit Voltage	2.8V
Discharging	Maximum Discharging Current	10C
	Discharging Cut-off Voltage	1.5V
Charging Time	Standard Charging	0.5h
	Quick-acting Charging	0.2h
Operation Thermal Ambient	Charging	-50°C ~ 65°C
	Discharging	-50°C ~ 65°C
Storage Thermal Ambient	Short-term (within 1 month)	-20°C ~ 45°C
	Long-term (within 1 year)	-20°C ~ 20°C
Storage Humidity		< 70%
Battery Weight		1.9kg
Battery Dimension		8.8 x 200 x 235mm
Cycle Life		25,000 times
