60137H 2.4V 30Ah Cylindrical Lithium Titanate lto battery cells
High-performance Lithium Titanate Oxide (LTO) Battery cell: 60137H 2.4V 30Ah Cylindrical Lithium Titanate lto battery cells
- Category: Lithium Titanate LTO Battery
- Tag: Lithium Titanate LTO Battery
High performance Lithium Titanate Oxide (LTO) Battery cell: 60137H 30ah 2.4V LTO Battery
Items | Parameters |
Rated Capacity | 30Ah |
Nominal Voltage | 2.4V |
Internal Impedance | ≤0.35mΩ, AC 1KHz |
Standard Charge Cut-off Voltage | 2.8V |
Standard Discharge Cut-off Voltage | 1.5V |
Maximum Continuous Charge Current | 4A (120A), 25℃±5℃ |
Maximum Continuous Discharge Current | 6A (180A), 25℃±5℃ |
Maximum Pulse Discharge Current(30s) | 10A (300A, 25℃±5℃ |
Operating Temperature and Humidity Range | Temperature: -40~60℃, Humidity: ≤85%RH |
Recommendations for low temperature use | -20℃~0℃: Charge≤0.5C（15A）Discharge≤1C(30A) -40℃~-20℃: Discharge≤0.5C(15A) |
Storage Temperature and Humidity Range | Temperature:-40~60℃: Humidity：≤85%RH |
Dimension | L151±0.7*φ60.5±0.5mm(Thread) |
Weight | 870.0g±10g |
Cycle Life | 20000 cycles@80%DOD |
Details

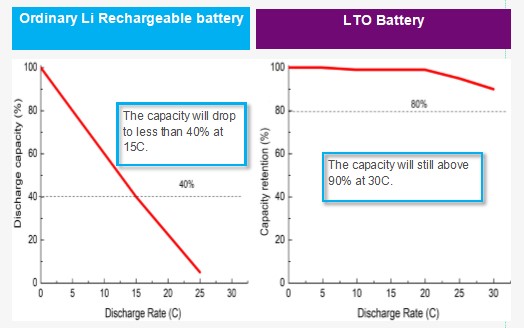

High Rate Performance
The LTO battery is the most safety lithium battery at present. It will not catch fire or explosion under collision, over charged or short circuit.

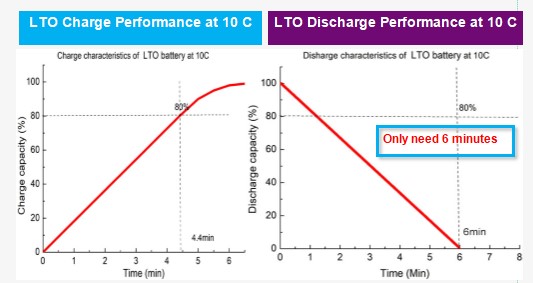

Fast Charge & Discharge Performance
The LTO battery can be used in fast charge and discharge at 8C working environment, it can be fast charged to 80% of full capacity in less than 8 minutes.
Wide Working Temperature Performance
The LTO battery can be normally used from -40℃ to 60℃, it can be widely used in high and cold area, alpine region, refrigeration storage, steel mill etc.

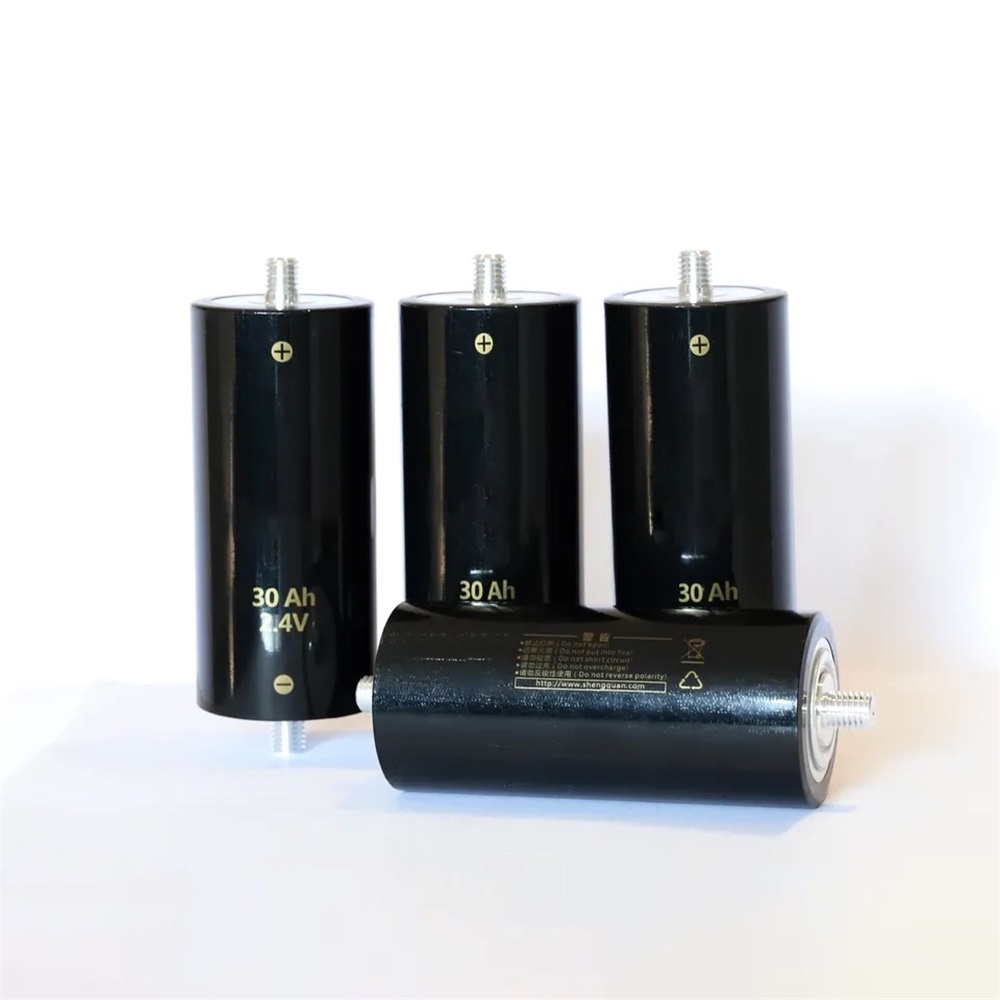

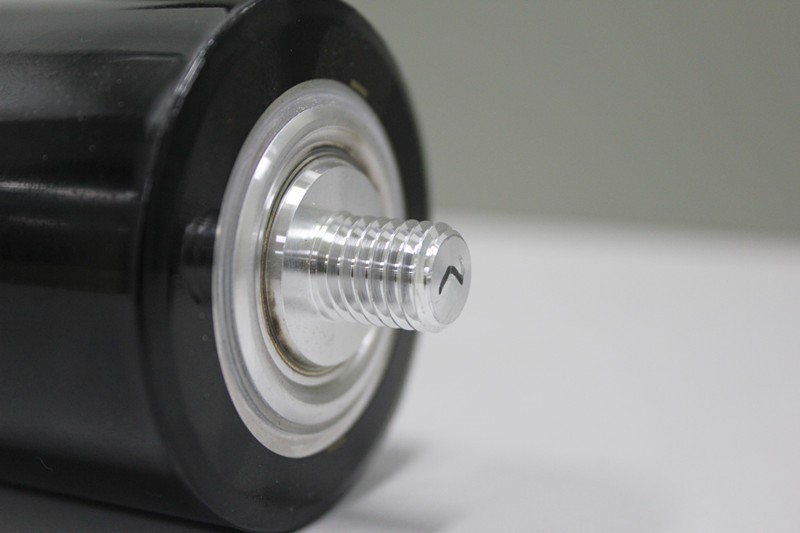

The 60137H 2.4V 30Ah LTO battery has 2 kinds, one is with screw, another without screw. You can select the type depends on your needs.
