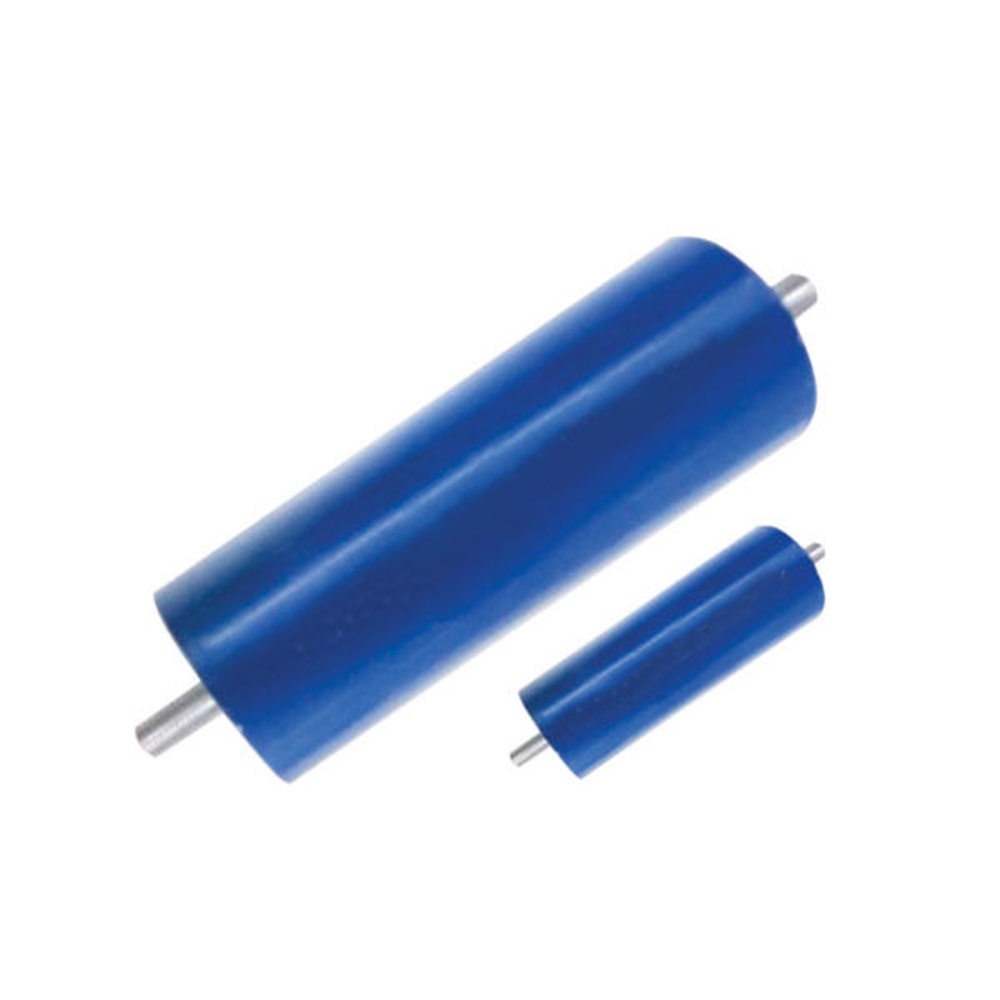

2.3V 30AH Lithium Titanate lto Battery for Sale

we provide 30Ah Lithium Titanate Battery (LTO Battery), pls feel free to contact us if you are interested in the high qualiyt, reliable LTO battery.

Lithium Titanate Battery On Sales

The lithium–titanate battery is a type of rechargeable battery also called LTO Battery, which has the advantage of being faster to charge than other lithium-ion batteries and super long cycle life. Discharg rate of Titanate batteries is very high, as much as 10C.A disadvantage of lithium-titanate batteries is that they have a lower inherent voltage (2.4 V), which leads to a lower specific energy of about 30-110Wh/kg than conventional lithium-ion battery technologies (which have an inherent voltage of 3.7 V). Zhu Hai Yin Long is a leading Lithium Titanate battery producer from China, they have been produced qualified Lithium Titanate Battery since 2015 and becoming Number one Lithium Titanate Battery producer all over the world.A lithium–titanate battery is a modified lithium-ion battery that uses lithium-titanate nanocrystals on the surface of its anode instead of carbon. This gives the anode a surface area of about 100 square meters per gram, compared with 3 square meters per gram for carbon, allowing electrons to enter and leave the anode quickly. This makes fast recharging possible and provides high currents when needed.

Advantage of Lithium Titanate Battery:

1. faster charging: 10mins fully charged

2. high discharge rate: as much as 10C-15C

3. wide working temperature range: -50°C ~ 65°C

4. super long cycle life:  over 30,000 times

lithium lto titanate



At this moment  we provide 30Ah Lithium Titanate Battery (LTO Battery), they are produced by Yinlong, largest LTO battery proudcer in China and also the Number one Lithium Titanate Battery all over the world. the battery have been widely used in electric bus in China and the electric bus had been running over 7 years without any problem. they provide 8 year warranty and the LTO battery can work over 10 years.

We have hundreds of 30Ah LTO battery in stock and provideing them at reasonable price, pls feel free to contact us if you are interested in the high qualiyt, reliable LTO battery.


Specifications


No

Item

Parameter Specification

1

Battery Module

EVL-LTO-30AH

2

Battery Type

Lithium Titanate Battery

3

Nominal Capacity

30Ah

4

Nominal Voltage

2.3 V

5

Internal Resistance

≤1mΩ

6

Charging(CC-CV)

Maximum Charging Current

10C

Charging Upper Limit Voltage

2.8V

7

Discharging

Maximum Discharging Current

10C

Discharging Cut-off Voltage

1.5V

8

Charging Time

Standard Charging

0.5h

Quick-acting Charging

0.2h

9

Operation Thermal Ambient

Charging

-50°C ~ 65°C

Discharging

-50°C ~ 65°C

10

Storage Thermal Ambient

Short-term (within 1 month)

-20°C ~ 45°C

Long term  (within 1 year)

-20°C ~ 20°C

11

Storage Humidity

< 70%

12

Battery Weight

1.1kg

13

Battery Dimension

66 x 160 mm

14

Cycle Life

30,000 times
