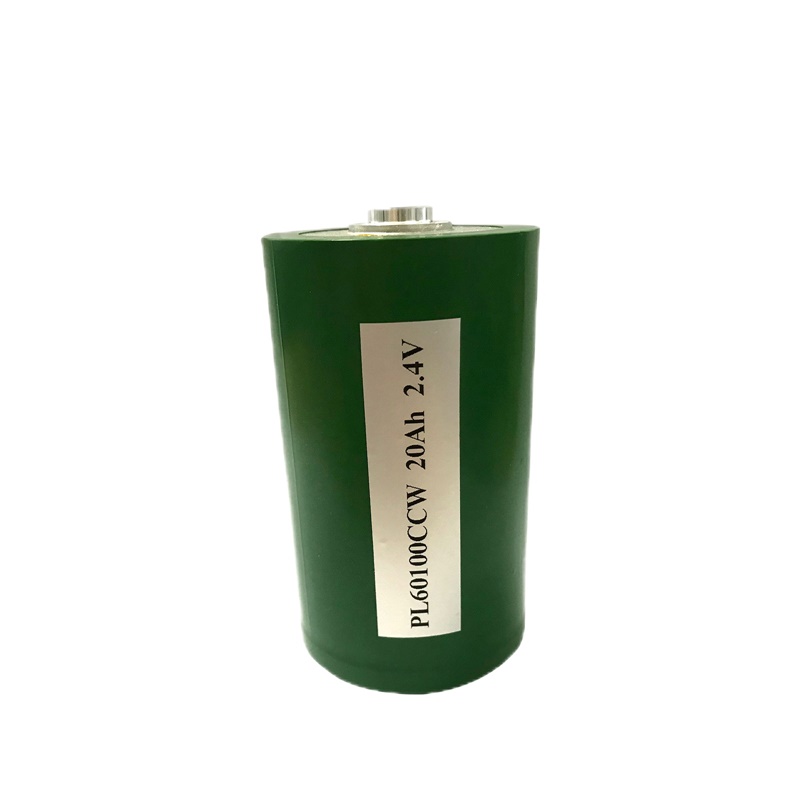

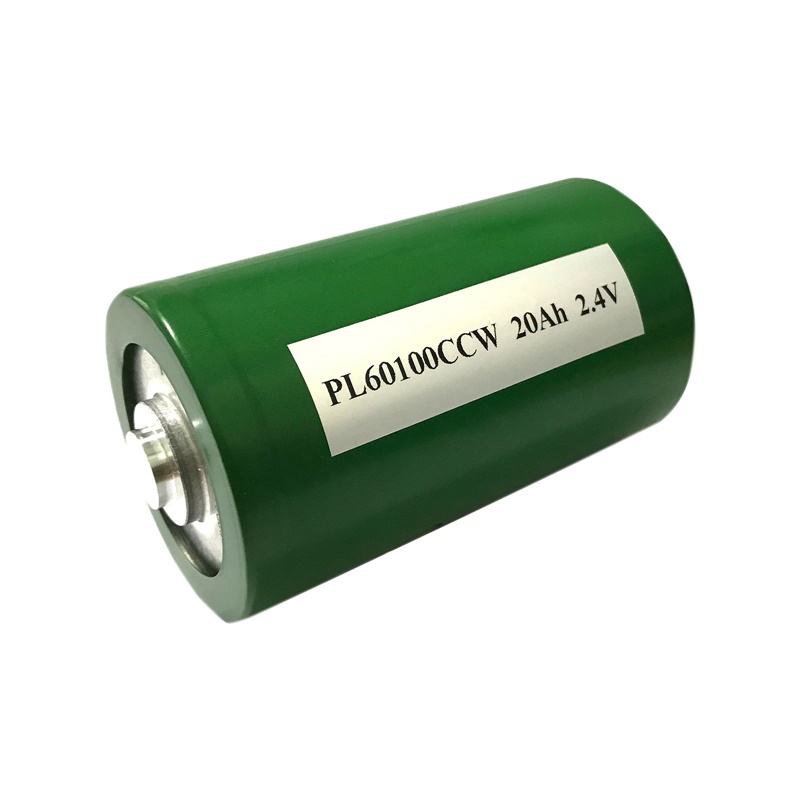

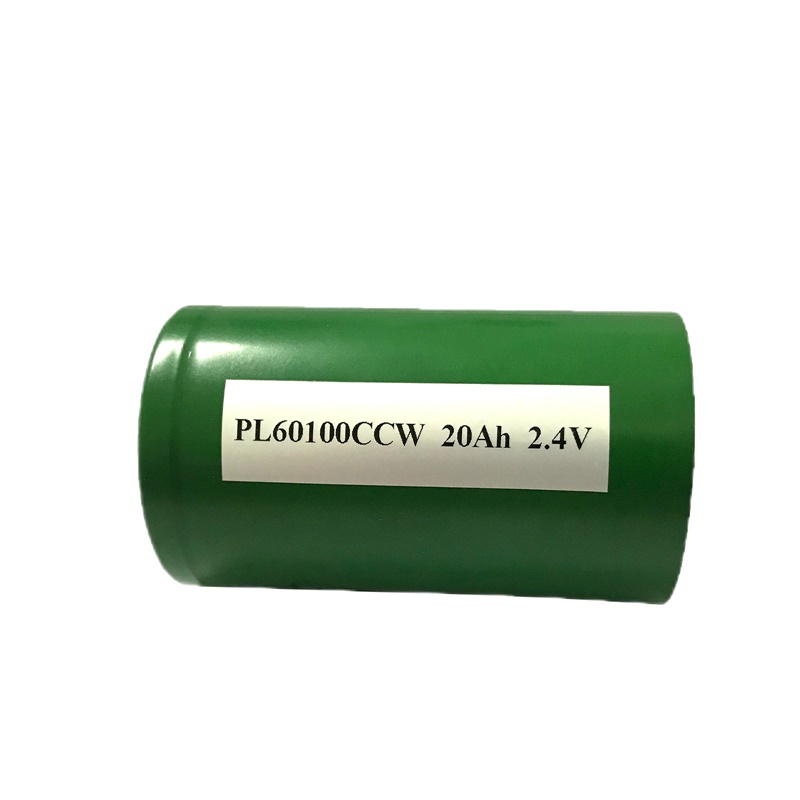

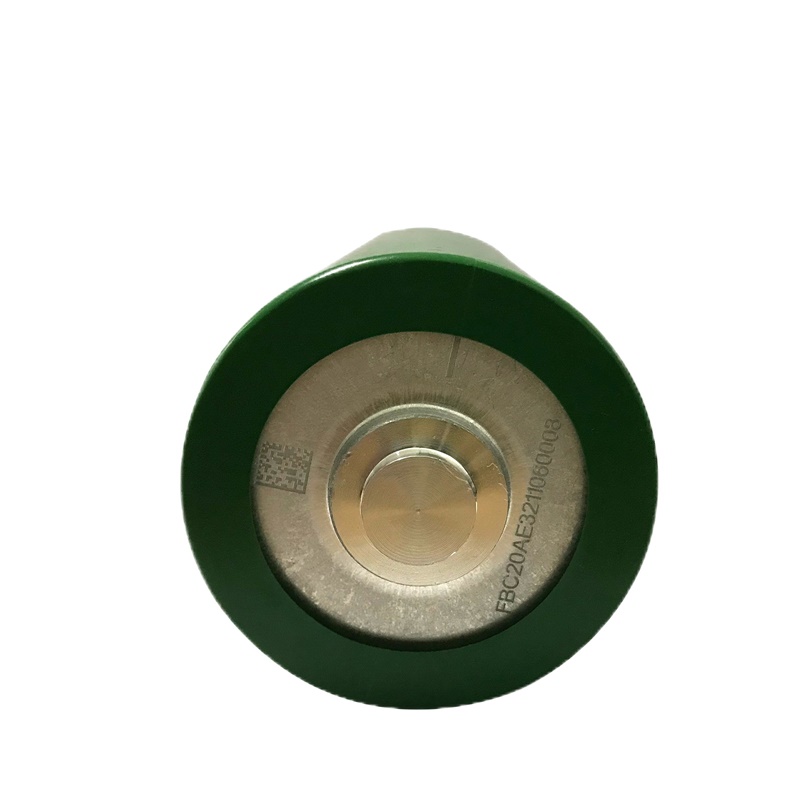

2.4V 20Ah 60100 Cylindrical LTO Battery cell
2.4V 20Ah 60100 Cylindrical LTO Battery cell
2.4V 20Ah 60100 Cylindrical LTO Battery cell
2.4V 20Ah 60100 Cylindrical LTO Battery cell

2.4V 20Ah 60100 Cylindrical LTO Battery cell

2.4V 20Ah 60100 Cylindrical LTO Battery cell wide operating temperature range, high charge/discharge rate, super-long cycle life of more than 10000 times

Unleash the power of the Energy Beast 2.4V 20Ah Cylindrical LTO Battery Cell, a true marvel in energy storage. With a wide operating temperature range, high charge or discharge rate, and a super-long cycle life exceeding 10,000 times, this battery is your ticket to reliable and sustainable energy.


Key Features

Voltage: 2.4V

Capacity: 20Ah

Type: Cylindrical LTO Battery Cell

Operating Temperature: -55℃~+60℃

Cycle Life: Over 10,000 times

Charge/Discharge Rate: 4C/20C(30C peak)


Specifications


ItemsParameters
Nominal voltage2.4V
Nominal capacity20Ah@1C
Energy density75Wh/kg
Max. charge current4C
Max. continuous discharge current20C
Max. peak discharge current30C
Internal resistance0.35mΩ
Minimum charge/discharge temperature-40℃/-50℃
Operating temperature range-55℃~+60℃
Storage temperature range-55℃~+65℃
Cycle life10000cycles @room temperature
Dimension60*102mm
Weight640g
TerminalsLaser welding/thread
