Lithium Titanate LTO Cylindrica 18650 2.4V 1300mah Battery Cell

Lithium Titanate LTO Cylindrica 18650 2.4V 1300mah Battery Cell with super long cycle life, wide operating temperature range and high discharge rate for sale

Lithium Titanate LTO Cylindrica 18650 2.4V 1300mah Battery Cell

This lto 18650 battery cell is of cylindrical lithium titanate cell which is composed of positive and negative electrode, separator, electrolyte and metal case etc.


Cell Specification


No.

Item

Parameters

Remark

1

Appearance

Consistent with appearance

 inspection standard

There should be no

such defects as flaw,
crack, rust, leakage, which may
depreciate the commercial

value of cell.

2

Nominal Capacity

1.3Ah

1C room temperature≥1.3Ah

3

Nominal Voltage

2.4V

1C discharge platform

4

Internal Impedance

≤18mΩ

Internal resistance measured at

 AC 1kHz after 50% charged.

5

Standard Charge Cut-off
Voltage

2.8V


6

Standard Discharge Cut-off

Voltage

1.5V


7

Maximum Continuous Charge Current

5I1(6.5A)

25℃±5℃

8

Maximum Continuous
Discharge Current

10I1(13A)

25℃±5℃

9

Operating Temperature
Range

Temperature:-40~60℃

Humidity:≤85%RH

Recommended charge/discharge

current ≤0.5 I1

 (0.7A), when cell temperature is

 lower than 0℃,

Recommended cool the
cell, when cell temperature is

higher than 50℃.

10

Storage Temperature Range

-5℃~28℃

Recommend(25±3℃)

≤90%RH storage moisture range.

11

Weight

41.0g±1g


12

Cycle Life

≥10000 cycles(80%DOD)

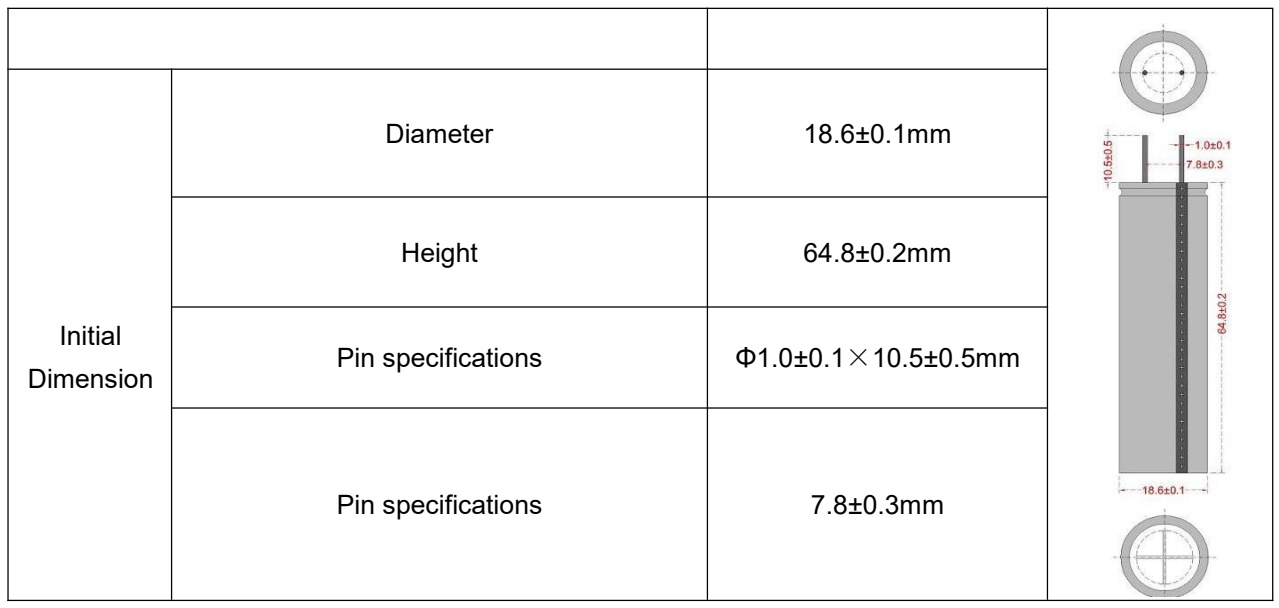

Cell Size

dimension

It can be used for led lighting, electric tools electric toy, energy storage, digital technology.

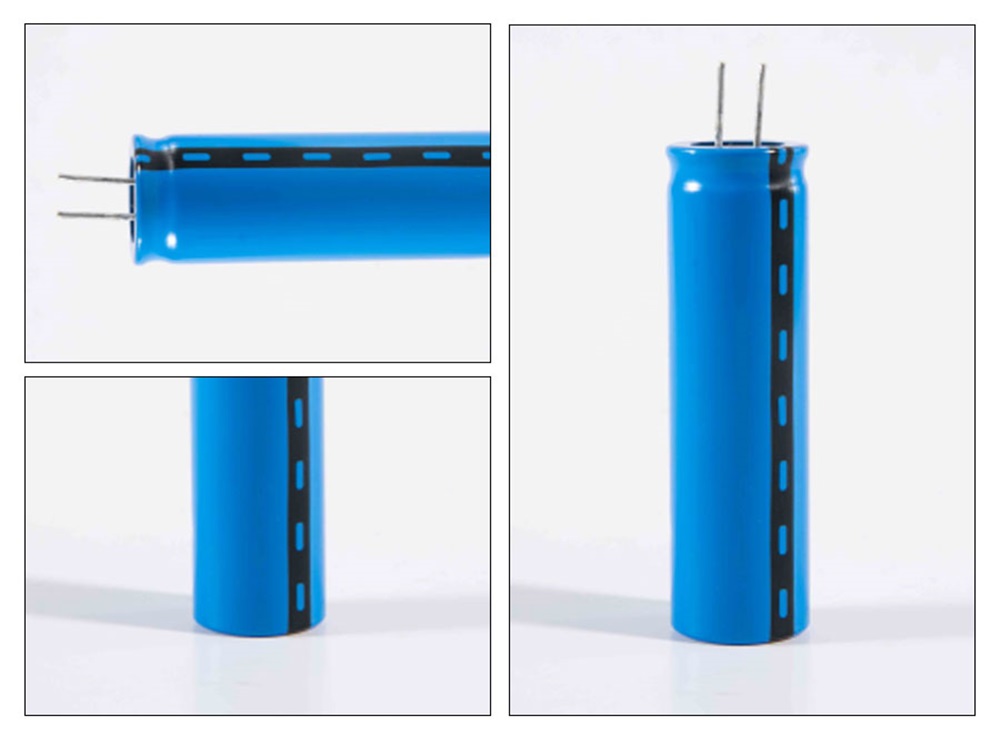

details

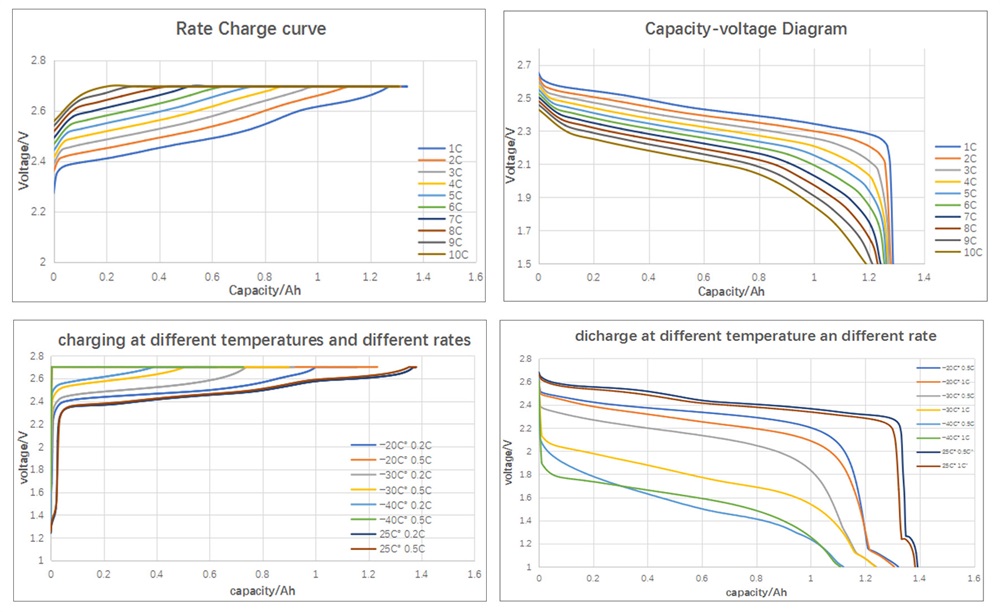

curve


Period of Warranty and Product Liability

Warranty period of this product is 180 days from manufacturing code. We guarantee to give a replacement in case of cells with defects proven due to the manufacturing process instead of abuse and misuse by the customers,  otherwise, the company are not promised free replacement.

Storage

The cell shall be stored in the clean and dry ventilation room at the temperature of -5℃~28℃ and shall be kept out of fire or heat and avoid touching corrosion elements. The cell should be stored with 10%~30% charged condition. We recommend that cells should be charged about once per half a year to prevent over-discharge.

Shipment Requirement

The cell should be packed in cartons under the condition of 30%SOC and at the temperature of -5℃~ 28℃ charged for shipment. The violent vibration, impaction or squeezing should be avoided in the transport process; Avoid to be exposed to the sun and rain. The cells shall be shipped by normal transportation such as by road, by train, by ocean or by air.
