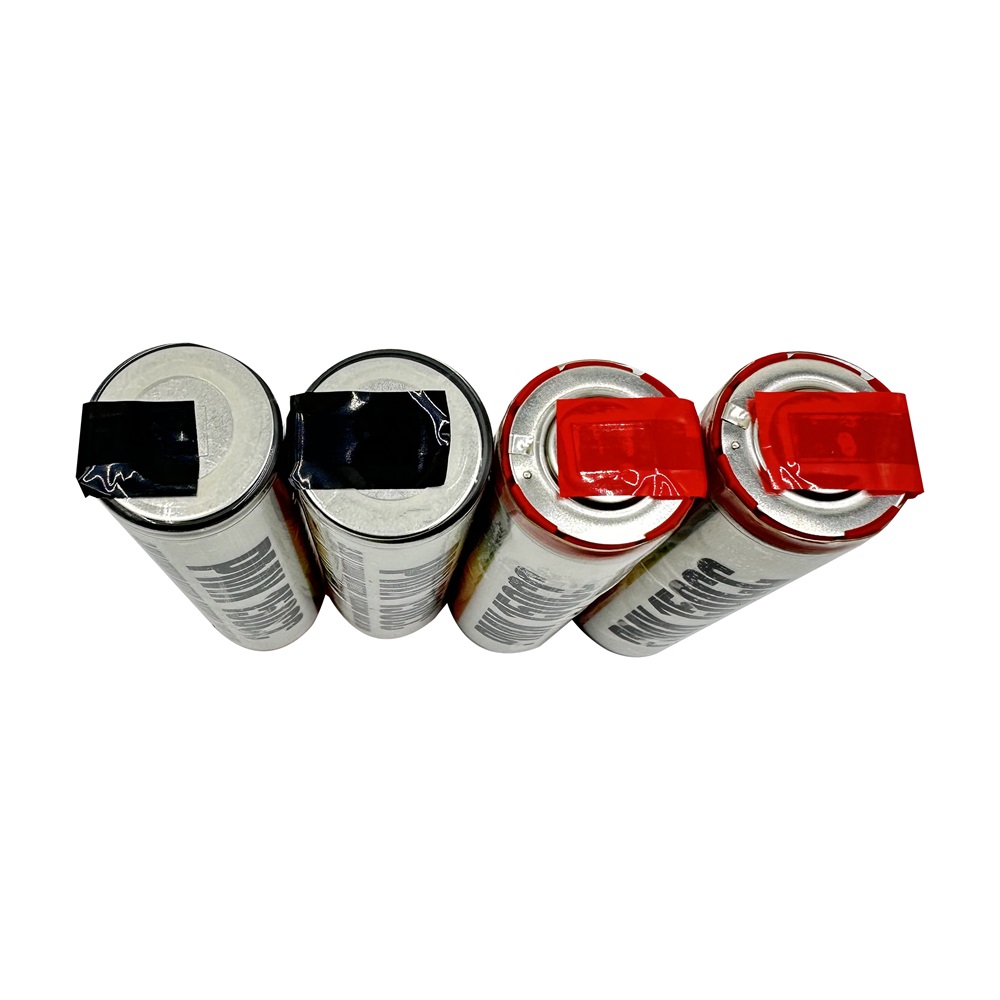

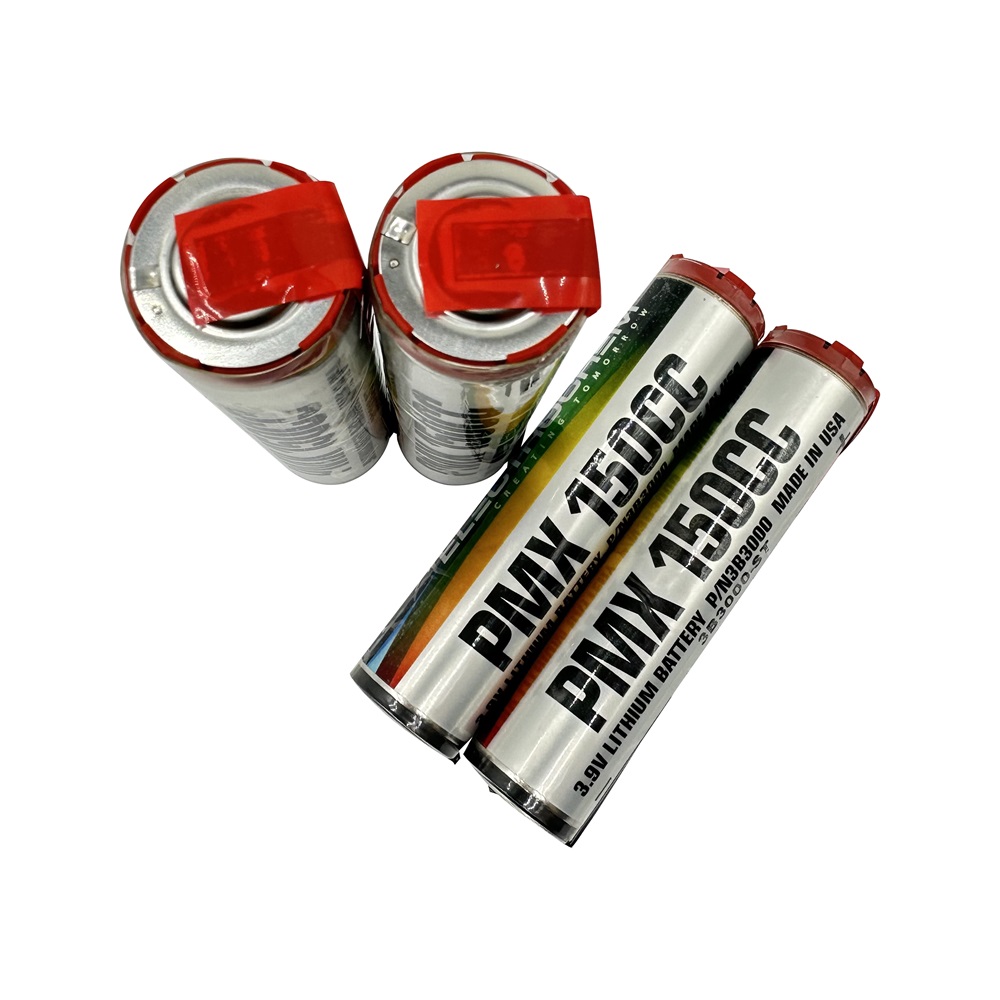

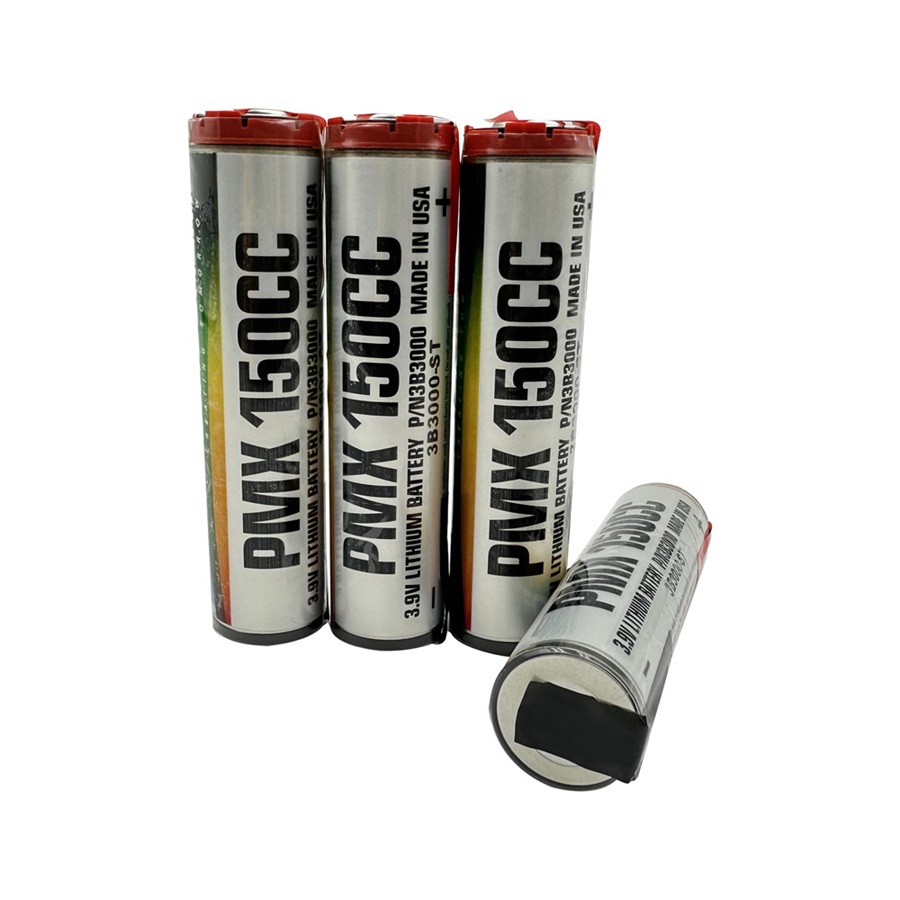

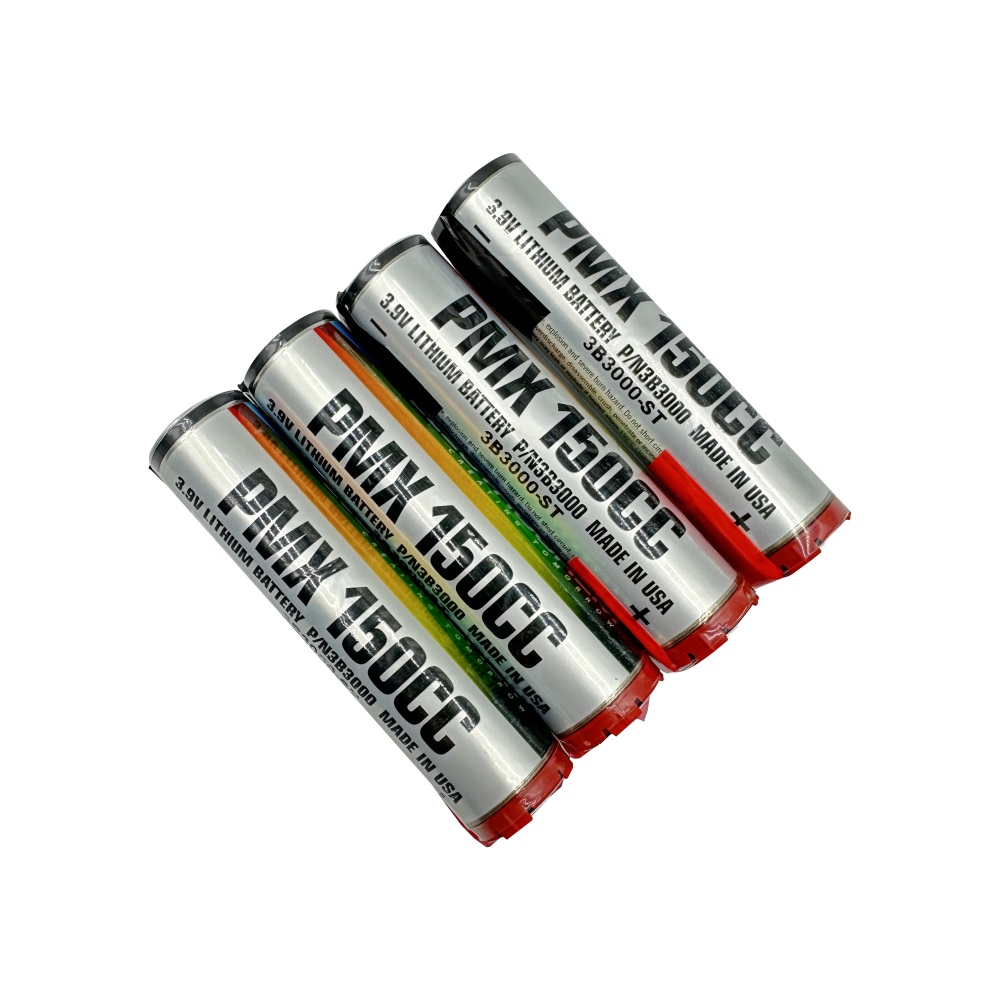

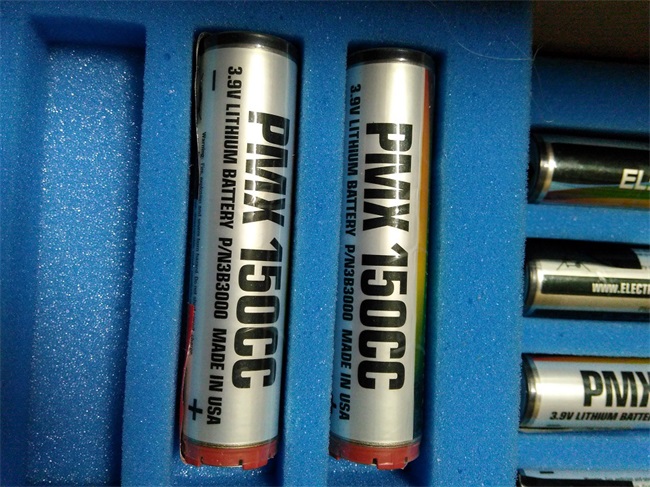

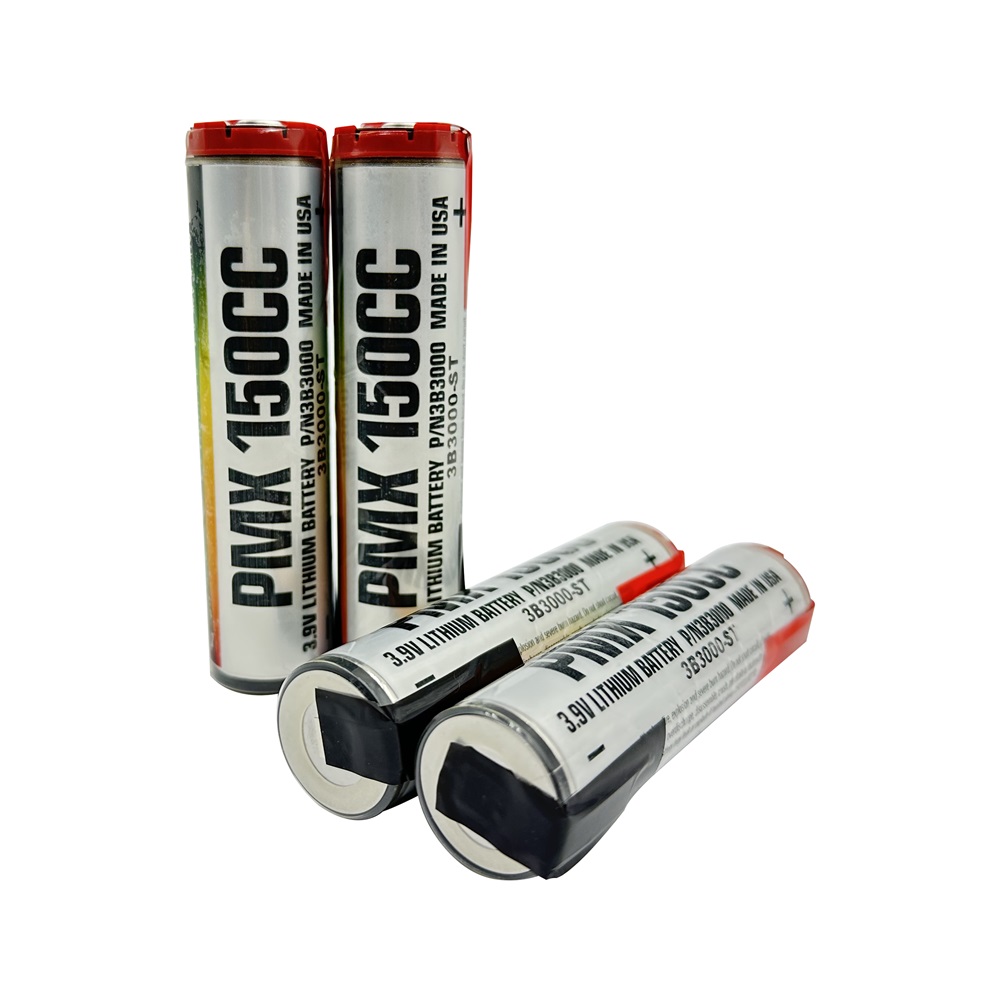

PMX150CC 3B3000 high temperature and rate cylindrical lithium sulfuryl chloride battery

Lithium battery PMX150 CC 3B3000 Large capacity high rate high temperature resistant cylindrical sulfuryl chloride lithium battery.

PMX150CC 3B3000 cylindrical lithium damper Yl chloride battery can be used at high temperatures of 150 degrees and in harsh environments. High performance, high reliability, large capacity lithium battery, mainly used in high/low temperature, and other harsh environment, such as aerospace, aviation, communications, oil, natural gas underground, oil (gas) pipeline automatic monitoring; Marine survey: Earthquake detection: GPS tracking and satellite positioning system, remote sensing and telemetry technology.


PMX150CC 3B3000 High temperature lithium battery


Product performance

• The temperature range can reach -55 ℃, up to 200℃

• Withstand mechanical impact up to 3000g

• Resistant to vibrations up to 20grms

• High energy density 15 watts. Per cubic inch per hour

• Capacity up to 40Ah

• Current The rated current of a single battery can reach 4A, and the peak current can reach 7A


Key Features

• Primary chemistry (non-rechargeable)

• High rate capability

• Advanced spiral-wound technology

• Stainless steel container

• Hermetic glass-to-metal sealing

• Wide operating temperature range as low as -20oC

and up to +150oC

• Low self-discharge rate (3% per year at 25oC)

• Restricted for transportation (Class 9)

• Custom terminations available


Specification


Parameter

Specification

Open Circuit Voltage (25℃)

3.9V

Rated Discharge Current

50mA

Rated Capacity

13Ah

Maximum Continuous Current

500mA

Cell Diameter (nominal)

24.8 mm (0.975 in.)

Cell Length (nominal)

104.1 mm (4.10 in.)

Cell Weight

101g

Lithium Weight

4.2 g

Safety Fuse

3A

Self Discharge

3% per year at 25℃

Operating Temperature

-20℃to +150℃

-4℉to +302℉

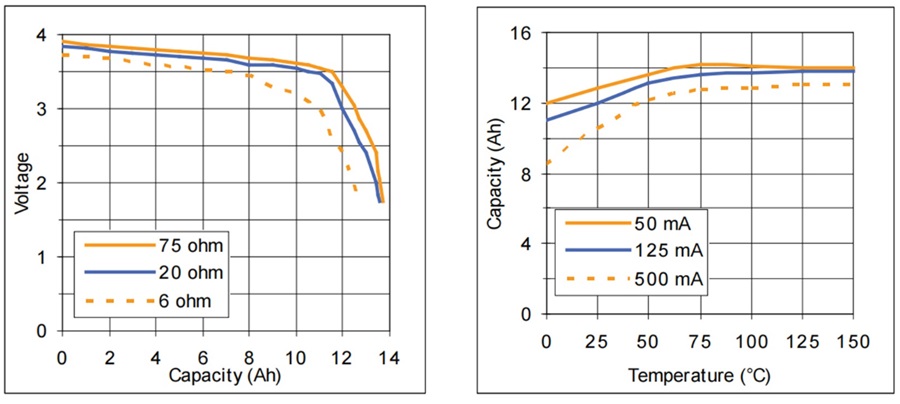

Product Curve Graph



7479a782341fa0b3b249033ed4f5f84 拷贝.jpg

150℃ discharge

※ Capacity as a function of current and temperature


Main Applications

• Military communications

• Oceanographic buoys and gliders

• Tracking systems

• Sensor systems

• Pipeline inspection gauges

• Beacons, transponders and receivers

• Seismic surveying birds
