3.0V 10Ah NaCR33140-MP10 Sodium Ion Battery For Sale
3V 10Ah 33140 Sodium Ion Battery 3000 Cycles High-Performance Na Ion Battery For Sale
- Category: Sodium Ion Battery
- Tag: sodium ion battery
The 33140 sodium ion cell provided by energyx technology adopts the layered oxide sodium ion battery technology, Using safe, long life, pollution-free, cost-effective sodium ion battery design, high life, more than 3000 cycles, DOD > 80%, suitable for electric tools, household energy storage, base stations, two-wheeled vehicles, low-speed vehicles, etc. This 32140 sodium ion cell internal resistance ≤18mΩ, high energy conversion efficiency and fast charging and discharging.
Feature
1. High Energy Density: sodium-ion battery 33140 boasts an impressive energy density of 120 Wh/kg, making it an ideal choice for electric power systems where space and weight are crucial considerations.
2. Long-Lasting Performance: With a capacity of 10Ah, this sodium-ion battery provides reliable and consistent performance, ensuring a stable power supply for various applications.
3. Environmentally Friendly: As a sodium-ion battery, it offers a more eco-friendly alternative to traditional lithium-ion batteries, reducing the environmental impact of energy storage and usage.
4. User-Friendly Compatibility: this product can be customized to meet specific user requirements, ensuring seamless integration with various electric power systems.
5. Durable and Long-Lasting: With a robust design and high-quality materials, the sodium-ion battery 33140 is built to last, providing a long lifespan and minimizing maintenance needs.
Specifications
Item | Specifications | ||
Content | Standards | Remarks | |
Nominal capacity @4.0~2.0 V | 10.0 | Ah | 0.5C discharge @ 25 ℃ |
Rated voltage | 3.05 | V | |
AC internal resistance | ≤ 3 | mΩ | AC 1 kHz, 3.2 V |
DC internal resistance | ≤ 10 | mΩ | 2C 30 s, 3.2 V |
Battery weight | 270 ± 5 | g | |
Battery size | Diameter: Φ33.2 ± 0.2 Height: 140 ± 0.3 | mm | Form size |
Charge cut-off current | 500 (0.05C) 1000 (0. 1C) | mA | T > 0 ℃ T ≤ 0 ℃ |
Discharge cut-off voltage | 2.0 | V | Could discharge to 0 V |
Standard continuous charge current | 5000 | mA | 0.5C |
Maximum continuous charge current |
30000 |
mA | 3C CC to 4 V Charge capacity > 90% Temperature rise < 20 ℃ |
Standard continuous discharge current | 5000 | mA | 0.5C |
Maximum continuous discharge current |
30000 |
mA | 3C CC to 2 V Discharge capacity > 90% Temperature rise < 20 ℃ |
Energy density | ≥ 110 | Wh/kg | |
Dimension and Details
Product Curve

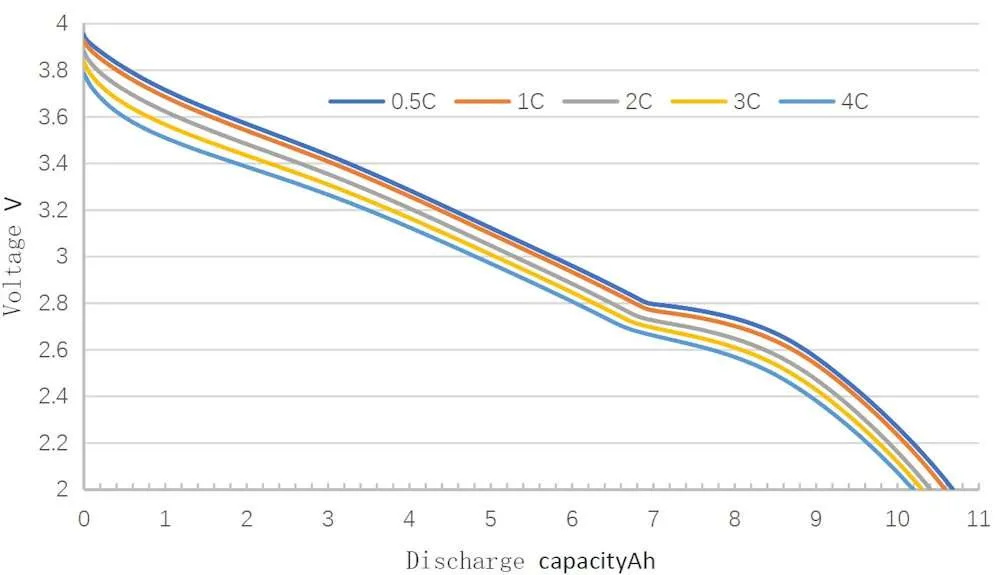

Charge and discharge open circuit voltage curve and Battery capacity curve
Product Cycle Life

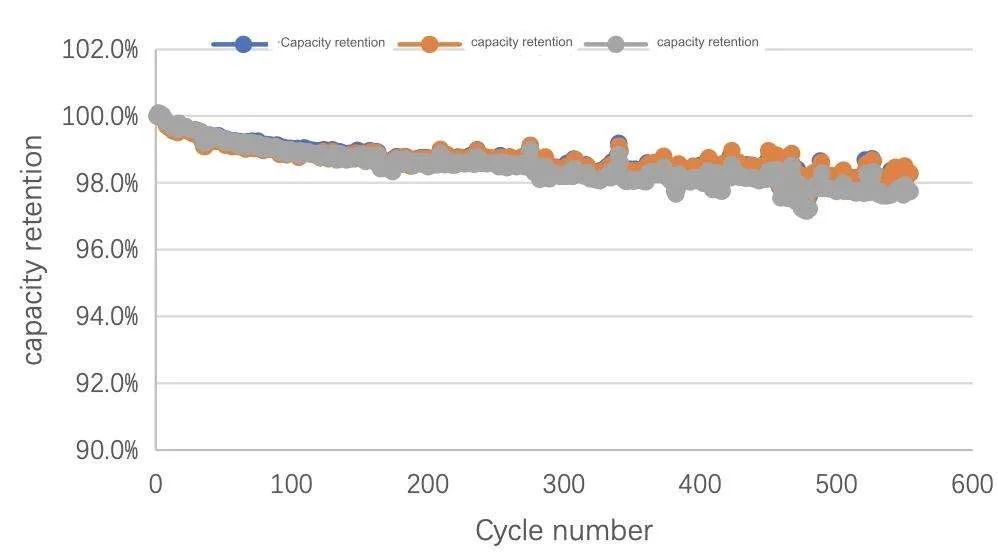

0.5C charge / 0.5C discharge
Under the condition of 25°C±5°C, 0.5C constant current constant voltage charge to 3.95V, 0.5C discharge to 2.0V, and the capacity retention rate is 98% after 500 cycles

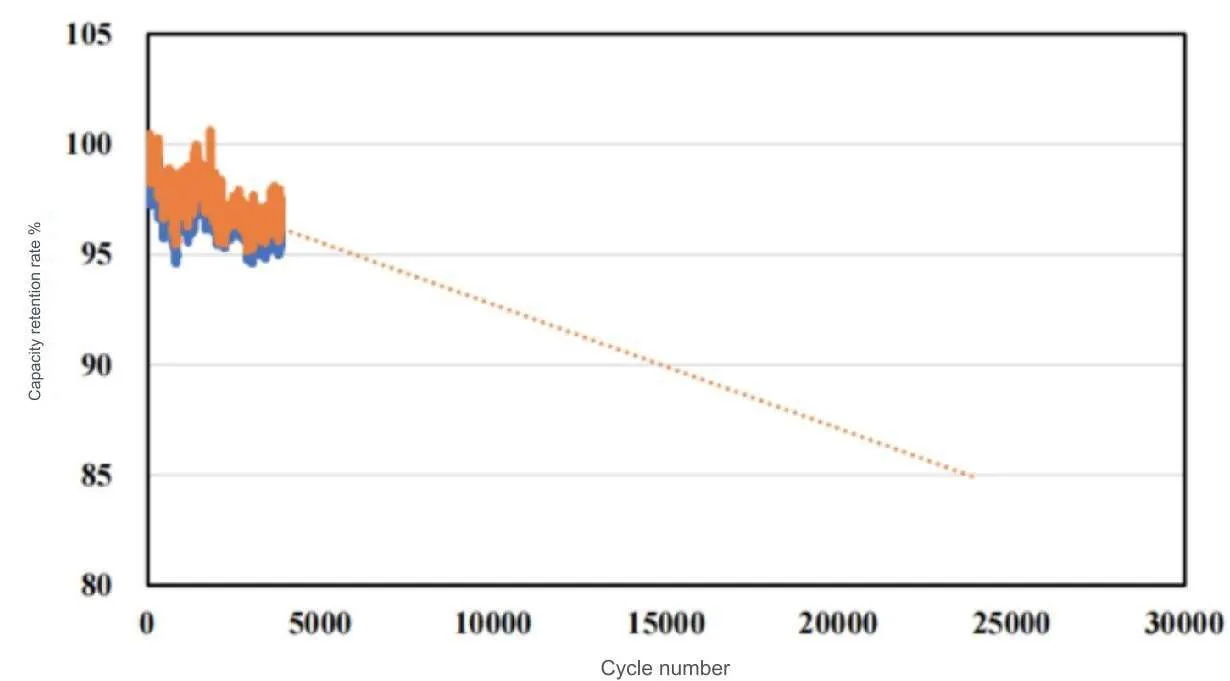

2C charge to 90% DoD / 2C discharge
Charge to 3.80V (90% DOD) at 2C constant current, 25°C ± 5°C, discharge to 2.0V at 2C, after 3850 cycles, the capacity retention rate is 96%, and the life expectancy of 80% SOH is >25,000 cycles

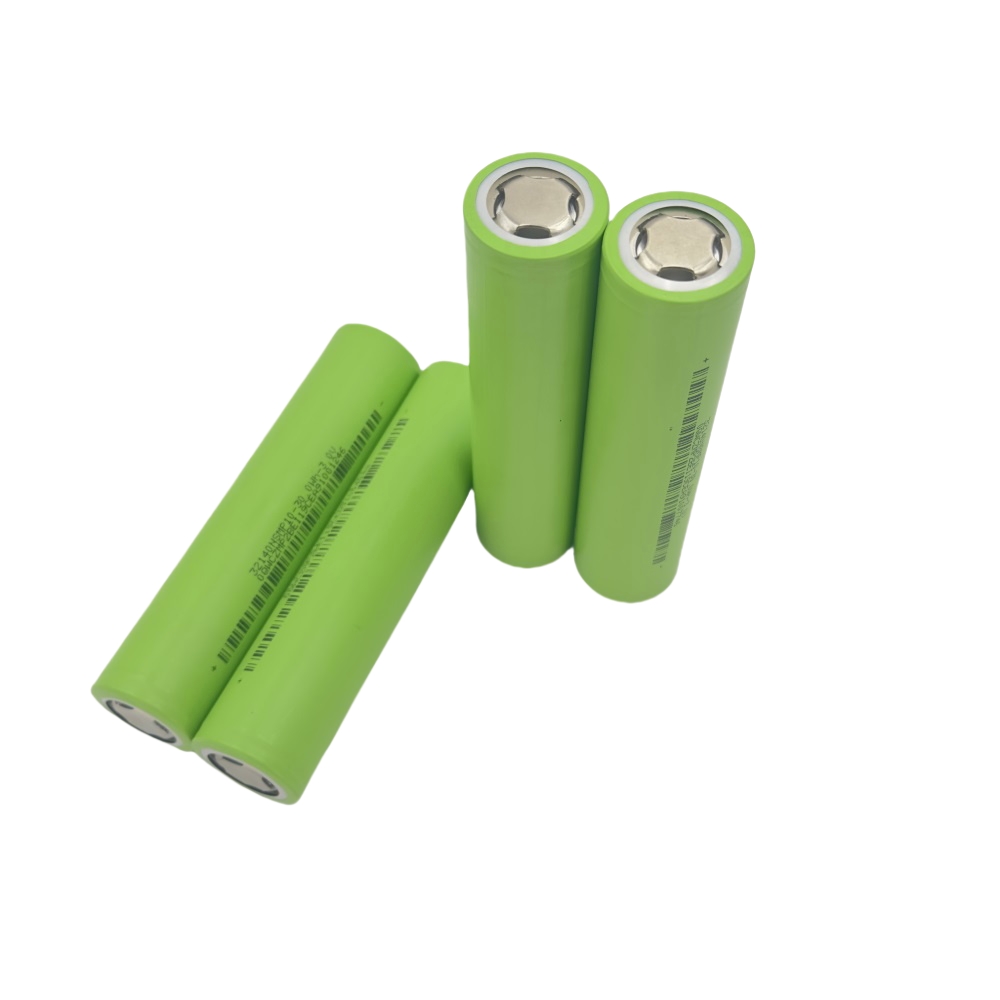

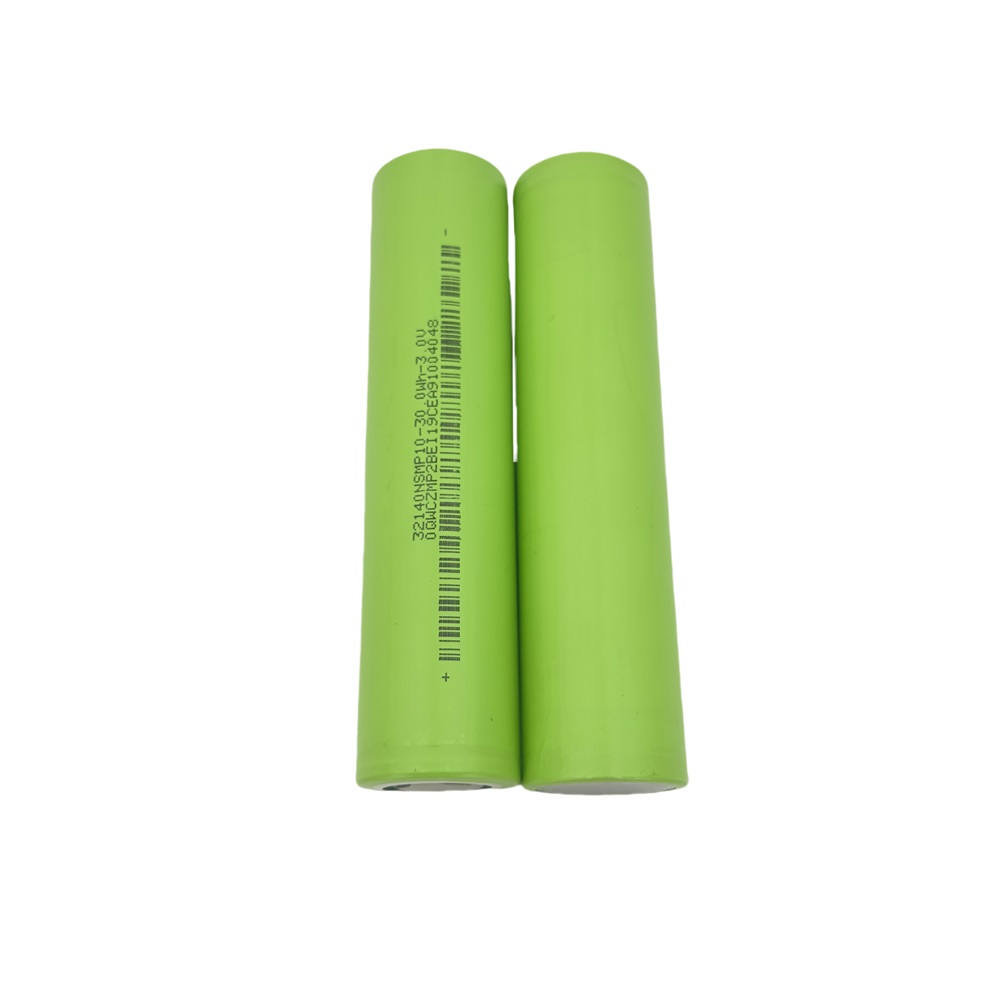

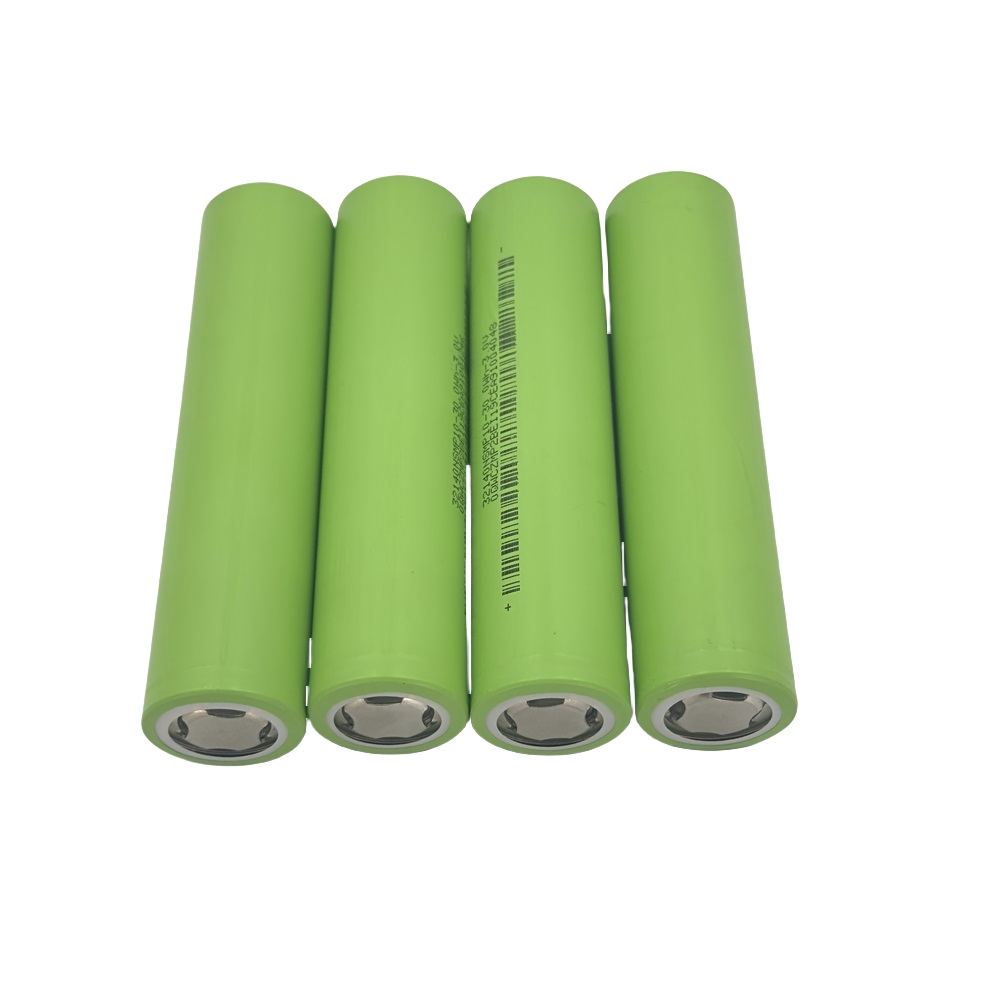

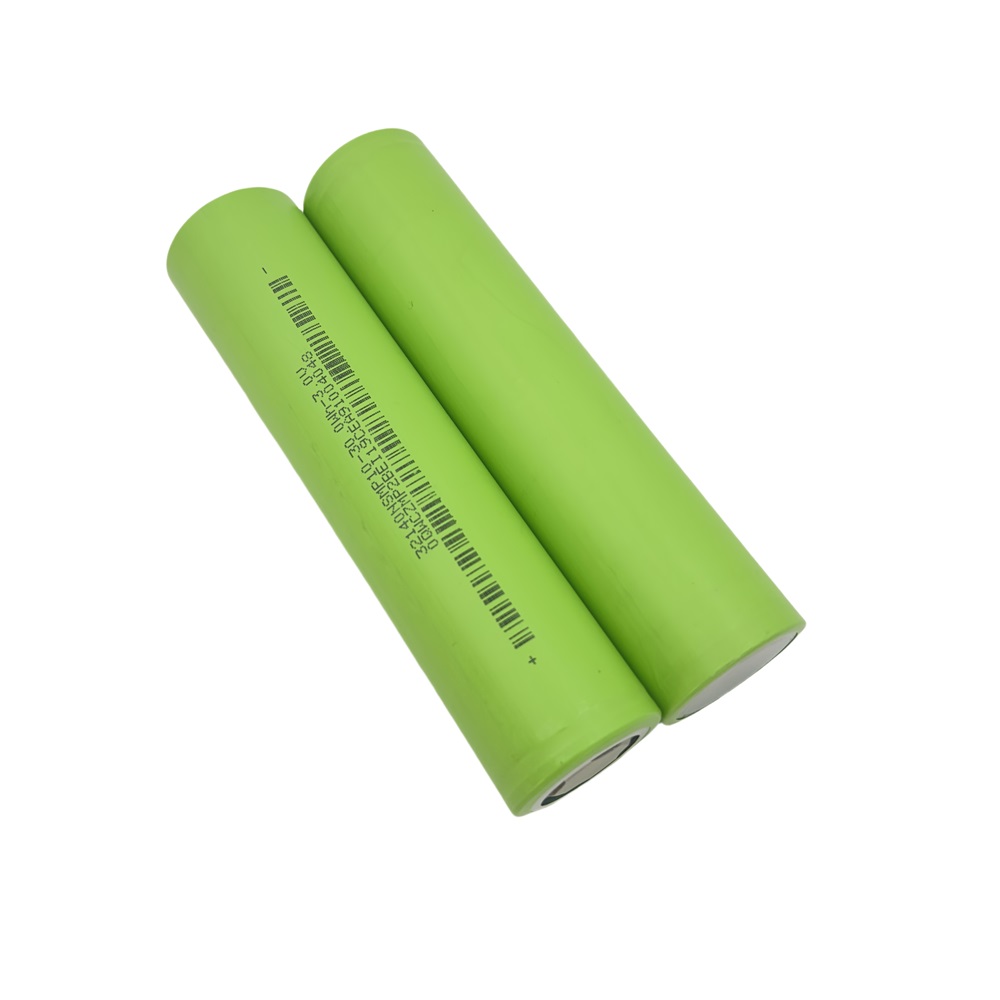

Actual Product Shooting

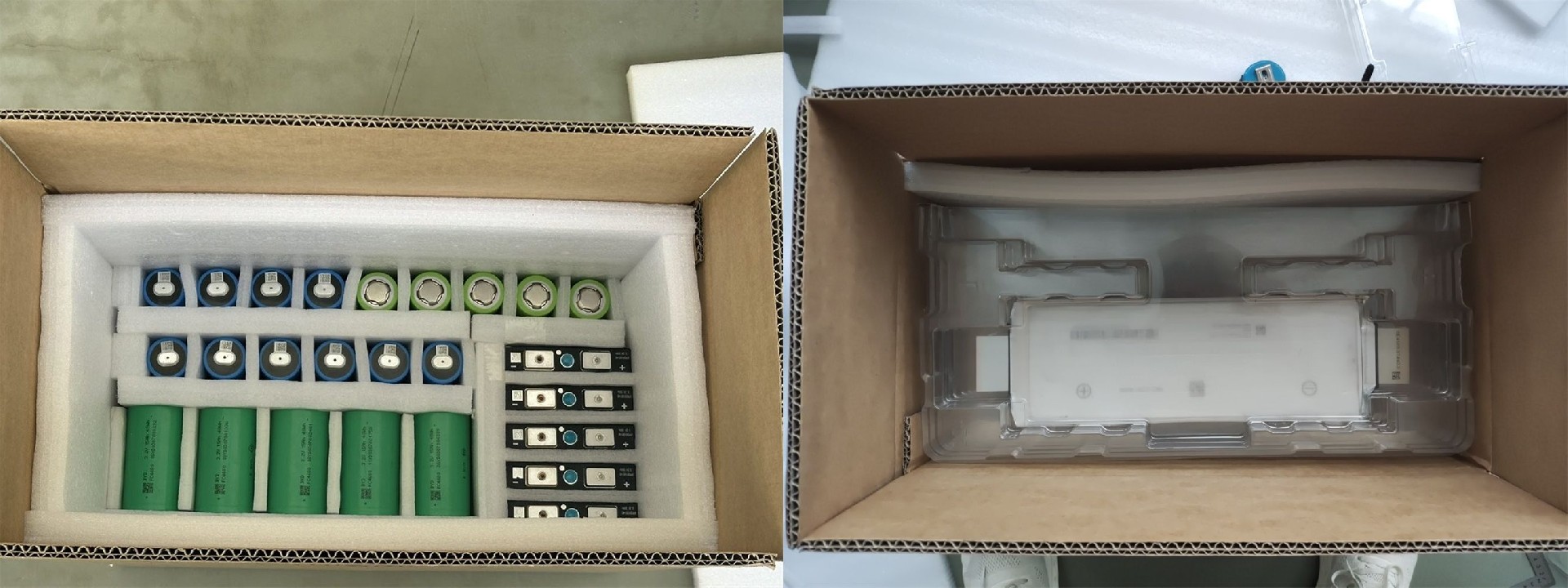

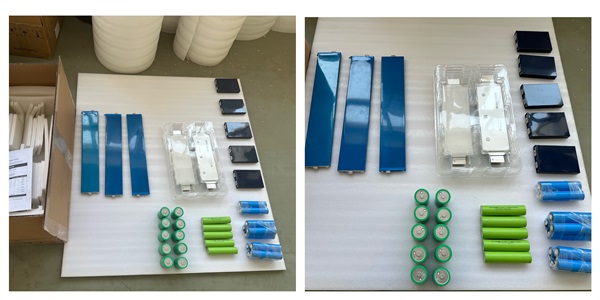

Customers Order Packaging
Slovenian customers ordered a batch of products for measurement, including a 3.0v 10ah NaCR33140-MP10 sodium ion battery

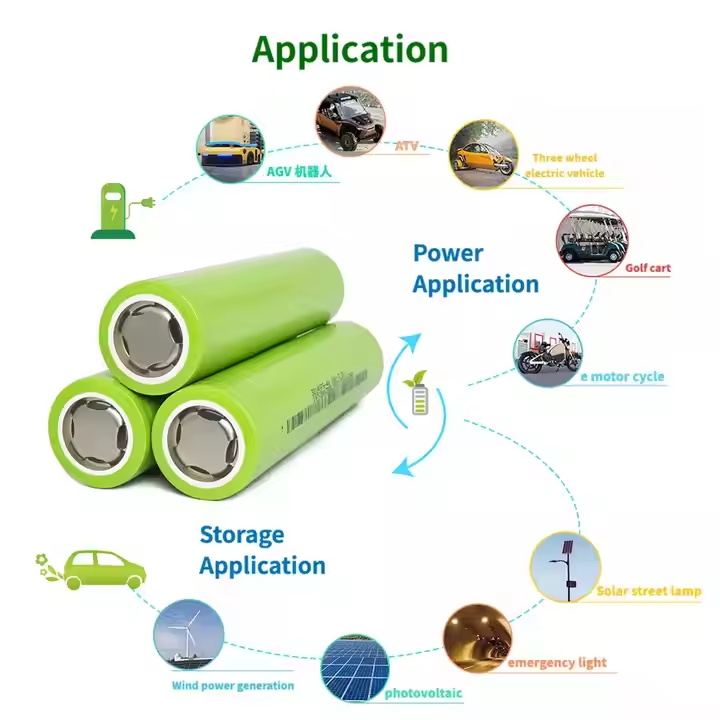

Applications
Used in power and energy storage two fields. Including Three wheels electric while, Golf carts, e motorcycles, AGV robots, etc
