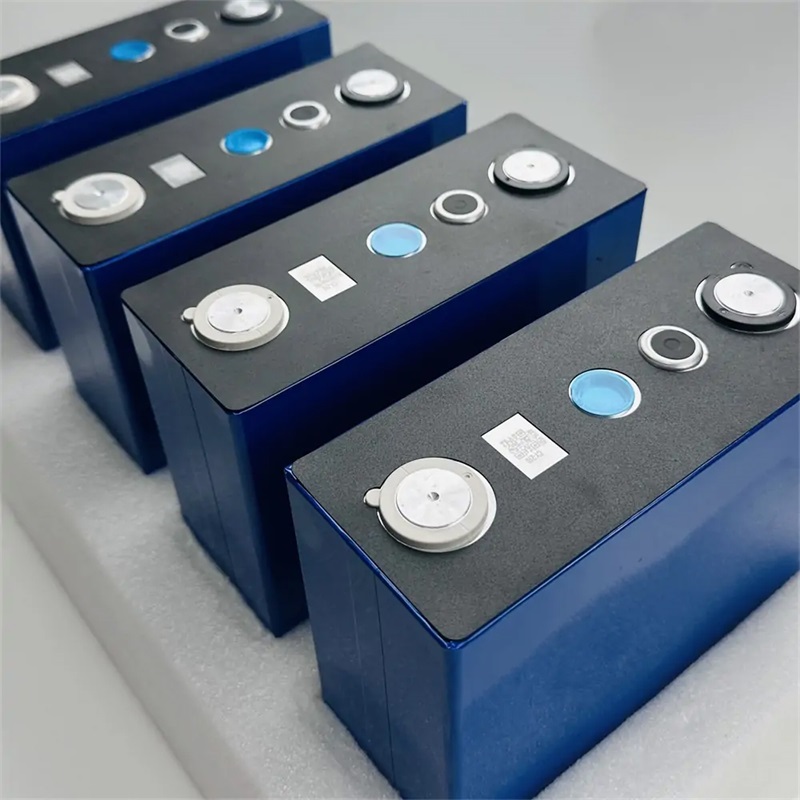

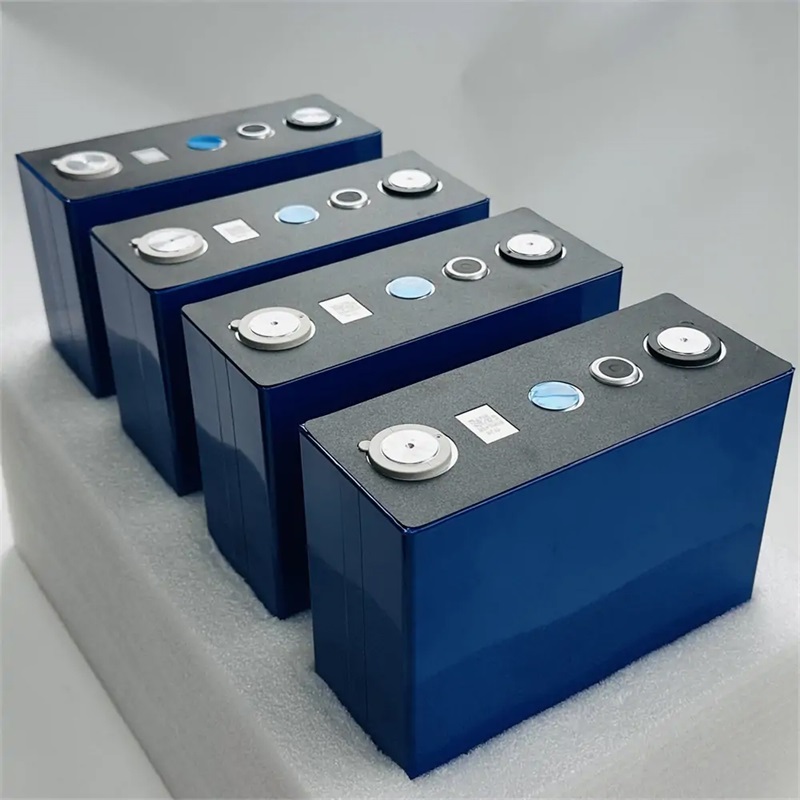

3.1V 210ah Sodium ion prismatic battery cell
3.1v 210ah sodium ion prismatic cell with high safety, excellent low & high operating temperature performance and long cycle life
- Category: Sodium Ion Battery
Advantages of sodium-ion batteries:
Abundance: Sodium is more abundant and cost-effective compared to lithium, potentially reducing manufacturing costs.
Environmental Impact: They might have a lower environmental impact due to the abundance of sodium resources and potentially reduced ecological footprint.
Safety: Sodium-ion batteries could offer improved safety features compared to some other battery types.
Potential for Grid Storage: Suited for grid storage applications due to their cost-effectiveness and suitability for stationary energy storage.
Specifications:
Item | Specification |
Nominal Capacity | 210Ah@0.50C at 25.0±3.0℃ environment |
Typical Capacity | 215Ah@0.50C at 25.0±3.0℃ environment |
Nominal Voltage | ≈3.10V |
Upper Voltage Limit | 3.95 ±0.05 V |
Lower Voltage Limit | 1.50 ±0.05 V Dischargeable to 0Vwithout impact on battery performance |
DC Internal Resistance | ≤0.50mΩ |
Battery Dimensions | Length: 173.60±0.50mm Thickness: 71.25±0.50mm Height: 203.70±0.50mm |
Energy Density | ≥140.00Wh/Kg |
Battery Weight | 4.70 ±0.50kg |
Storage Temperature (Charged at Shipment) |
-20～60℃, well-ventilated and light-shielded
|
Temperature and Charging Performance | ≤-20℃ ： Battery performance affected when in use -20~0℃ ：≤0.20C 0~45℃ ：≤0.50C ≥ 45℃：Battery performance affected when in use |
Temperature and Discharging Performance | ≤-40℃ ： Battery performance affected when in use -40~0℃ ：≤0.50C 0~45℃ ：≤0.50C 45~60℃：≤0.50C ≥60℃： Battery performance affected when in use |
Instant Maximum Discharge Current | Instantaneous Current： 3.00C, Duration： ≤30s |
Maximum Continuous Discharge Current | Continuous Current： 1.00C Discharge temperature rise ≤15℃ |

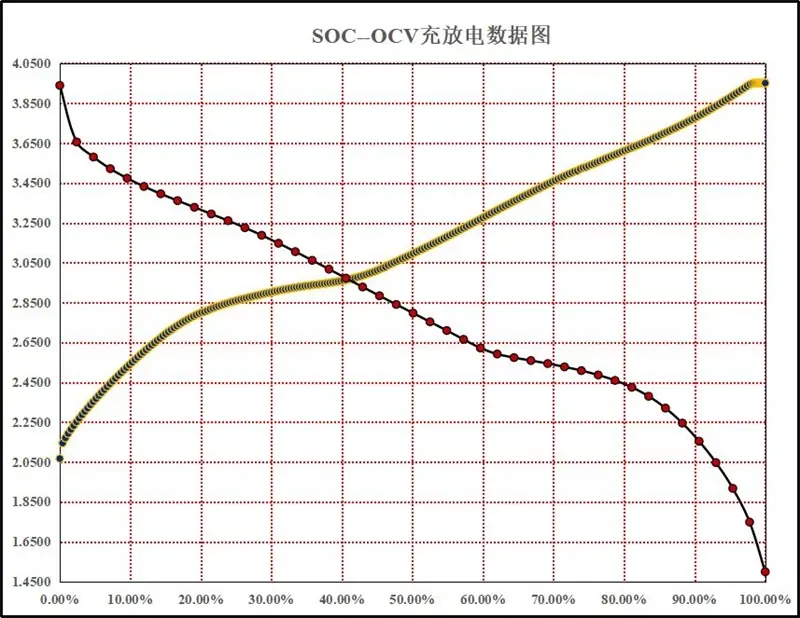

Charge and Discharge Data Graphs
Packaging and Shipping
Round sodium-ion batteries are shipped at an SOC of 20% to 30% of their nominal capacity or as per customer requirements. The remaining capacity before charging after shipping depends on storage conditions and storage time.

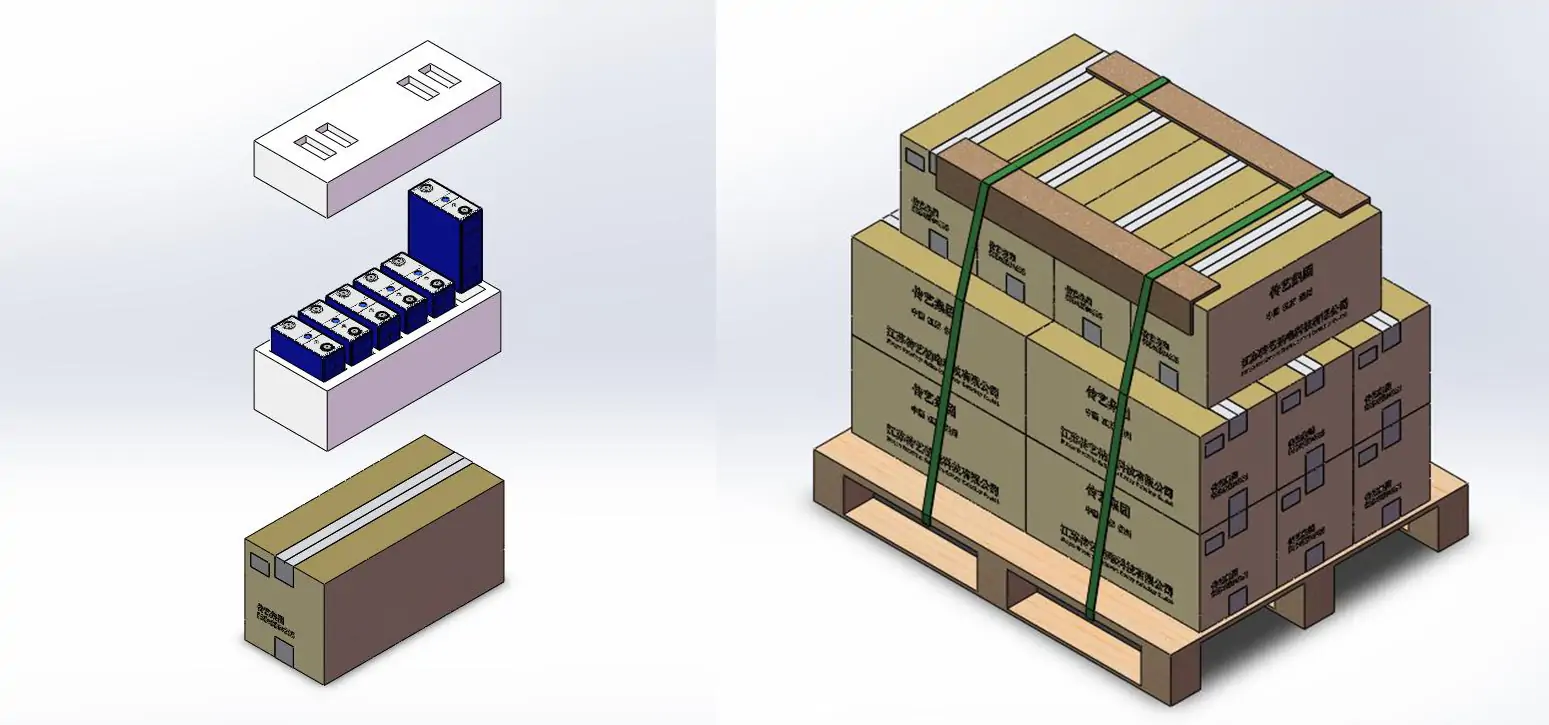

Each small box is configured with slots to hold 6 batteries. Each large box contains 1 small box, sealed and labeled. Each pallet is organized into 3 layers, with 6 large boxes on the 1st and 2nd layers, and 4 large boxes on the 3rd layer. The total maximum number of batteries per pallet is limited to 100.
